Camshaft Position Sensor: Testing and Inspection




CAMSHAFT POSITION (CMP) SENSOR MALFUNCTION

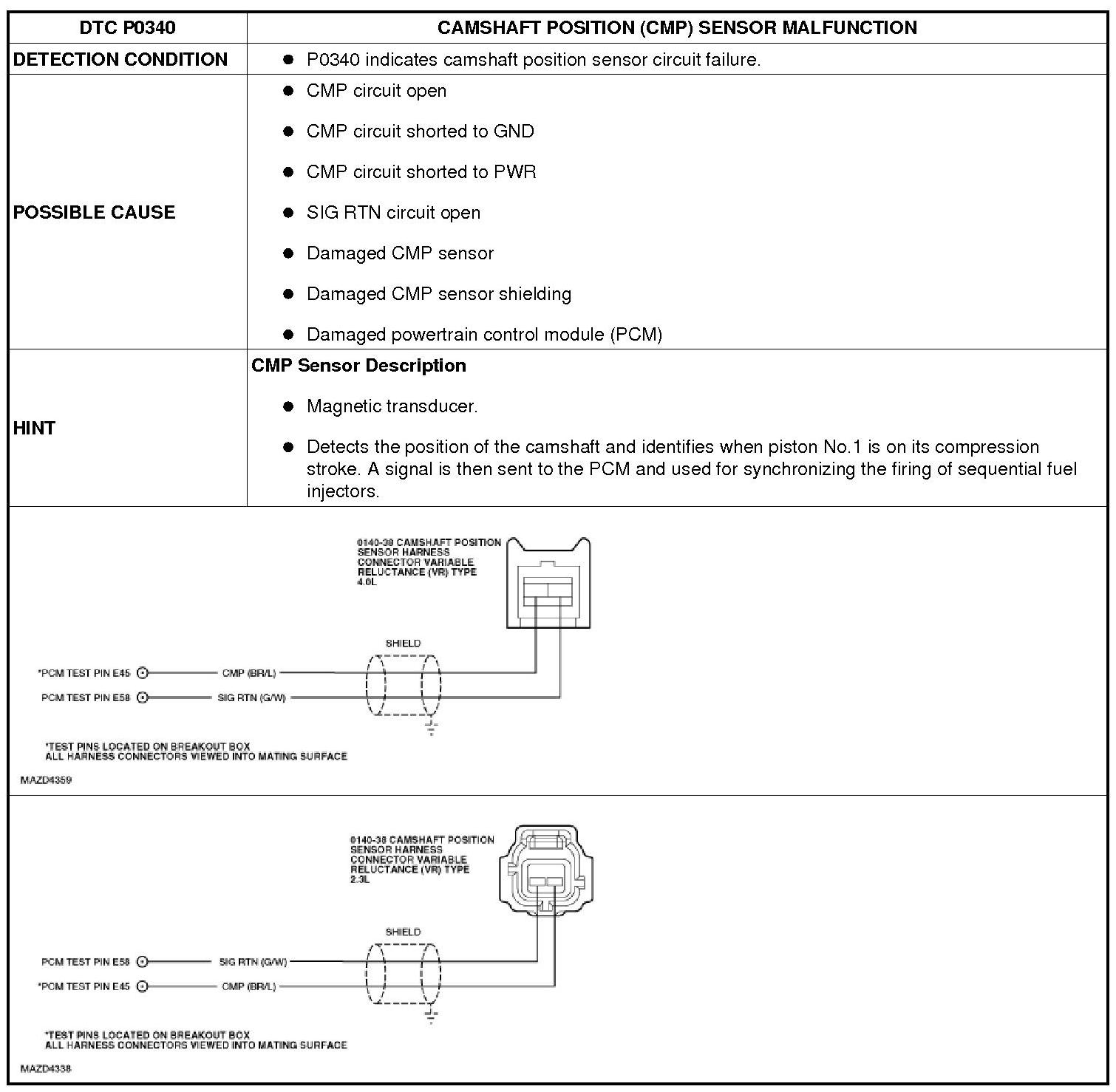

Detection Condition/Possible Cause:

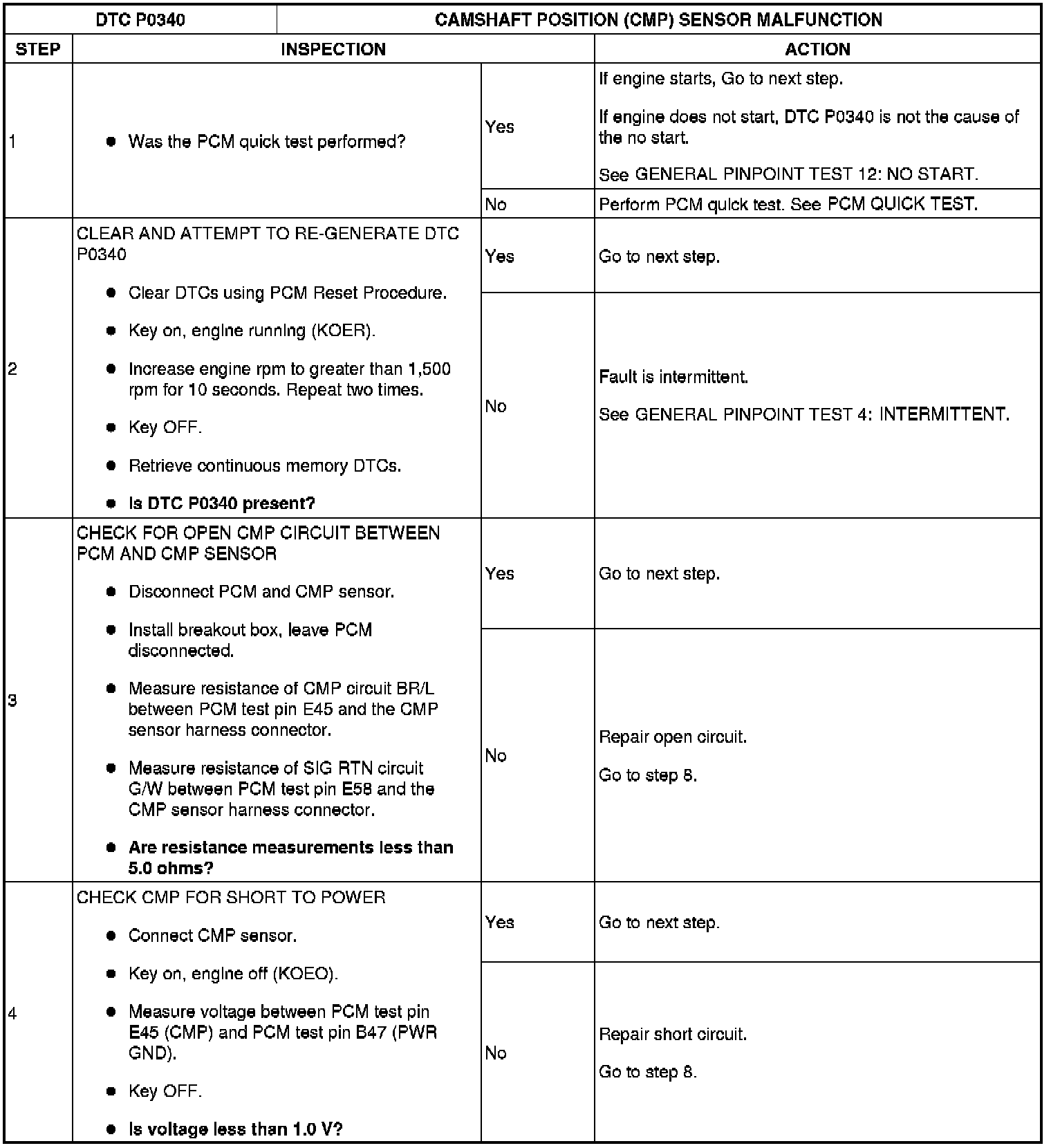

Step 1-Step 4:

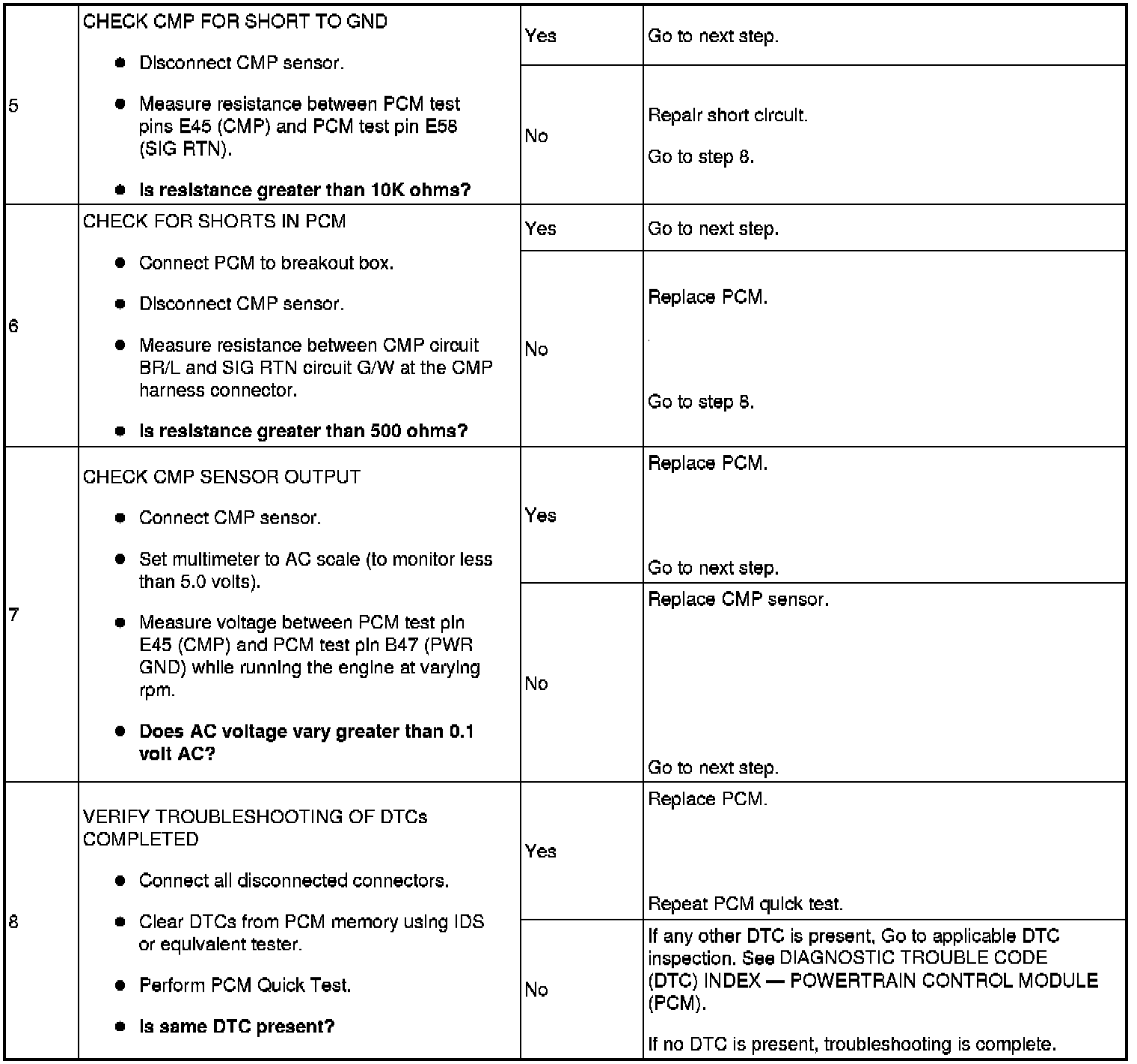

Step 5-Step 8:
