Differential Assembly
>>
Axle Structural View Rear (Standard)
Axle Structural View Rear (Standard)

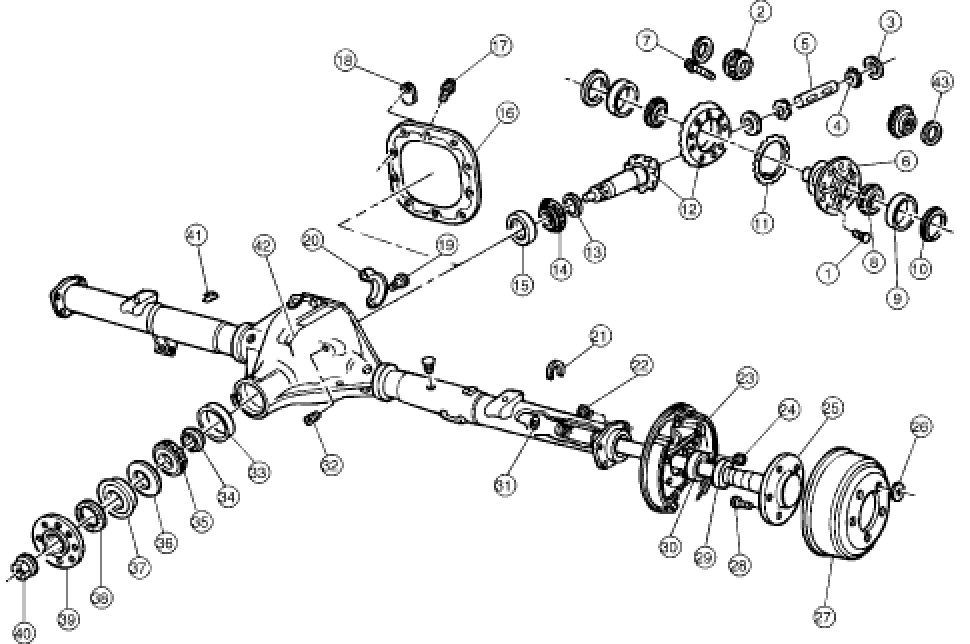

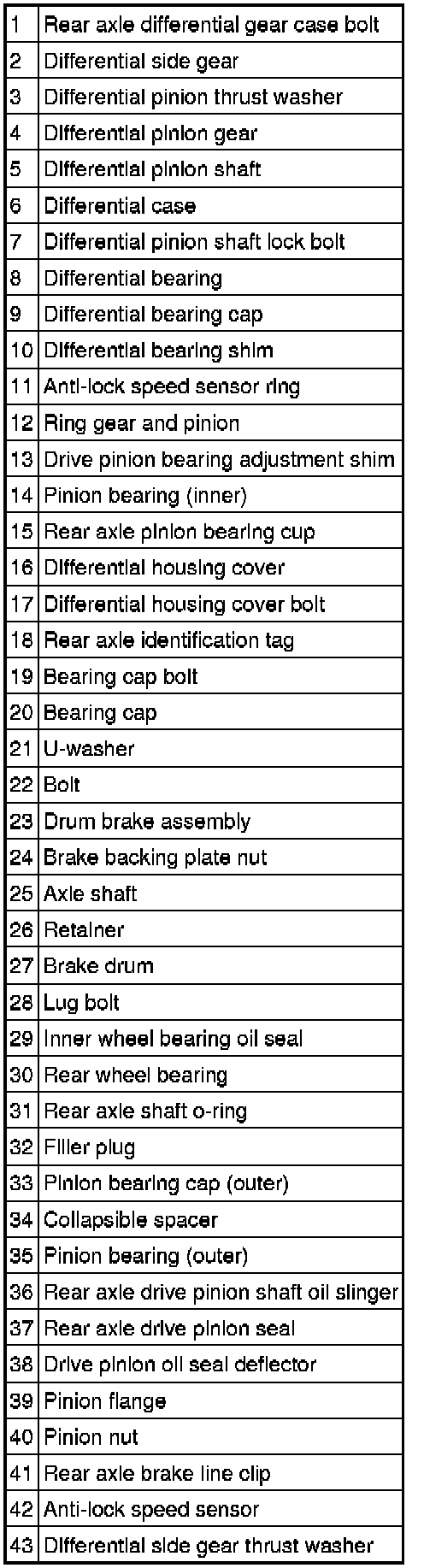

AXLE STRUCTURAL VIEW REAR (STANDARD)
