A/C Compressor Cycling Switch
A/C Compressor Cycling Switch

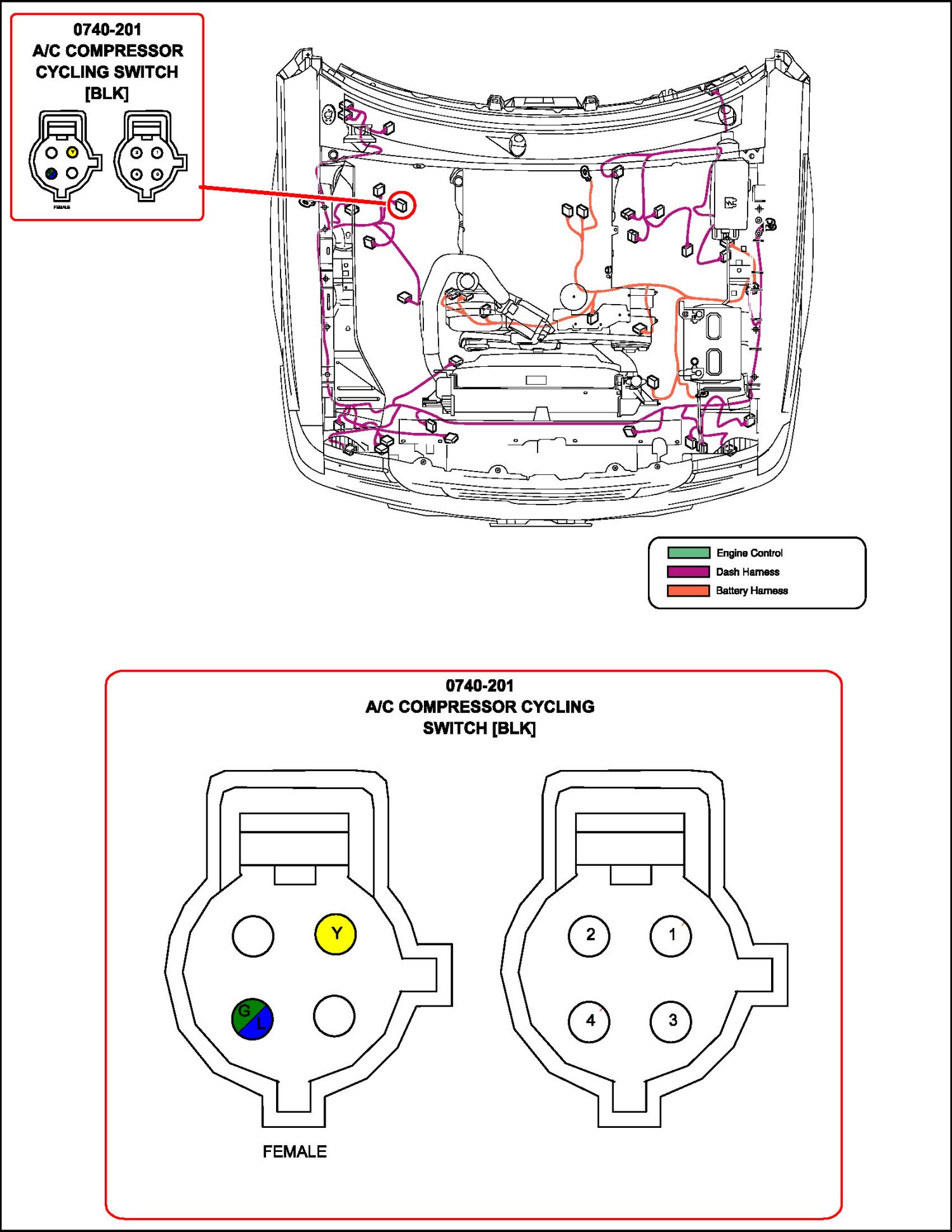

A/C Compressor Cycling Switch:

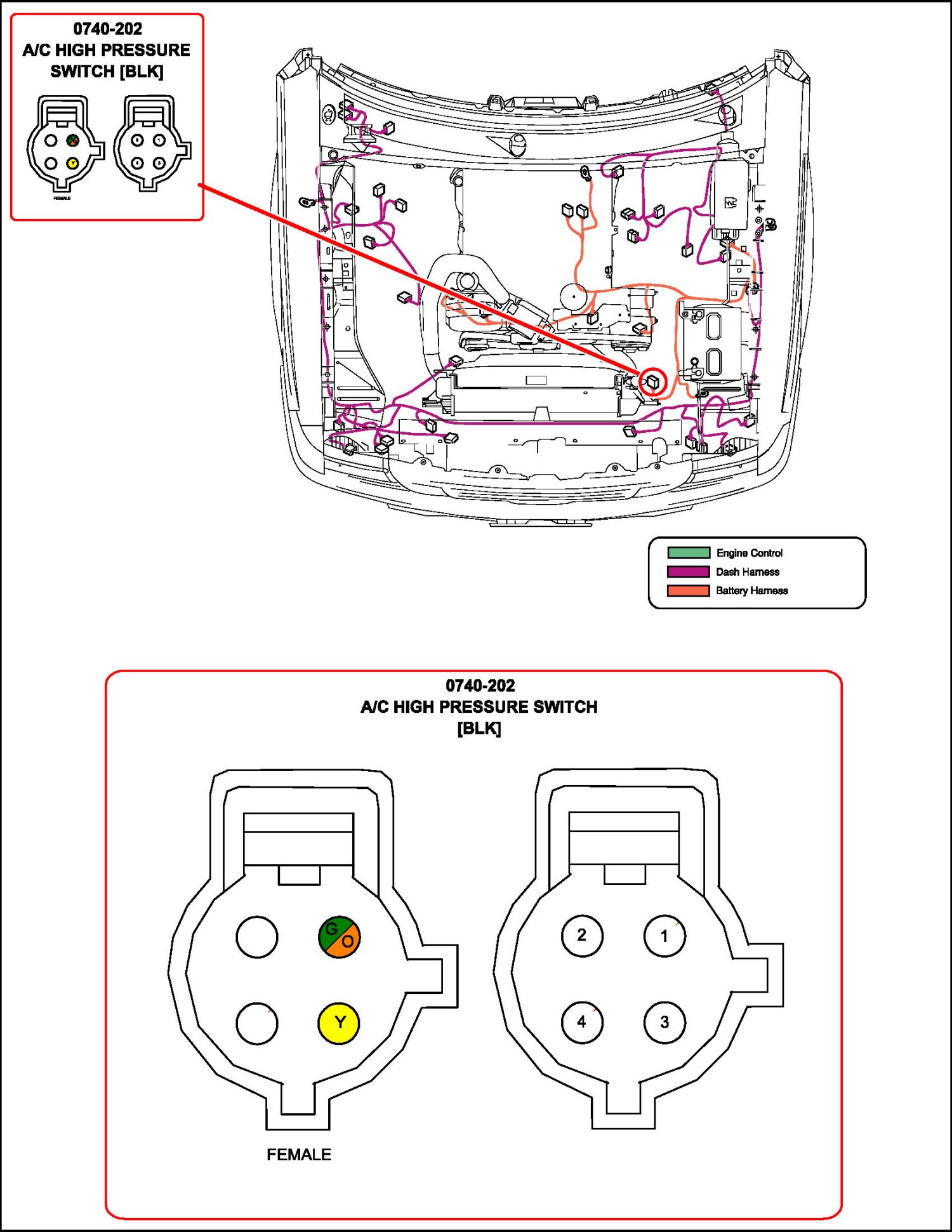

A/C High Pressure Switch:
