Keyless Receiver/TPMS Control Module
Keyless Receiver/TPMS Control Module

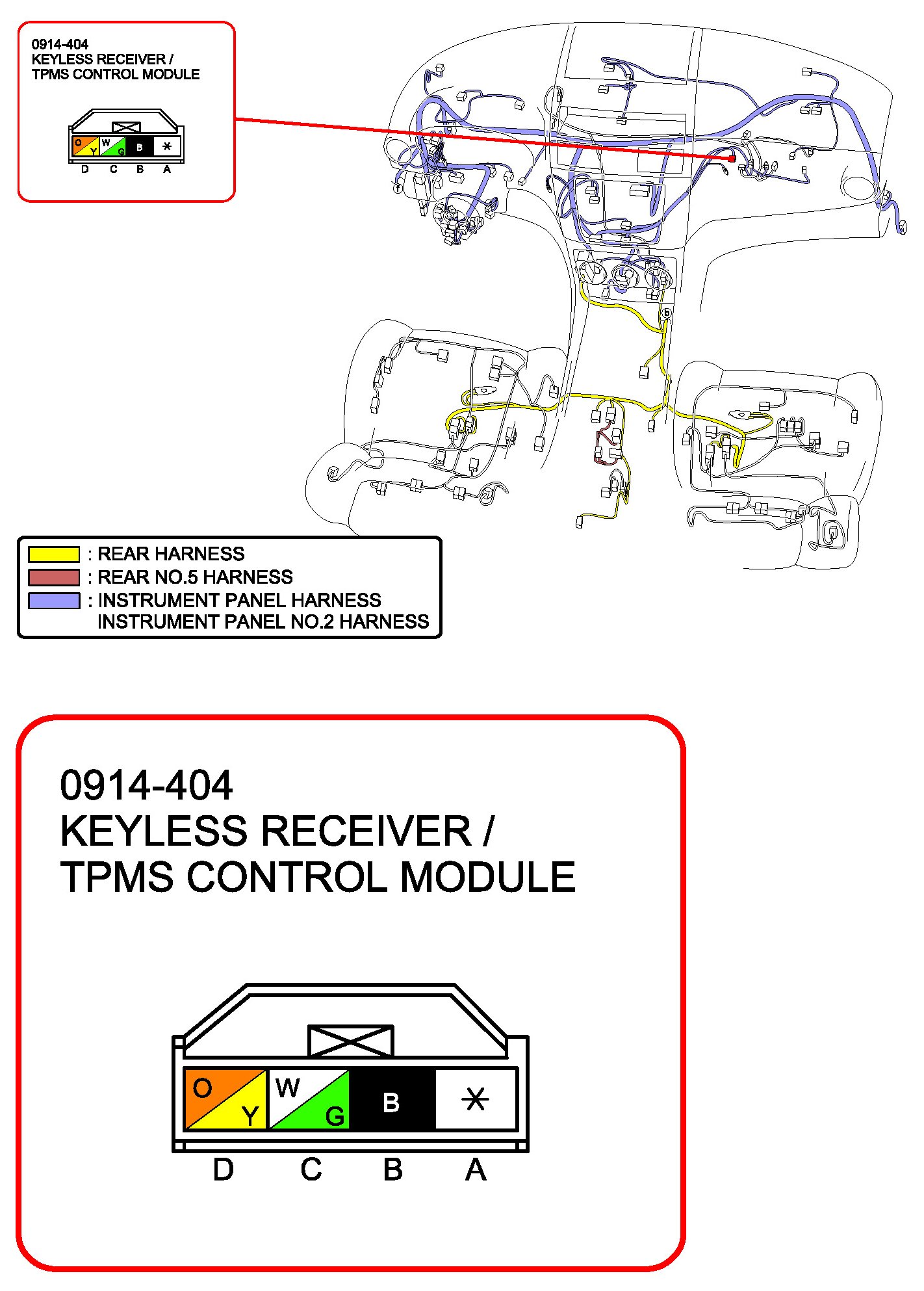

Keyless Receiver/TPMS Control Module (Without Advanced Keyless System):

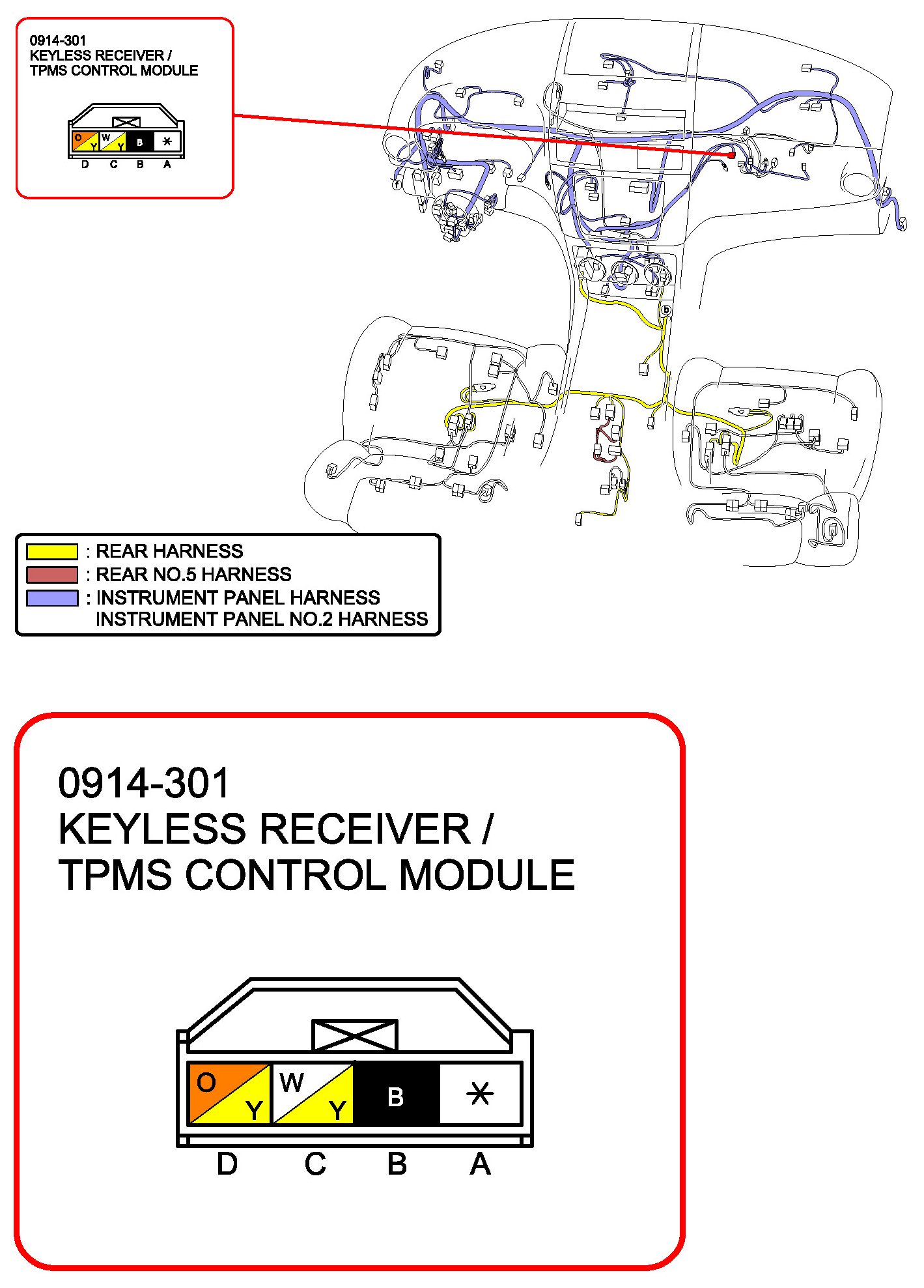

Keyless Receiver/TPMS Control Module (With Advanced Keyless System):
