Home >> Mazda >> 2009 >> 6 V6-3.7L >> Repair and Diagnosis >> Diagrams >> Components >> Keyless Control Module

Keyless Control Module

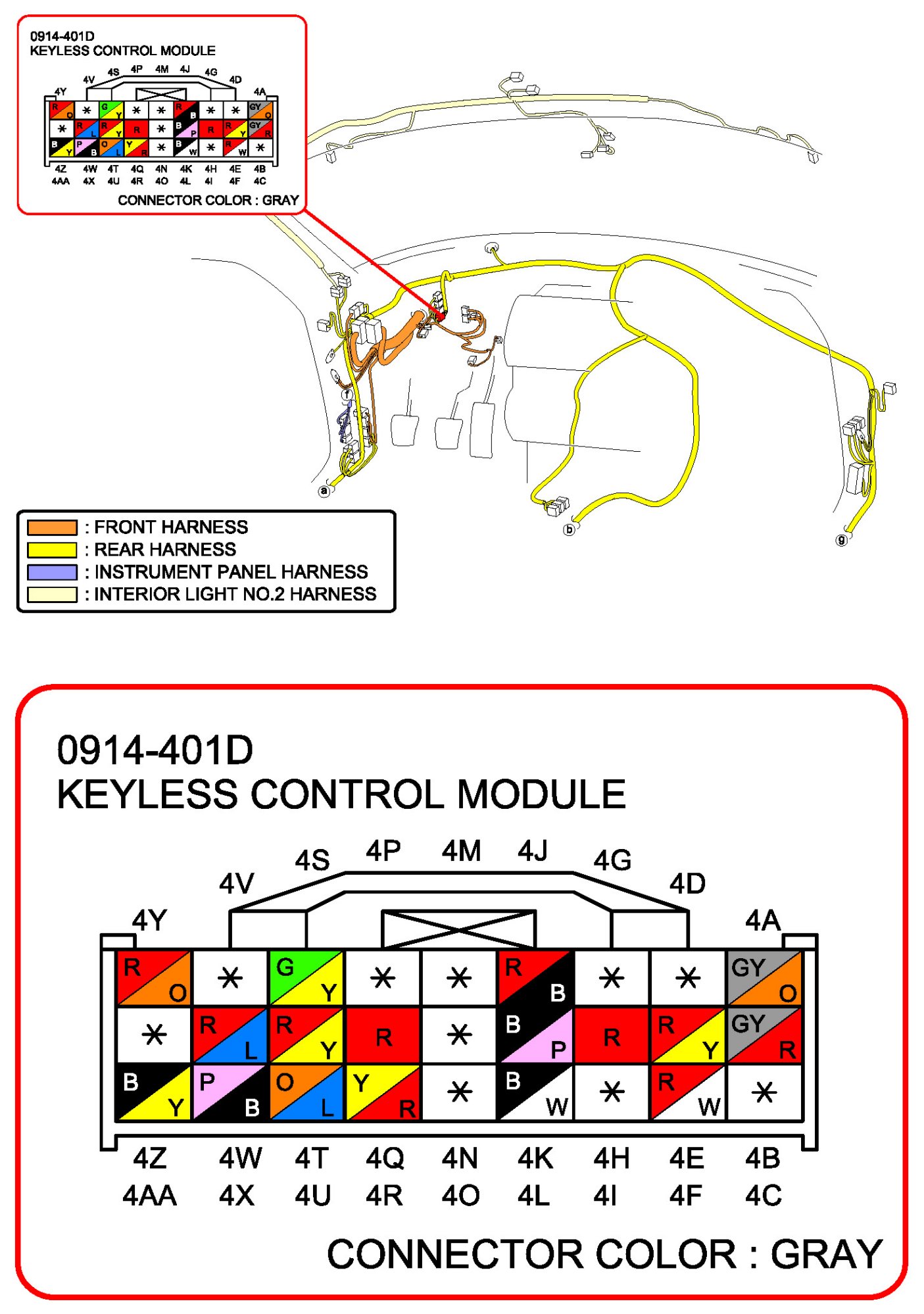

Keyless Control Module:

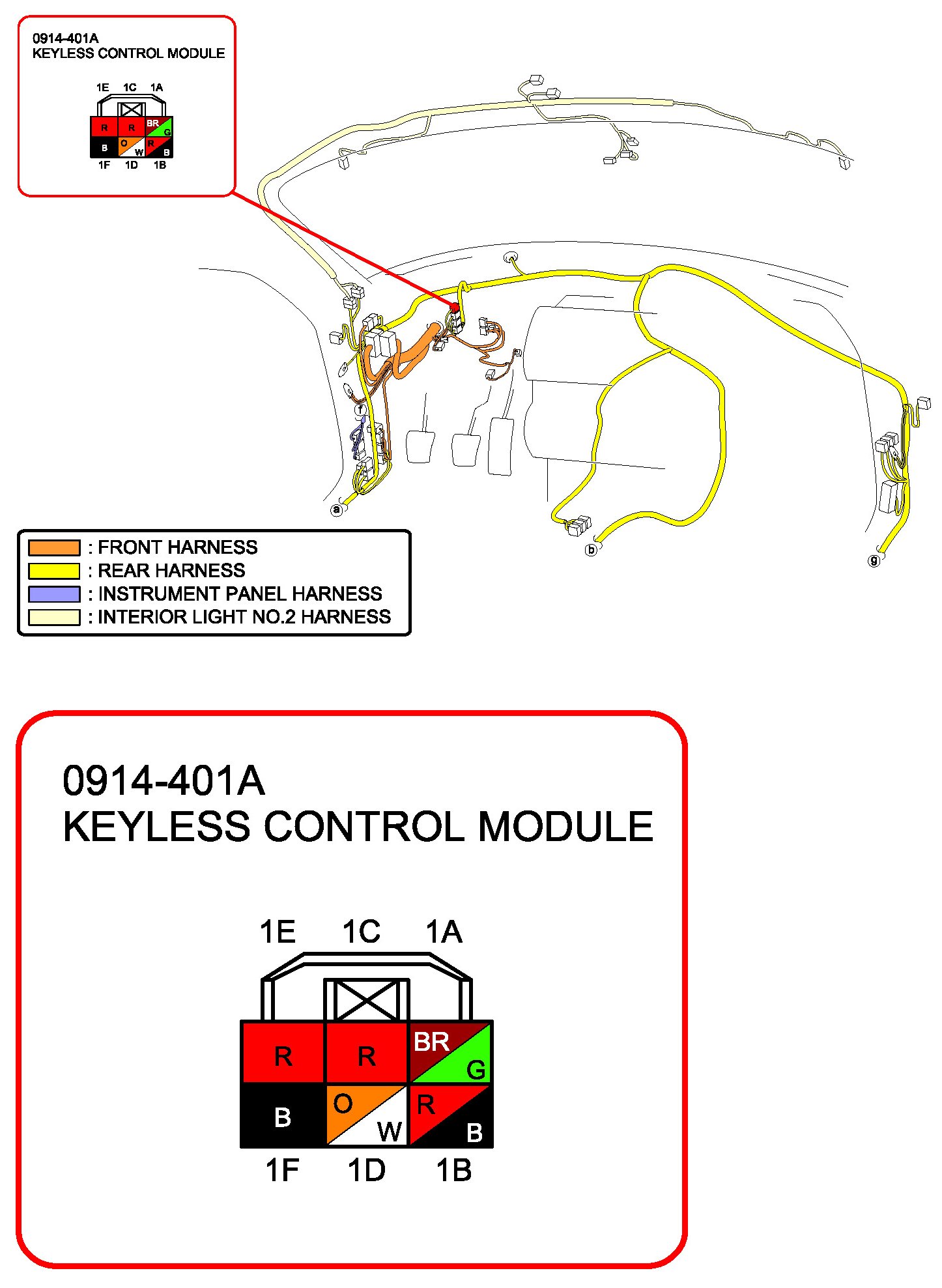

Keyless Control Module:

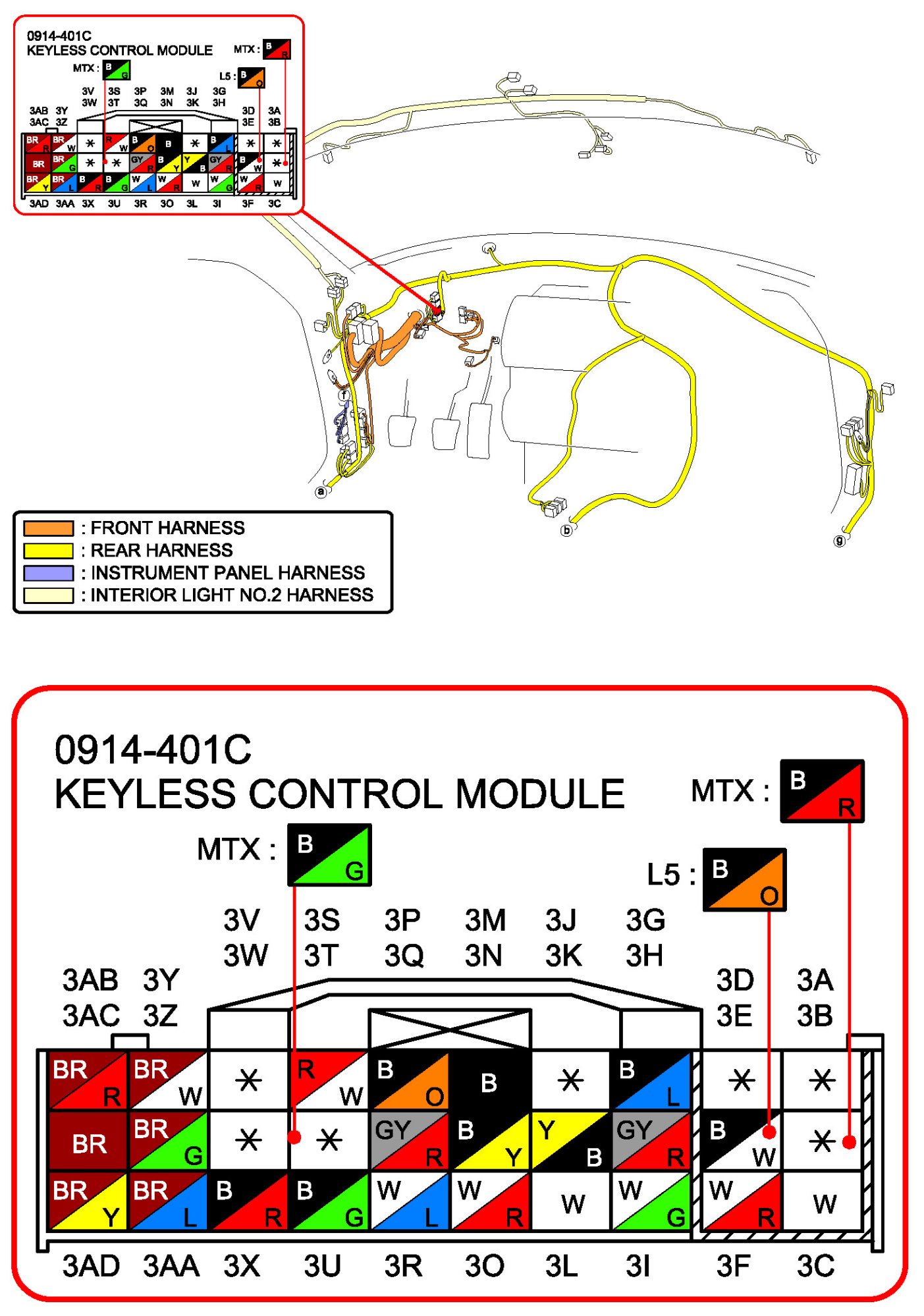

Keyless Control Module:

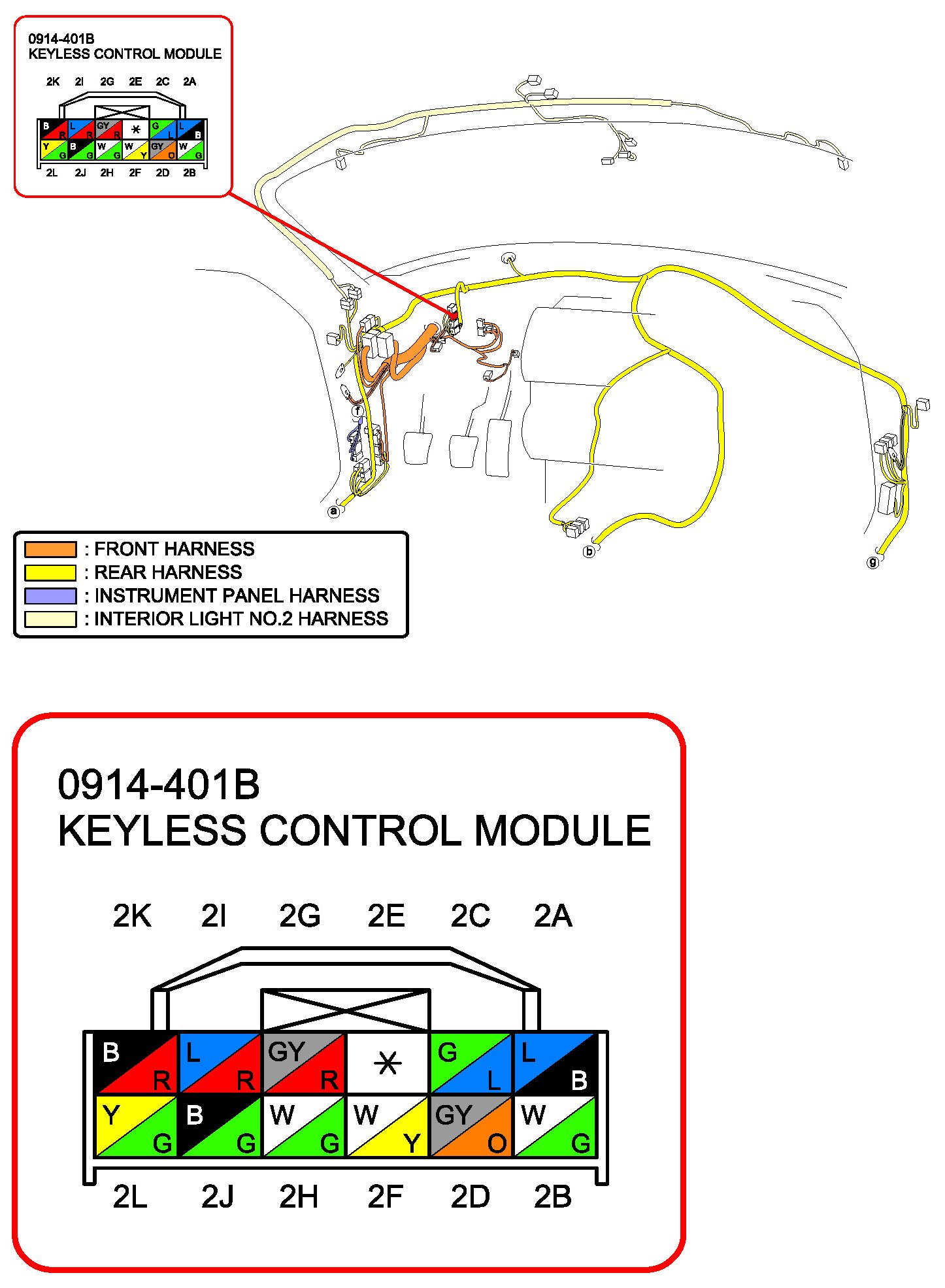

Keyless Control Module:
