Mazda
>>
2009
>>
6 V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Climate Control Unit
Climate Control Unit

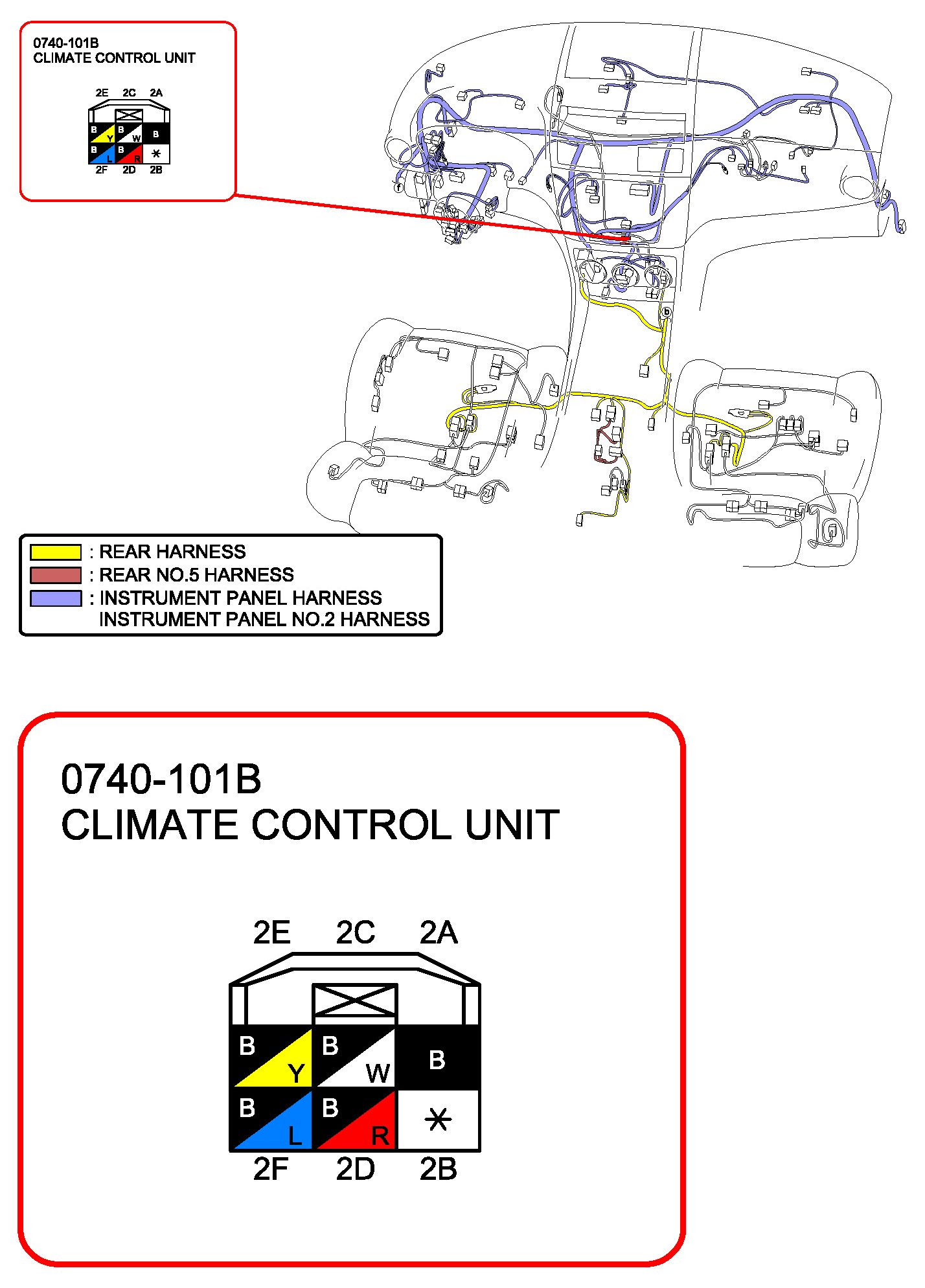

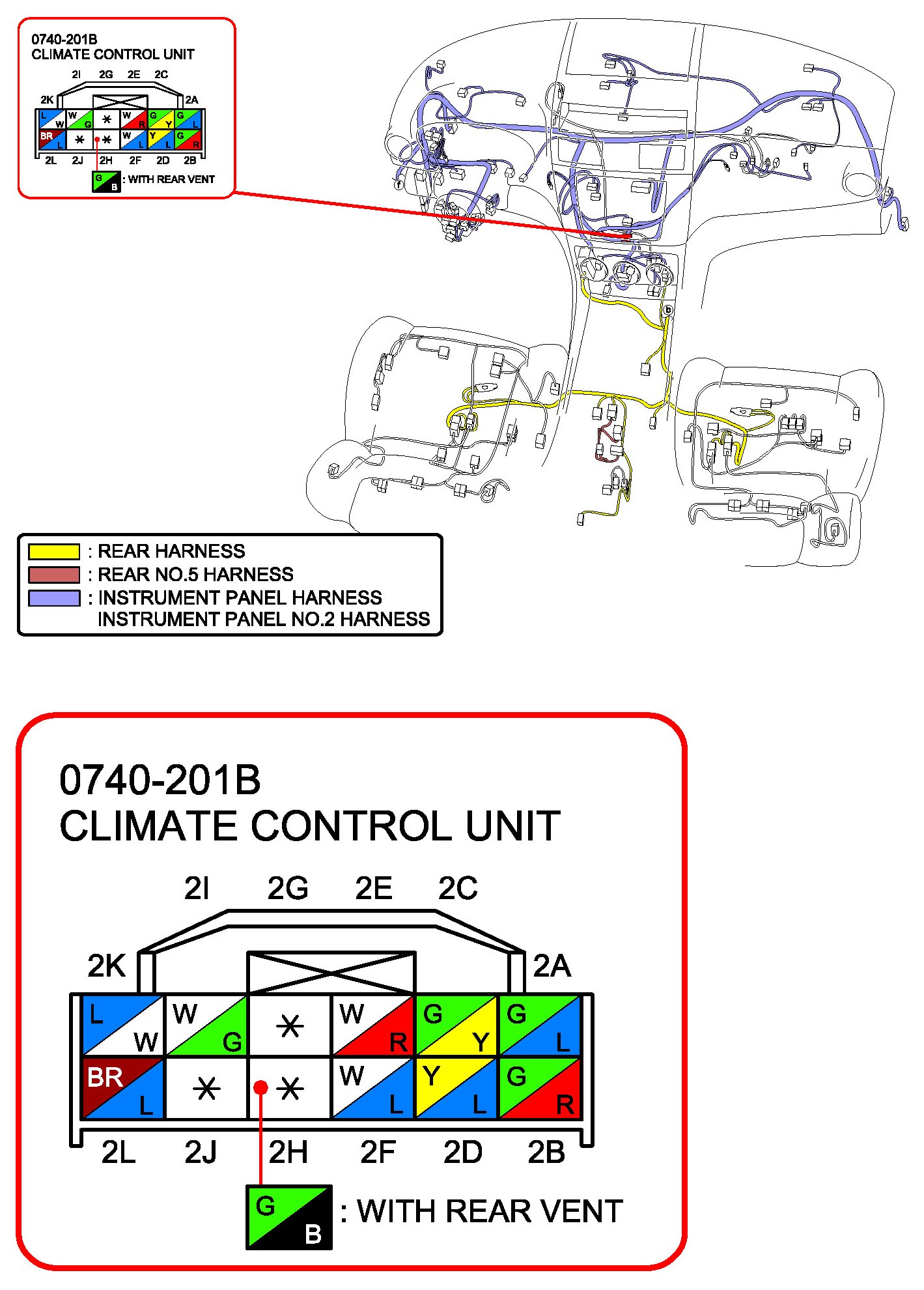

Climate Control Unit (Manual A/C):
Climate Control Unit (Manual A/C):

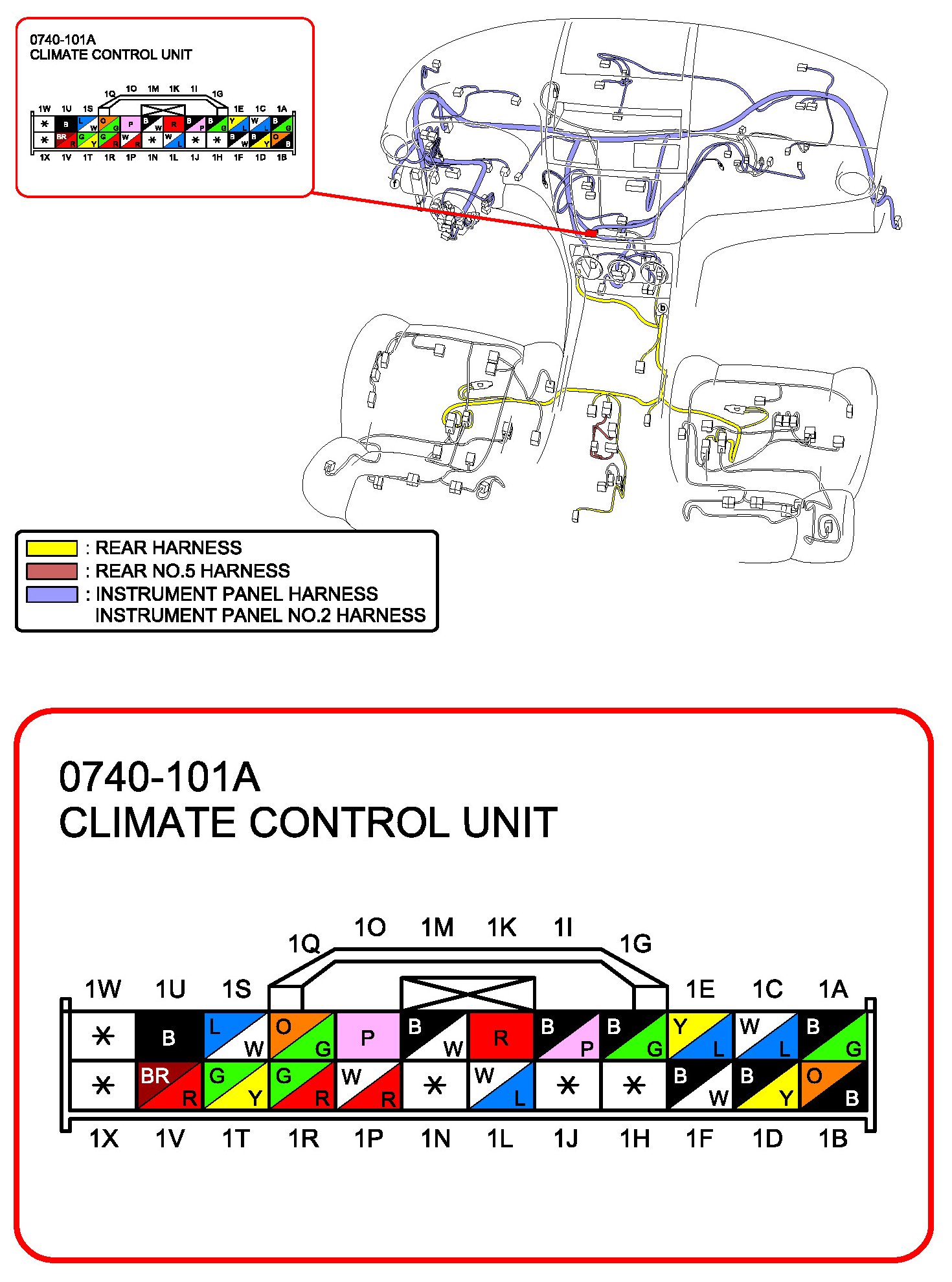

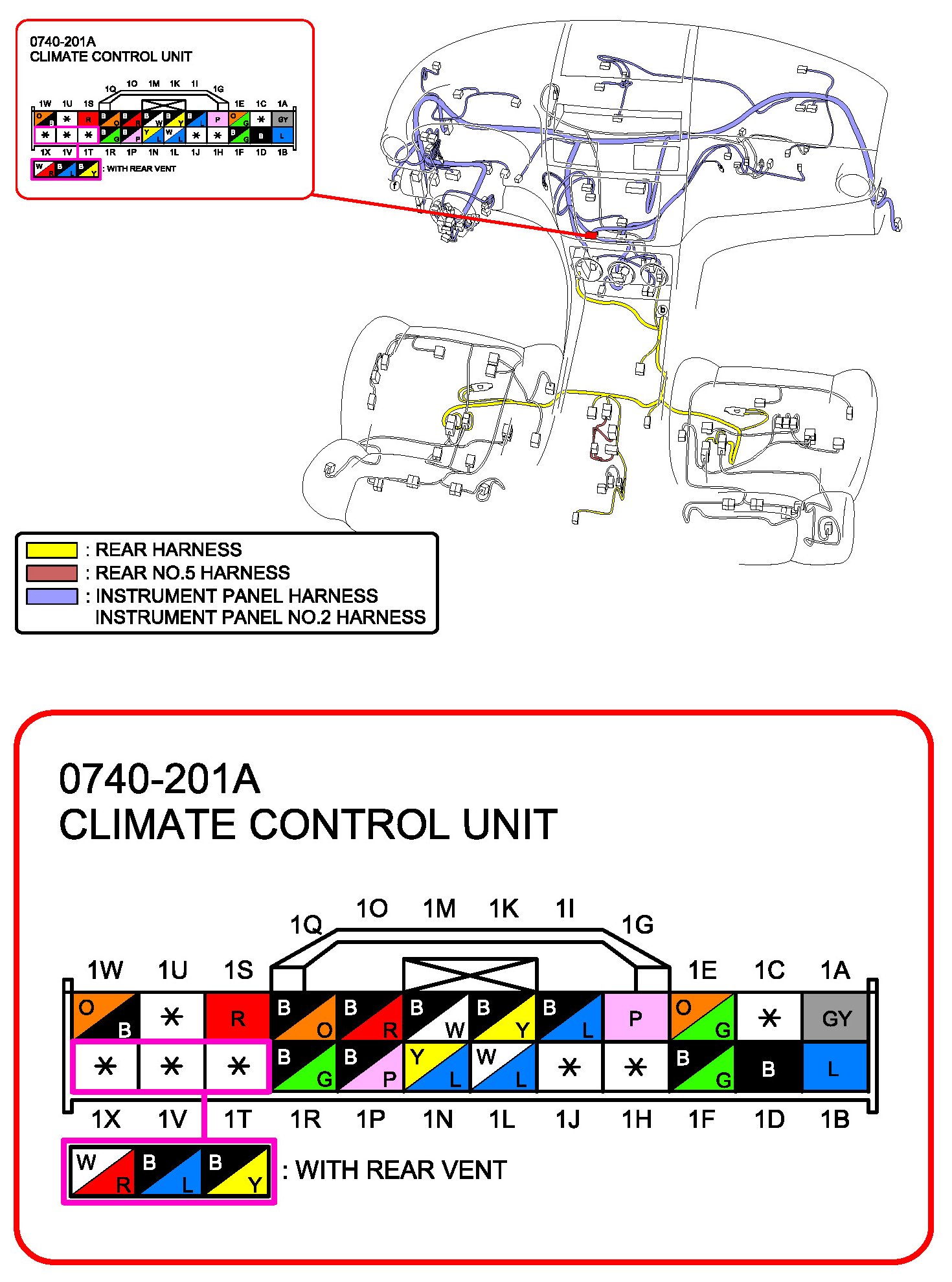

Climate Control Unit (Auto A/C):
Climate Control Unit (Auto A/C):
