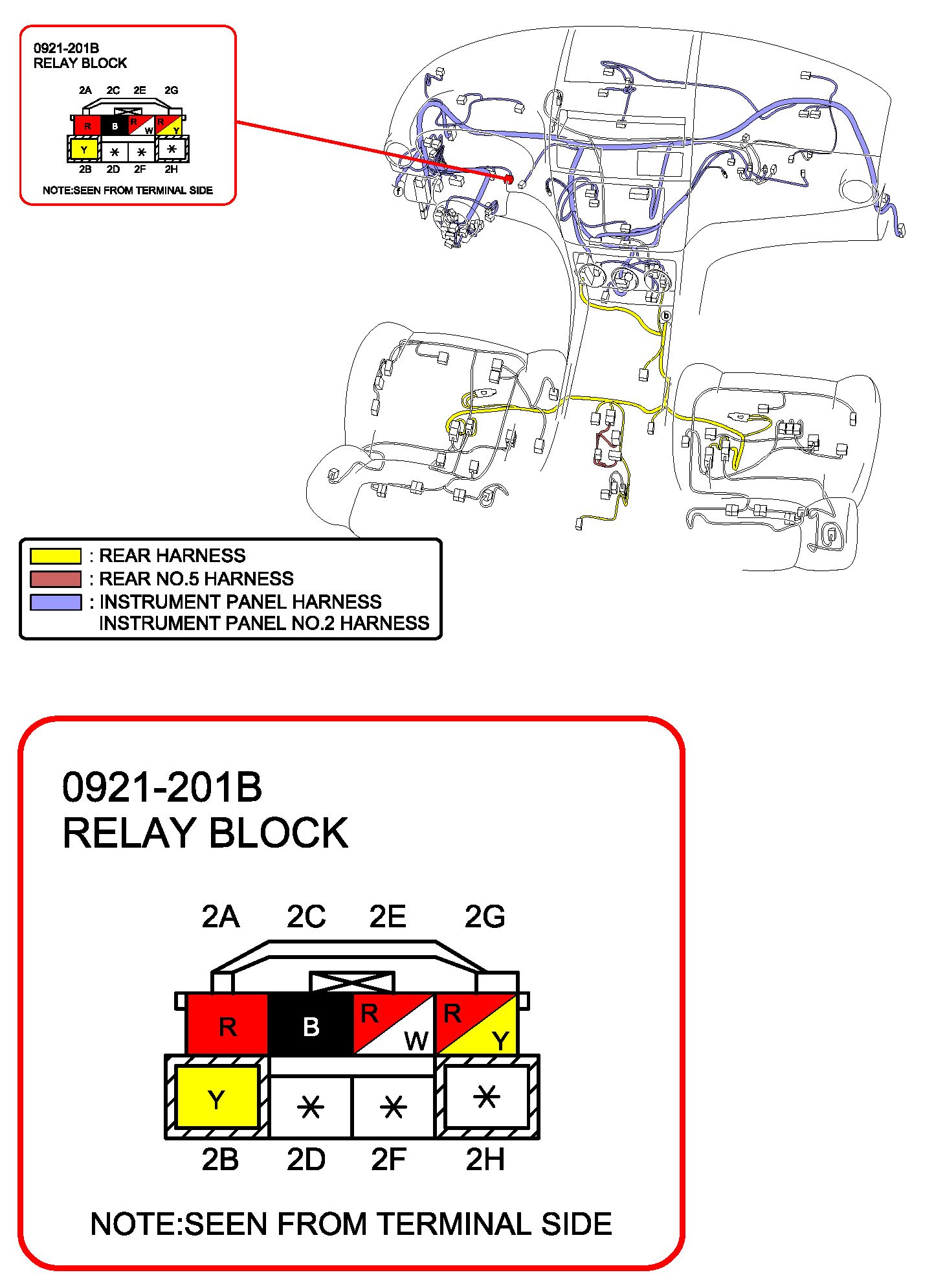

Relay Block

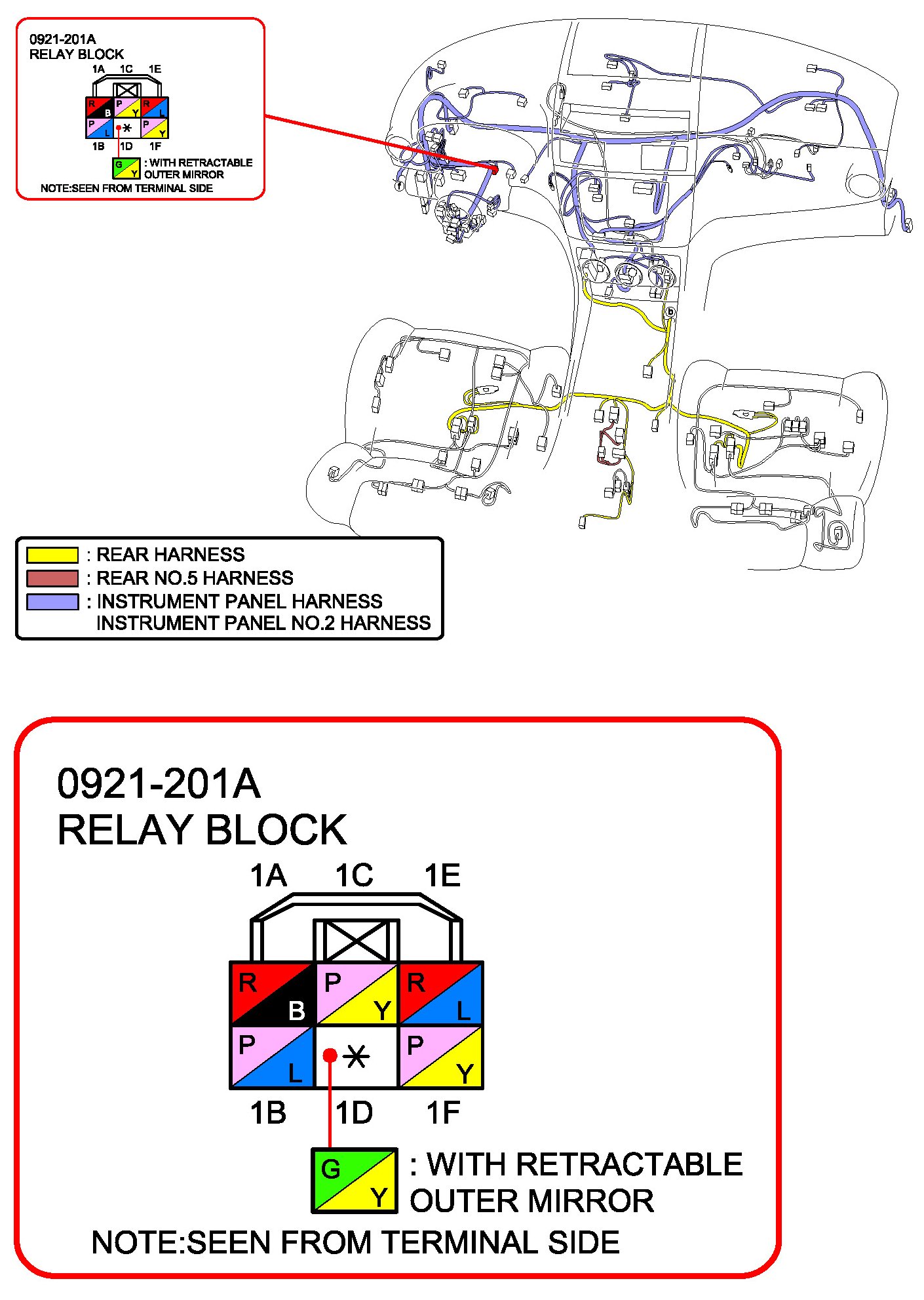

Relay Block (With Advanced Keyless Entry):
Relay Block (With Advanced Keyless Entry):

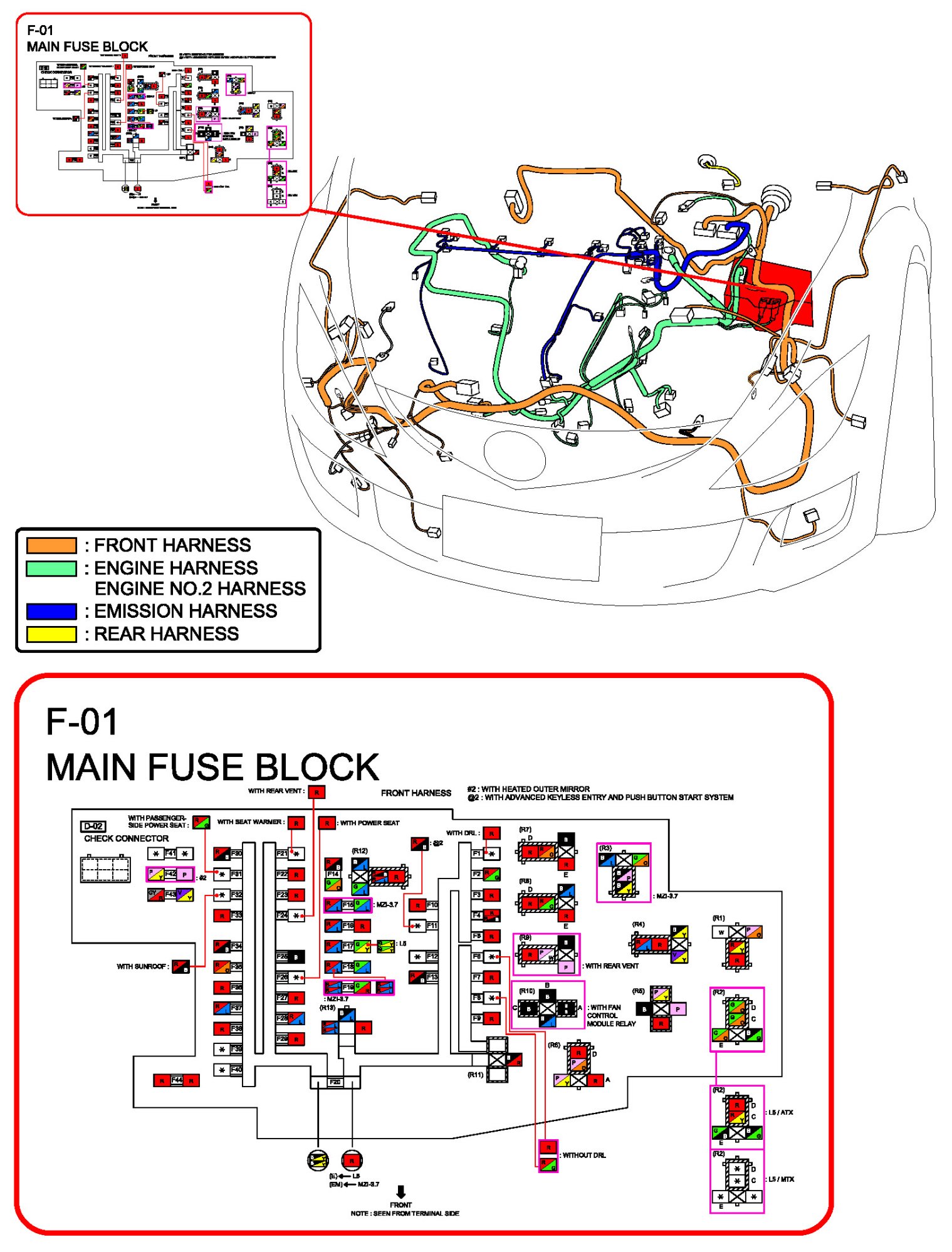

F-01 (Main Fuse Block):

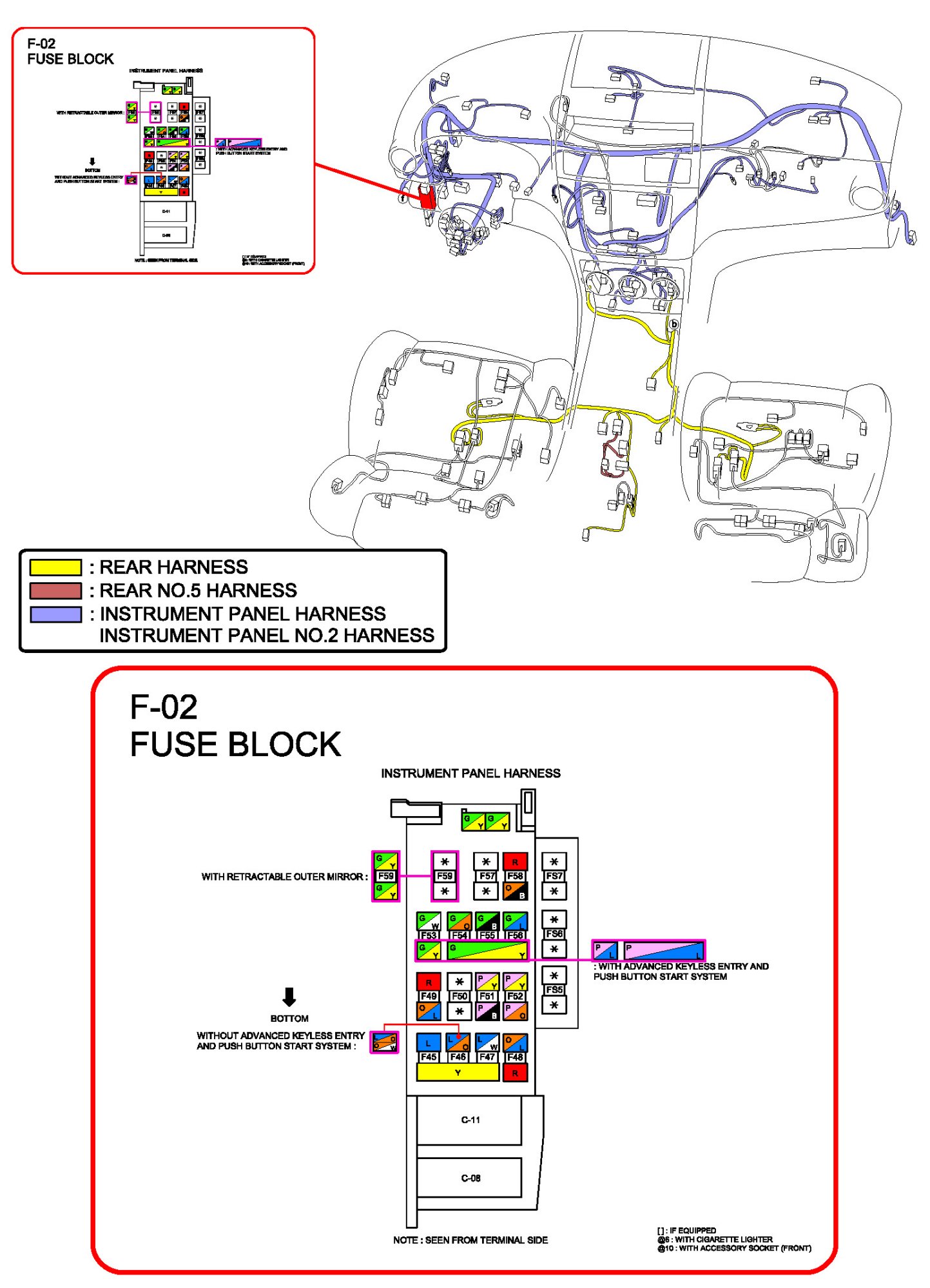

F-02 (Fuse Block):
