Auxiliary Jack
Auxiliary Jack

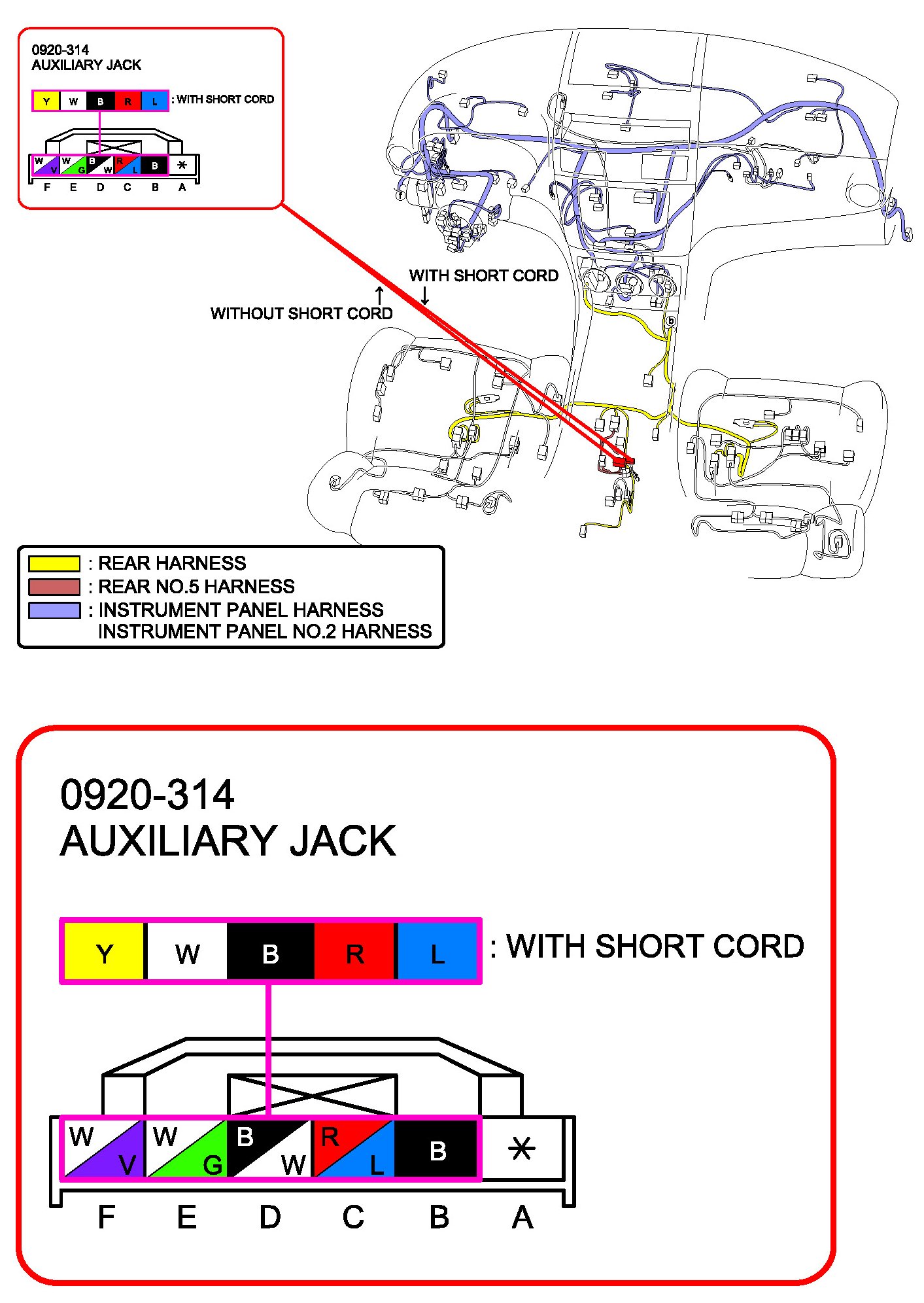

Auxiliary Jack (Except Bose(R) Type Audio):

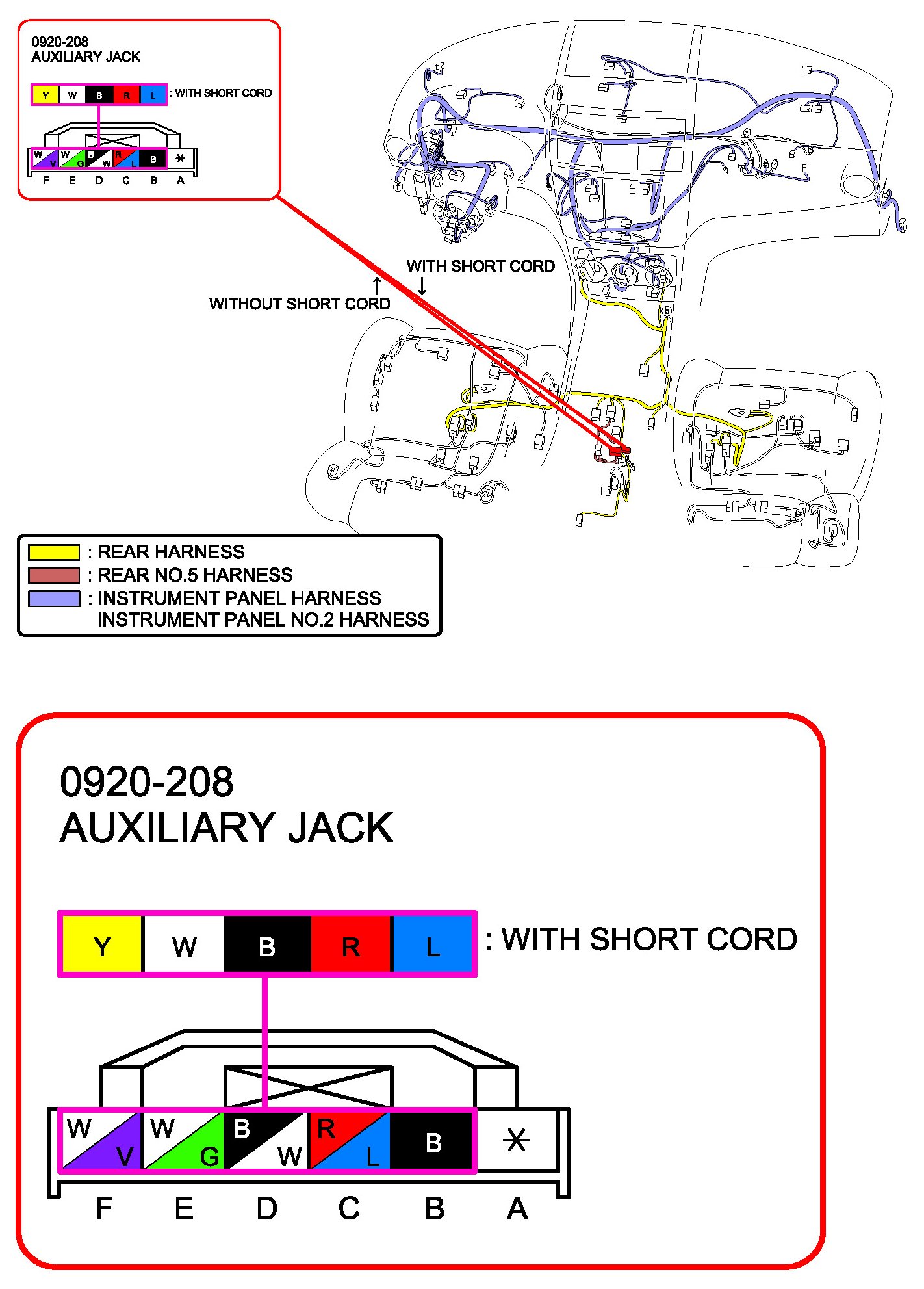

Auxiliary Jack (Bose(R) Type Audio):
