Home >> Mazda >> 2009 >> 5 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Components >> Crash Zone Sensor

Crash Zone Sensor

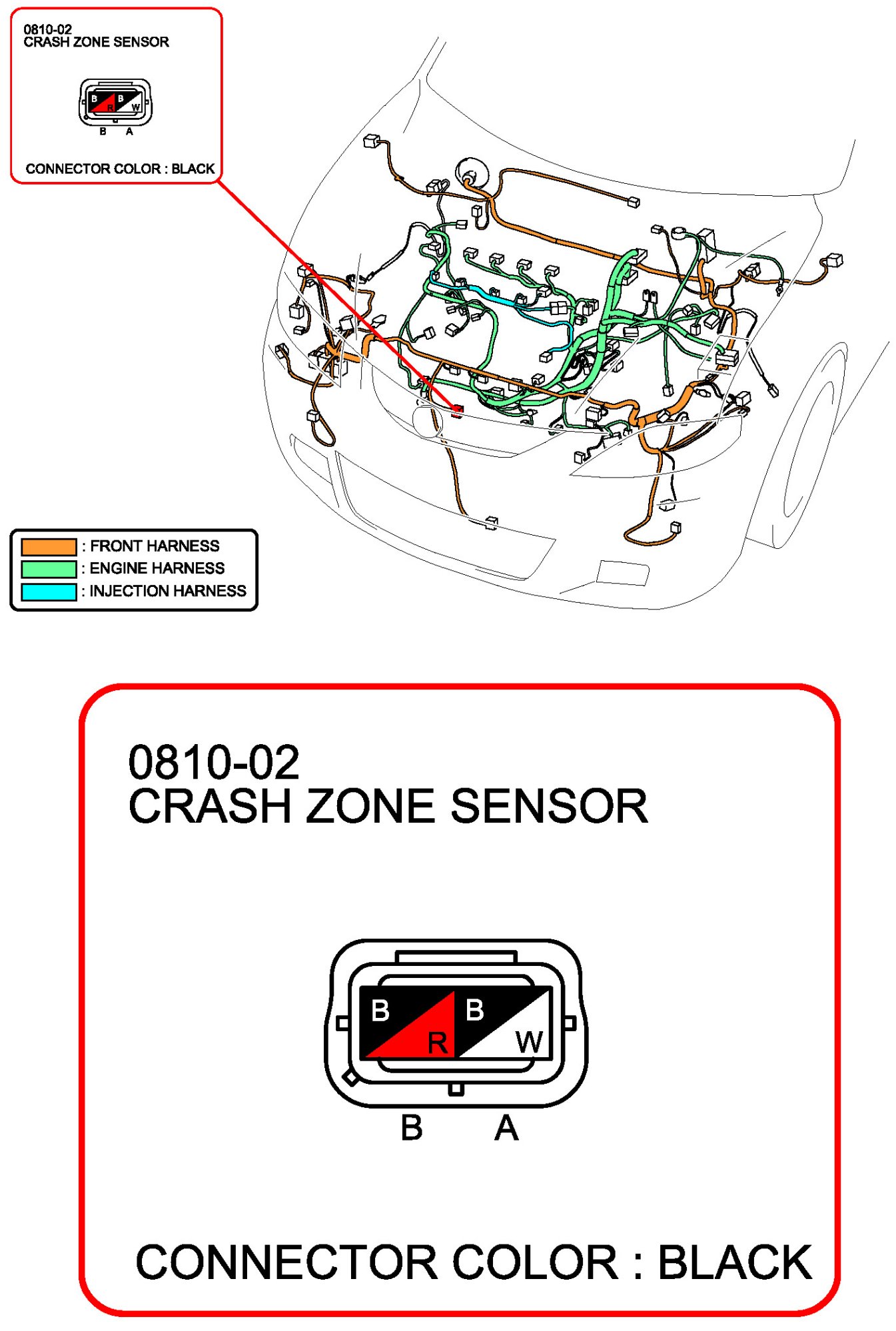

Crash Zone Sensor:

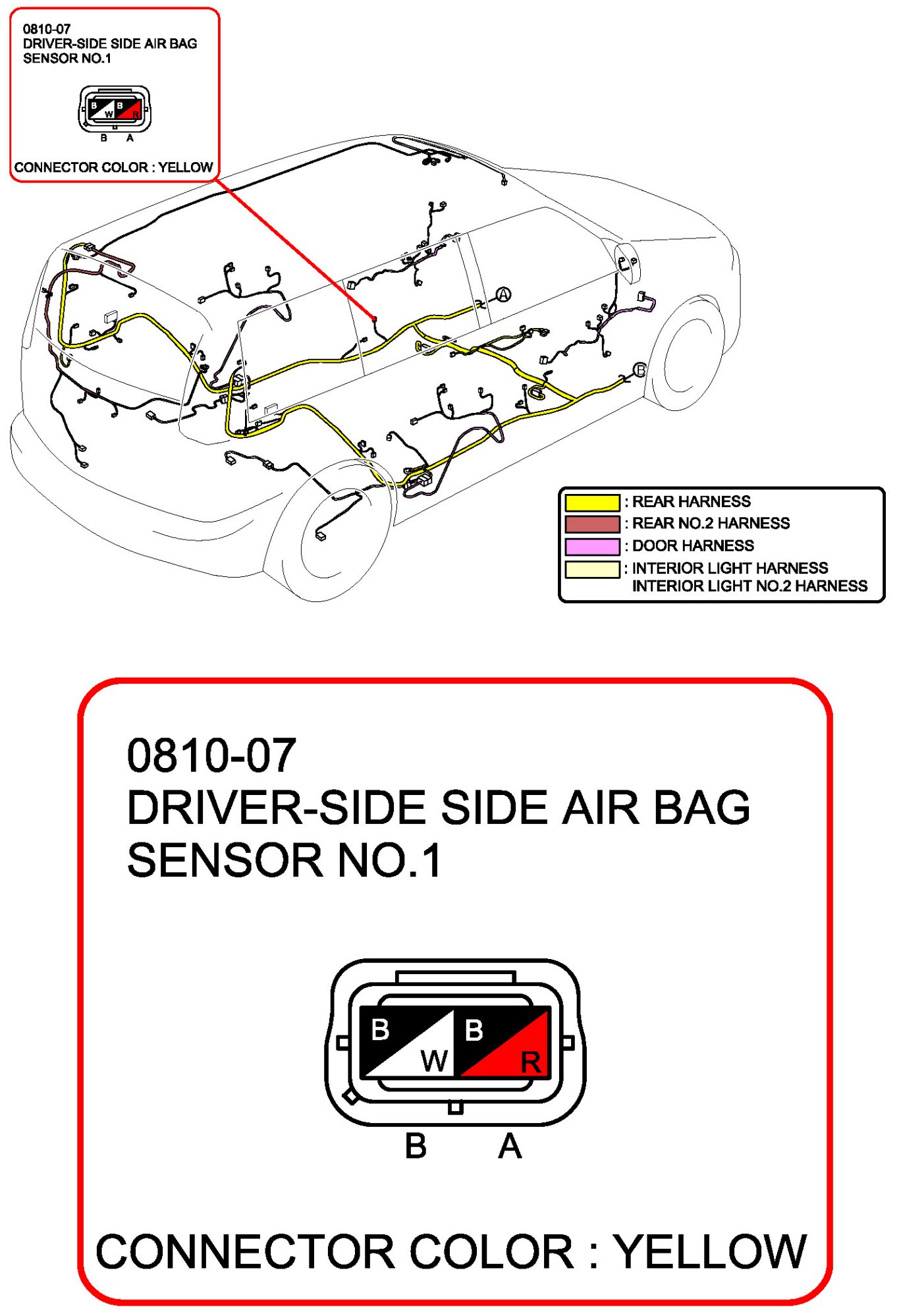

Driver-Side Side Air Bag Sensor No.1:

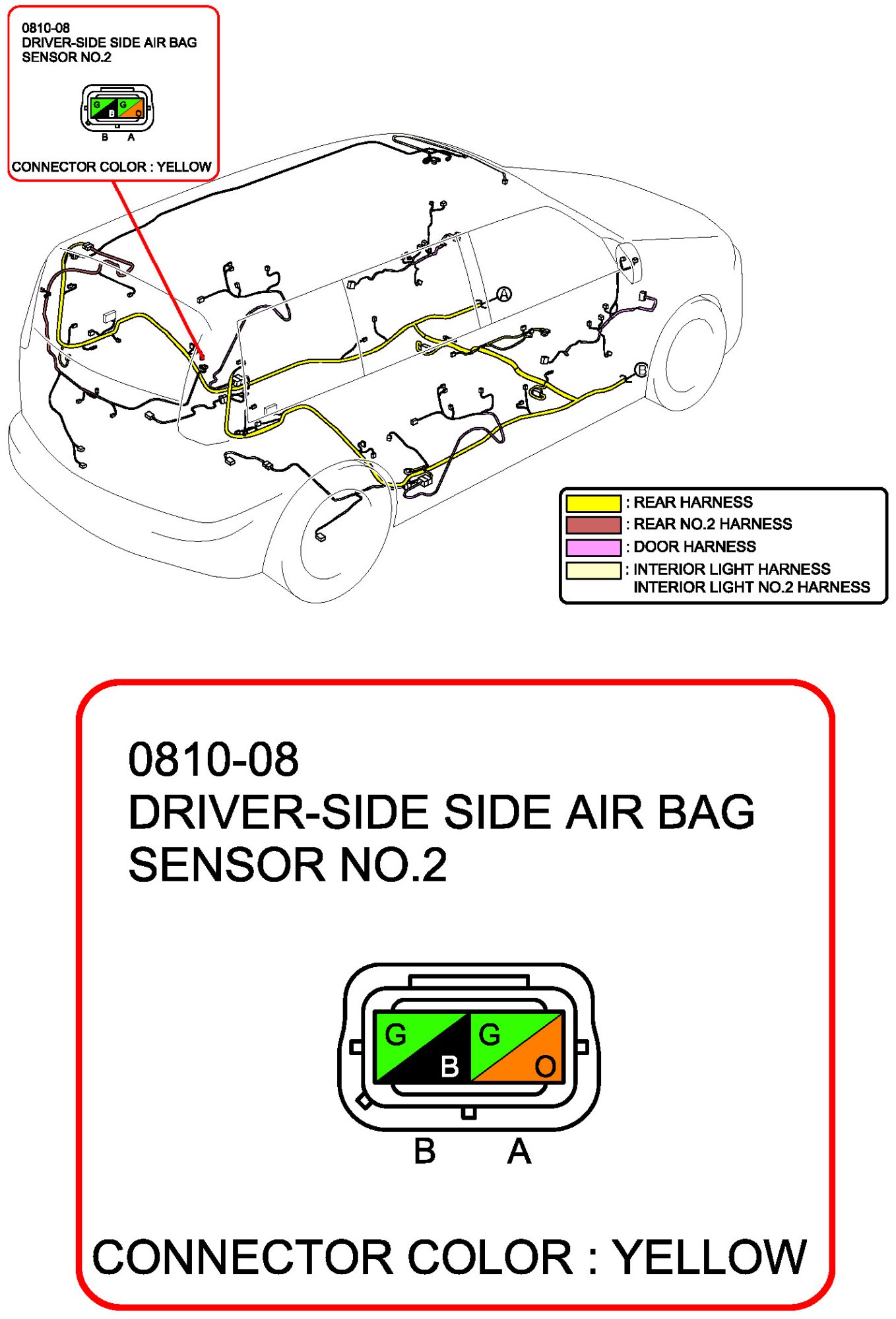

Driver-Side Side Air Bag Sensor No.2:

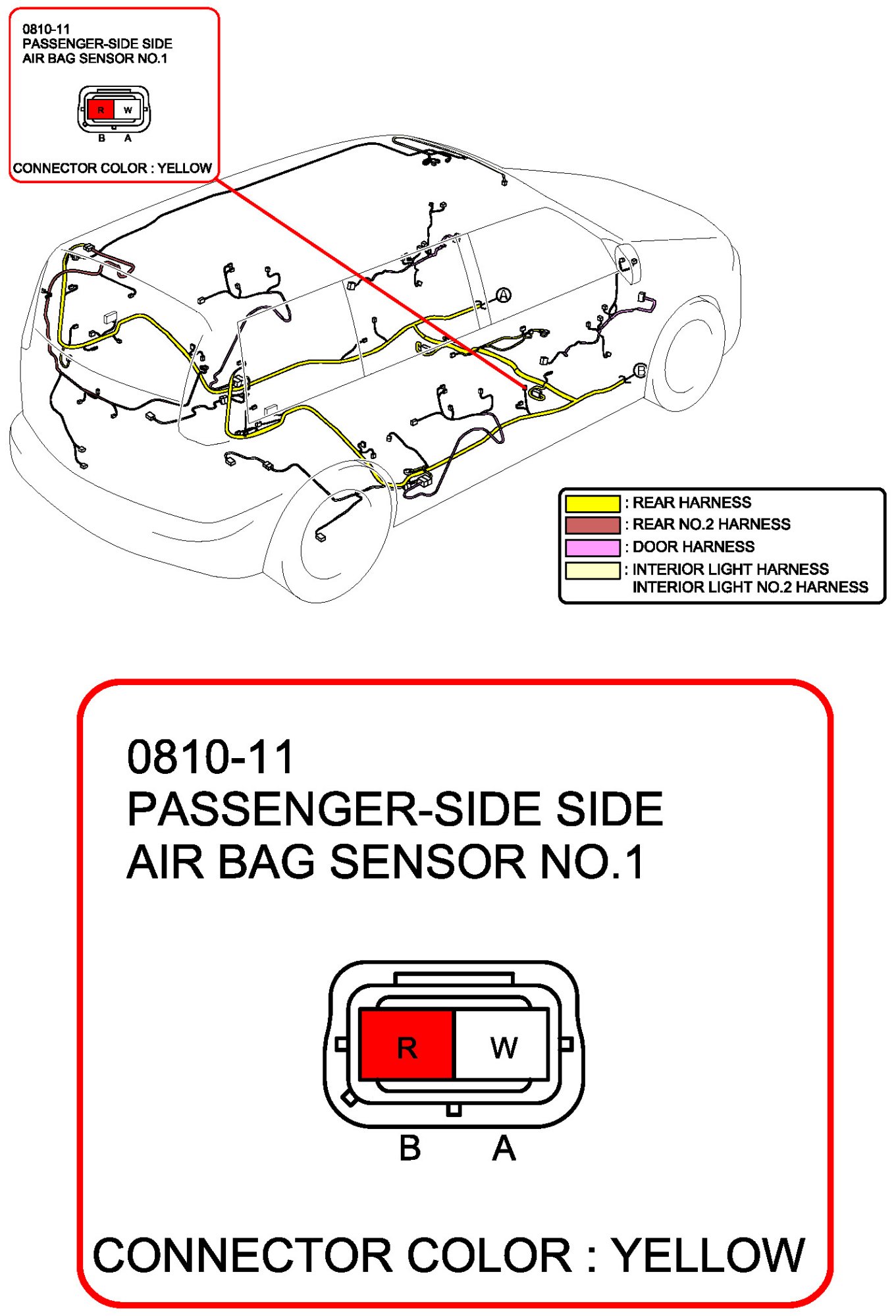

Passenger-Side Side Air Bag Sensor No.1:

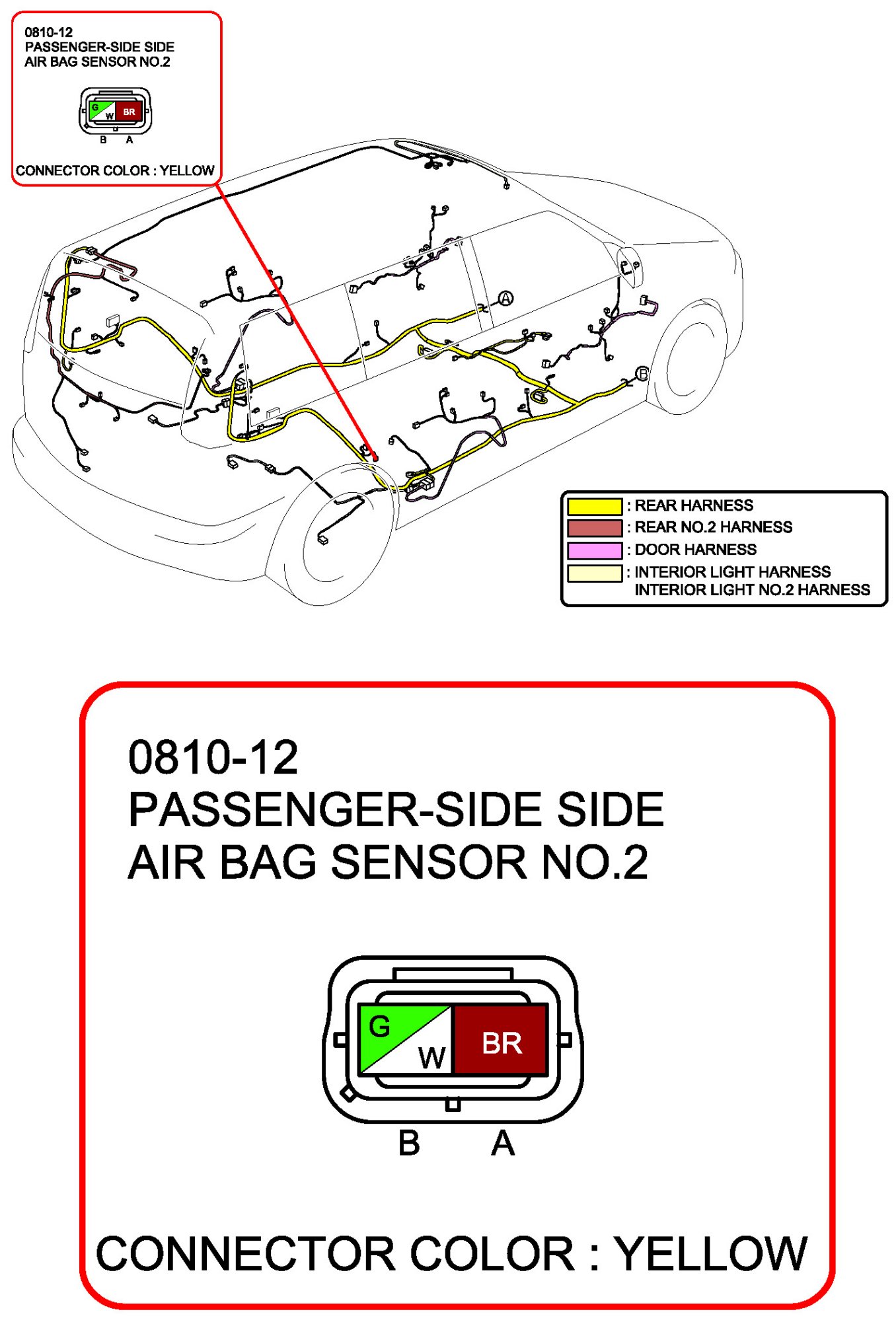

Passenger-Side Side Air Bag Sensor No.2:
