Transmission/Transaxle Technical Data




TRANSMISSION/TRANSAXLE TECHNICAL DATA

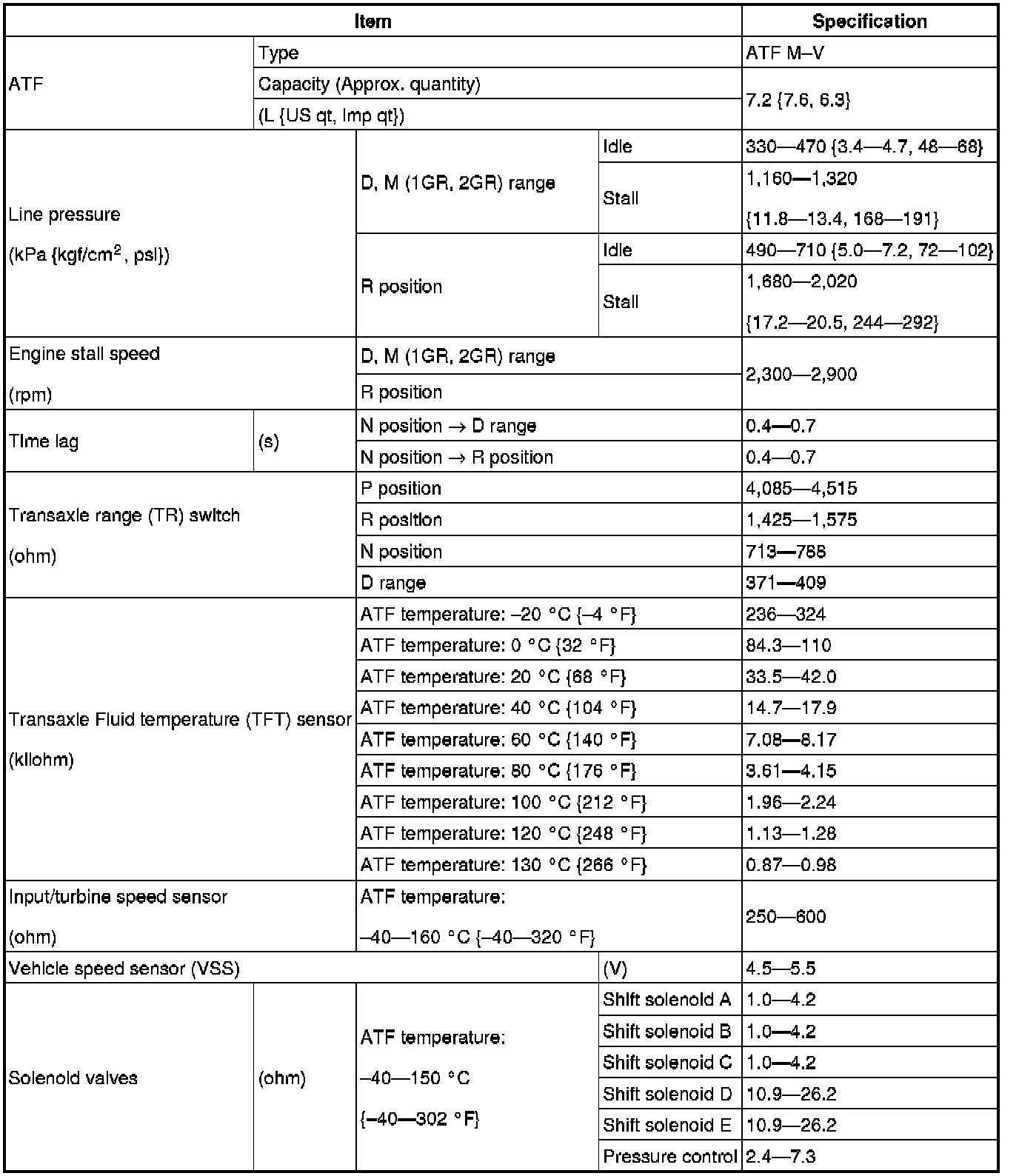

AUTOMATIC TRANSAXLE [FN4A-EL]

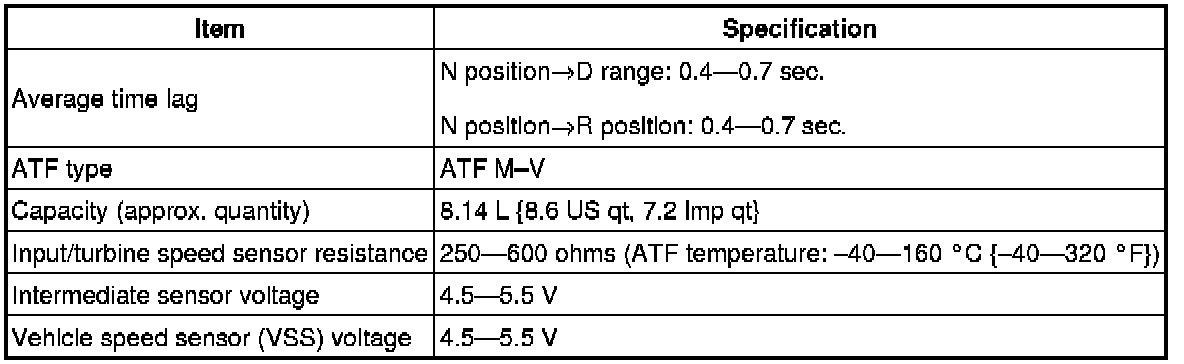

AUTOMATIC TRANSAXLE [FS5A-EL]

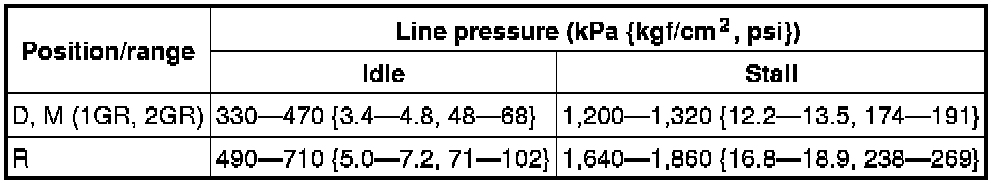

Line pressure specification

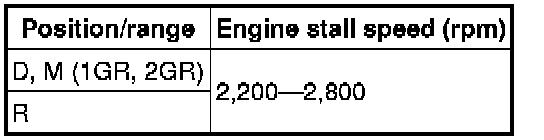

Engine stall speed





Transaxle range (TR) switch

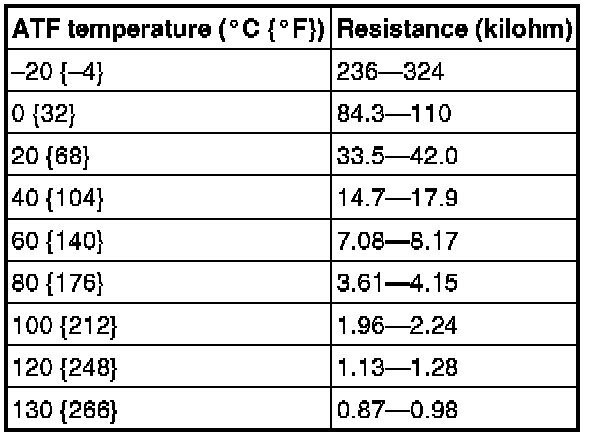

Transaxle fluid temperature (TFT) sensor

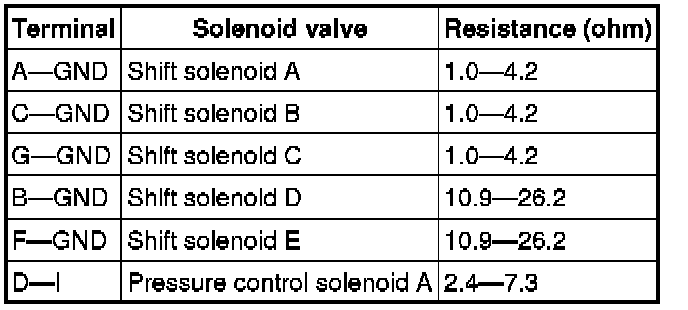

Primary control valve body (ATF temperature: -40-150 °C {-40-302 °F})

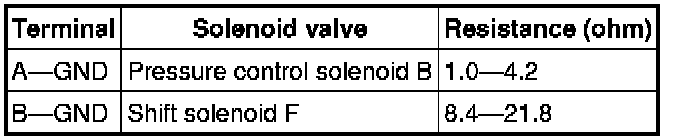

Secondary control valve body (ATF temperature: -40-150 °C {-40-302 °F})
