Monitoring System And Control System Device Relationship Chart




MONITORING SYSTEM AND CONTROL SYSTEM DEVICE RELATIONSHIP CHART [LF, L3]

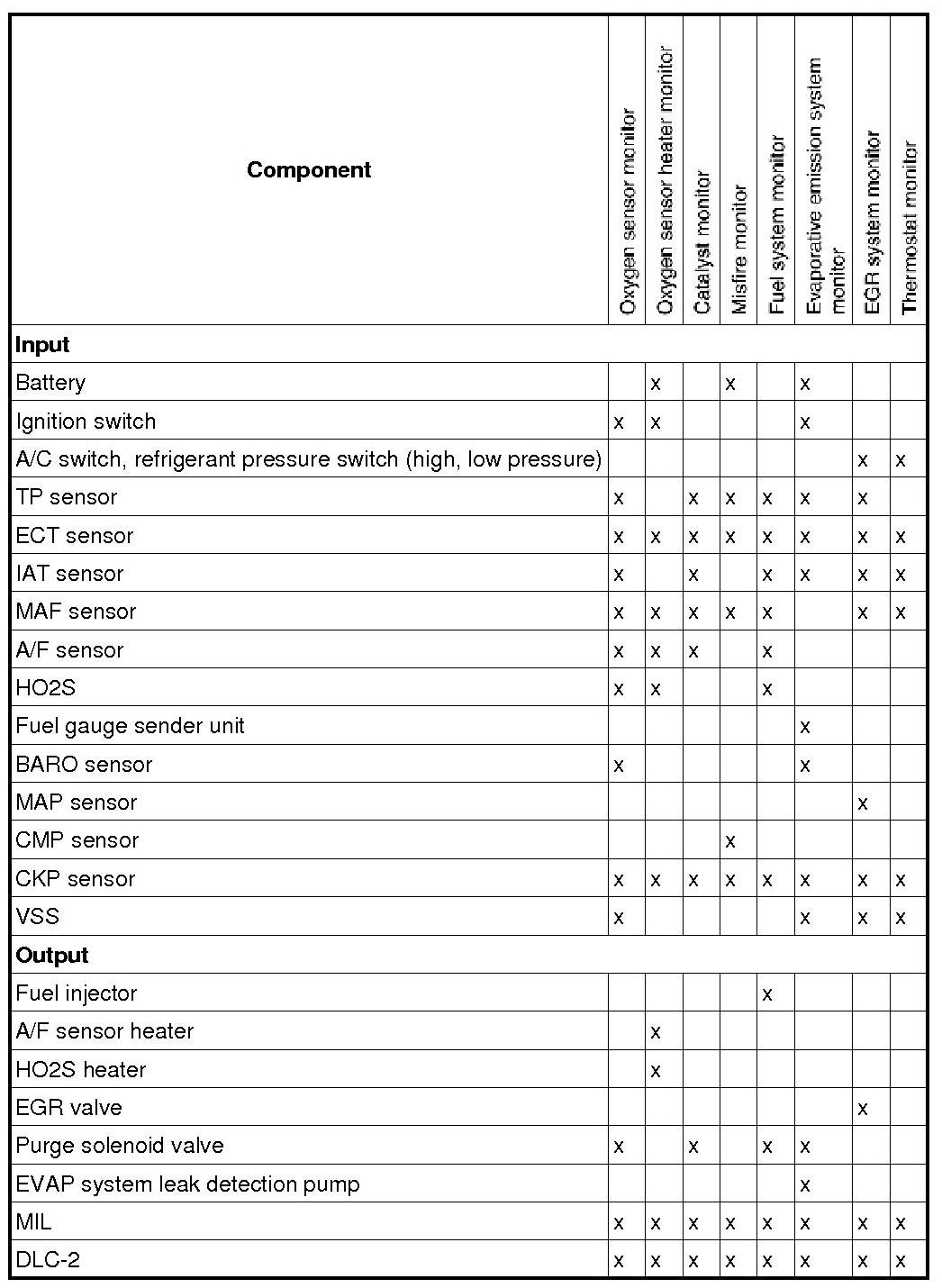

California Emission Regulation Applicable Modelx: Applicable

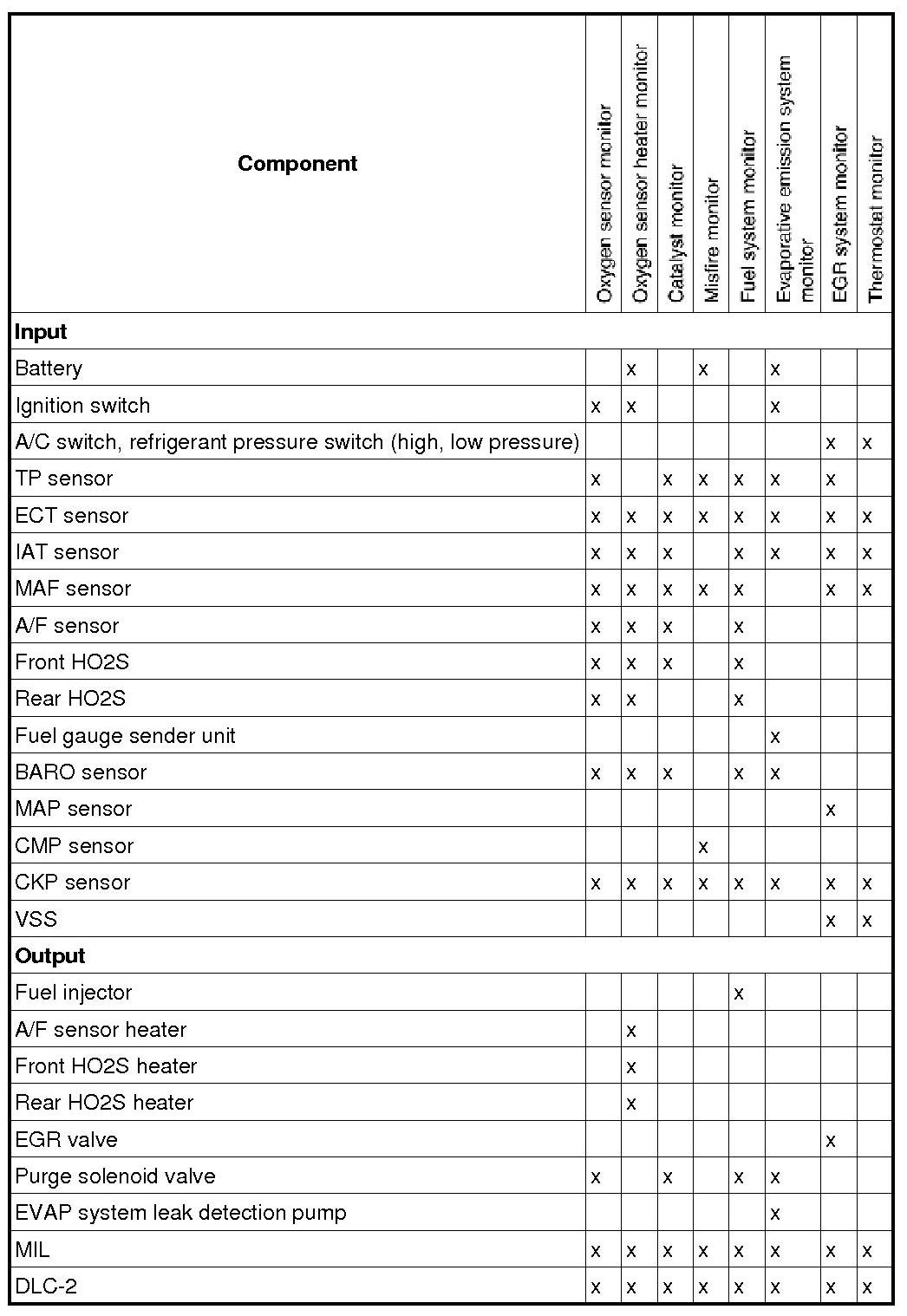

Except for California Emission Regulation Applicable Modelx: Applicable
