Home >> Mazda >> 2009 >> 3 L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Cover

Timing Cover

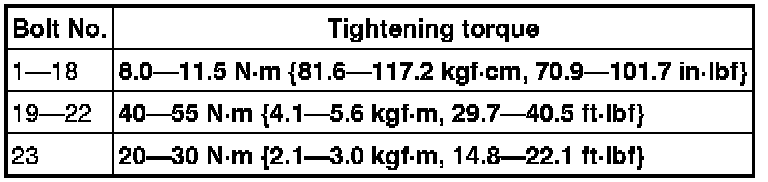

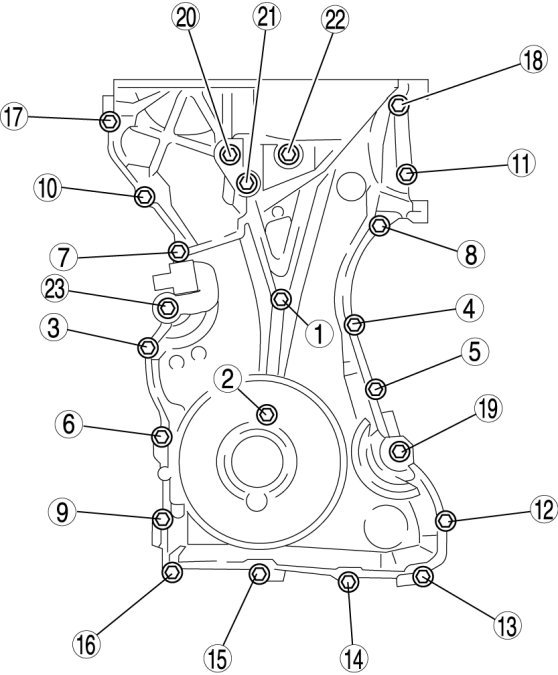

Install the engine front cover bolts in the order shown in the figure.
