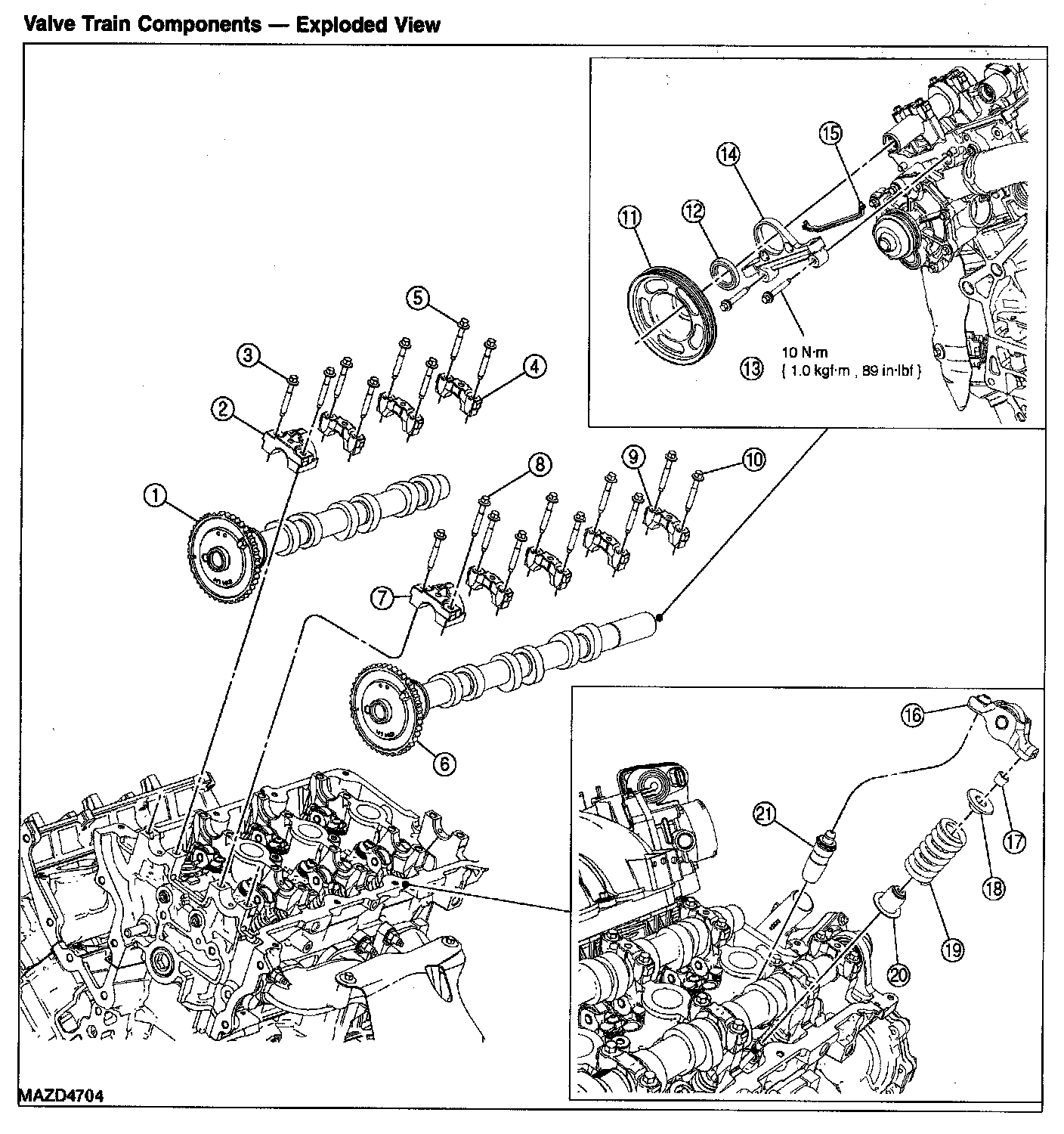

VALVE TRAIN COMPONENTS - 3.0L (4V) EXPLODED VIEW

Valve Train Components - Exploded View

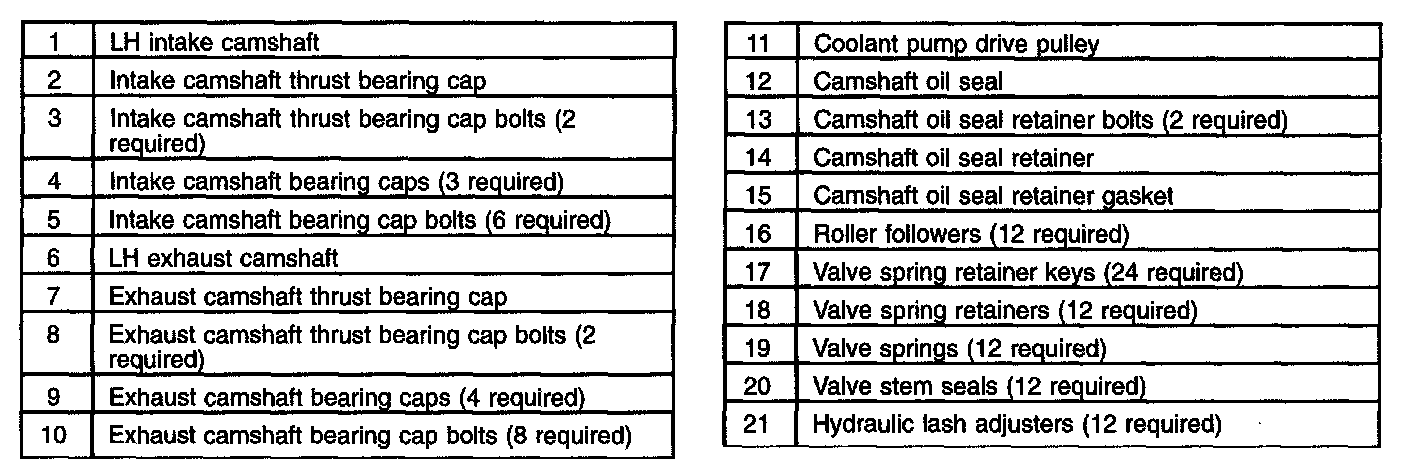

Valve Train Components - 3.0L (Part 1):




Valve Train Components - 3.0L (Part 2):

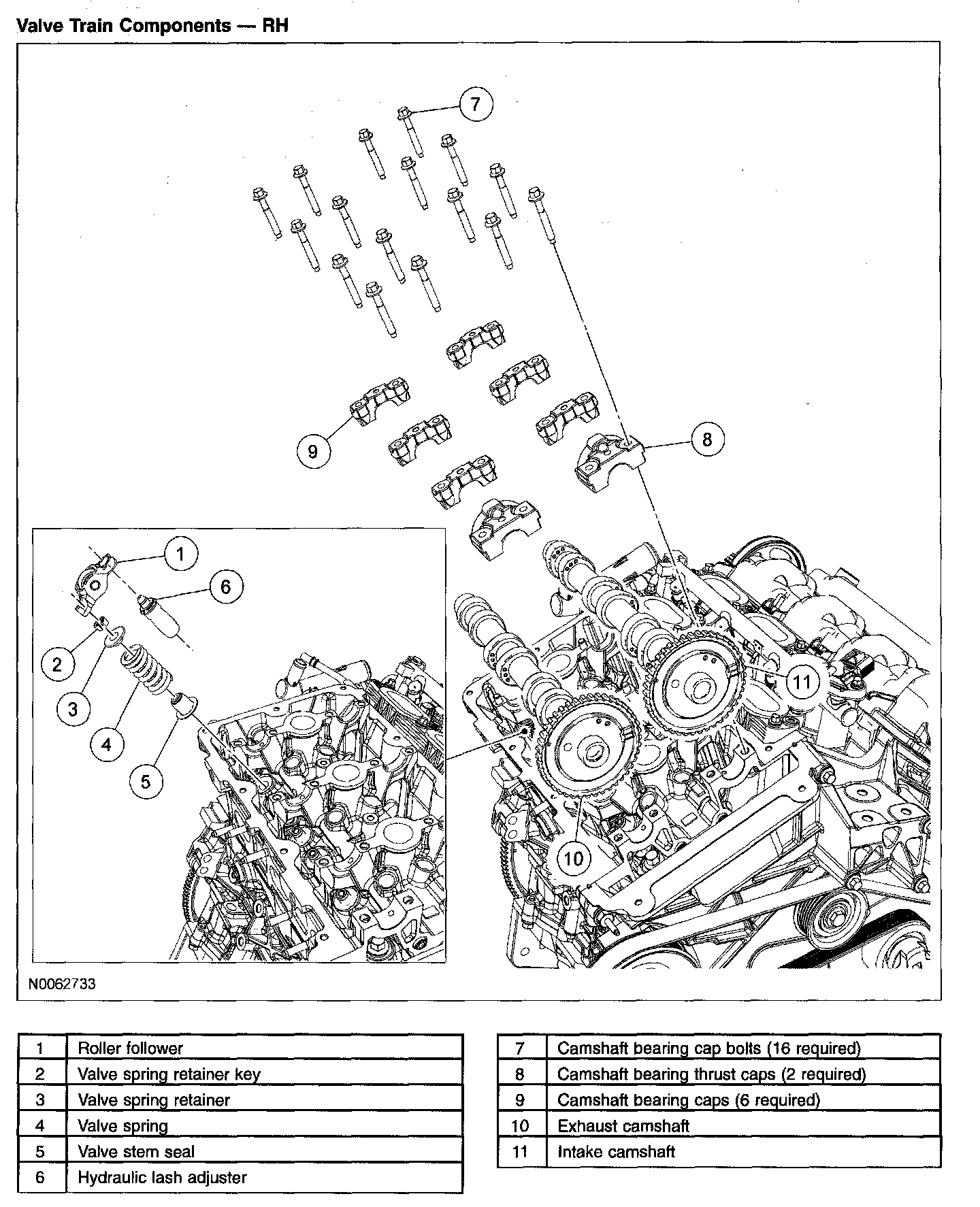

Valve Train Components - RH

Valve Train Components - RH:
