Oil Pan, Engine

Oil Pan

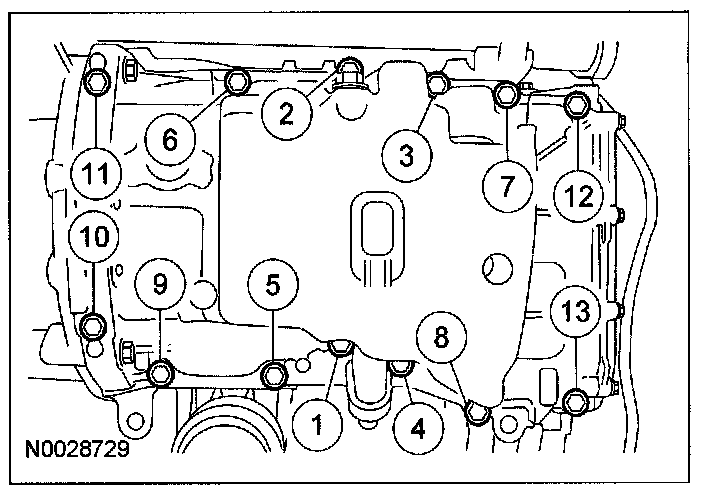

Tighten the oil pan bolts in the sequence shown.
Tighten to 25 N-m (2.5 kgf-m, 18 ft-lbf).

For information regarding FWD, AWD, and All Vehicles, refer to Service and Repair
