Intake Air System Components - Exploded View
Intake Air System Components - Exploded View

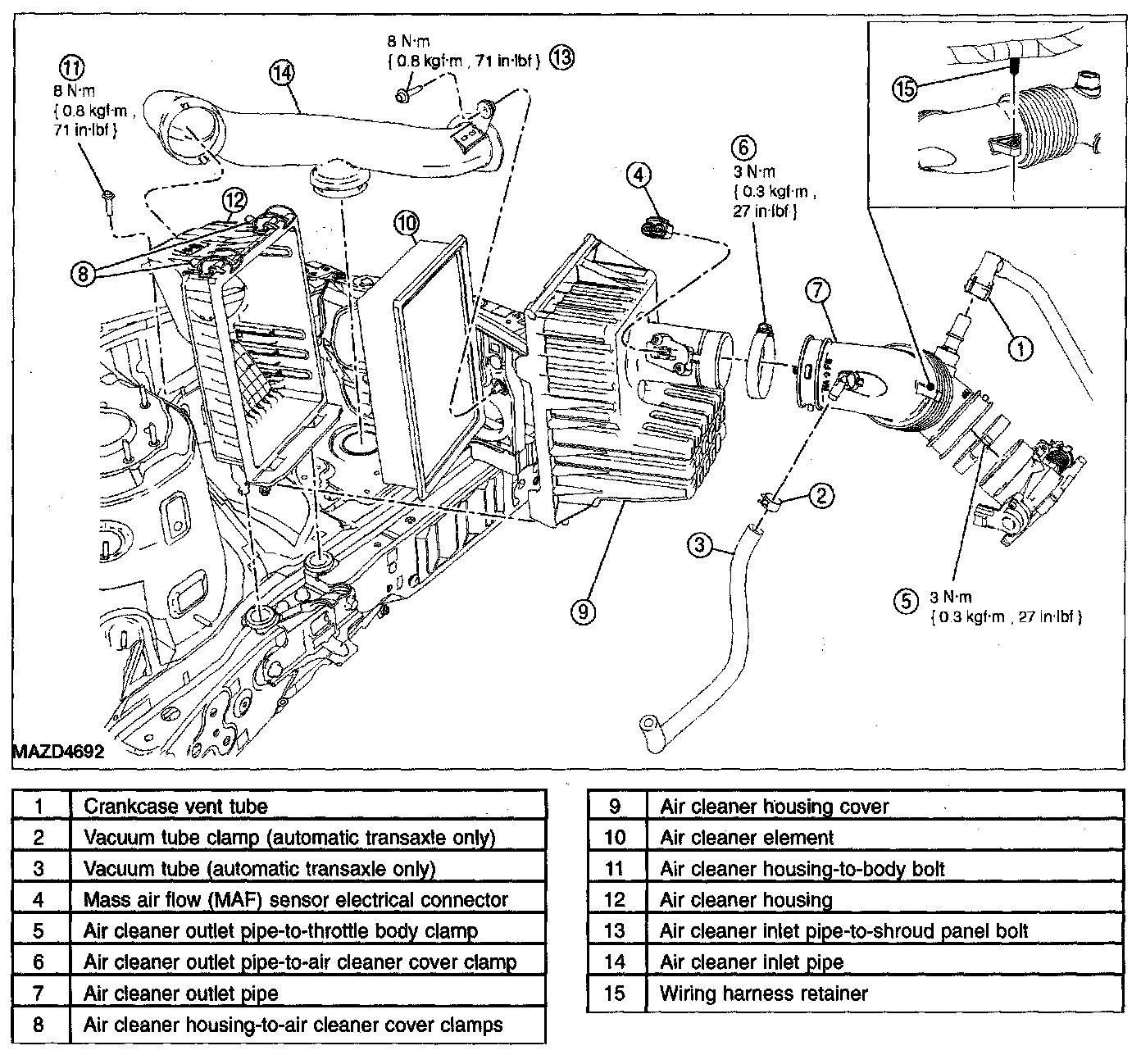

INTAKE AIR SYSTEM - 2.3L EXPLODED VIEW
Intake Air System-2.3L Exploded View:
1.
For additional information, see the procedures.
