Mazda
>>
2008
>>
Tribute 2WD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Main Control Valve Body
Main Control Valve Body

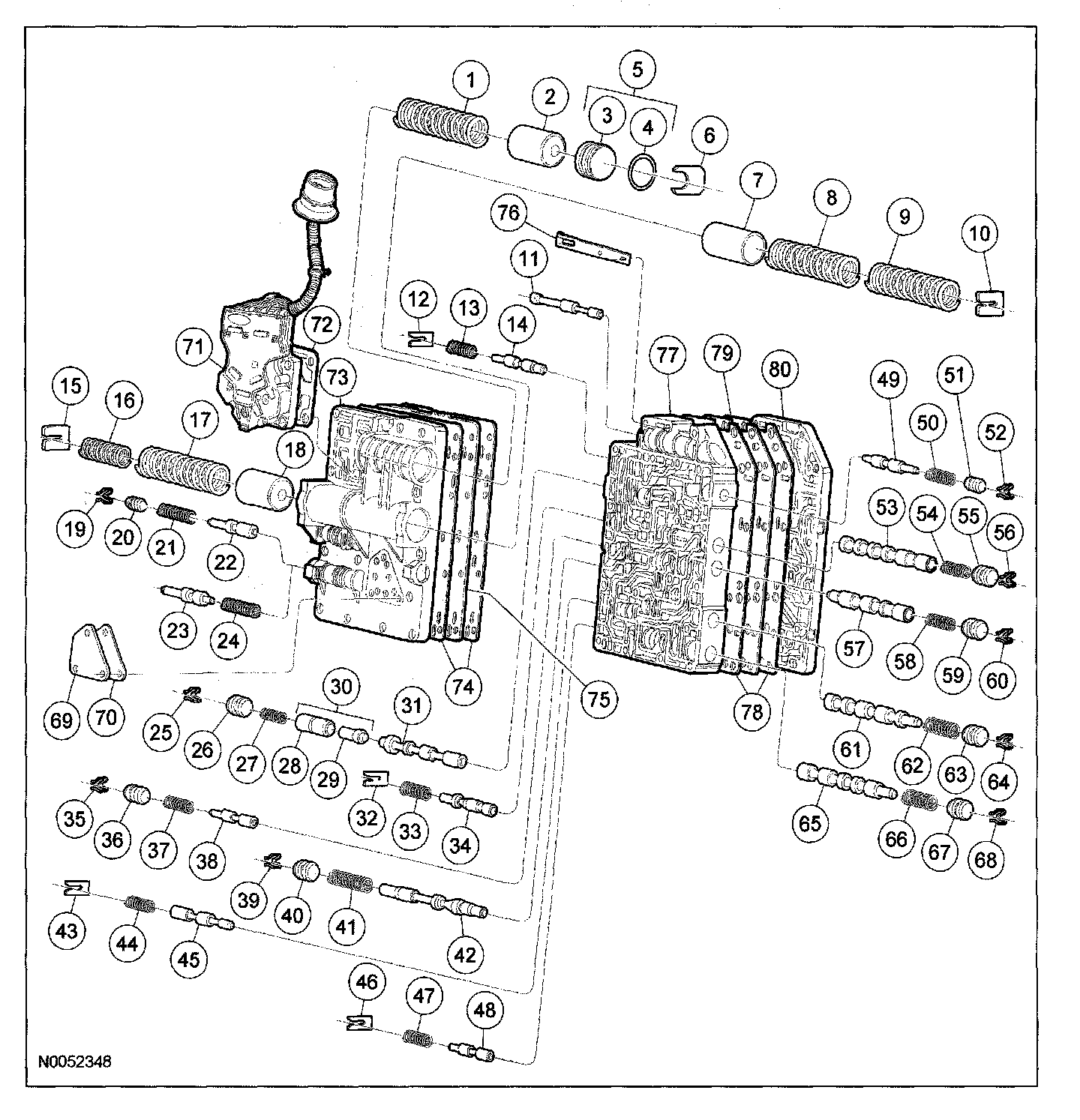

Main Control Valve Body (Part 1):

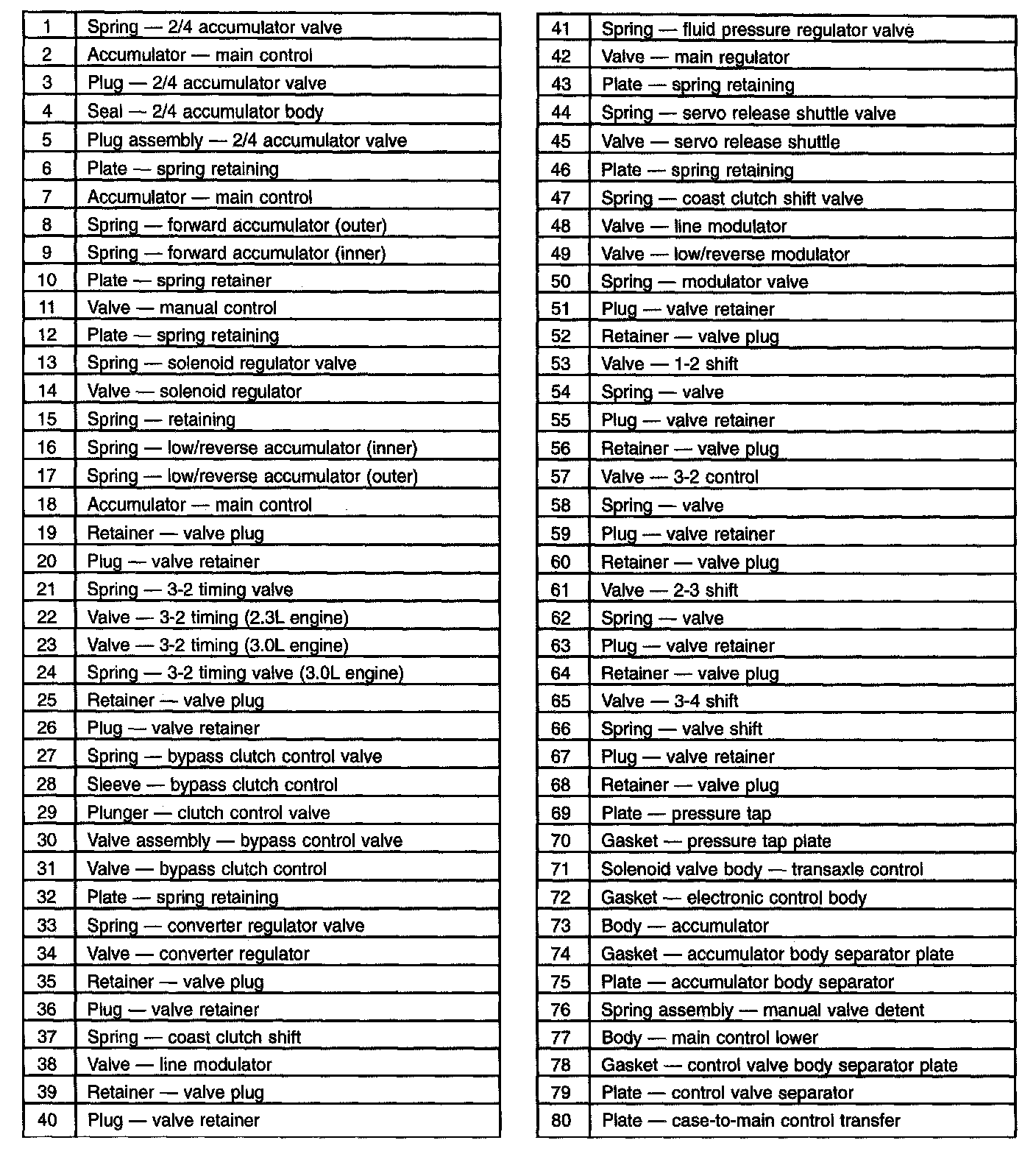

Main Control Valve Body (Part 2):
