System Specifications



-
SPECIFICATIONS - HYBRID

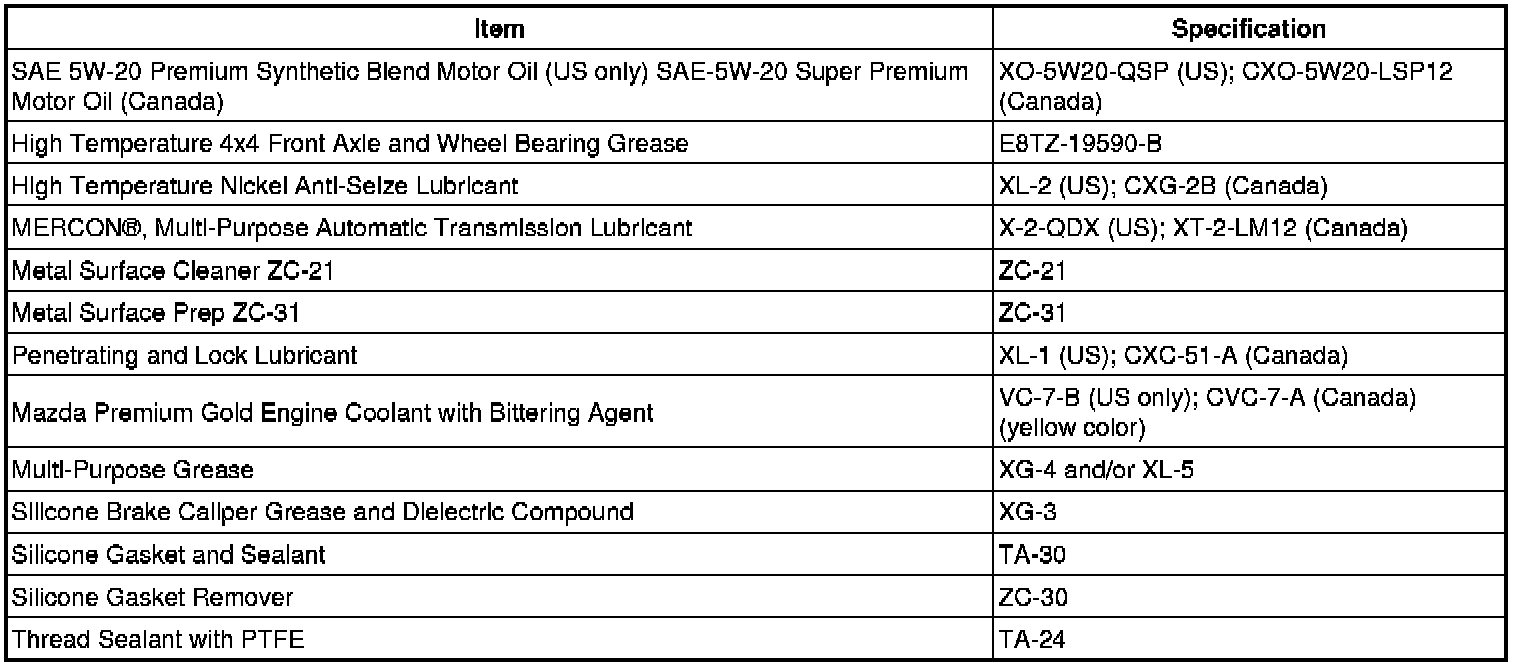

General Specifications

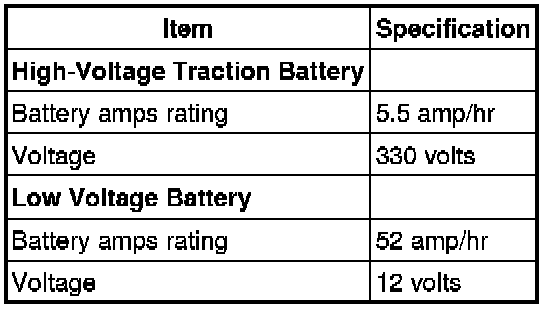

Traction Battery Specifications

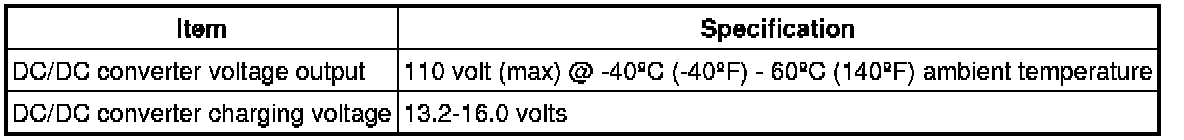

High-Voltage Converter/Inverter

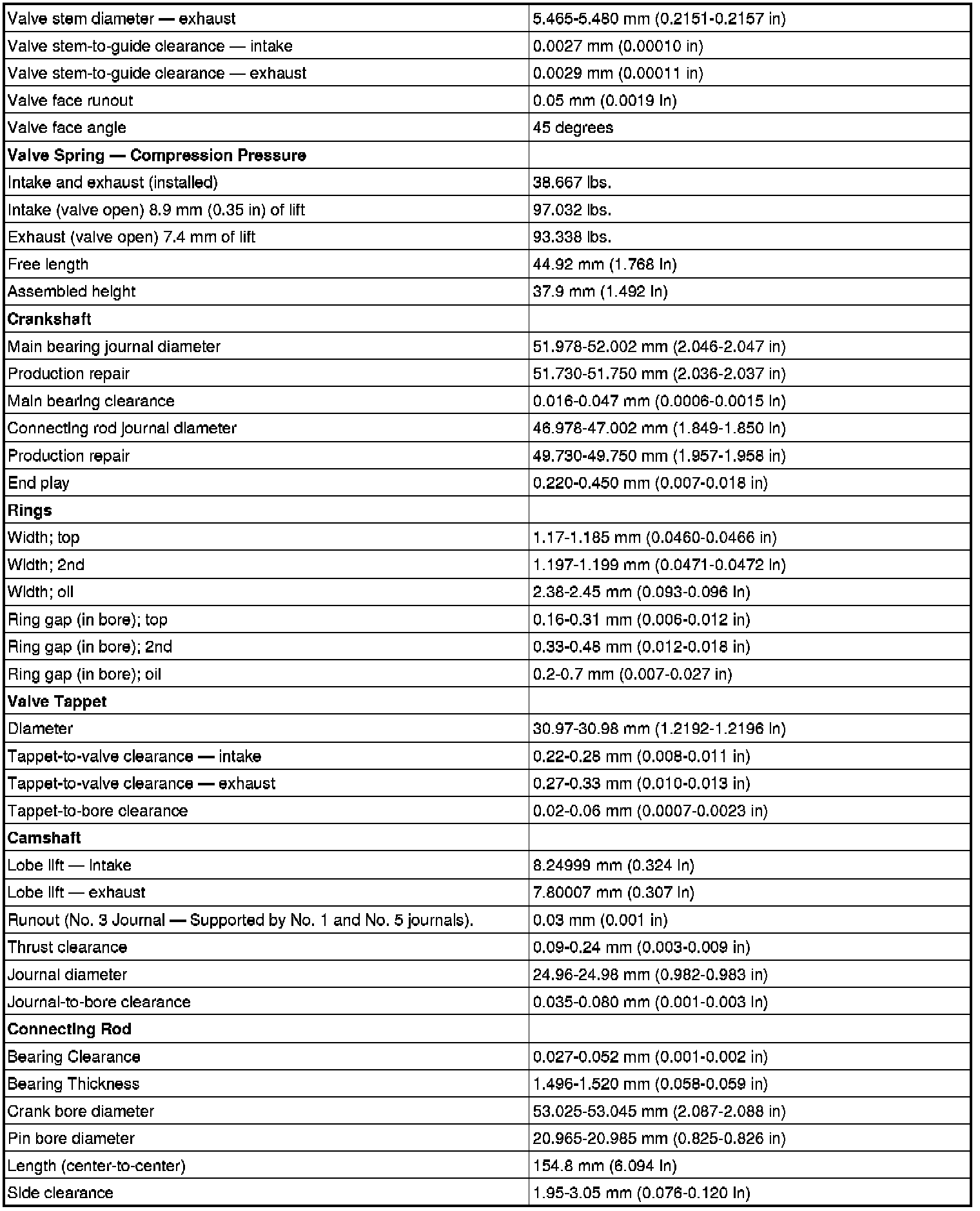

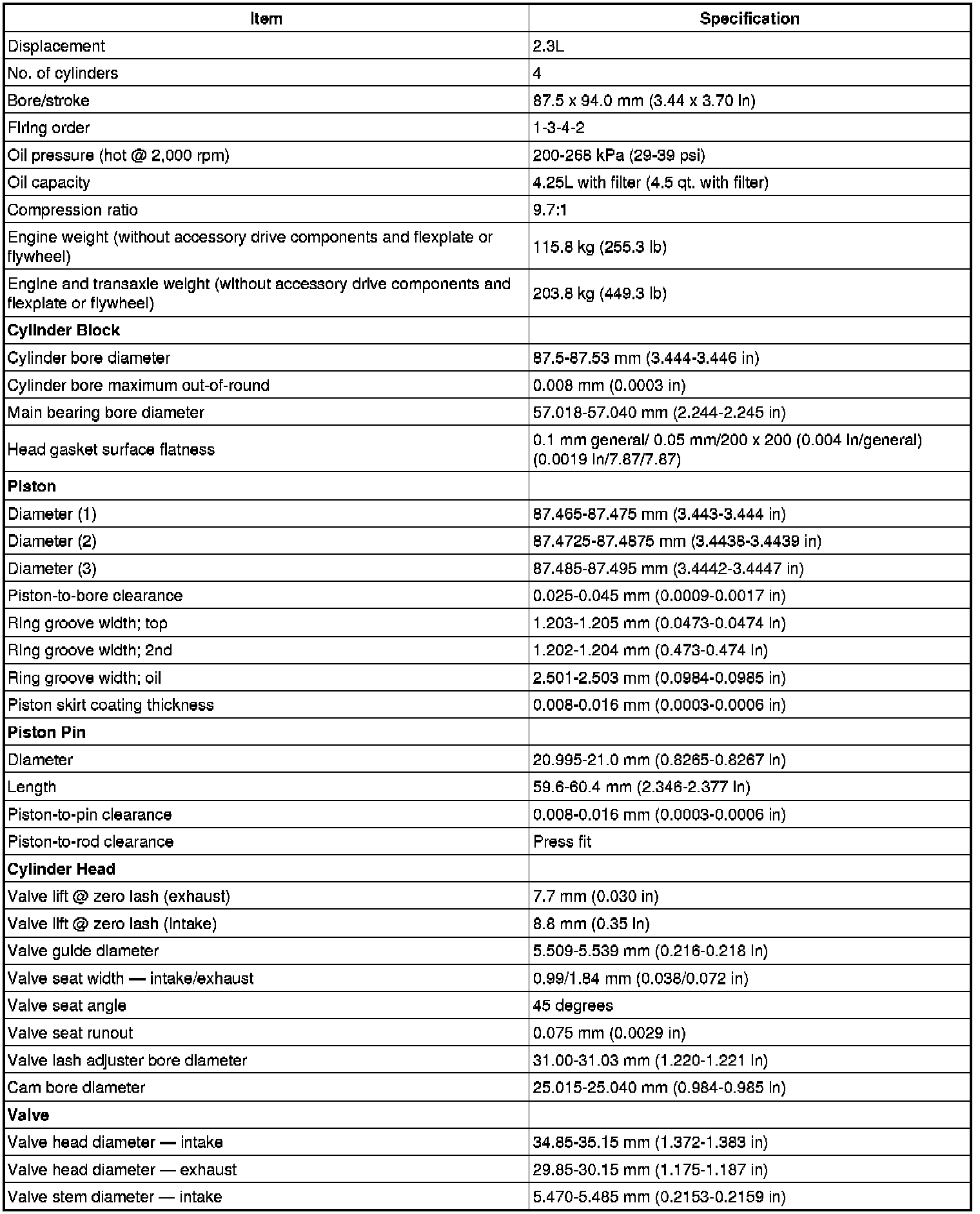

Hybrid Engine














- All dimensions are in mm unless noted.
