Powertrain Control Module (PCM) Relay
Powertrain Control Module (PCM) Relay
POWERTRAIN CONTROL MODULE (PCM) RELAY

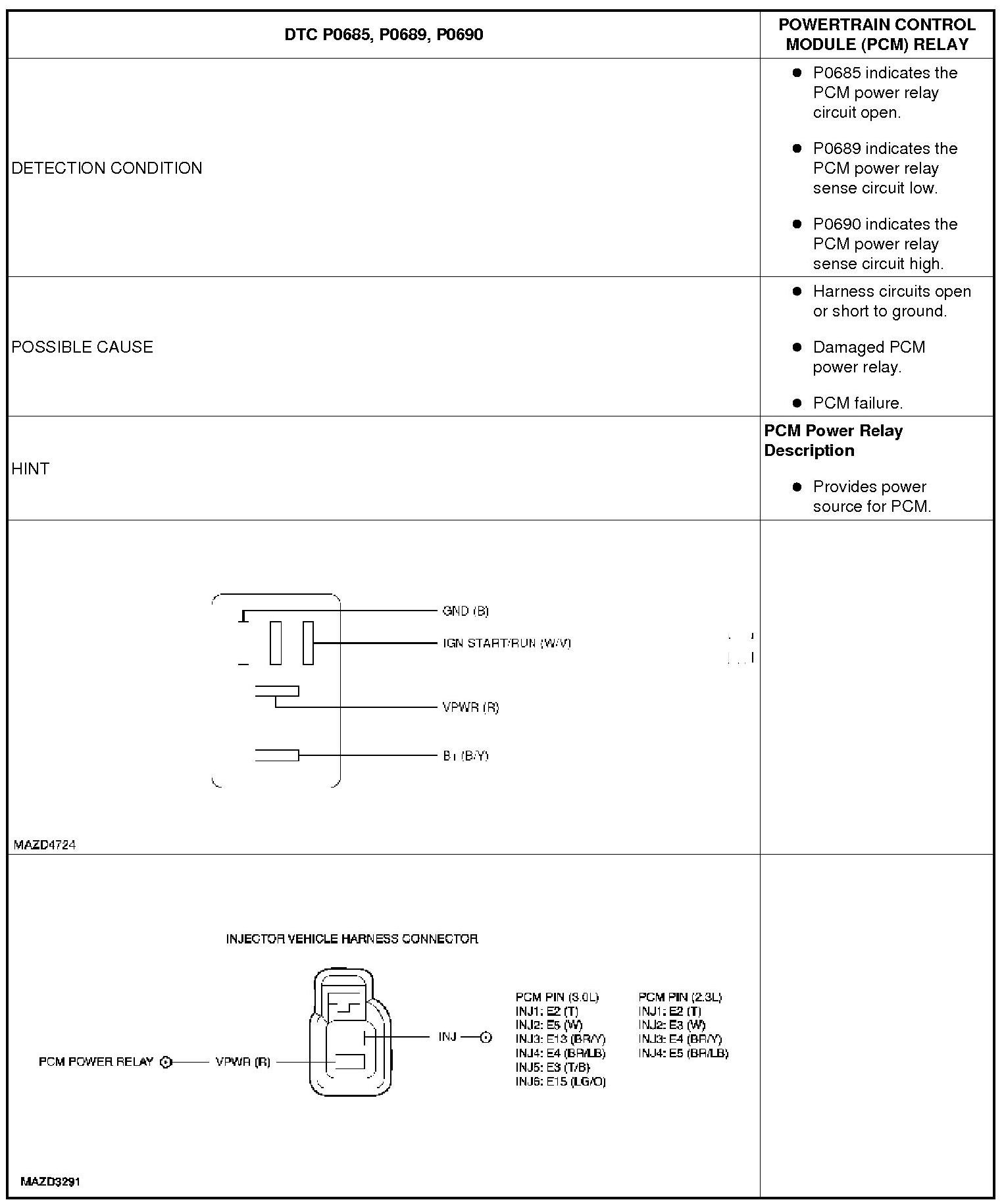

Detection Condition/Possible Cause:

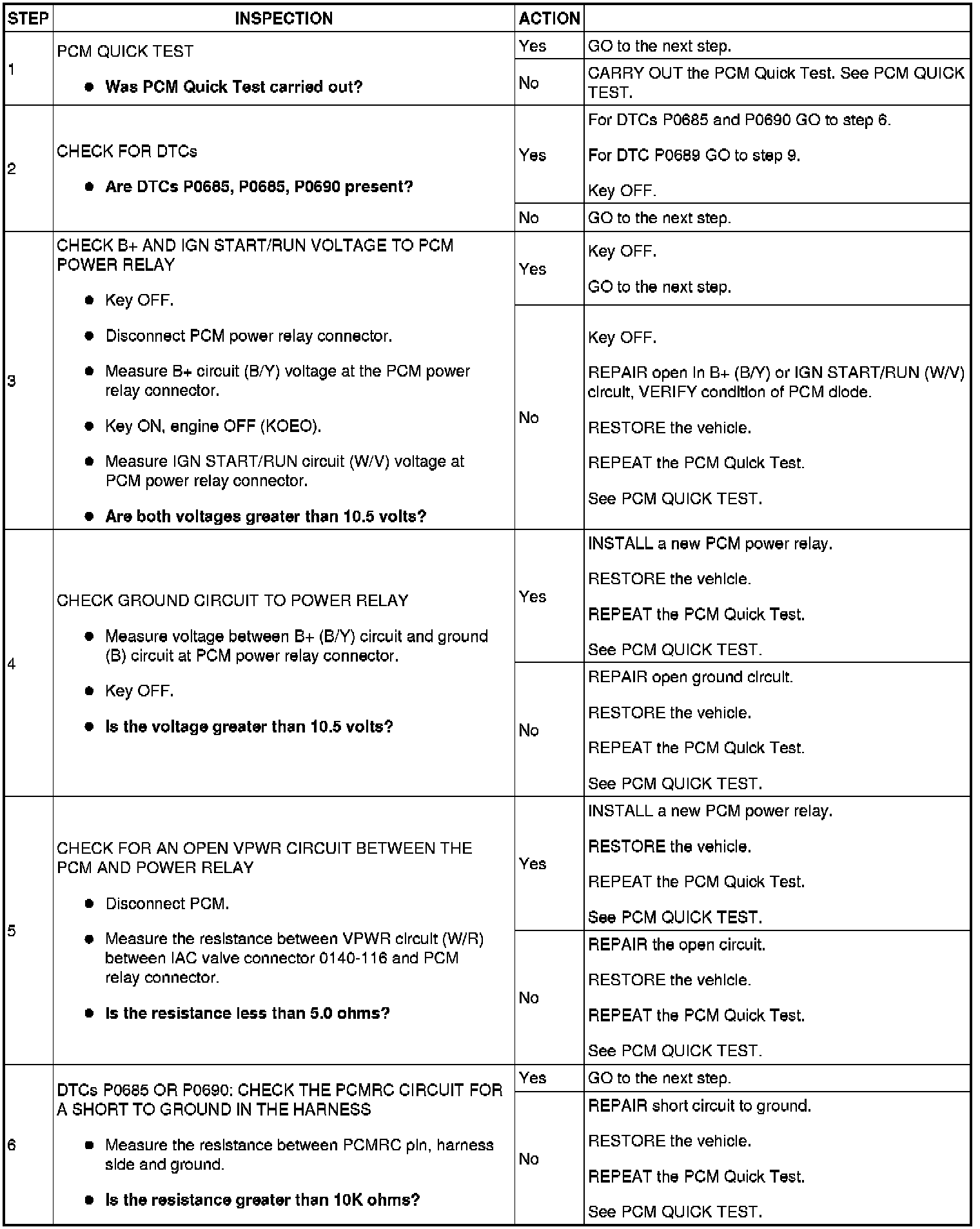

Step 1-Step 6:

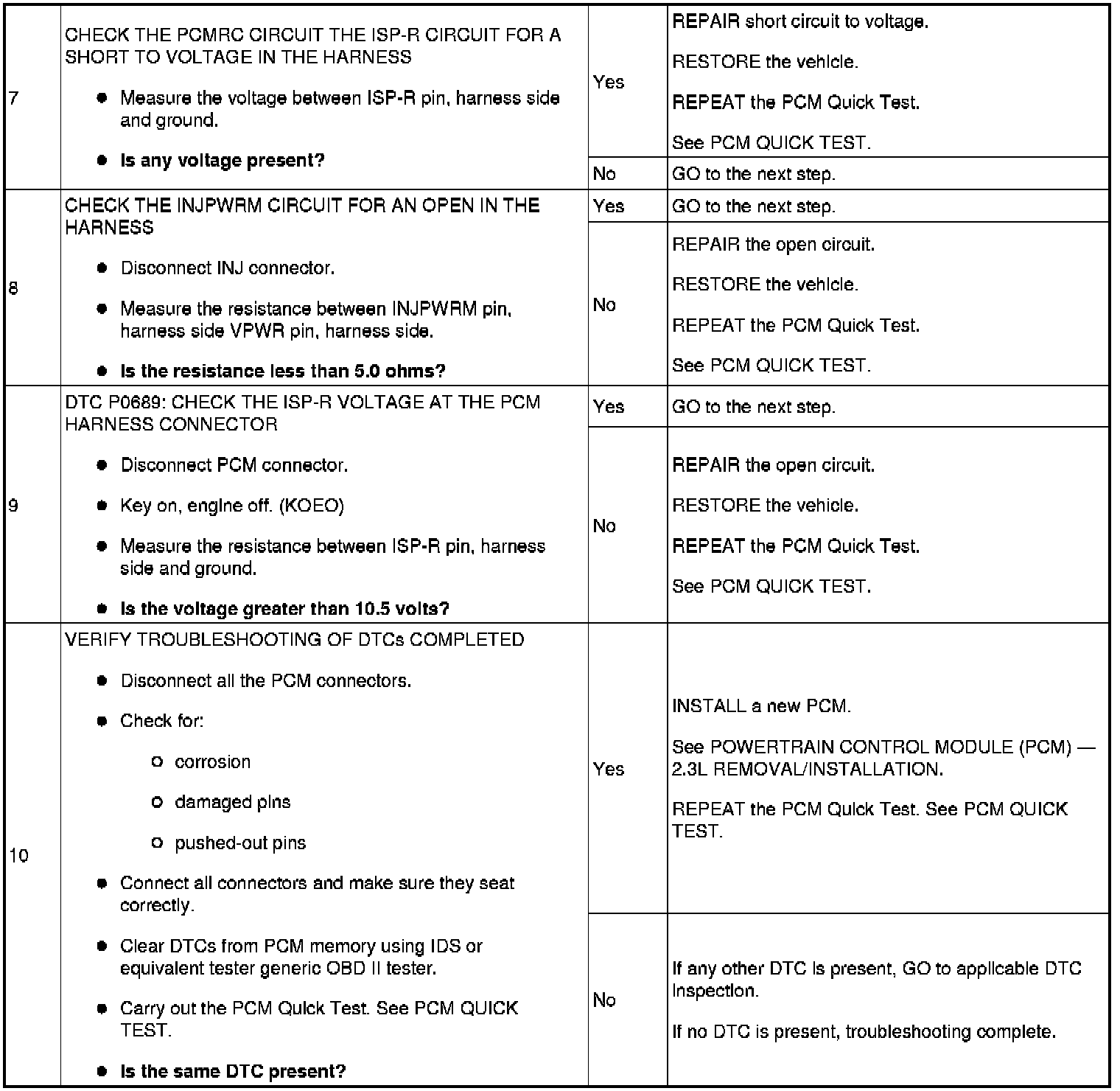

Step 7-Step 10:
