Powertrain Control Module (PCM) Power Relay
POWERTRAIN CONTROL MODULE (PCM) POWER RELAY

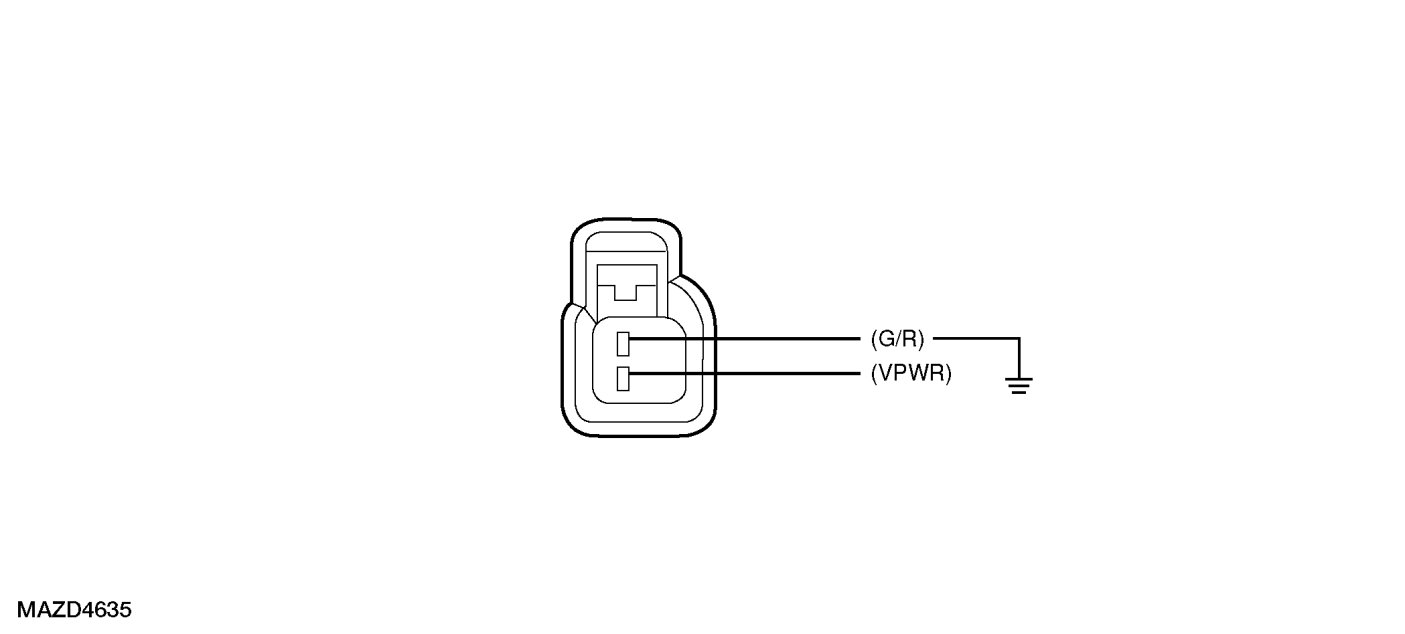

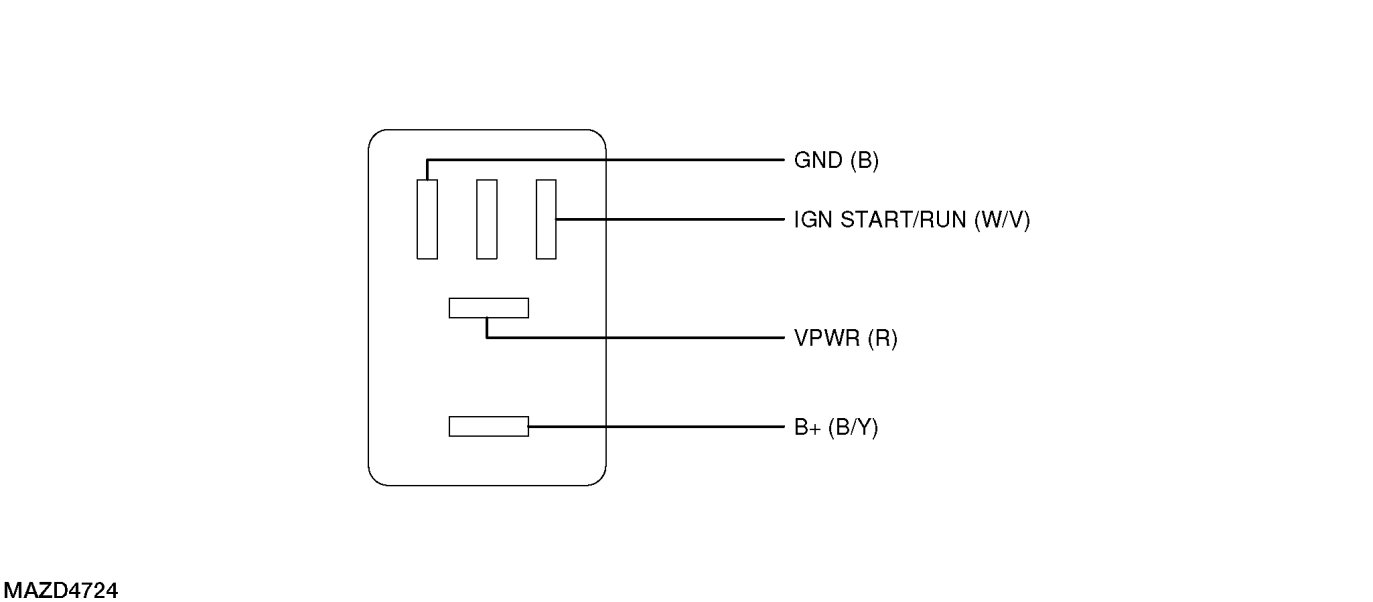

NOTE: The IGN START/RUN and ground circuits, or the B+ and VPWR circuits may be reversed in the harness connector. Refer to the Wiring Diagrams for schematic and connector information.
POSSIBLE CAUSE
- Harness circuits: B+, IGN START/RUN, INJPWRM, ISP-R, PCMRC, VPWR and GND
- PCM power relay
- PCM

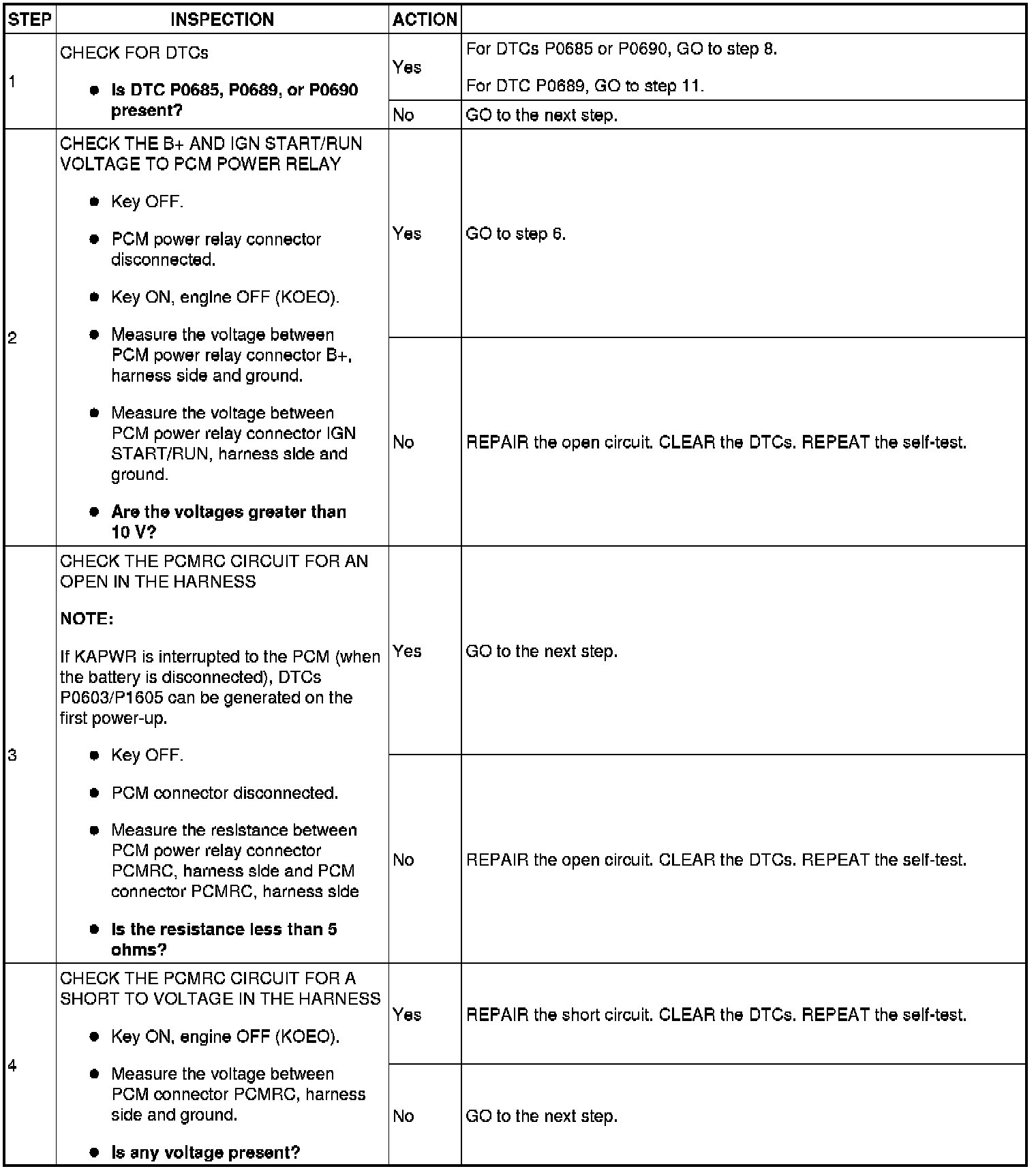

Step 1-Step 4:

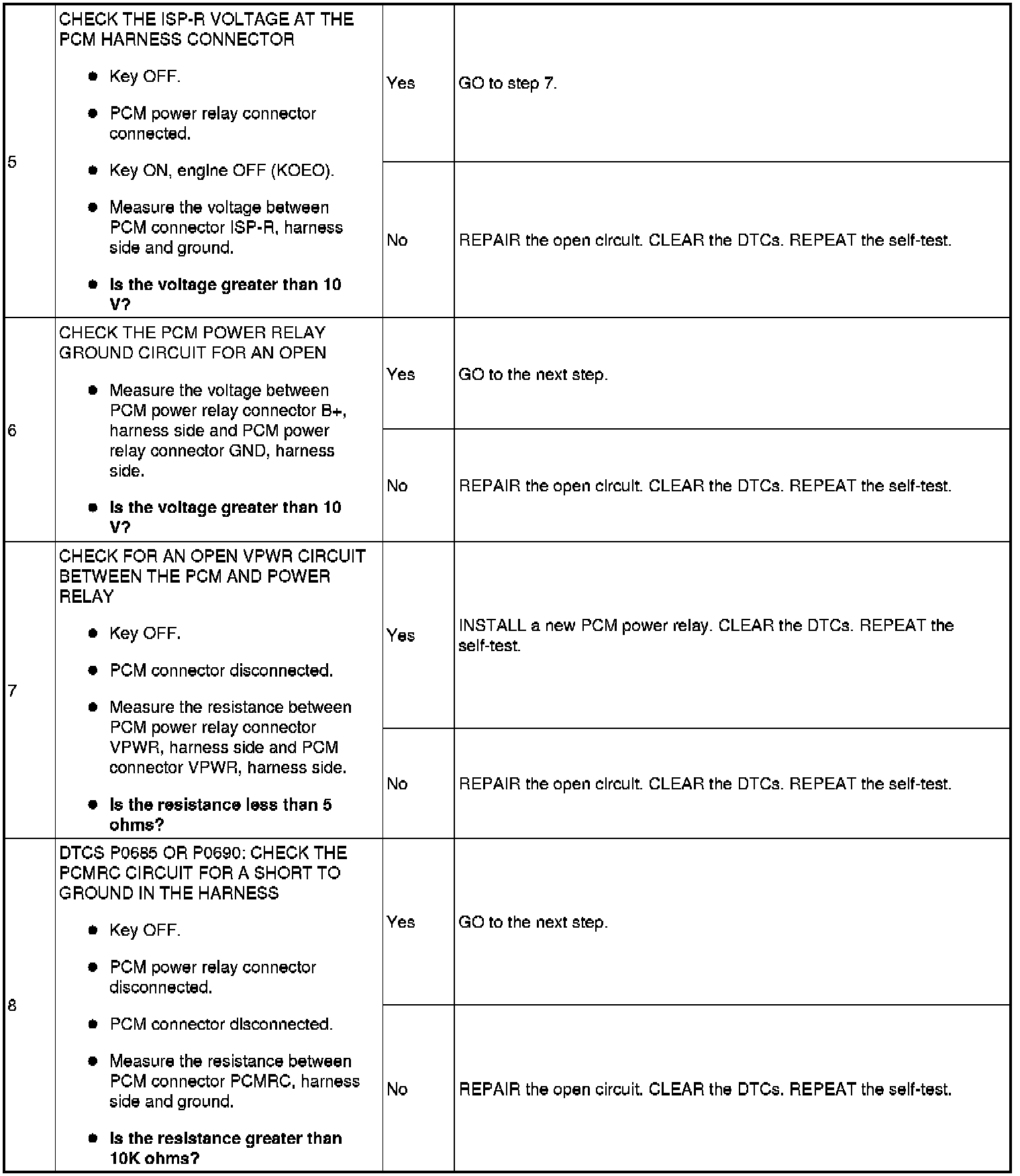

Step 5-Step 8:
