Home >> Mazda >> 2008 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Pressure Sensor >> Locations

Fuel Pressure Sensor: Locations

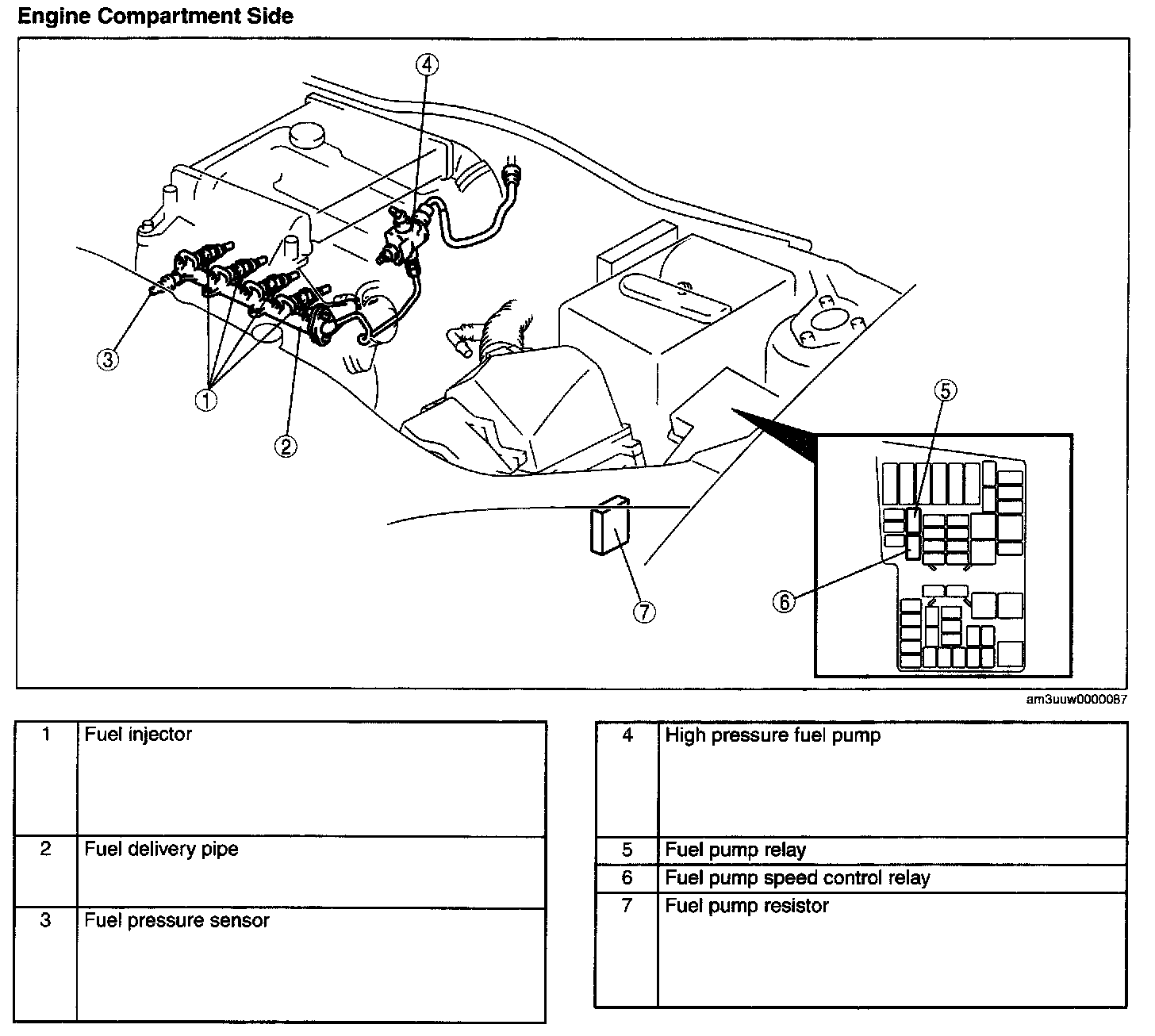

Engine Compartment Side:
