Rear Wheel Alignment [16-Inch Wheel]

Rear wheel alignment [16-inch wheel]

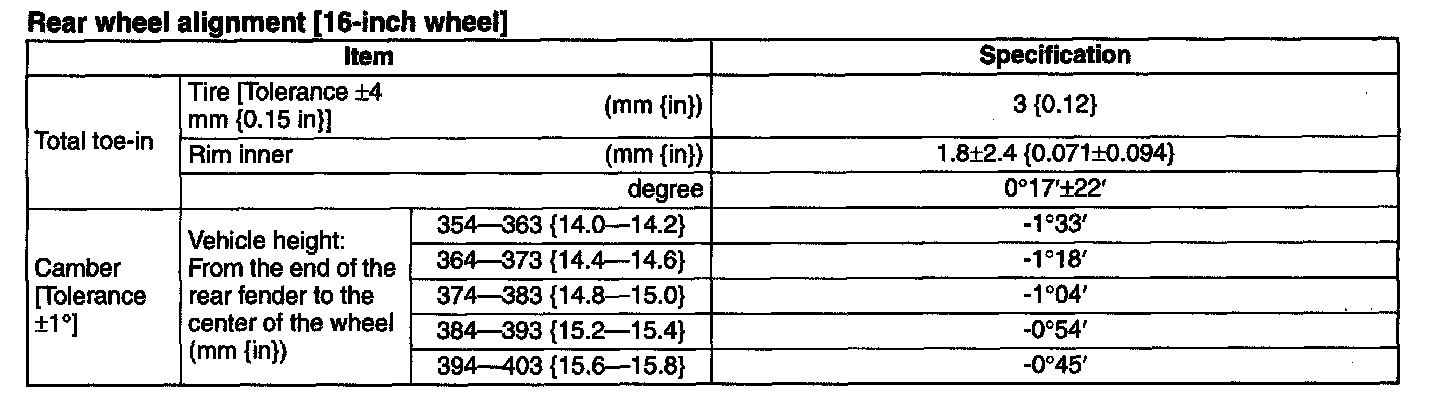

Rear wheel alignment [16-inch wheel]:

Note:
^ Unloaded vehicle: Fuel tank is full. Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
^ Difference between the left and right camber angle is within 1°.
