Front Wheel Alignment [16-Inch Wheel]

Front wheel alignment [16-inch wheel]

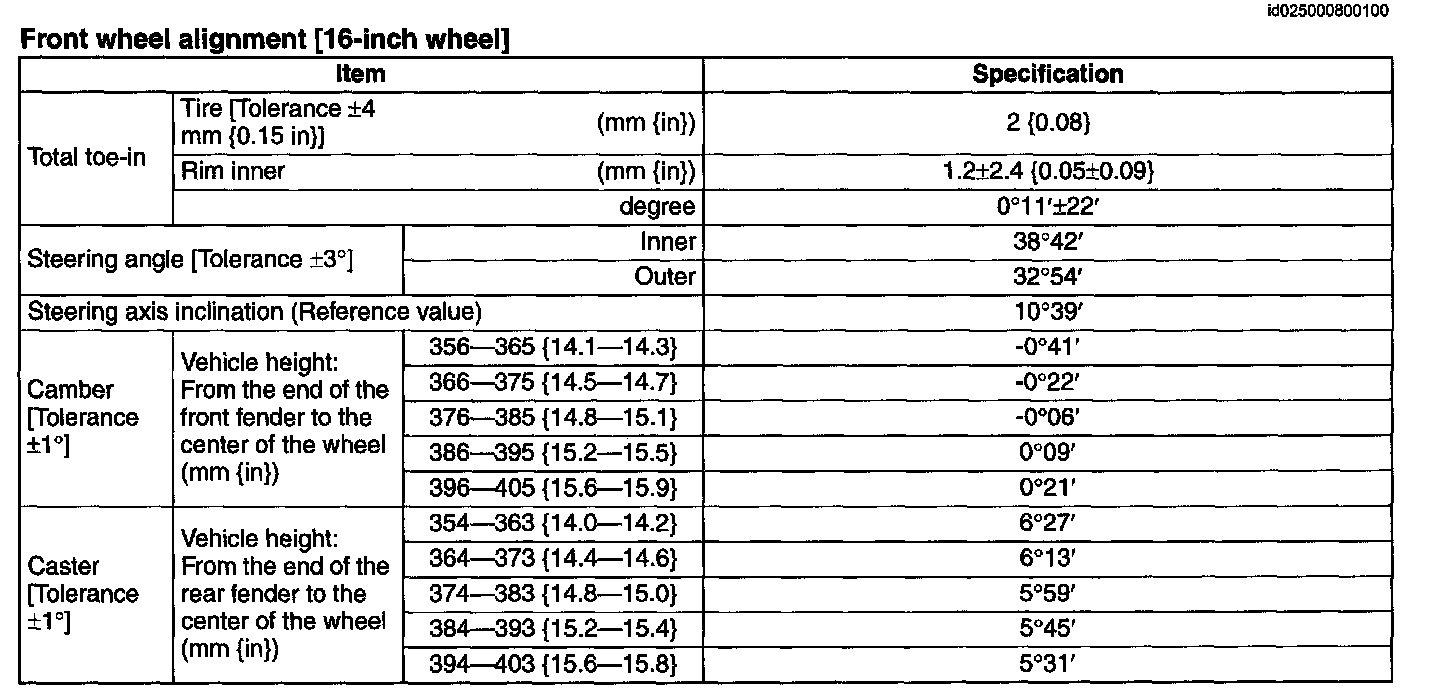

Front Wheel Alignment [16-Inch Wheel]:

Note:
^ Unloaded vehicle: Fuel tank is full. Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
^ Difference between the left and right dimension for camber and caster is within 1°.
