lemon-mirror
:
Home
>>
Mazda
>>
2008
>>
CX-9 FWD V6-3.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Testing and Inspection
Main Relay (Computer/Fuel System): Testing and Inspection

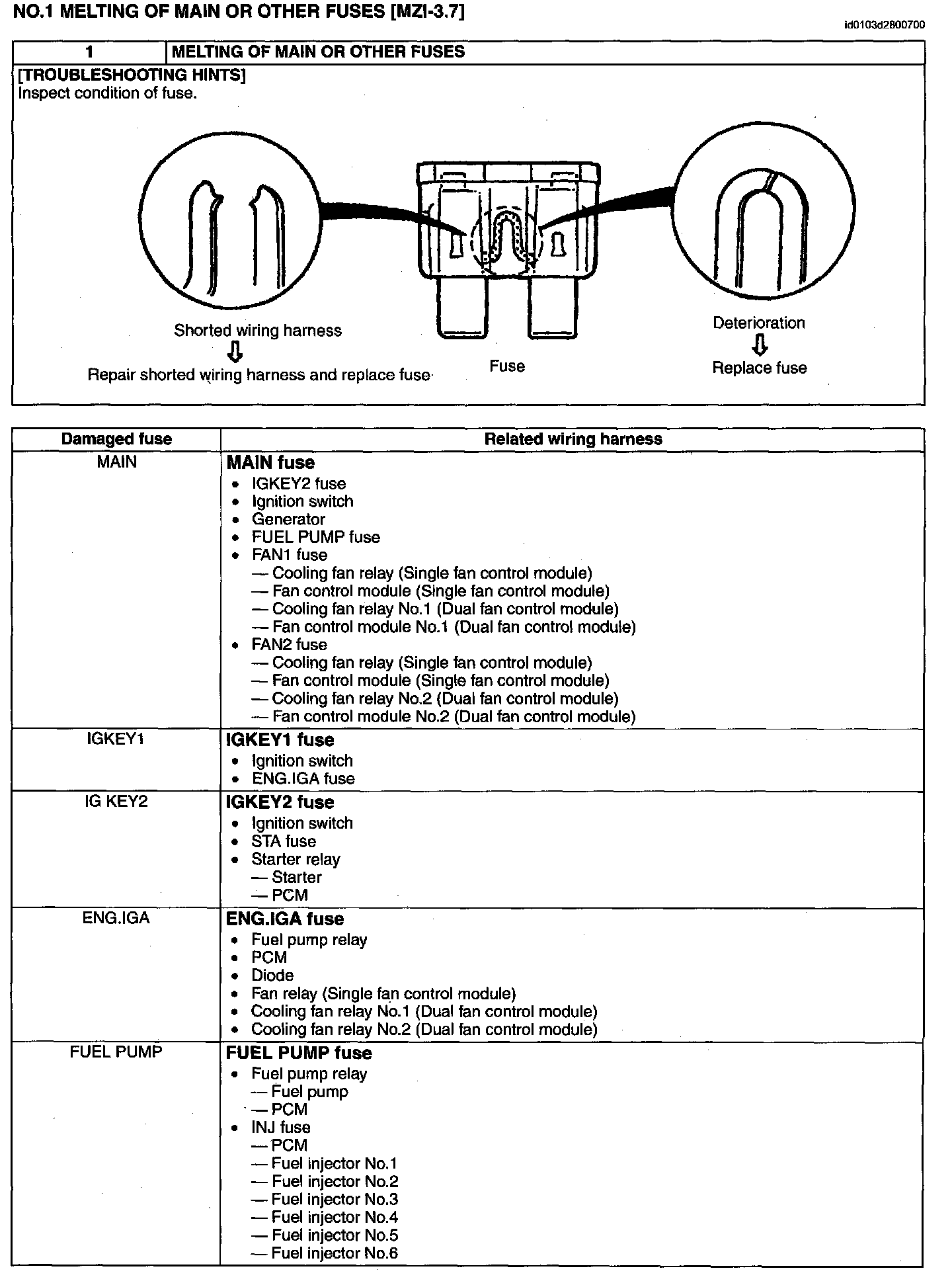

No.1 Melting Of Main Or Other Fuses (Part 1):

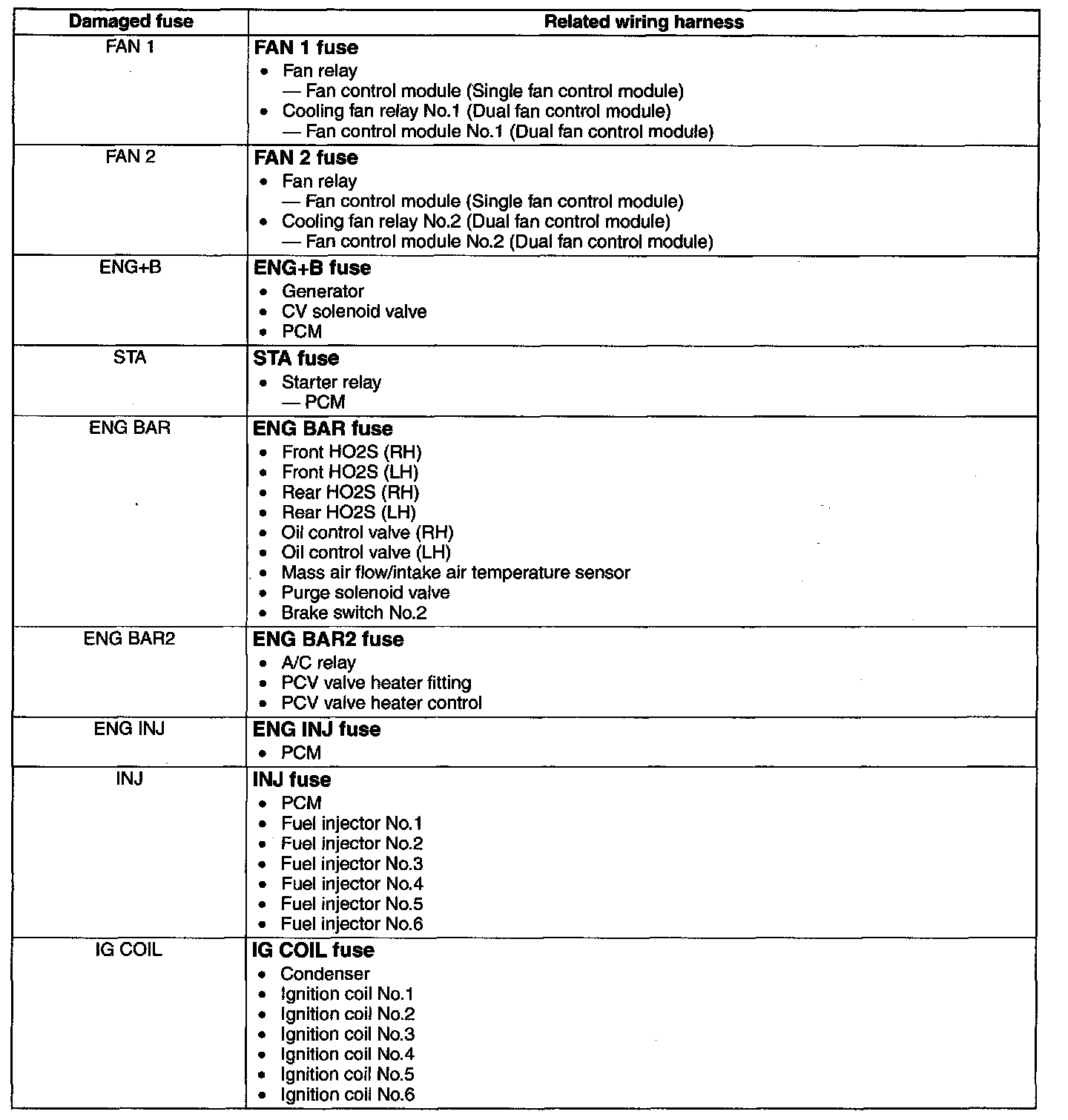

No.1 Melting Of Main Or Other Fuses (Part 2):
