Component Locations
Component Locations

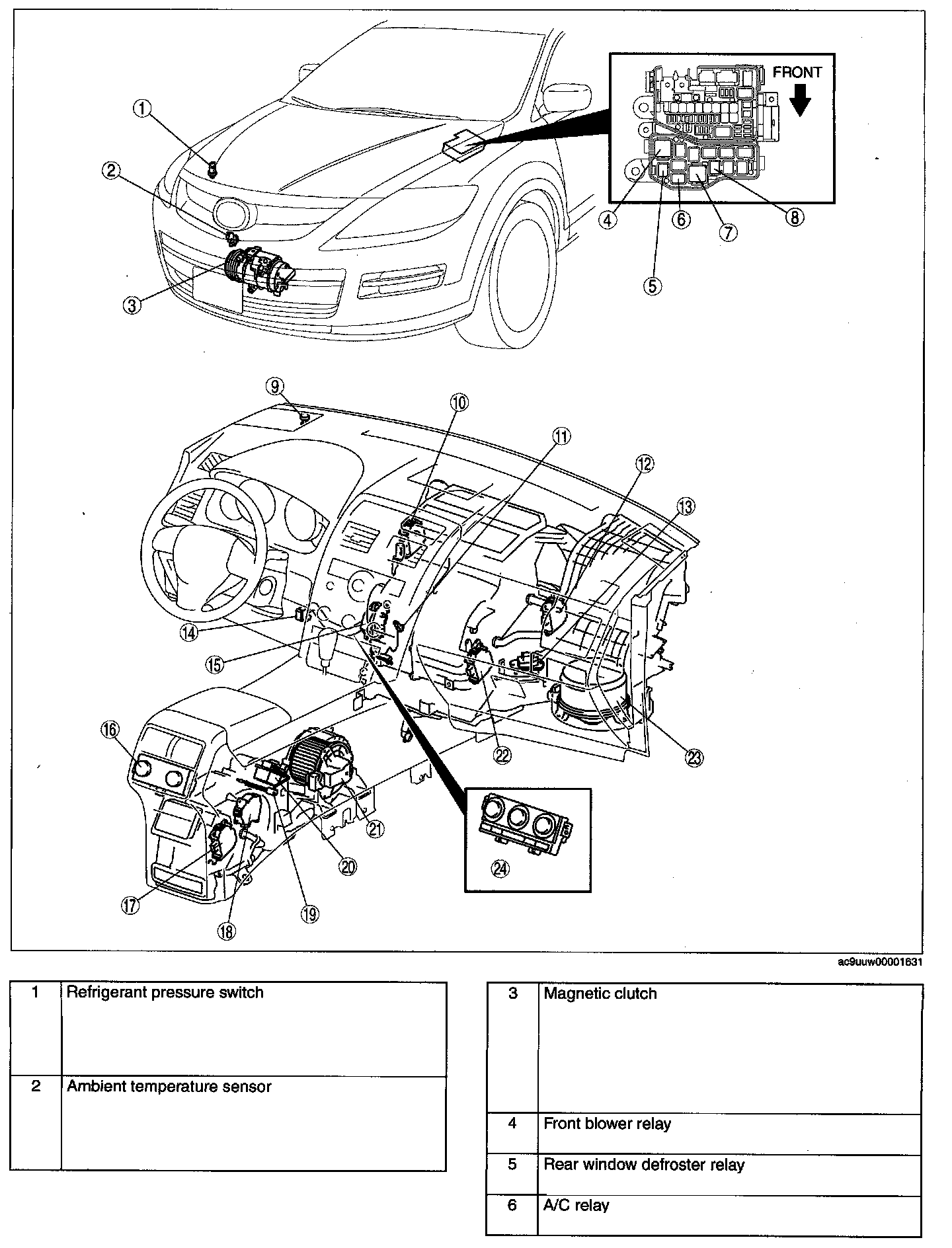

HVAC Control System Location Index (Part 1):

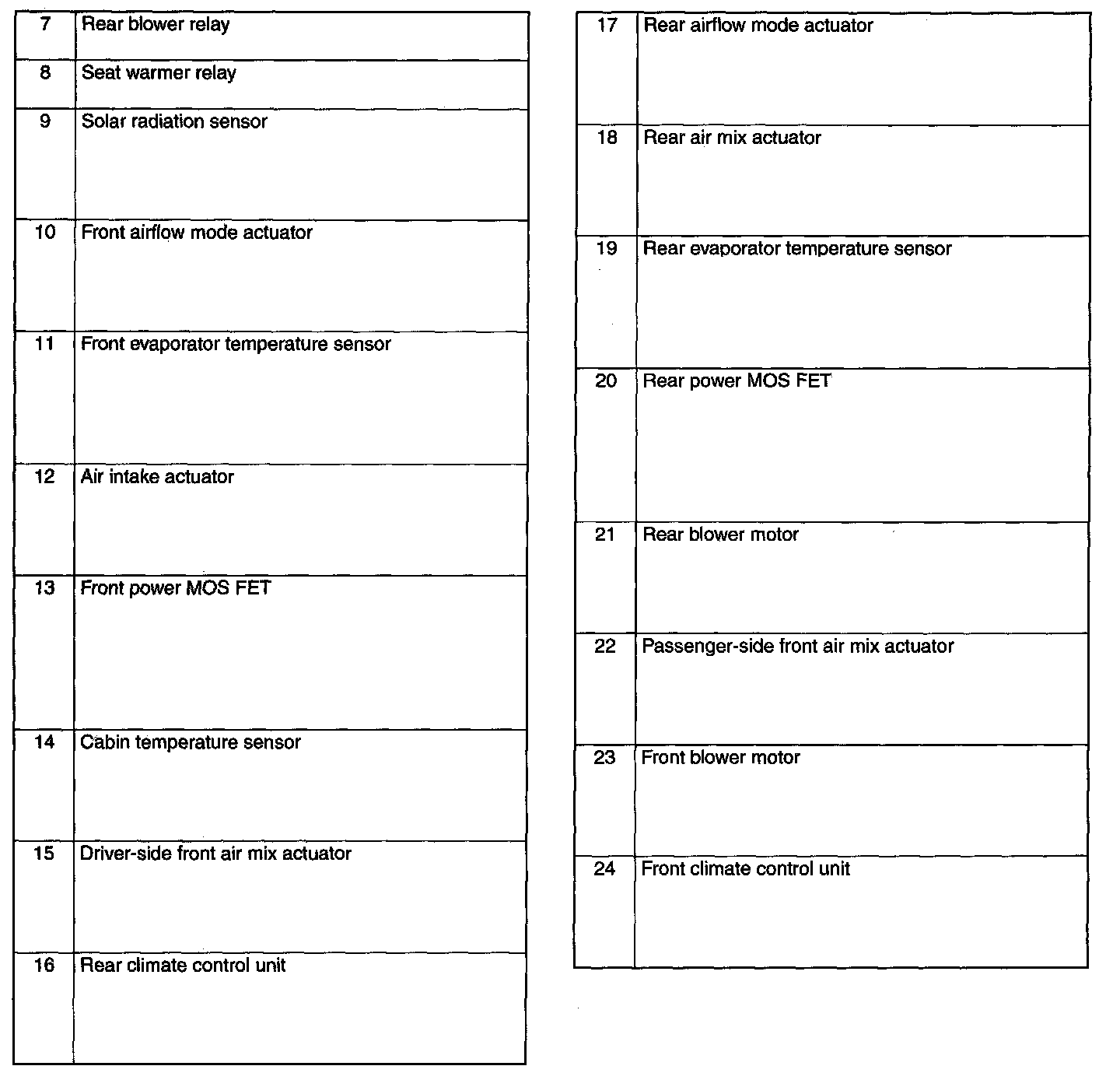

HVAC Control System Location Index (Part 2):
