Home >> Mazda >> 2008 >> CX-9 FWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Components >> Request Switch LF

Request Switch LF

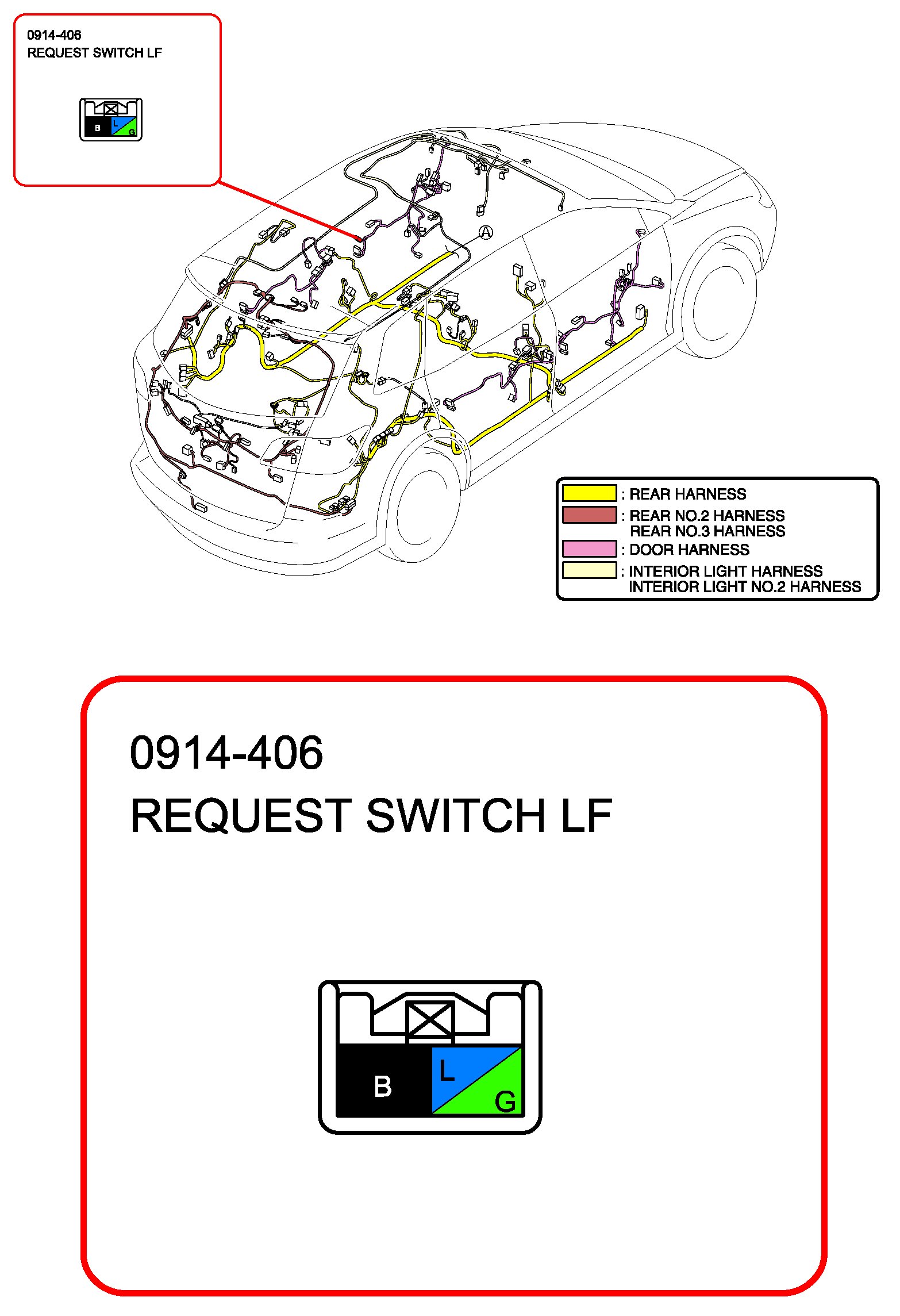

Request Switch LF:

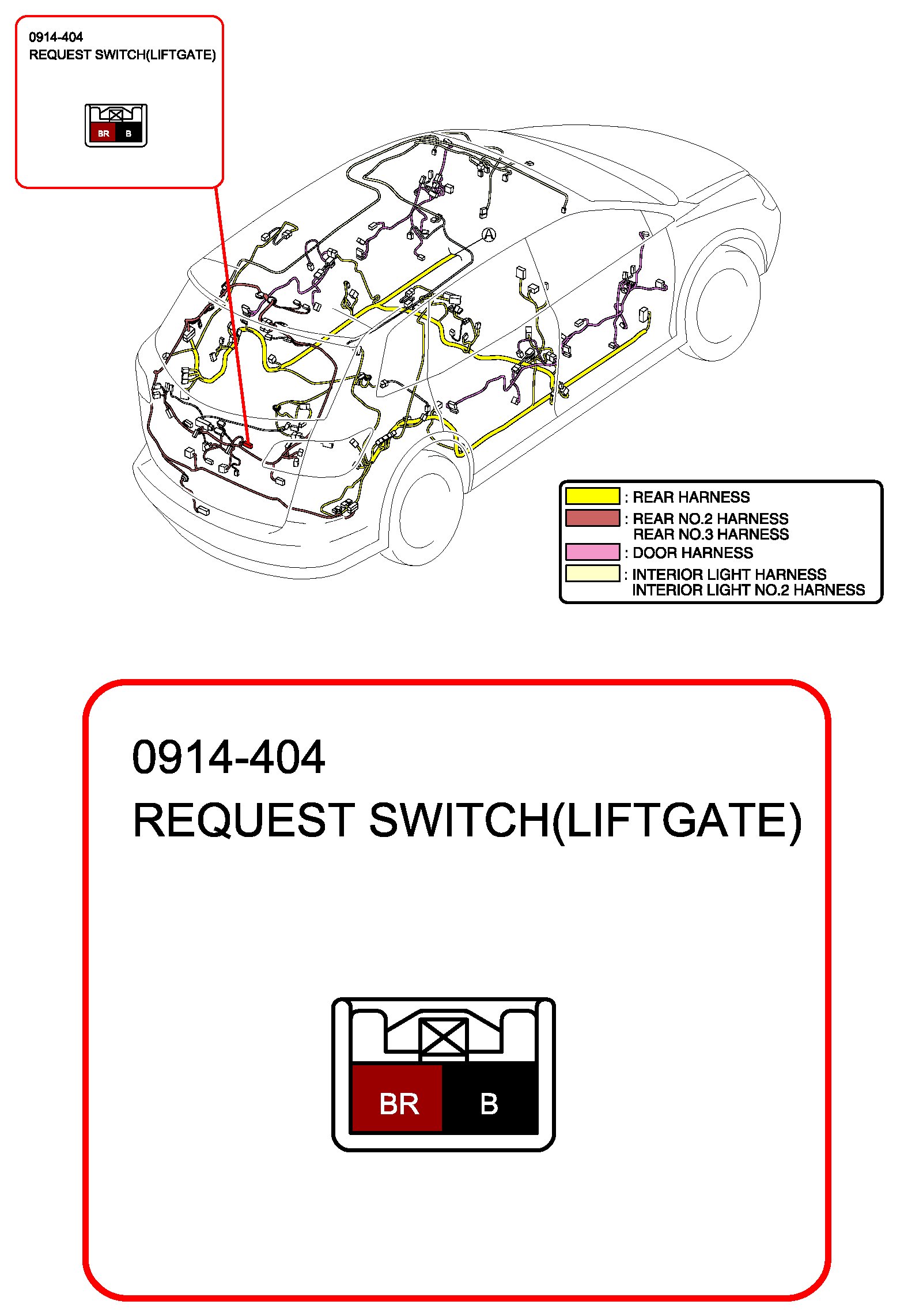

Request Switch(Liftgate):

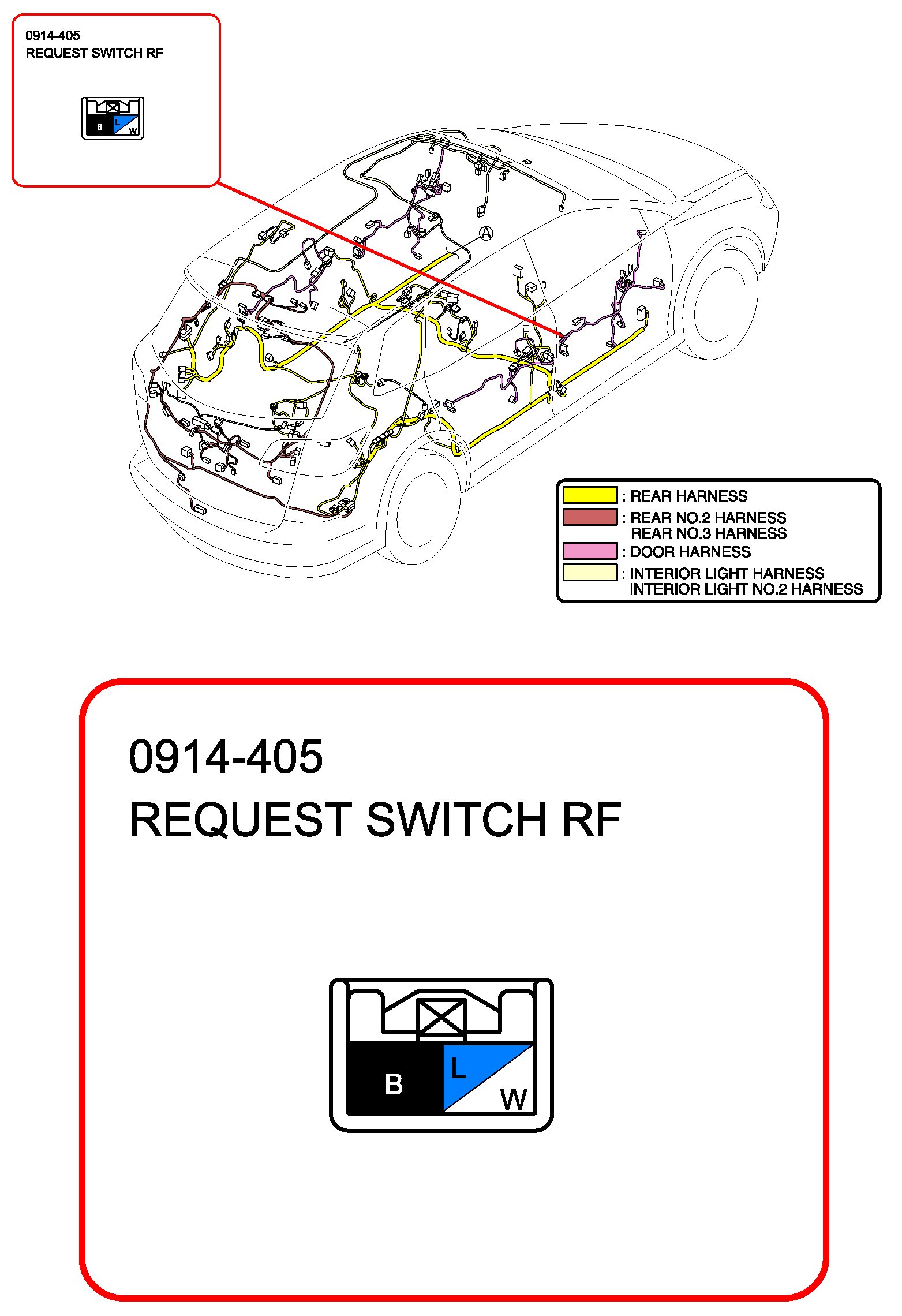

Request Switch RF:
