Power Window Main Switch

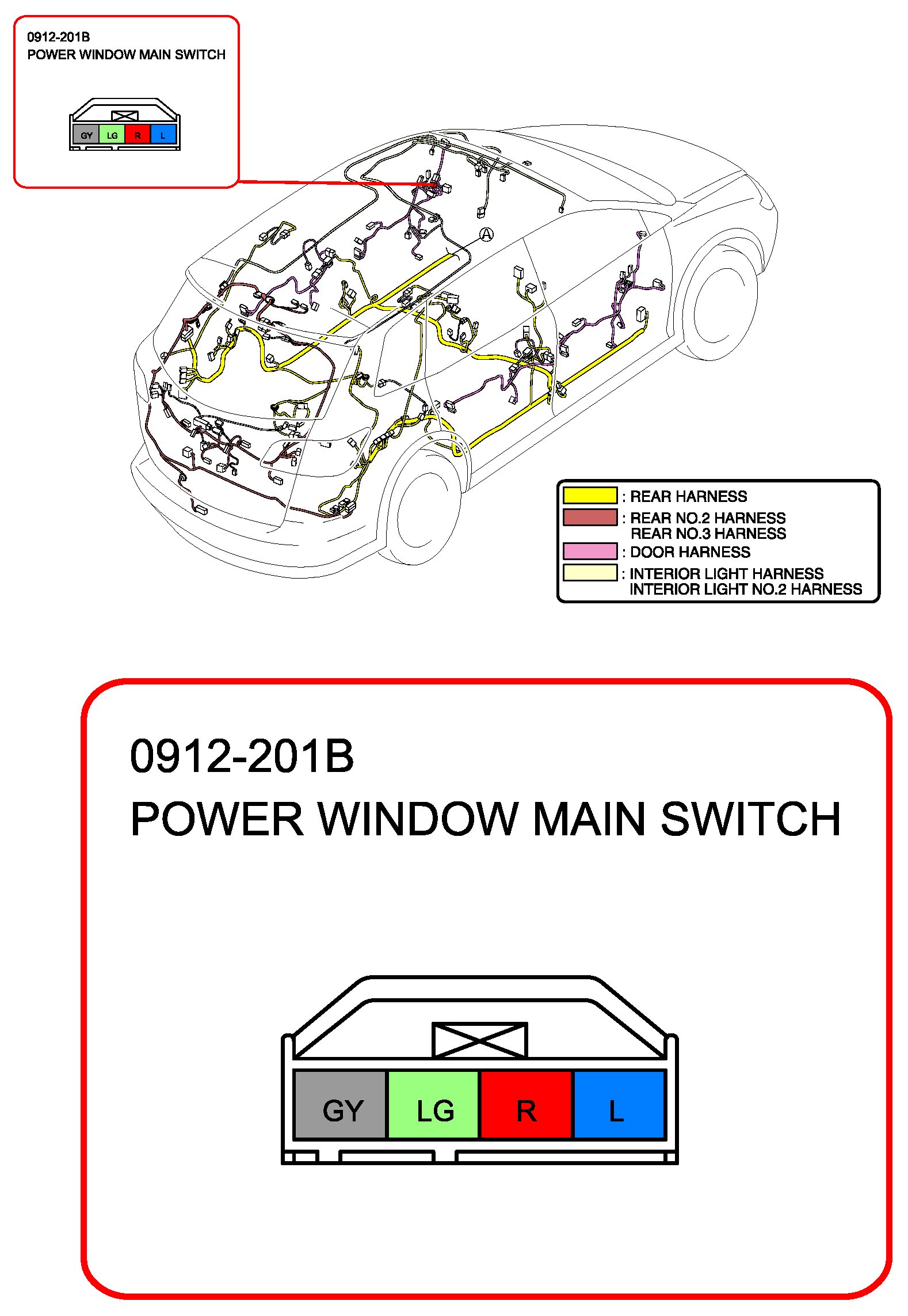

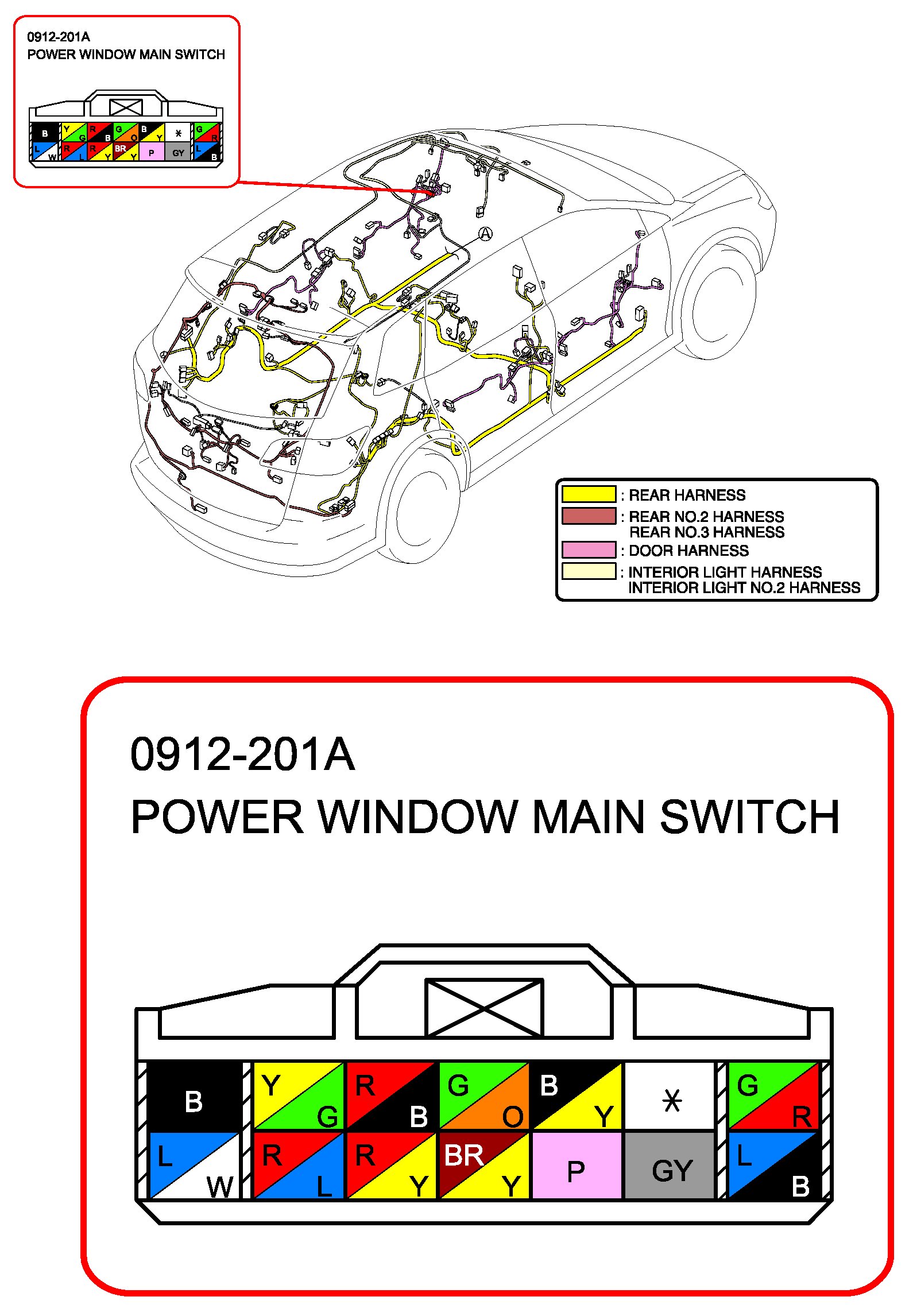

Power Window Main Switch:
Power Window Main Switch:

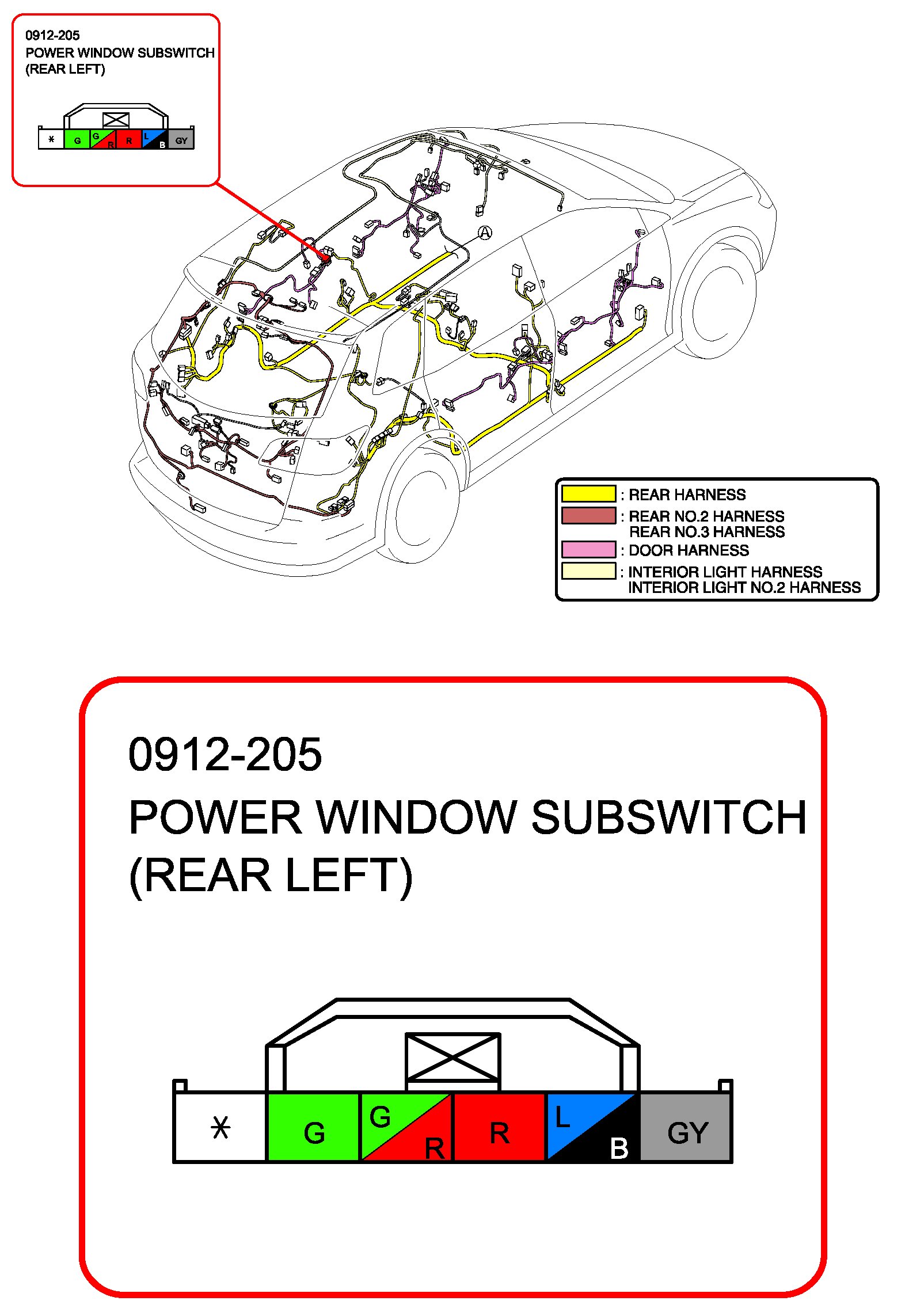

Power Window Subswitch (Rear Left):

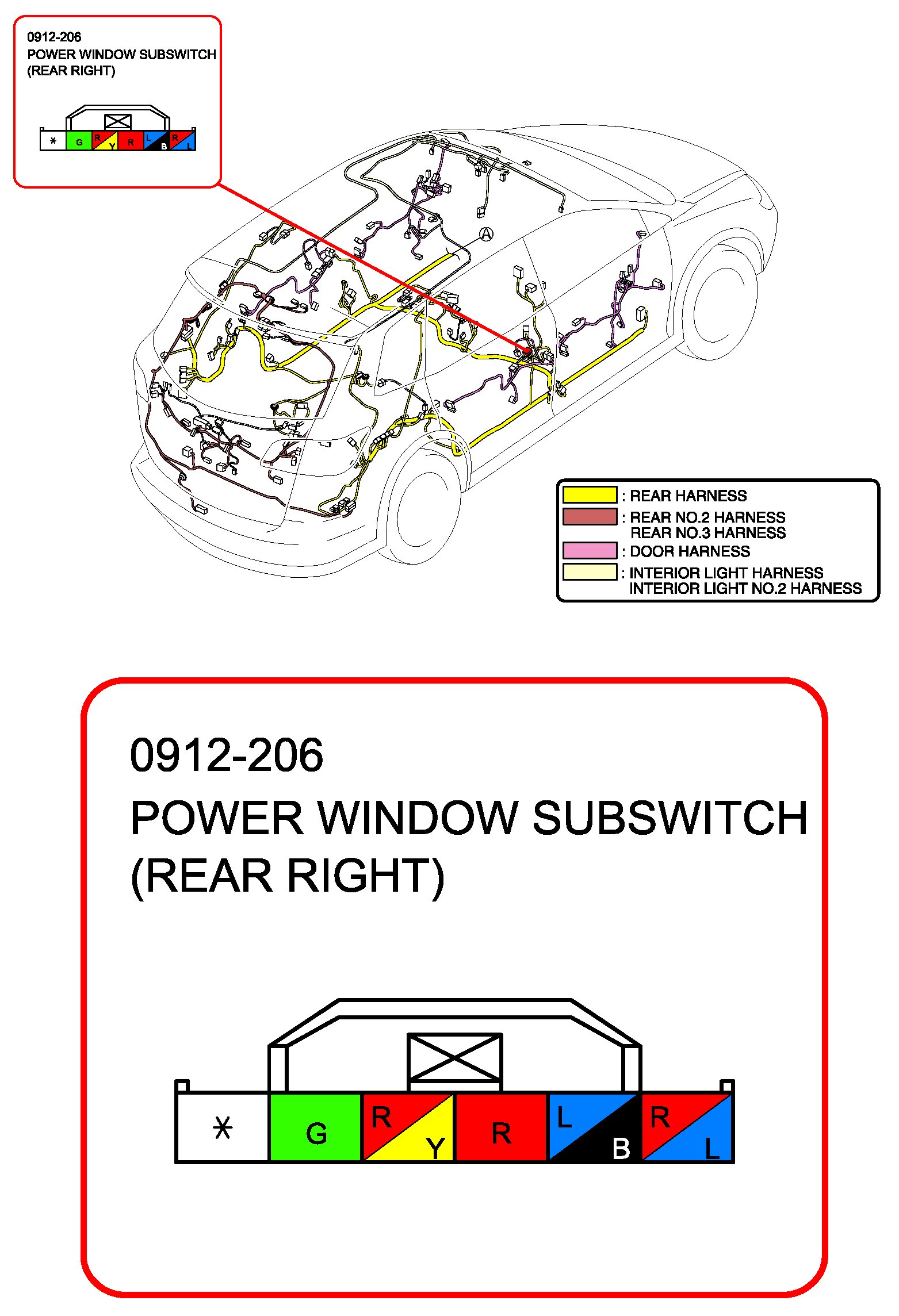

Power Window Subswitch (Rear Right):
