Emission Control Systems: Locations

Engine Compartment Side:

Exhaust System Side:

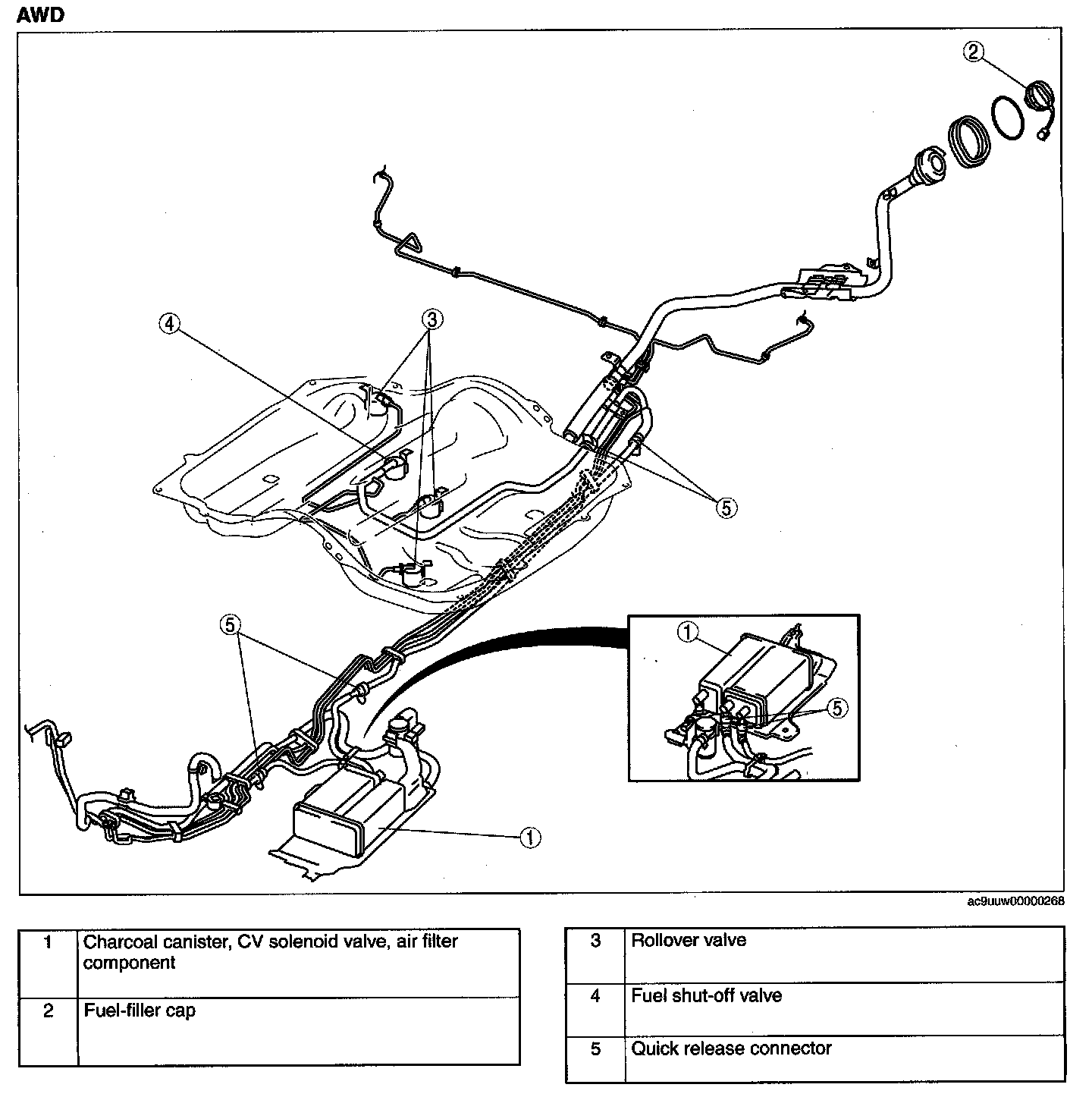

Fuel Tank Side AWD:
