Home >> Mazda >> 2008 >> CX-9 AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Components >> Audio Unit

Audio Unit

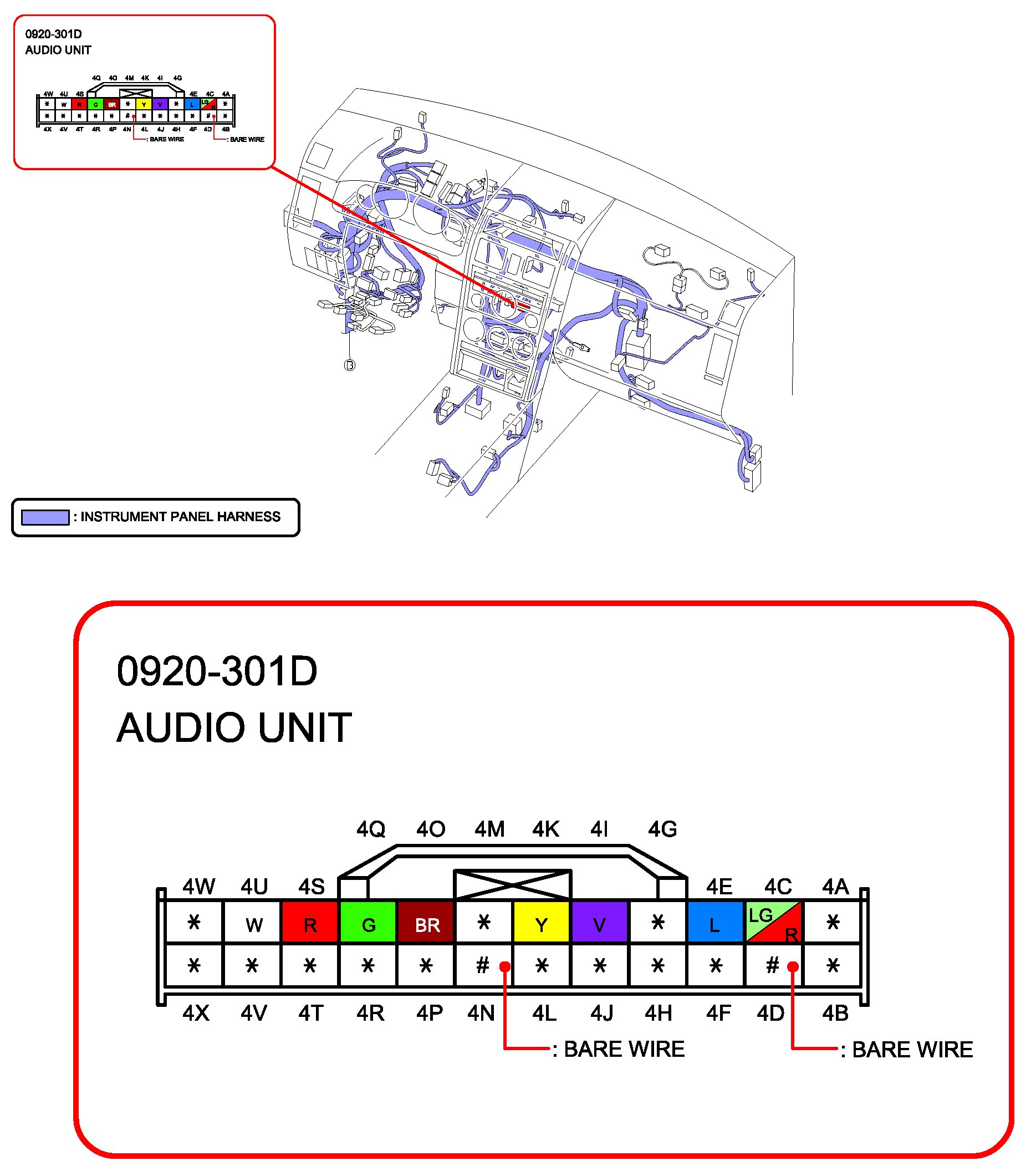

Audio Unit:

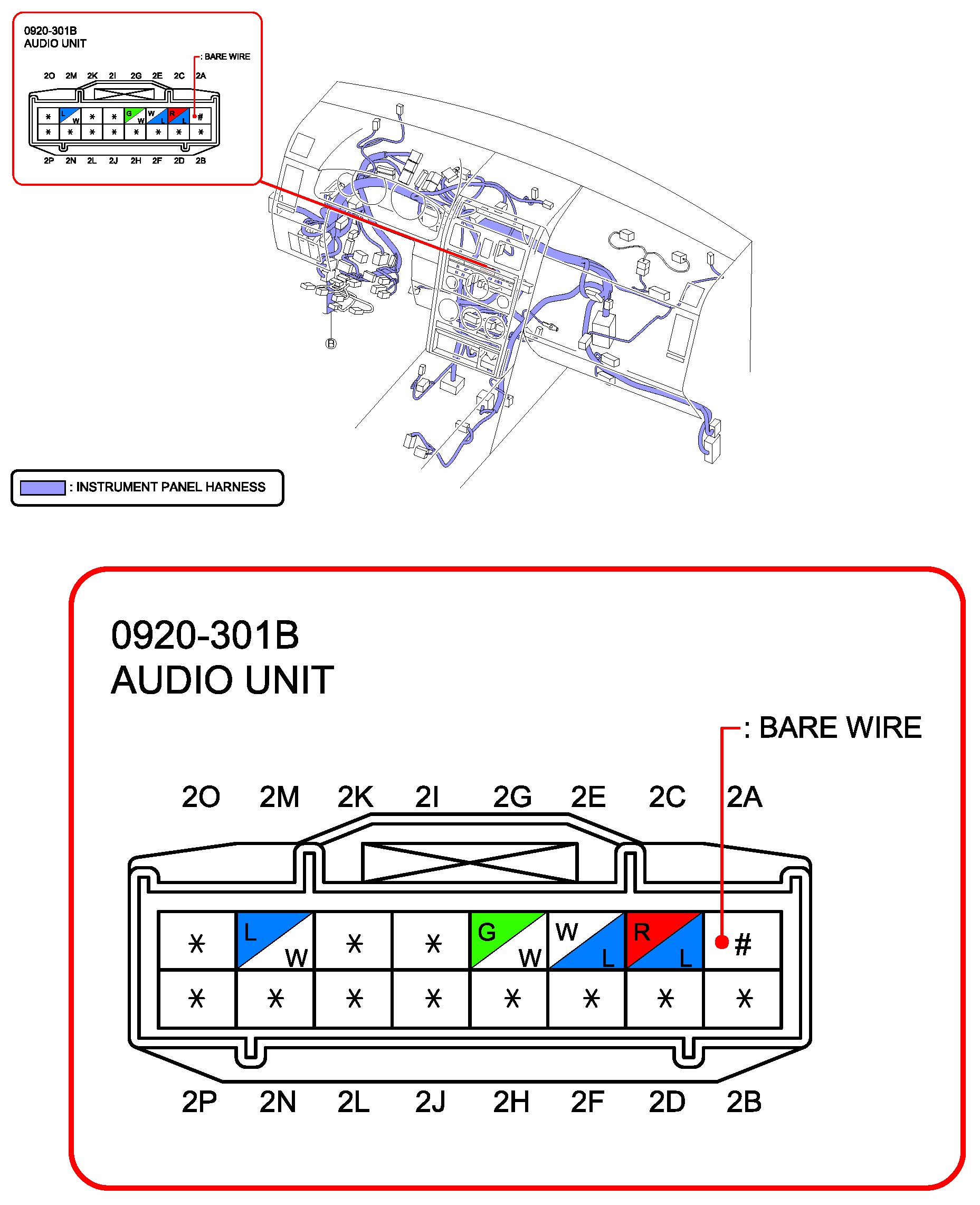

Audio Unit:

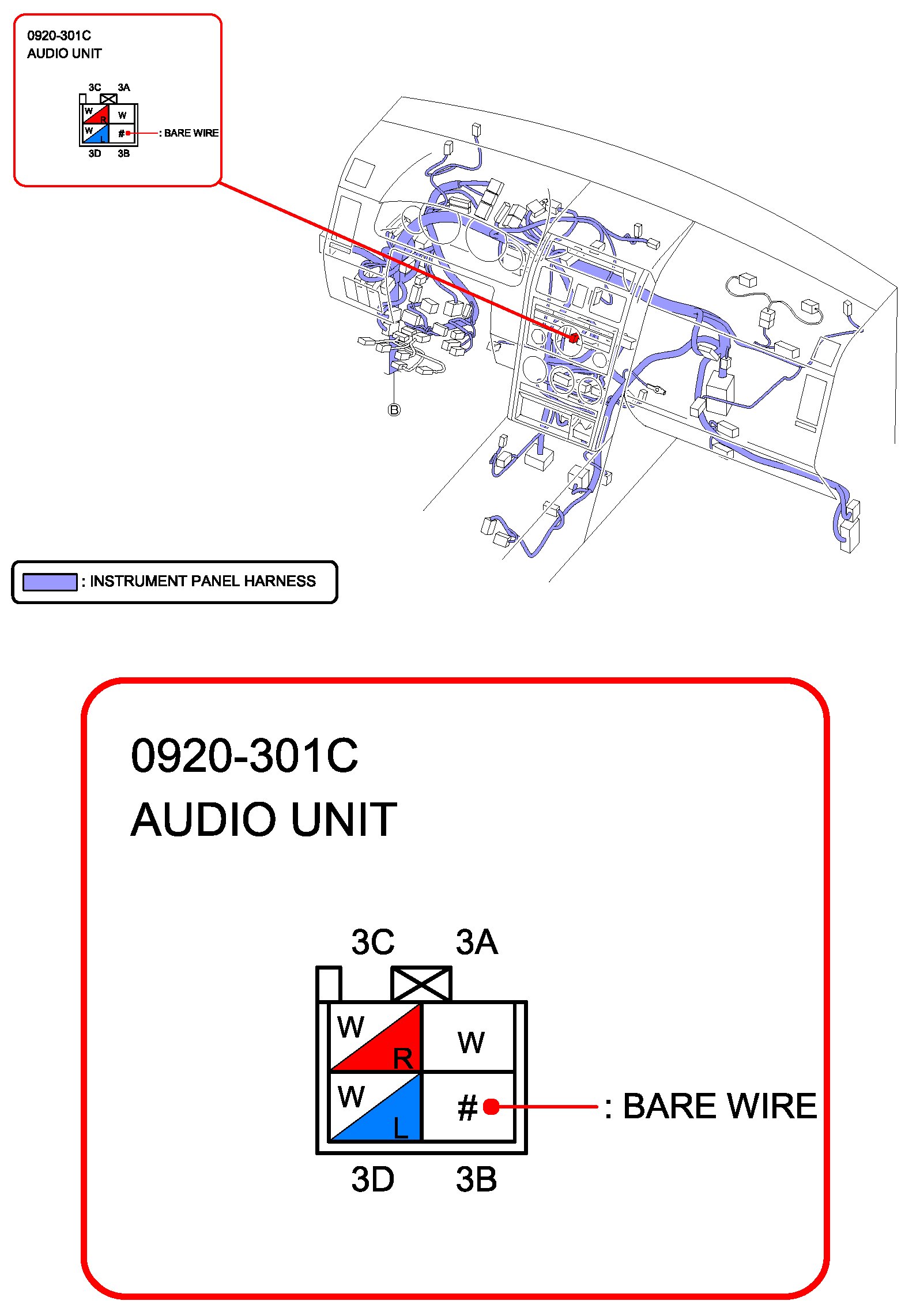

Audio Uint:

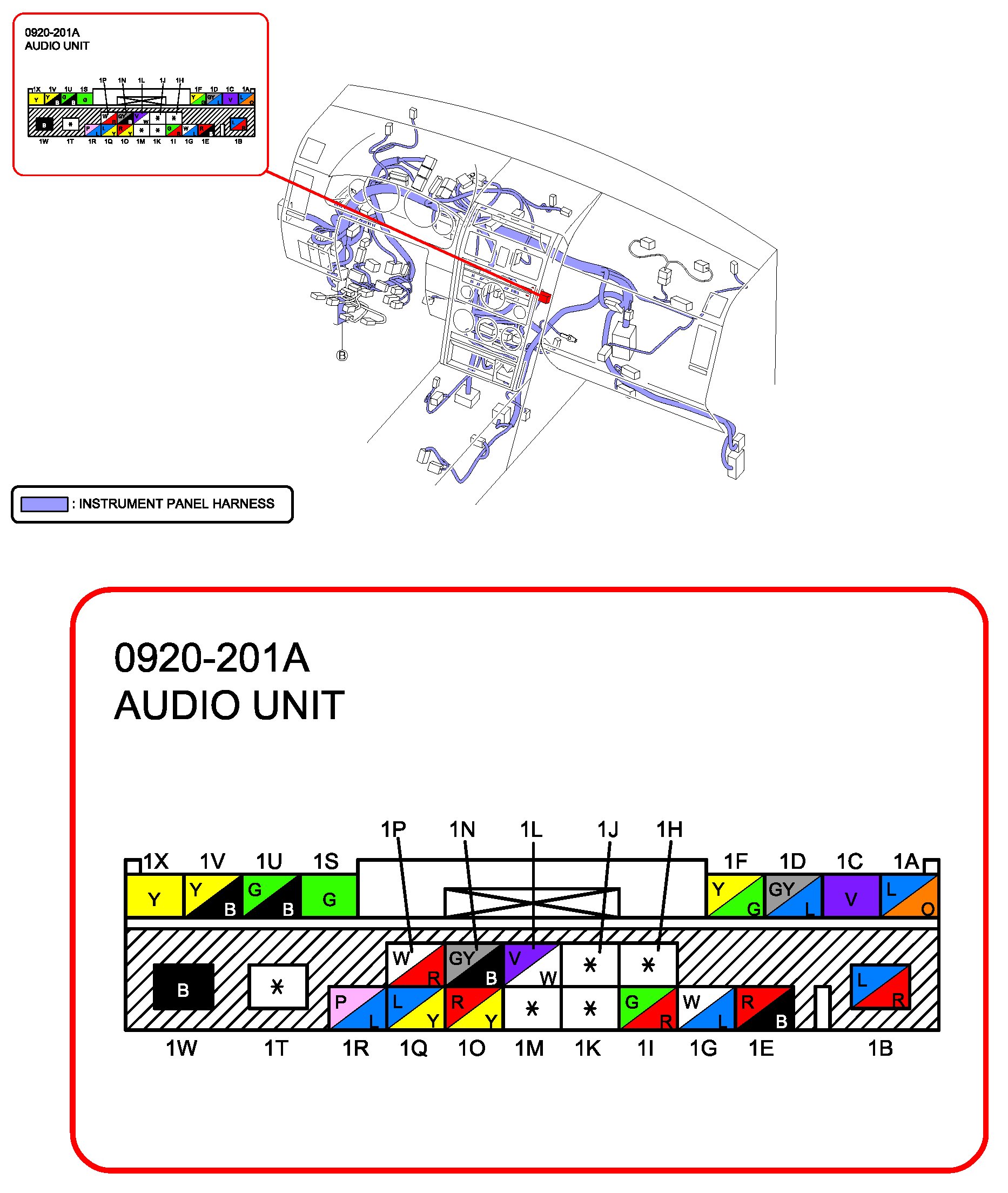

Audio Uint:
