Timing Cover

Engine Front Cover

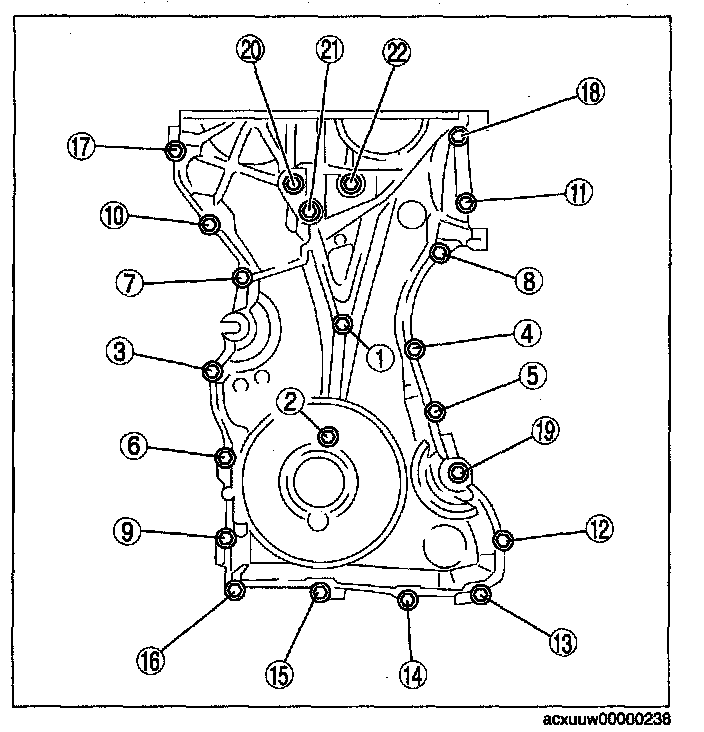

Tighten the engine front cover installation bolts in the order shown in the figure.
Tighten 8.0-11.5 Nm (82-117 kgf-cm, 71-101 in-lbf)
Tighten 40-55 Nm (4.1-5.6 kgf-m, 30-40 ft-lbf)
