Knock Sensor: Service and Repair

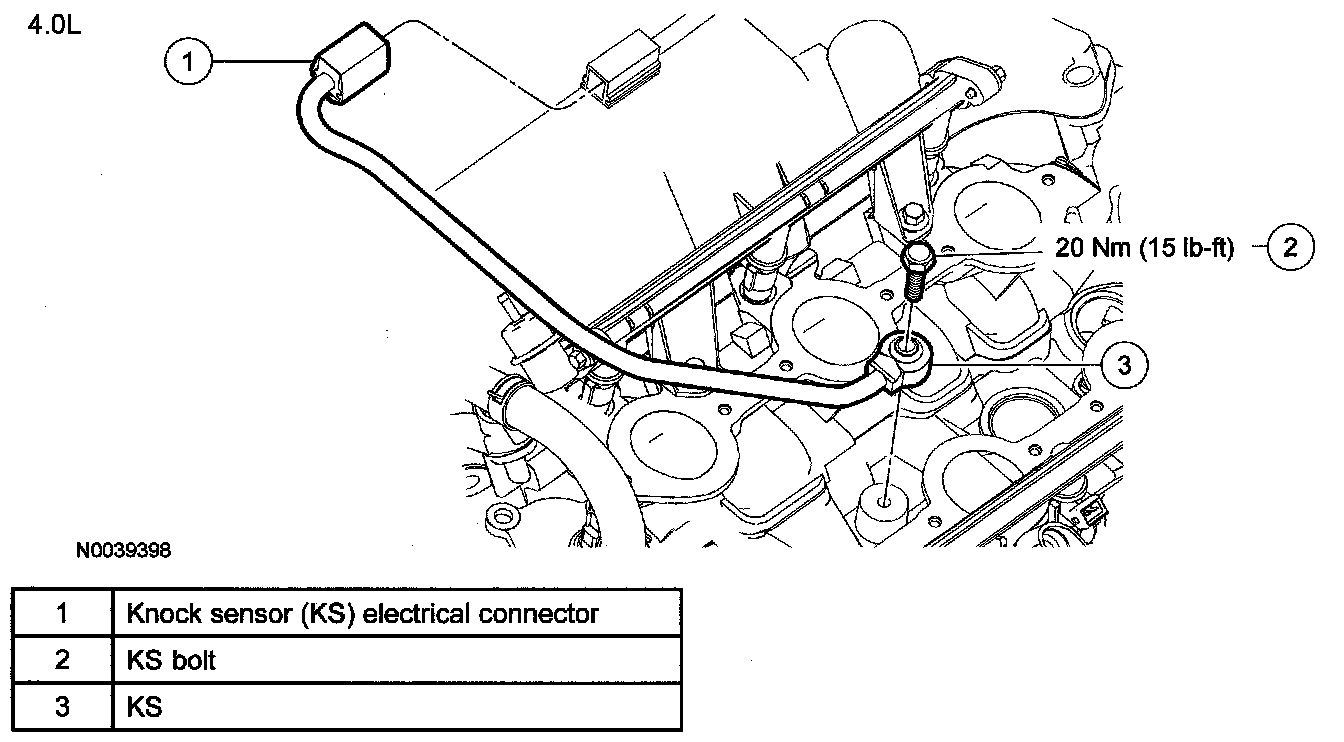

KNOCK SENSOR (KS) REMOVAL / INSTALLATION - 4.0L






1. Remove the intake manifold.

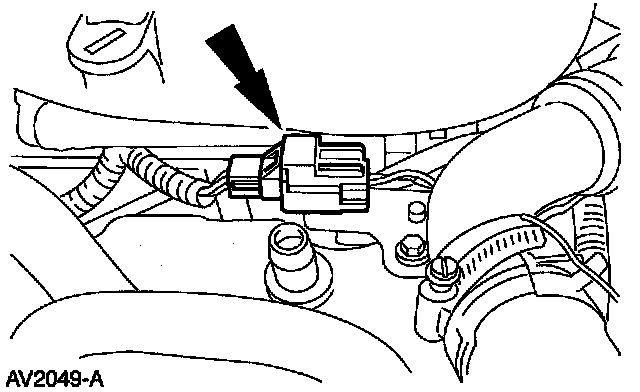

2. Disconnect the knock sensor (KS) electrical connector.






3. Remove the KS.

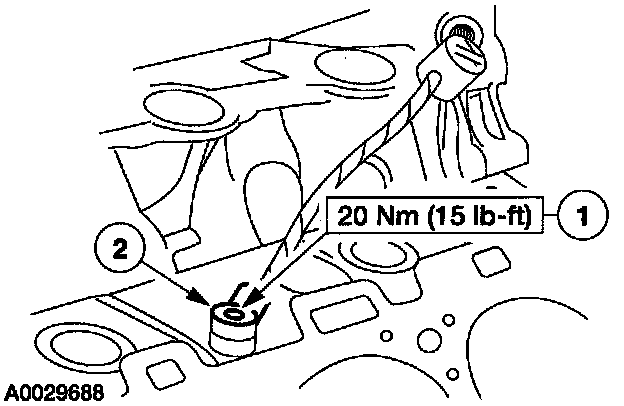

1. Remove the bolt.
2. Remove the sensor.

4. To install, reverse the removal procedure.
