Connector End Views-Climate Control

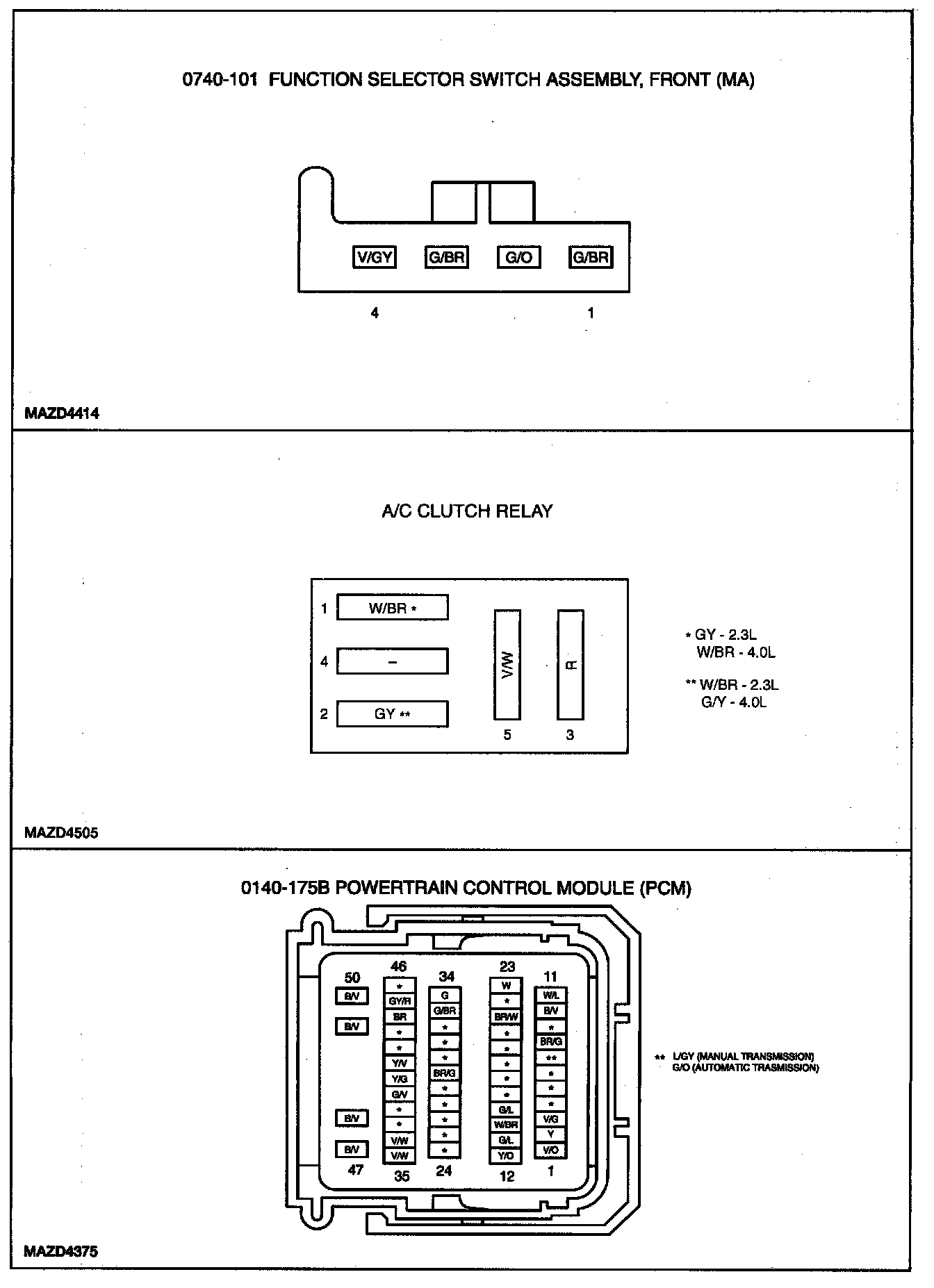

Connector End Views-Climate Control (Part 1):

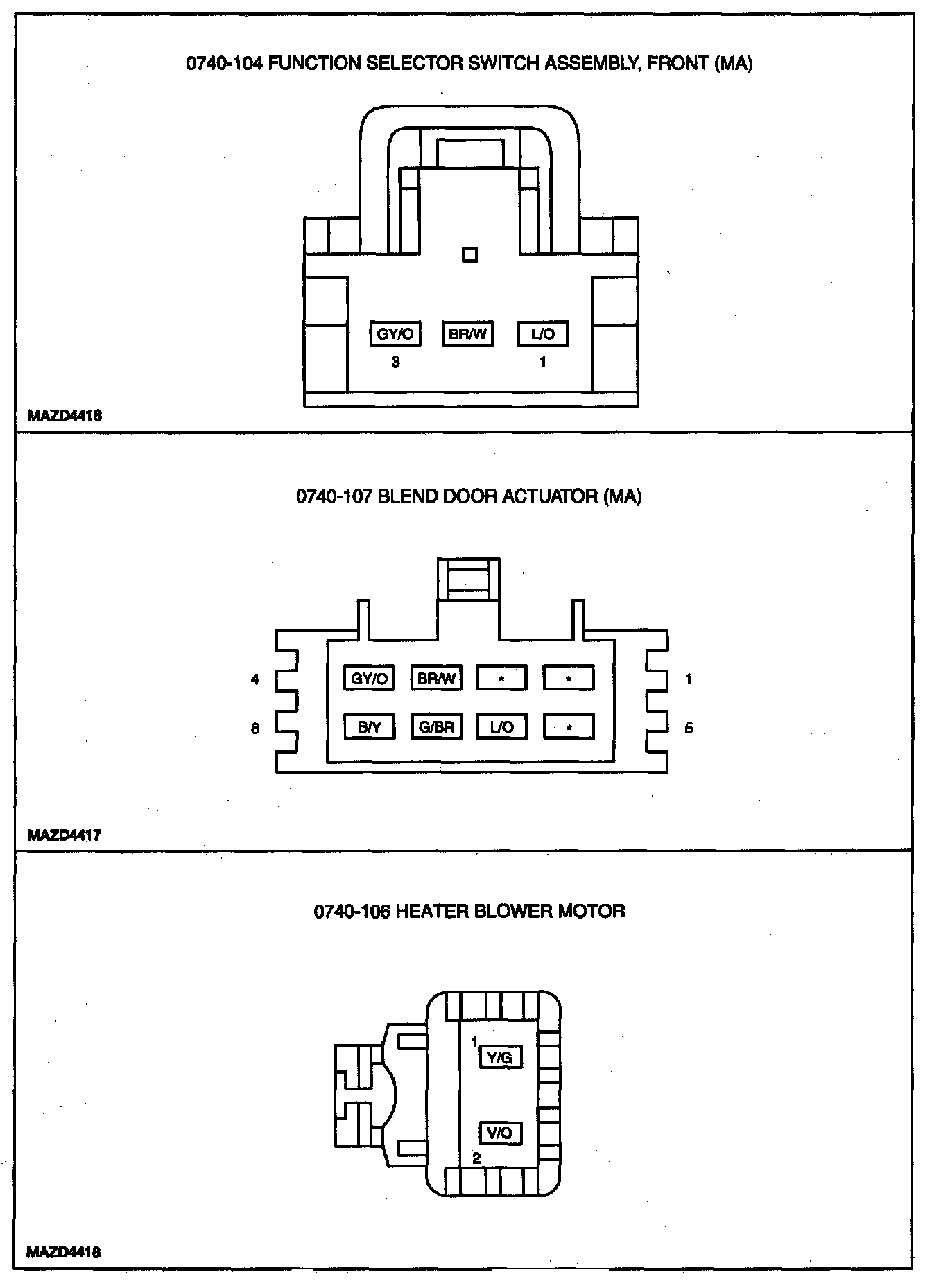

Connector End Views-Climate Control (Part 2):

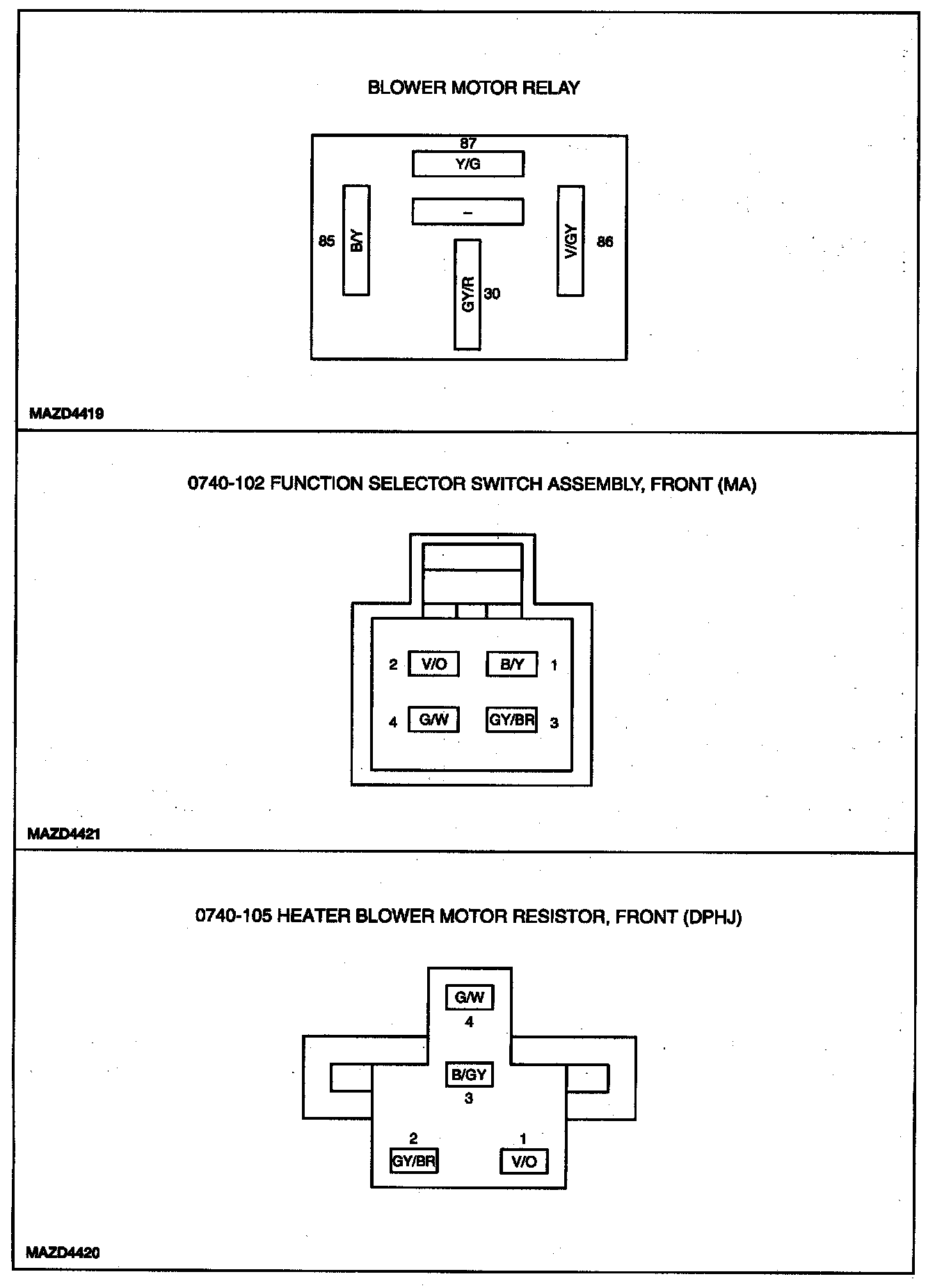

Connector End Views-Climate Control (Part 3):

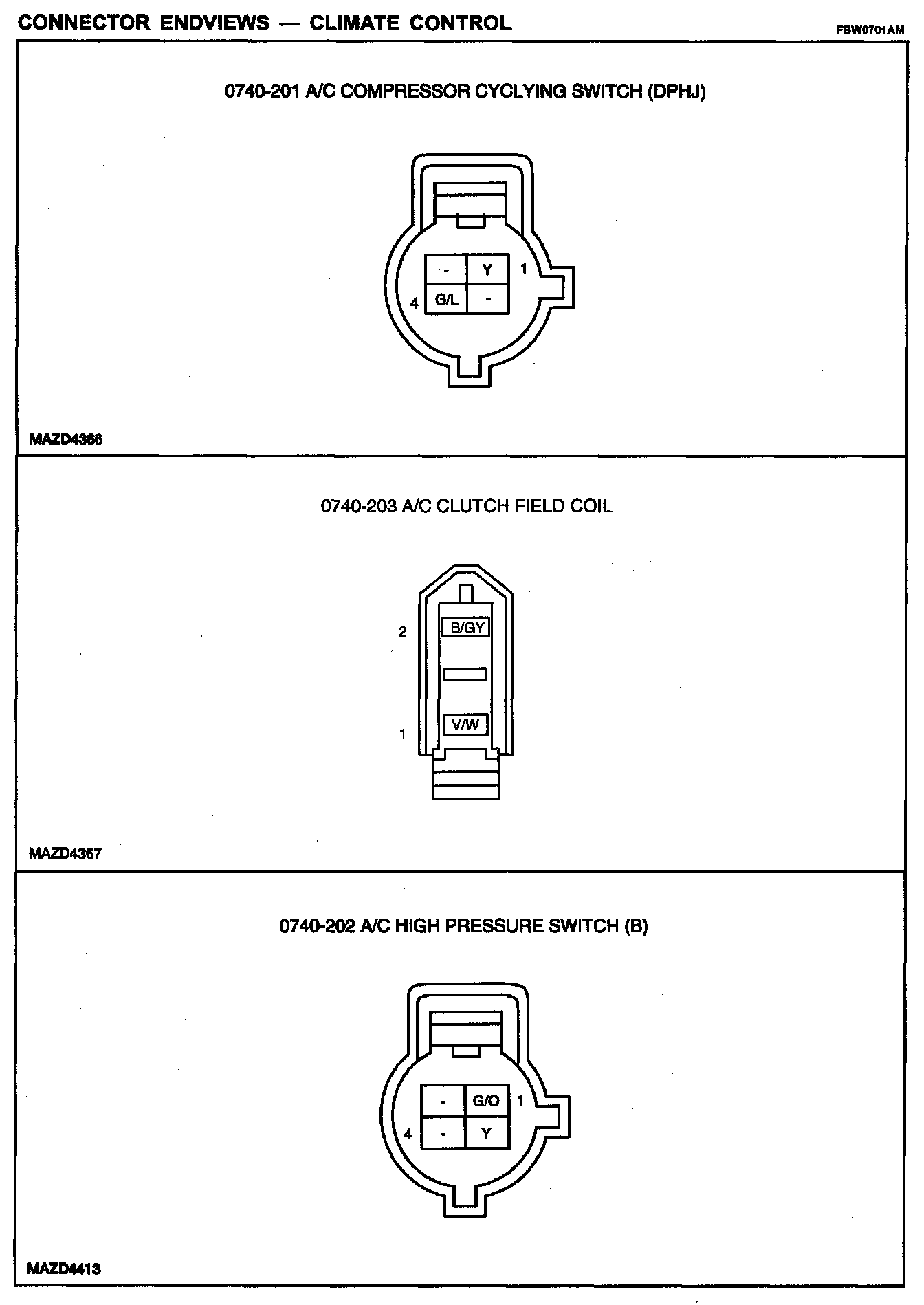

Connector End Views-Climate Control (Part 4):
