Cruise Control: Diagrams

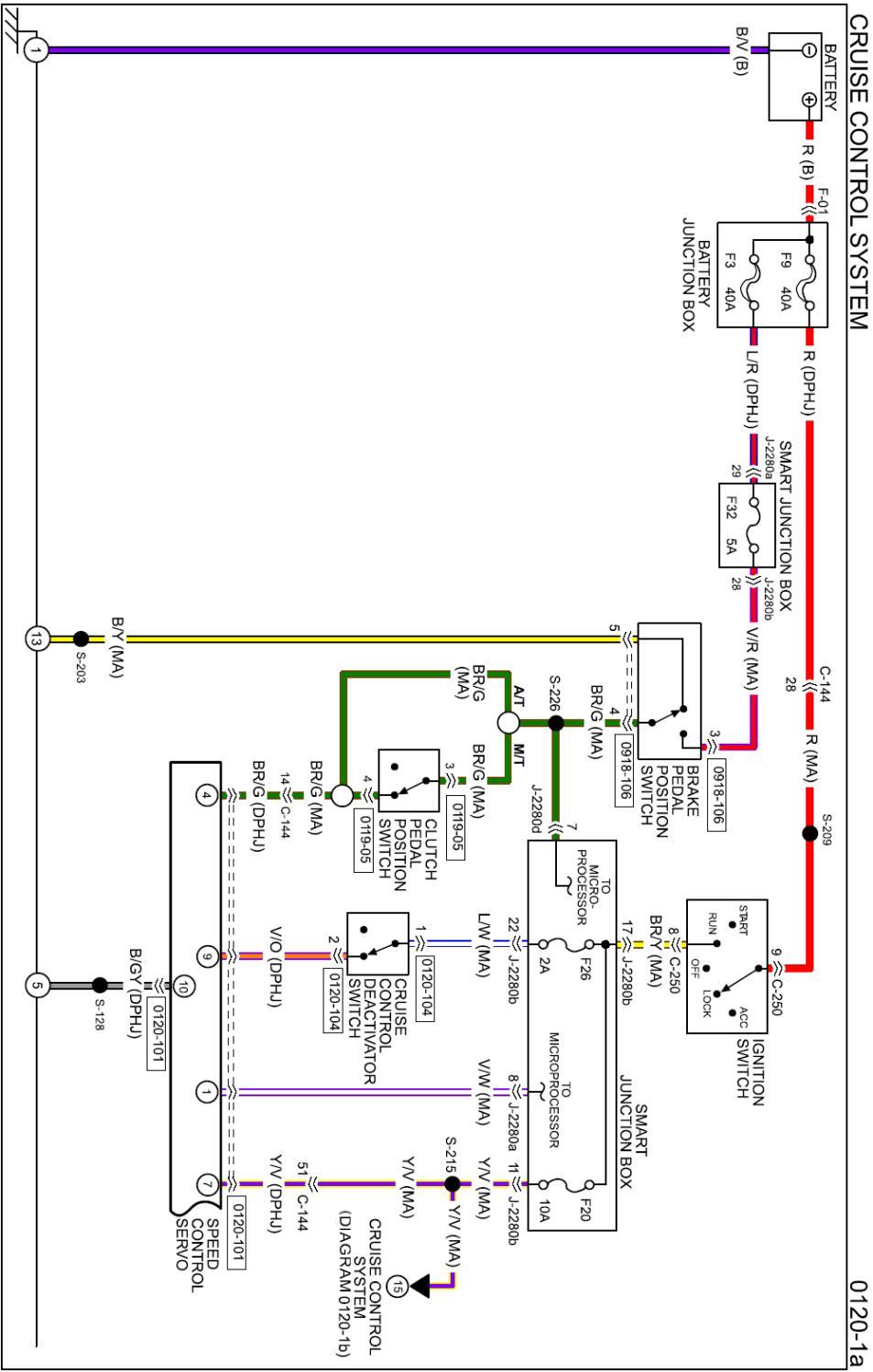

Diagram 0120-1a:

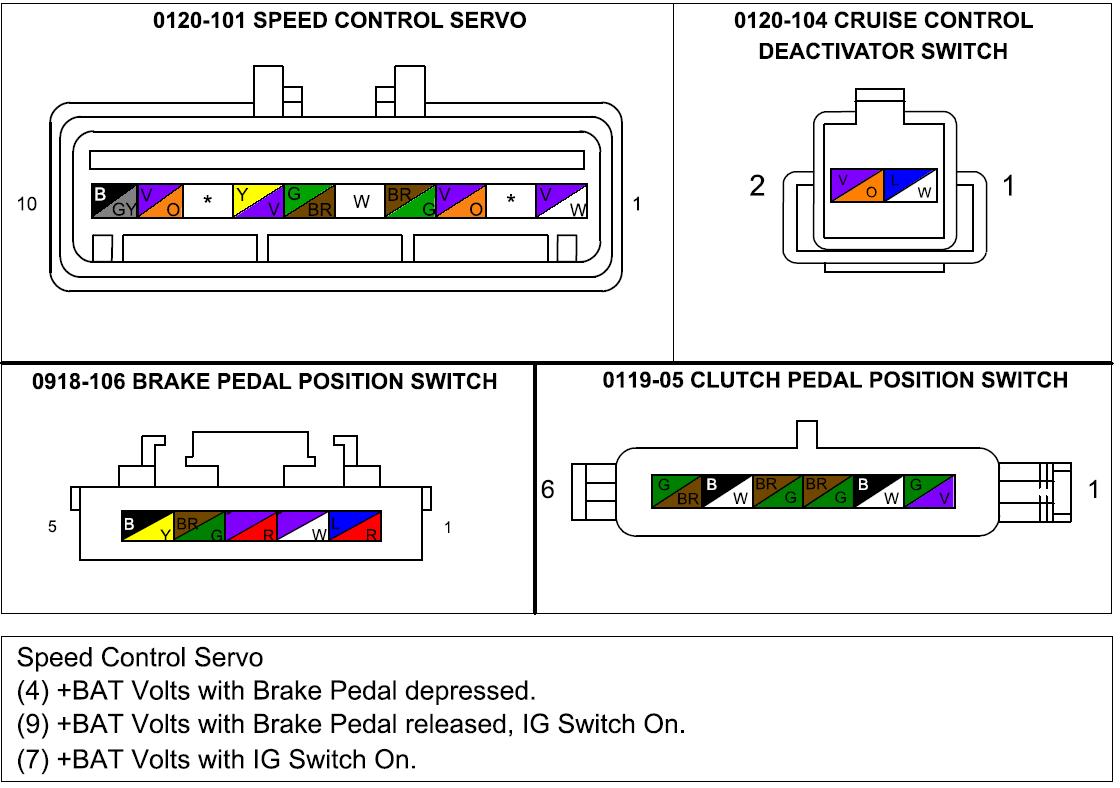

Connectors 0120-1a:

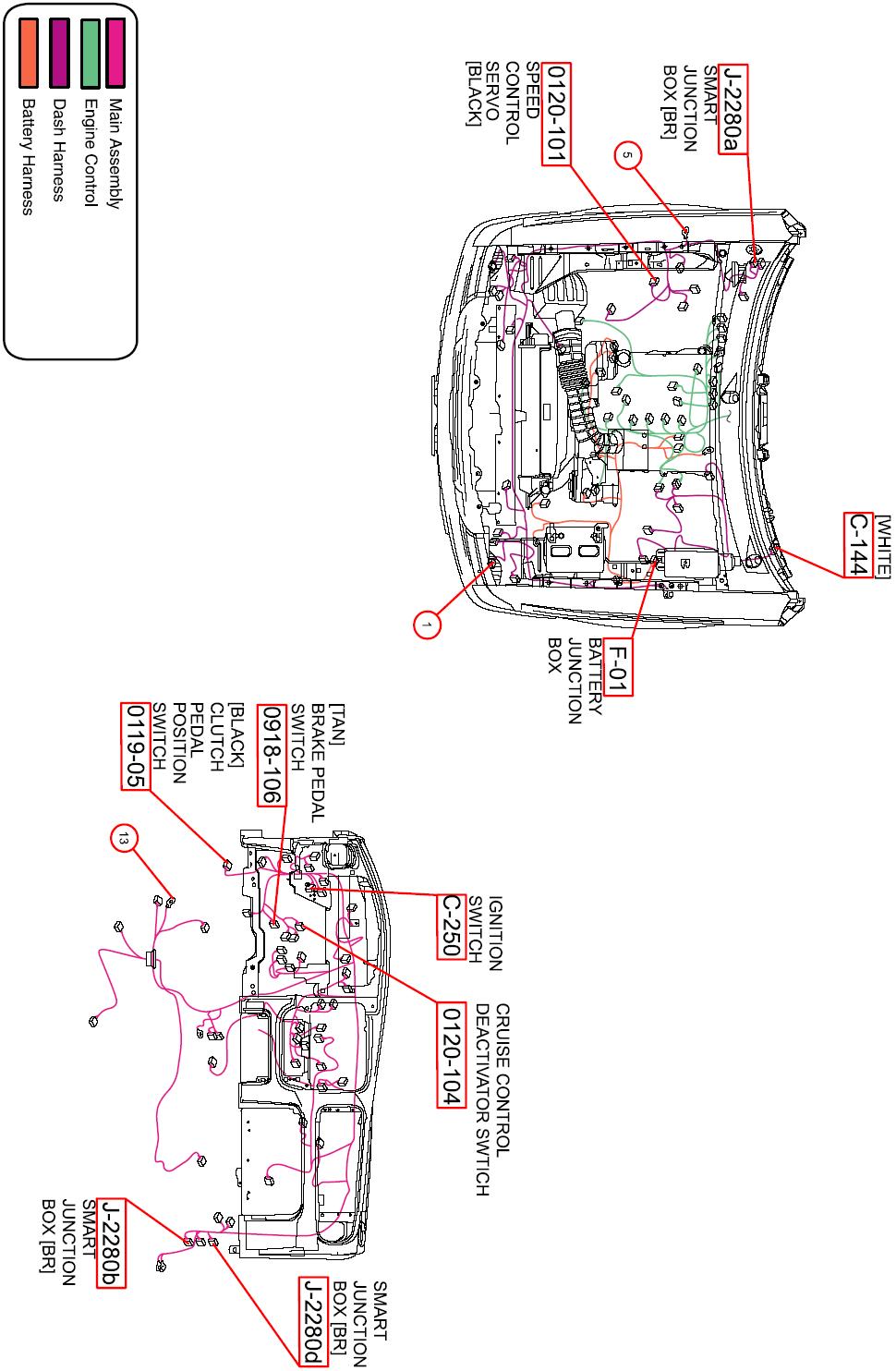

Routing View 0120-1a:

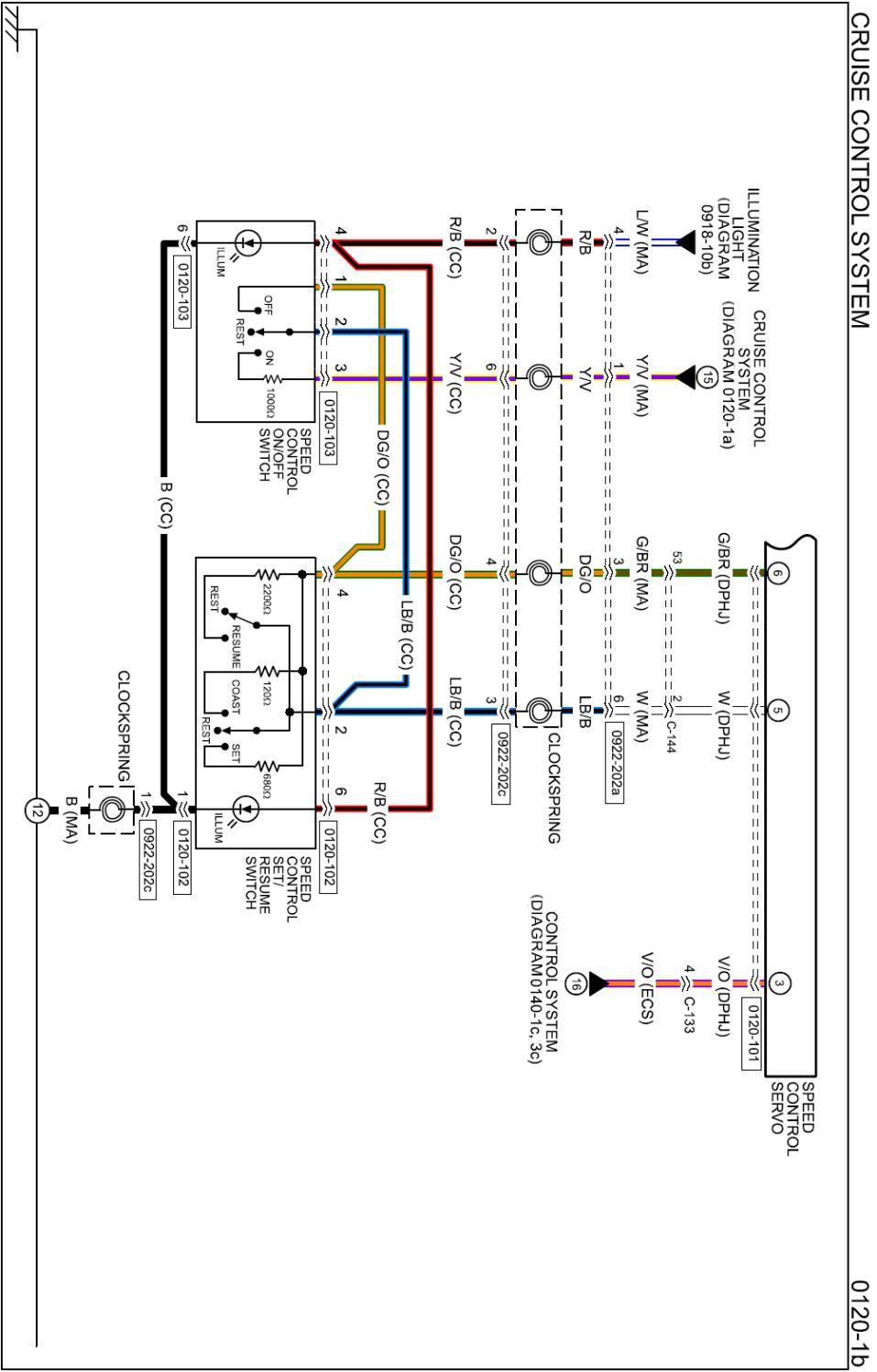

Diagram 0120-1b:

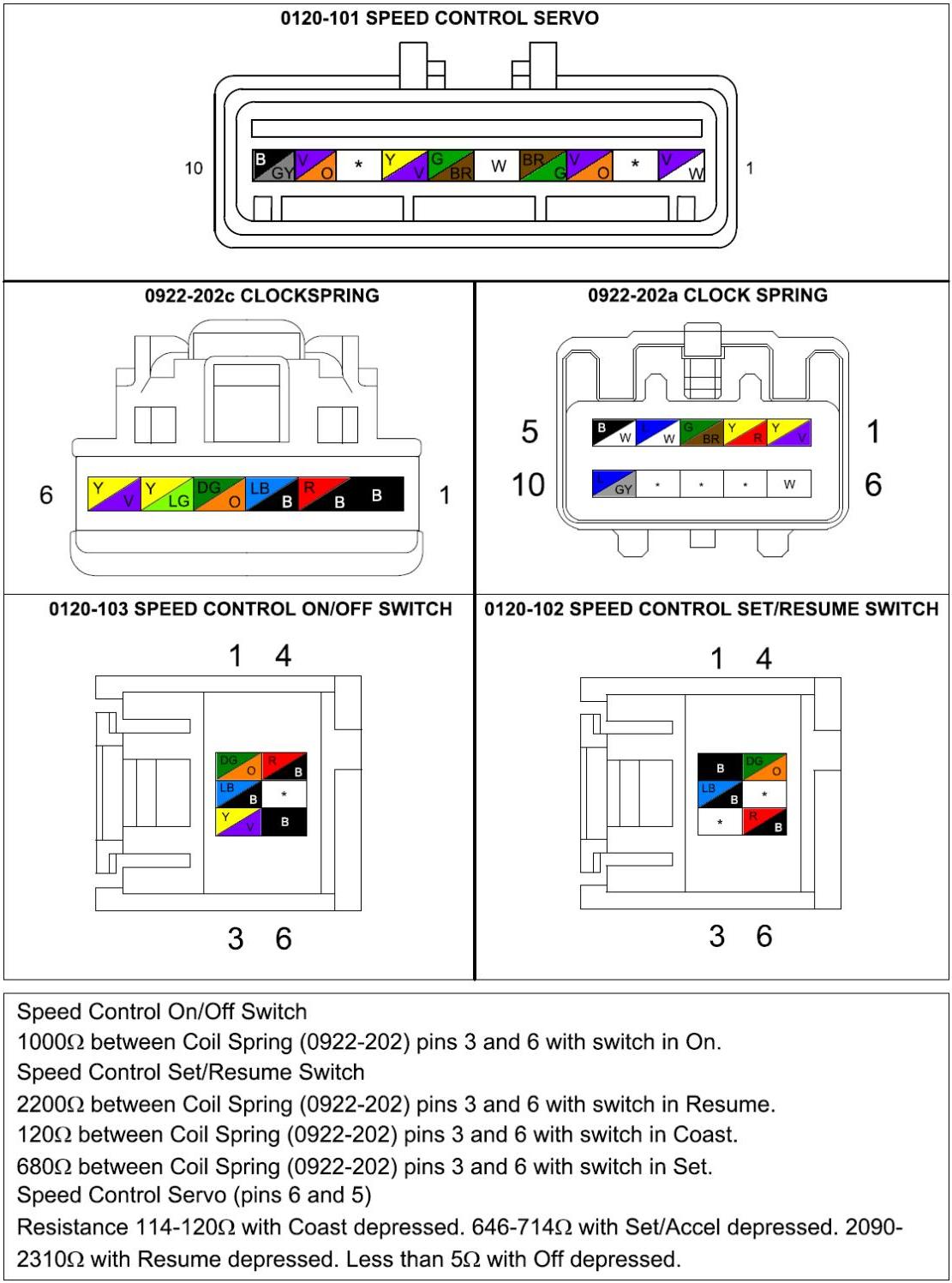

Connectors 0120-1b:

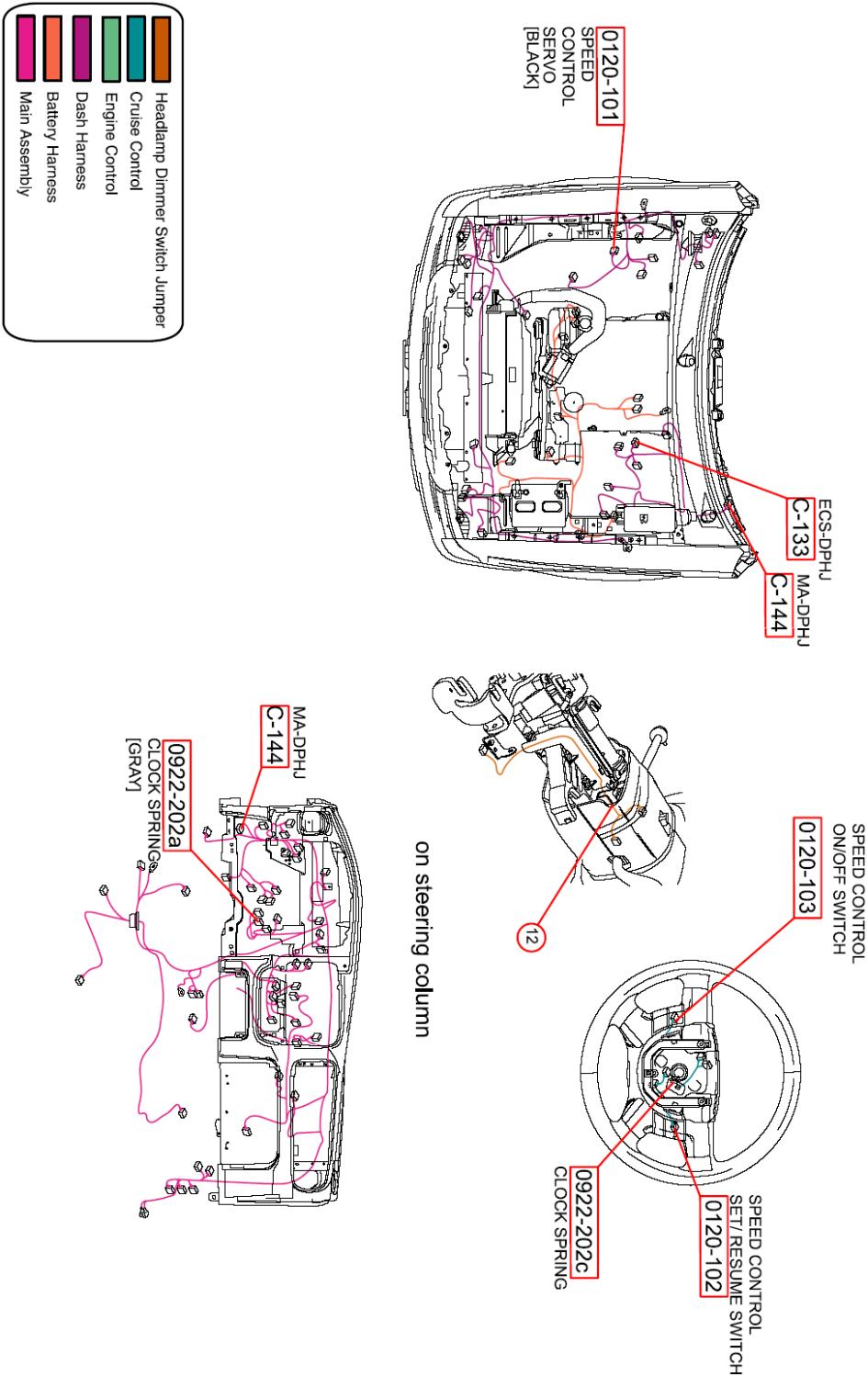

Routing View 0120-1b:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
