Connector End Views-Control Systems

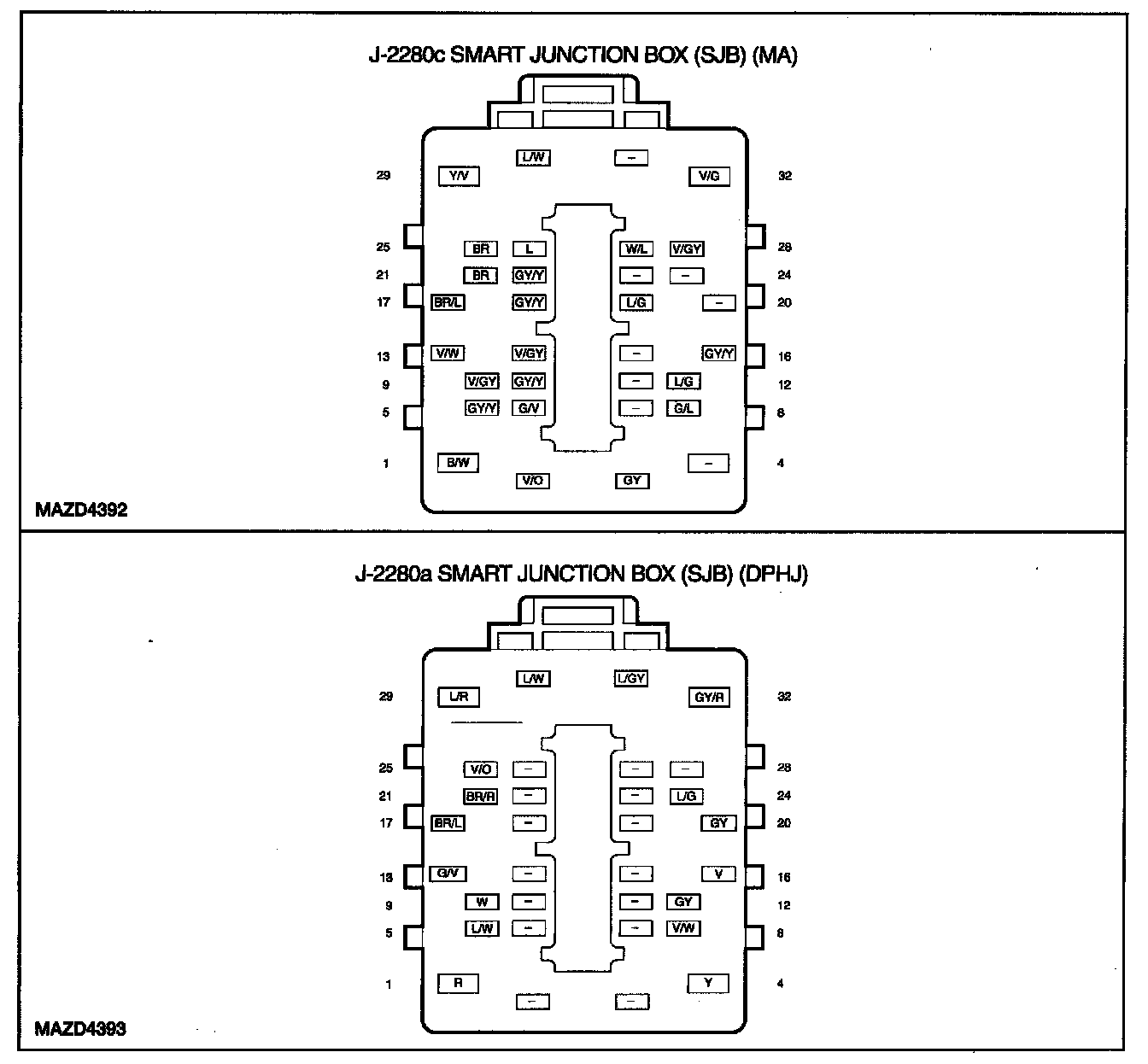

Connector End Views-Control Systems (Part 1):

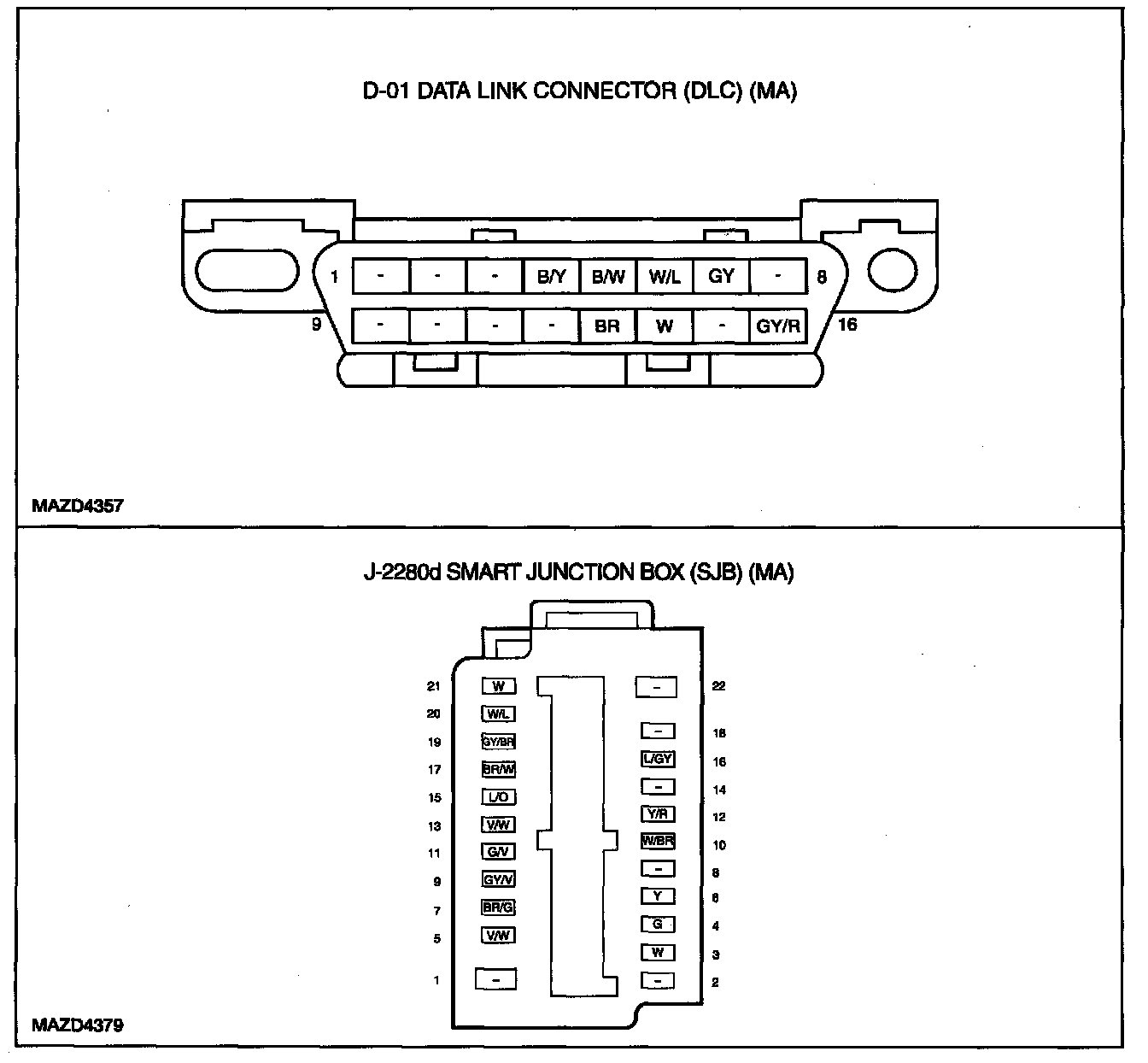

Connector End Views-Control Systems (Part 2):

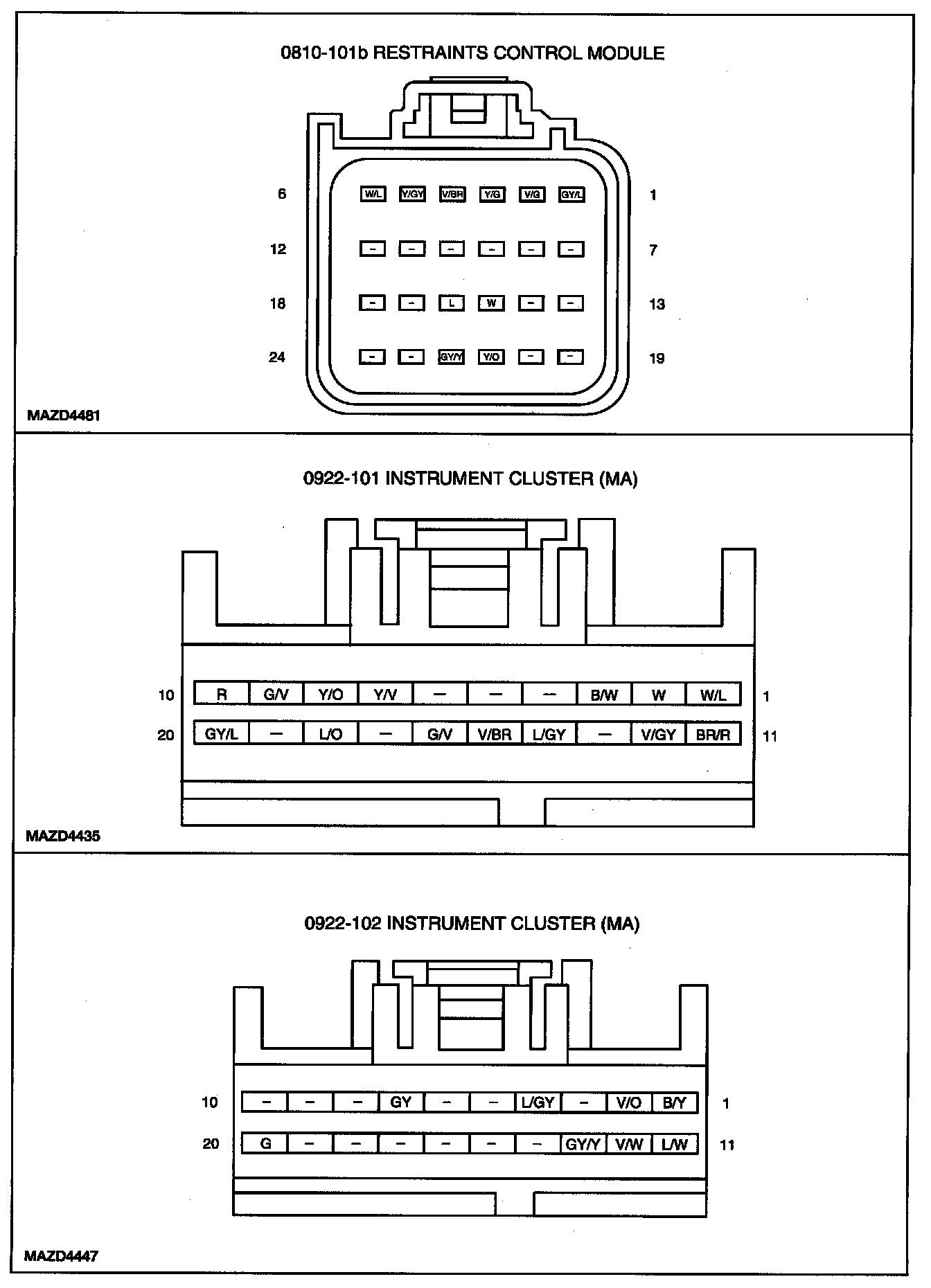

Connector End Views-Control Systems (Part 3):

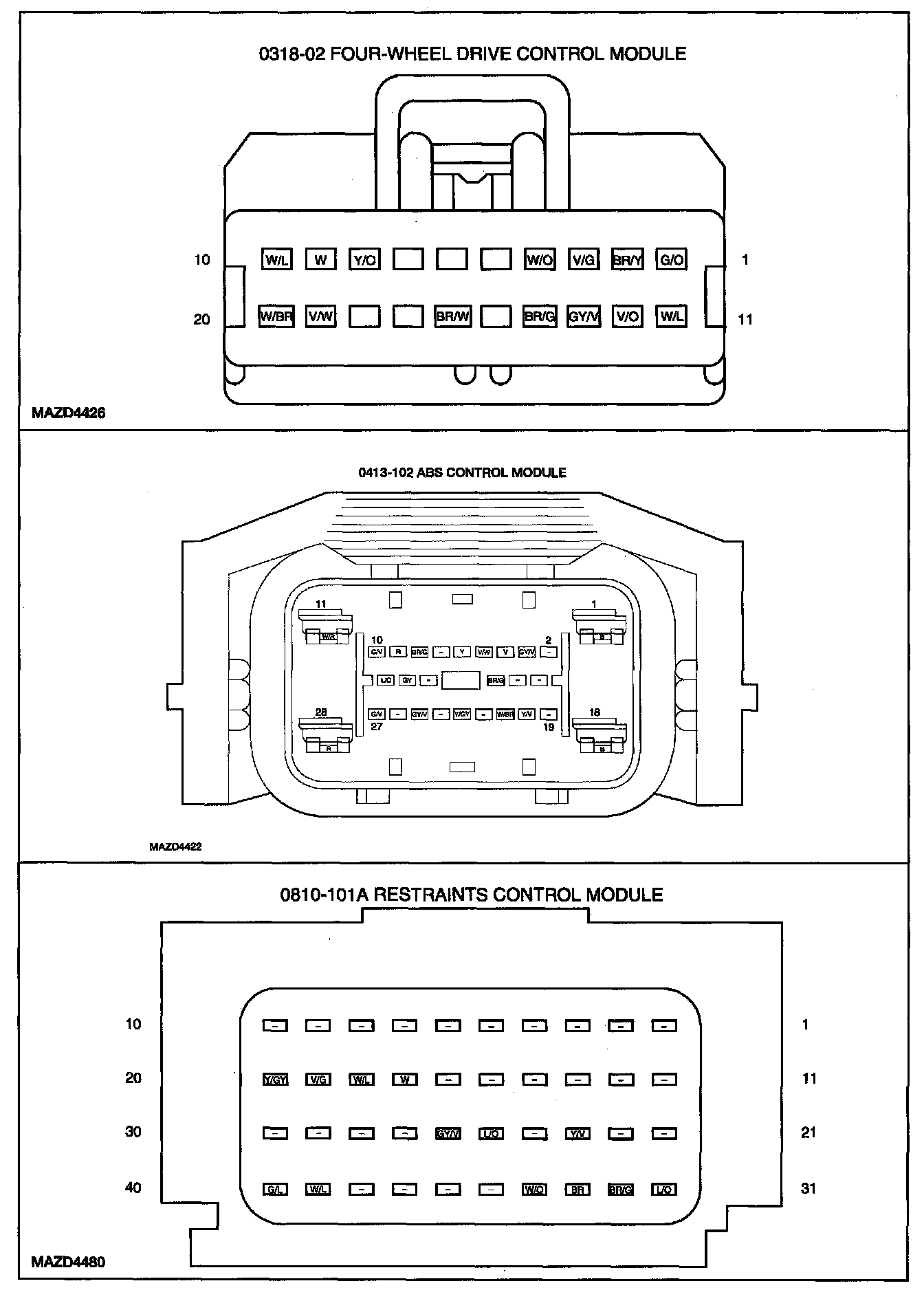

Connector End Views-Control Systems (Part 4):



Connector End Views-Control Systems (Part 5):
