Starter Relay: Testing and Inspection

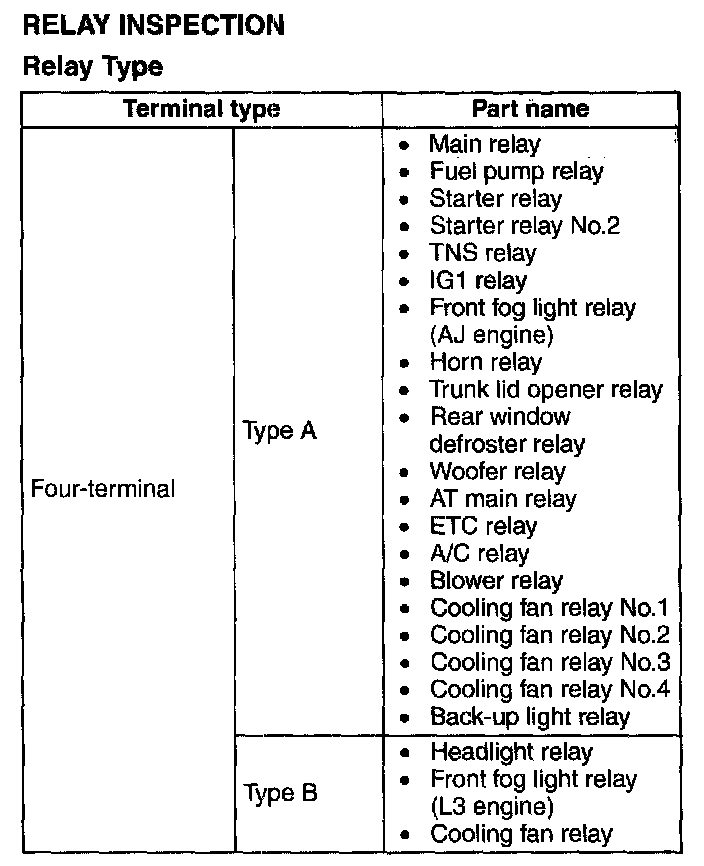

RELAY INSPECTIONRelay Type
Four-terminal
Type A
1. Remove the relay.

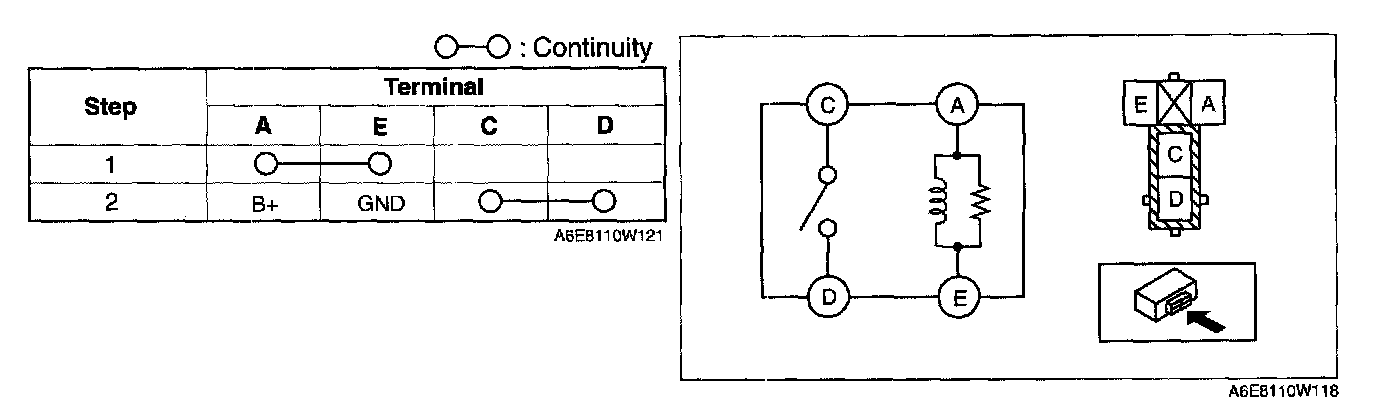

2. Inspect for continuity between the relay terminals.
- If not as specified, replace the relay.
Relay Type
Four-terminal
Type A
1. Remove the relay.
2. Inspect for continuity between the relay terminals.
- If not as specified, replace the relay.
