Home >> Mazda >> 2008 >> 5 L4-2.3L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> System Schematic

System Schematic

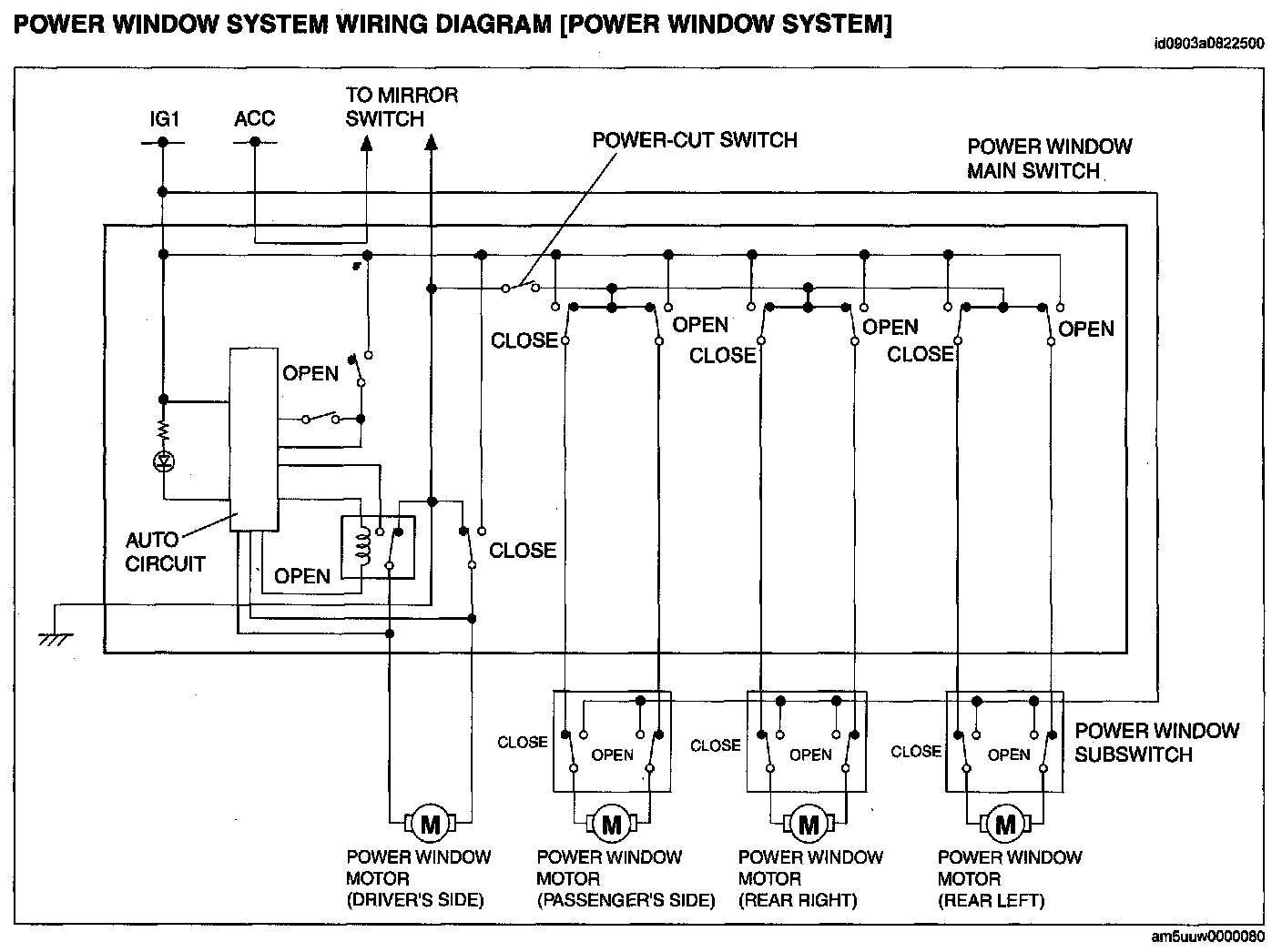

Power Window System Wiring Diagram [Power Window System]:
