Home >> Mazda >> 2008 >> 5 L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Locations >> Component Locations >> BCM

BCM

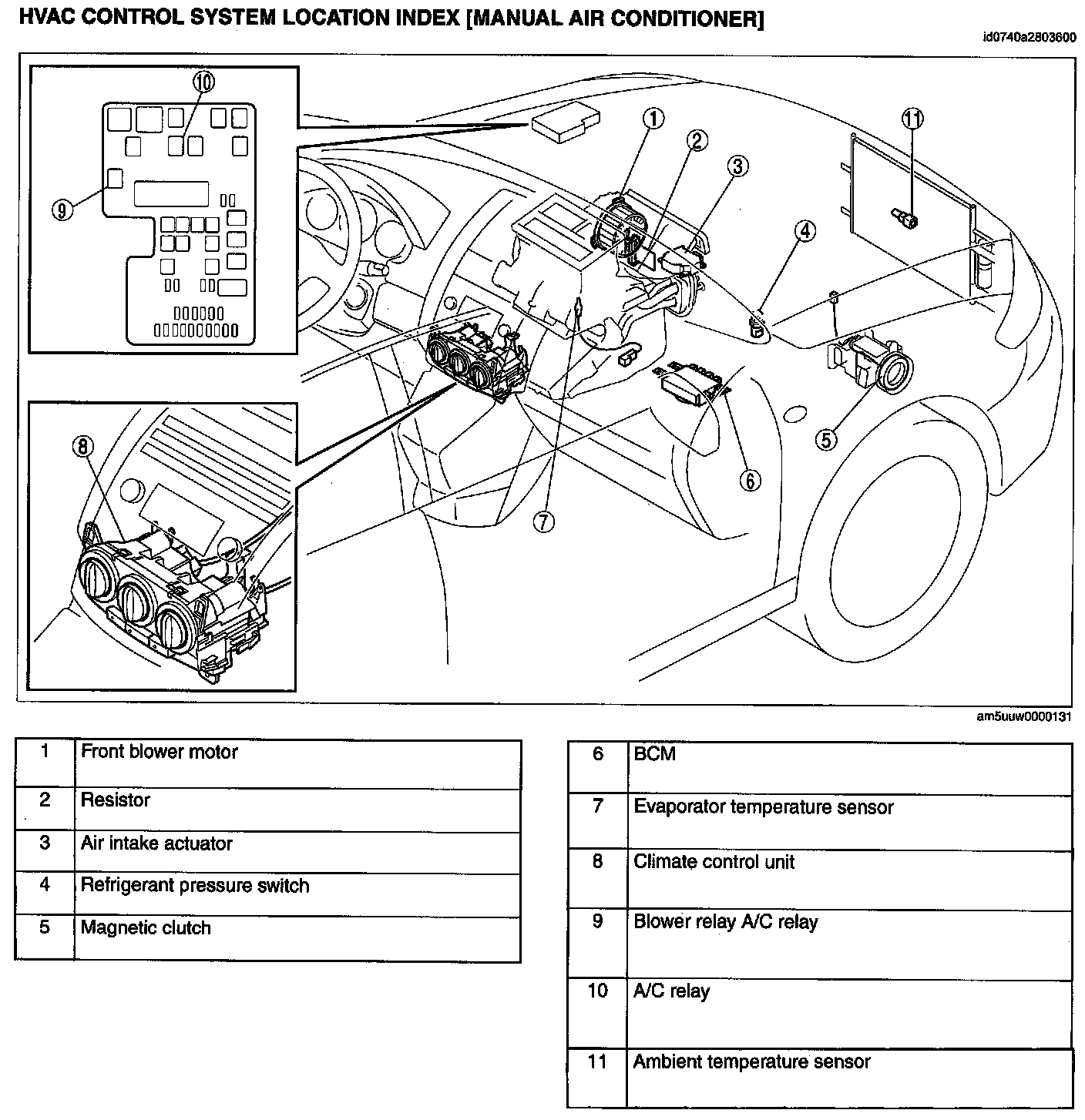

HVAC Control System Location Index [Manual Air Conditioner]:

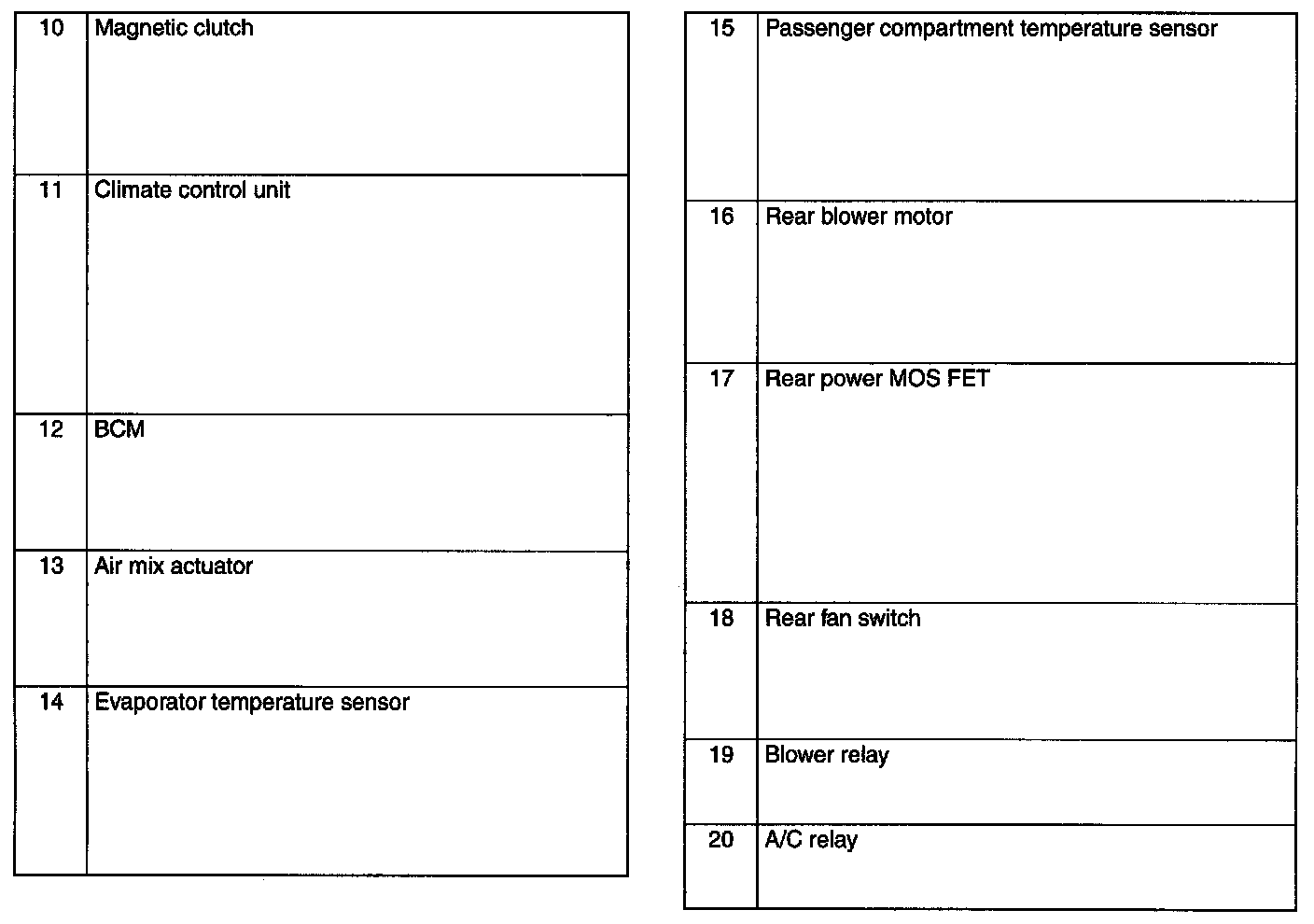

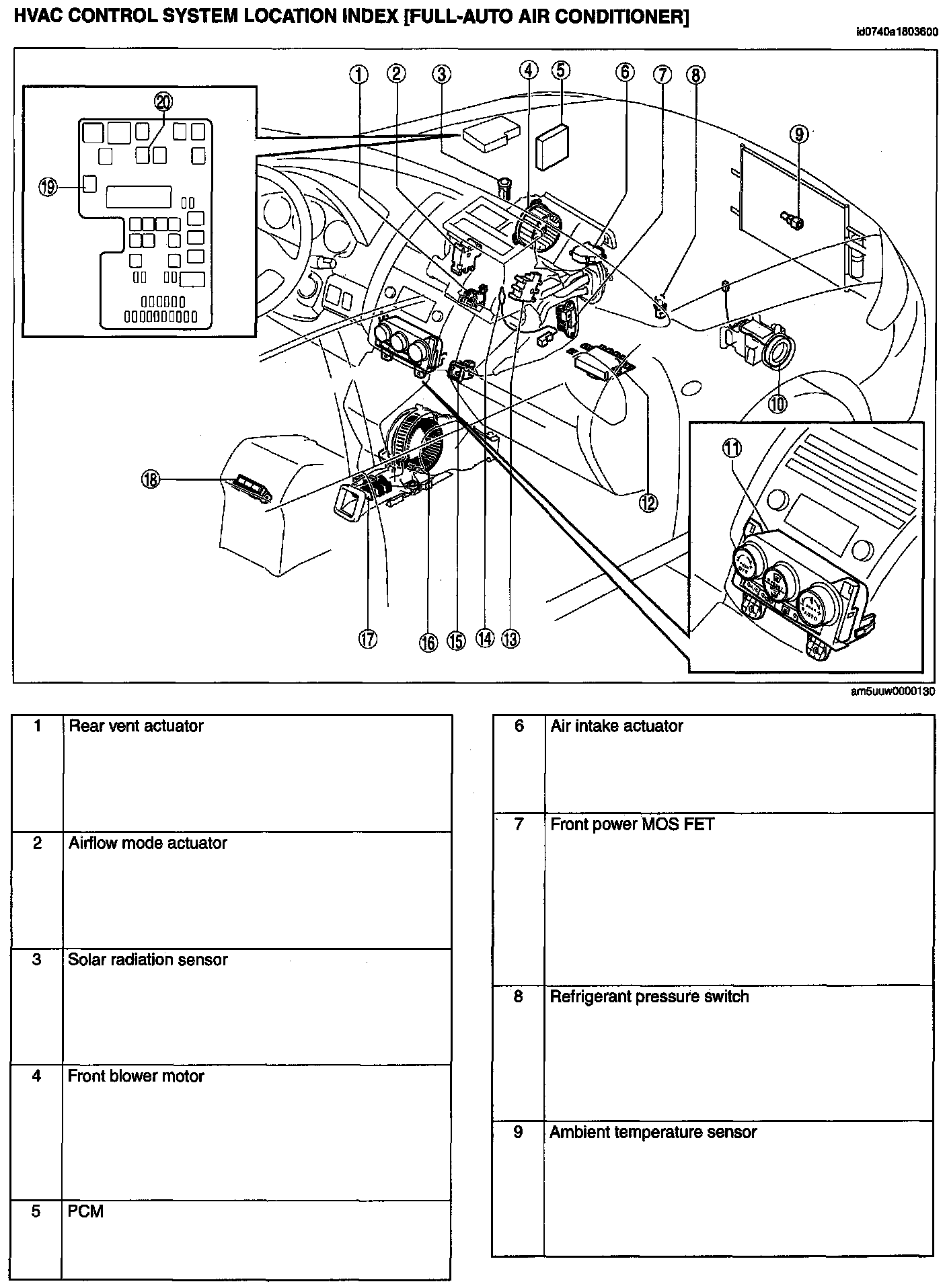

HVAC Control System Location Index [Full-Auto Air Conditioner]:
