Body Control Systems: Service and Repair

BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the passenger-side under cover.

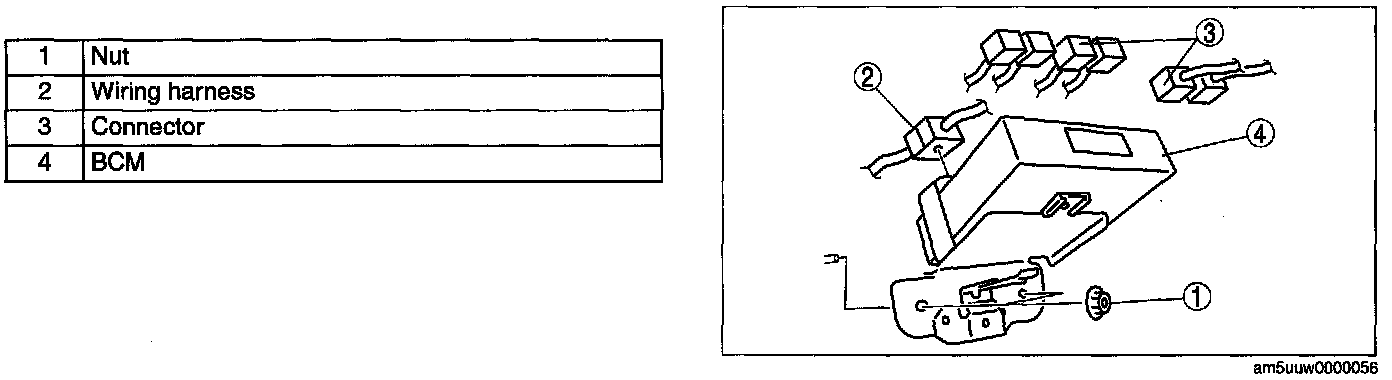

4. Remove in the order indicated in the table.




5. Install in the reverse order of removal.
