Engine Technical Data

ENGINE TECHNICAL DATA

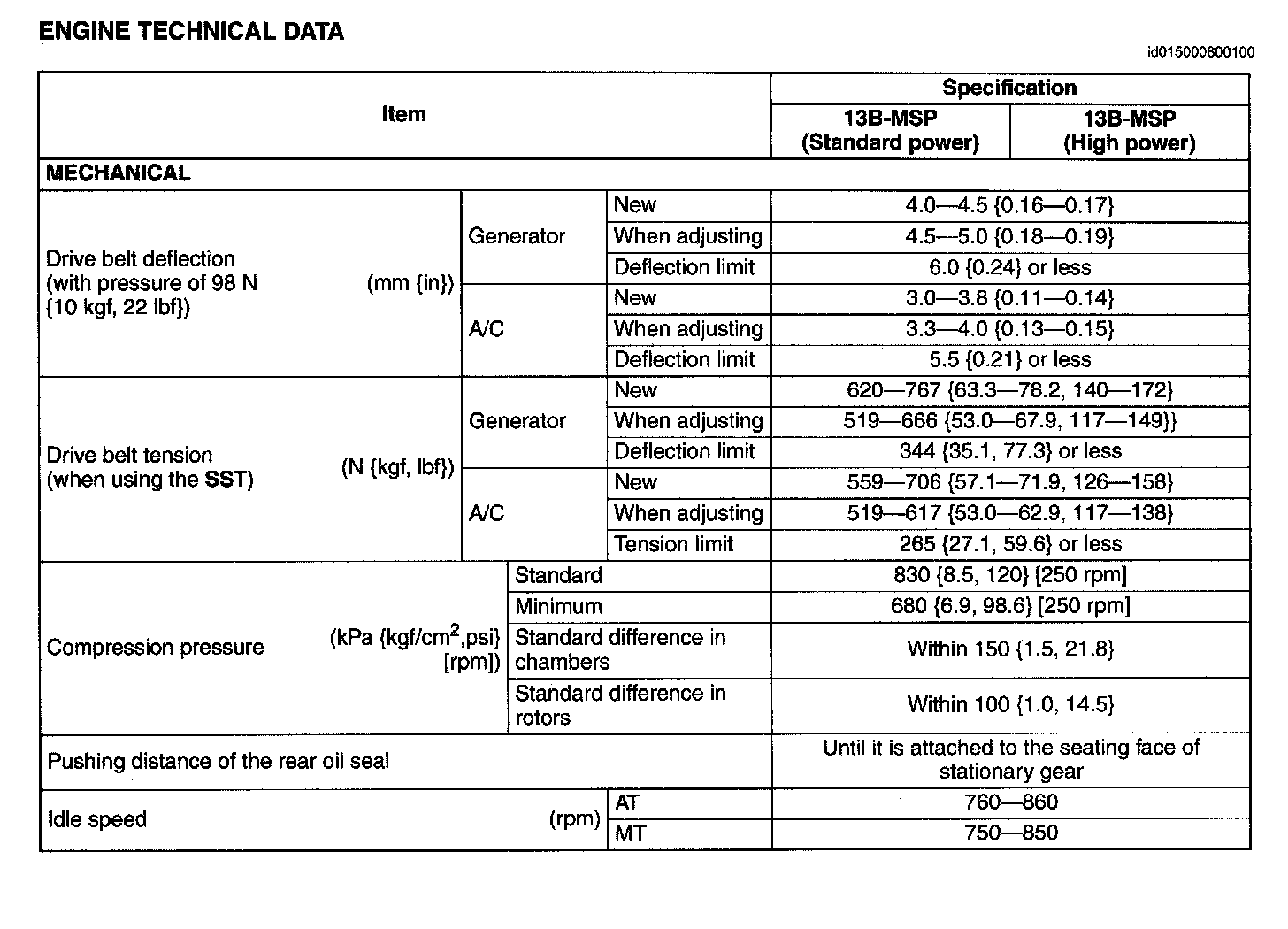

Engine Technical Data (part 1):

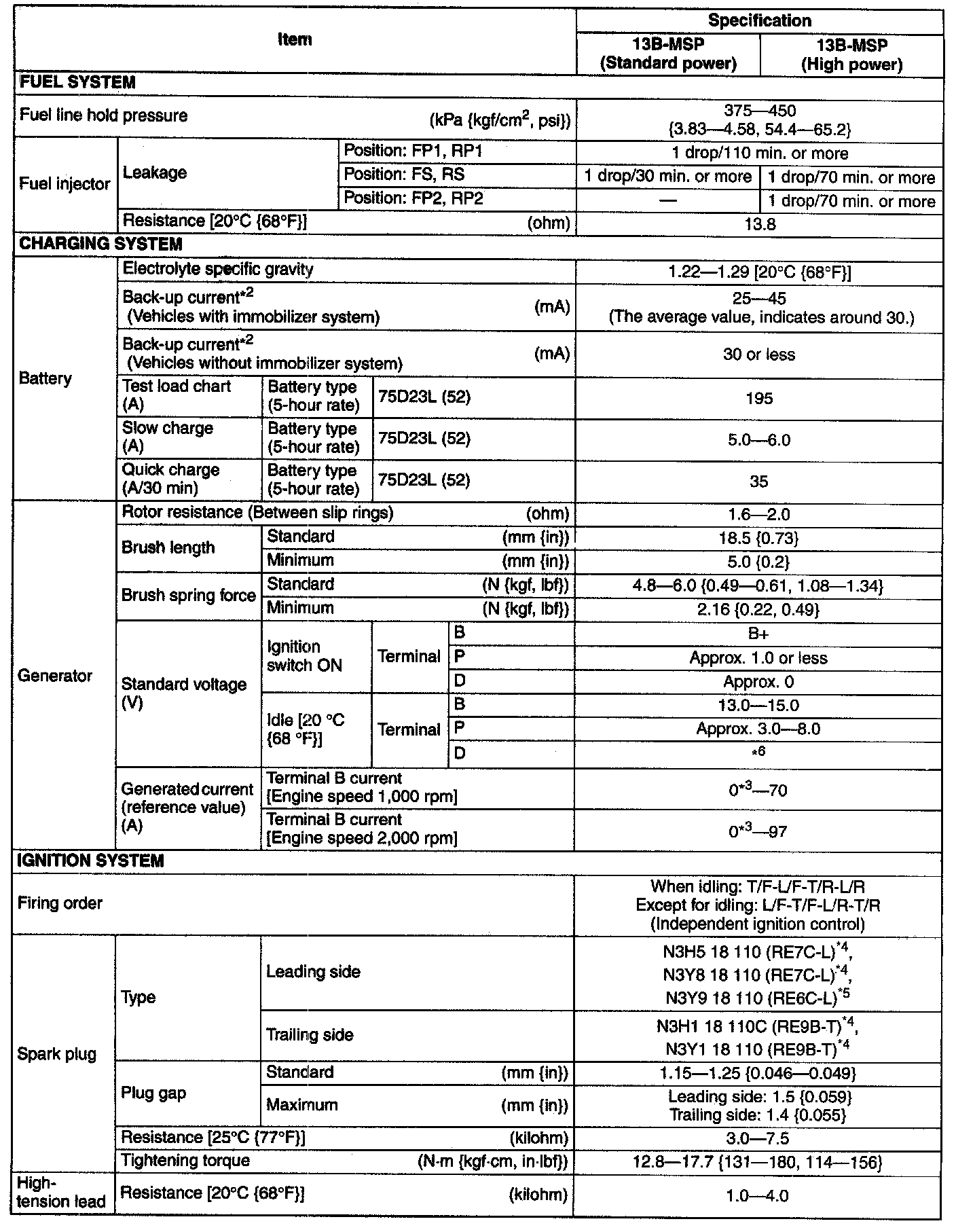

Engine Technical Data (part 2):

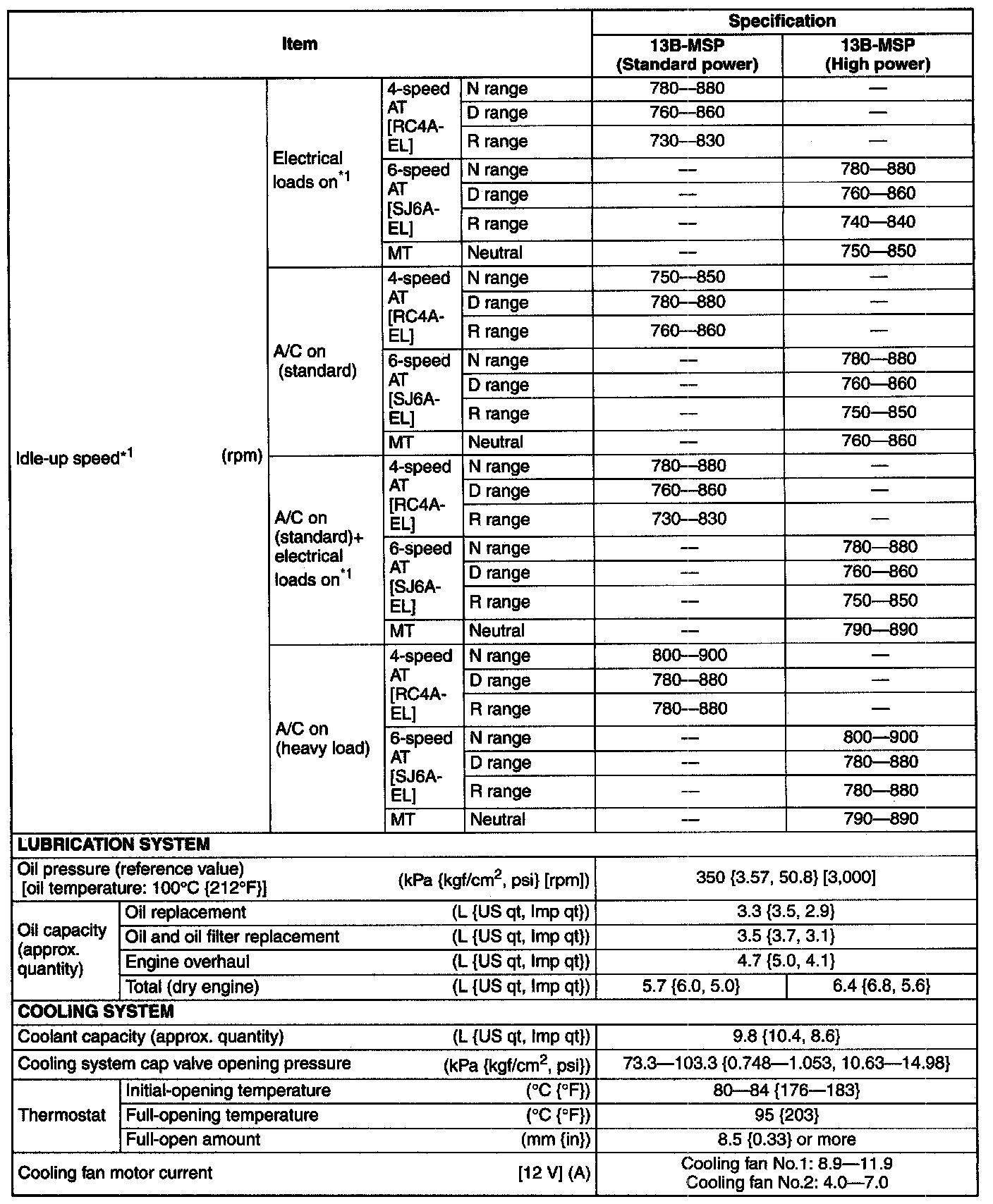

Engine Technical Data (part 3):

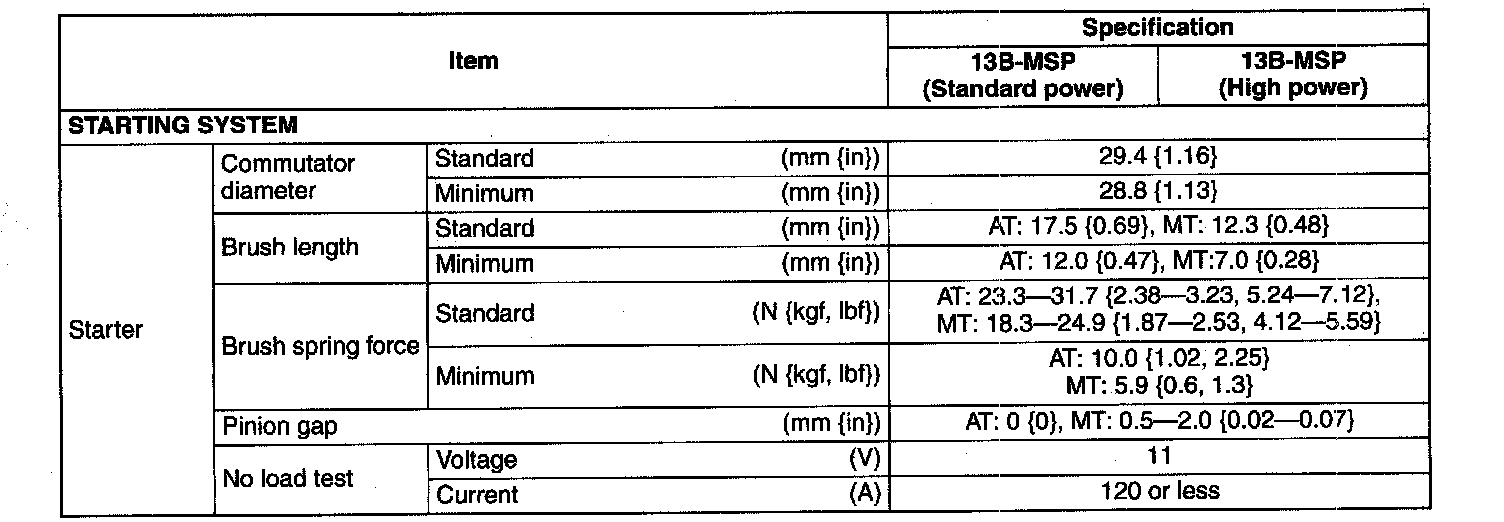

Engine Technical Data (part 4):
