Home >> Mazda >> 2007 >> RX8 2RTR-1.3L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations

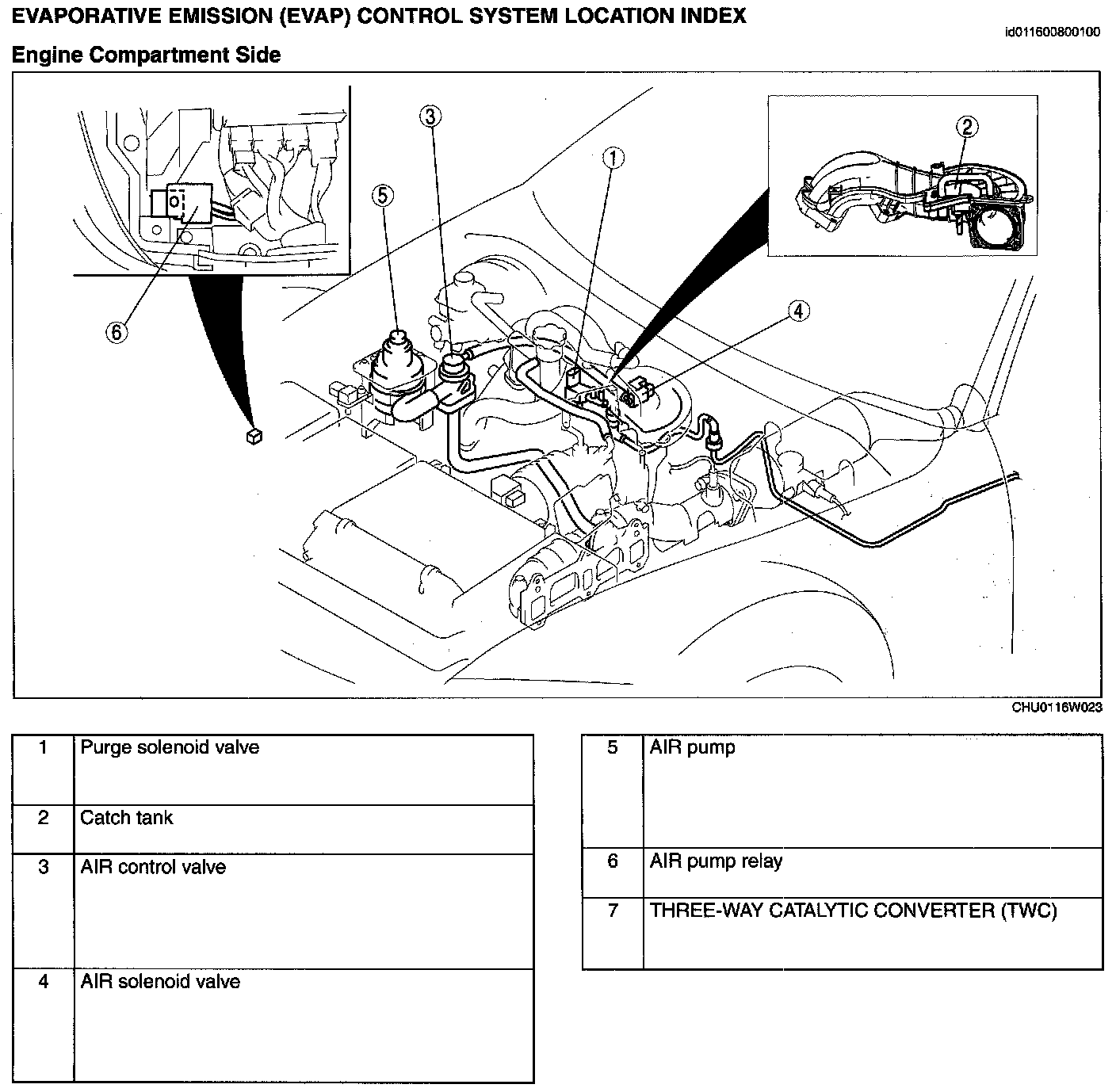

Evaporative Emission (EVAP) Control System Location Index:



Relay Location:

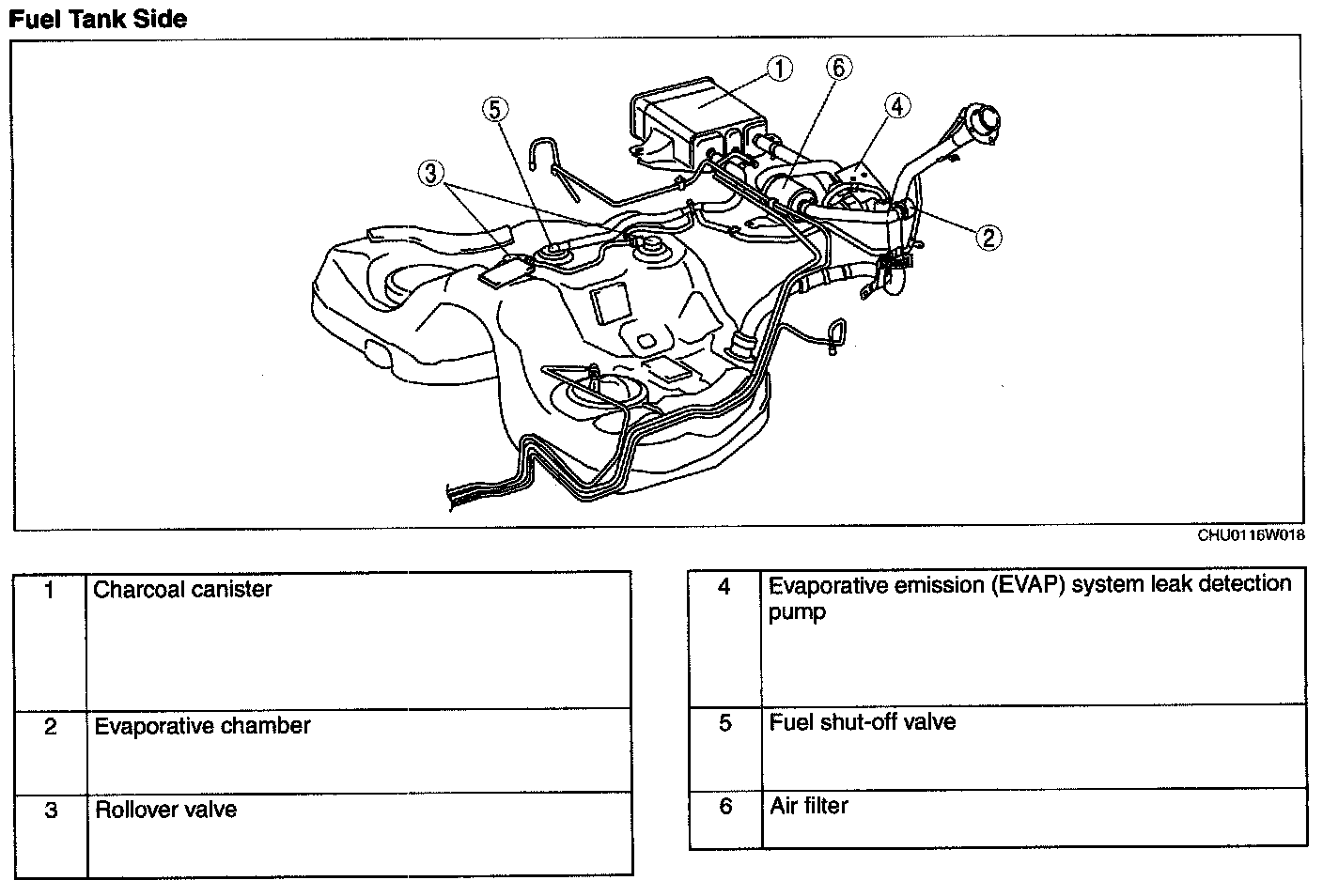

Fuel Tank Side:
