Pinout Values and Diagnostic Parameters

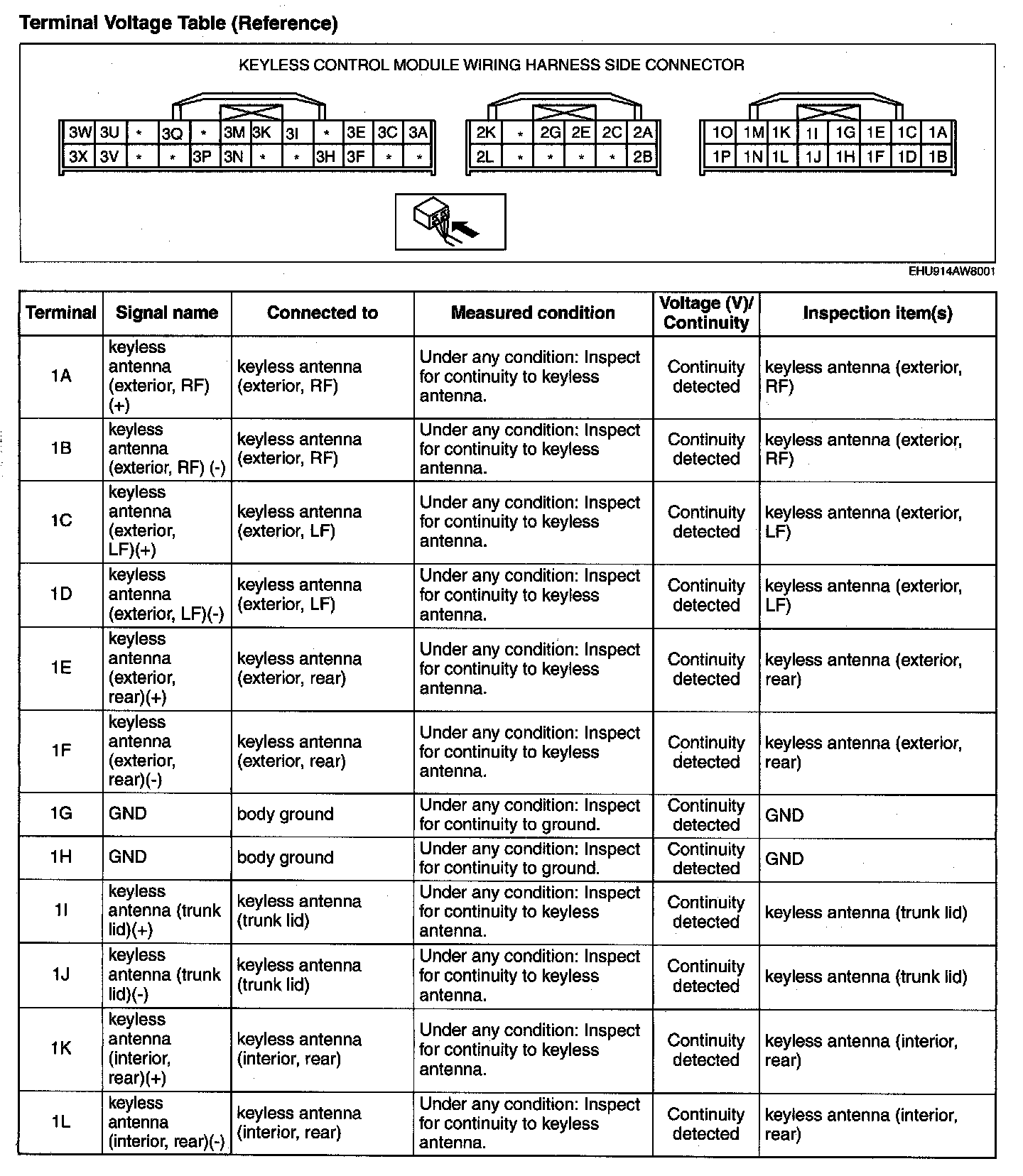

Terminal 1A-1L:

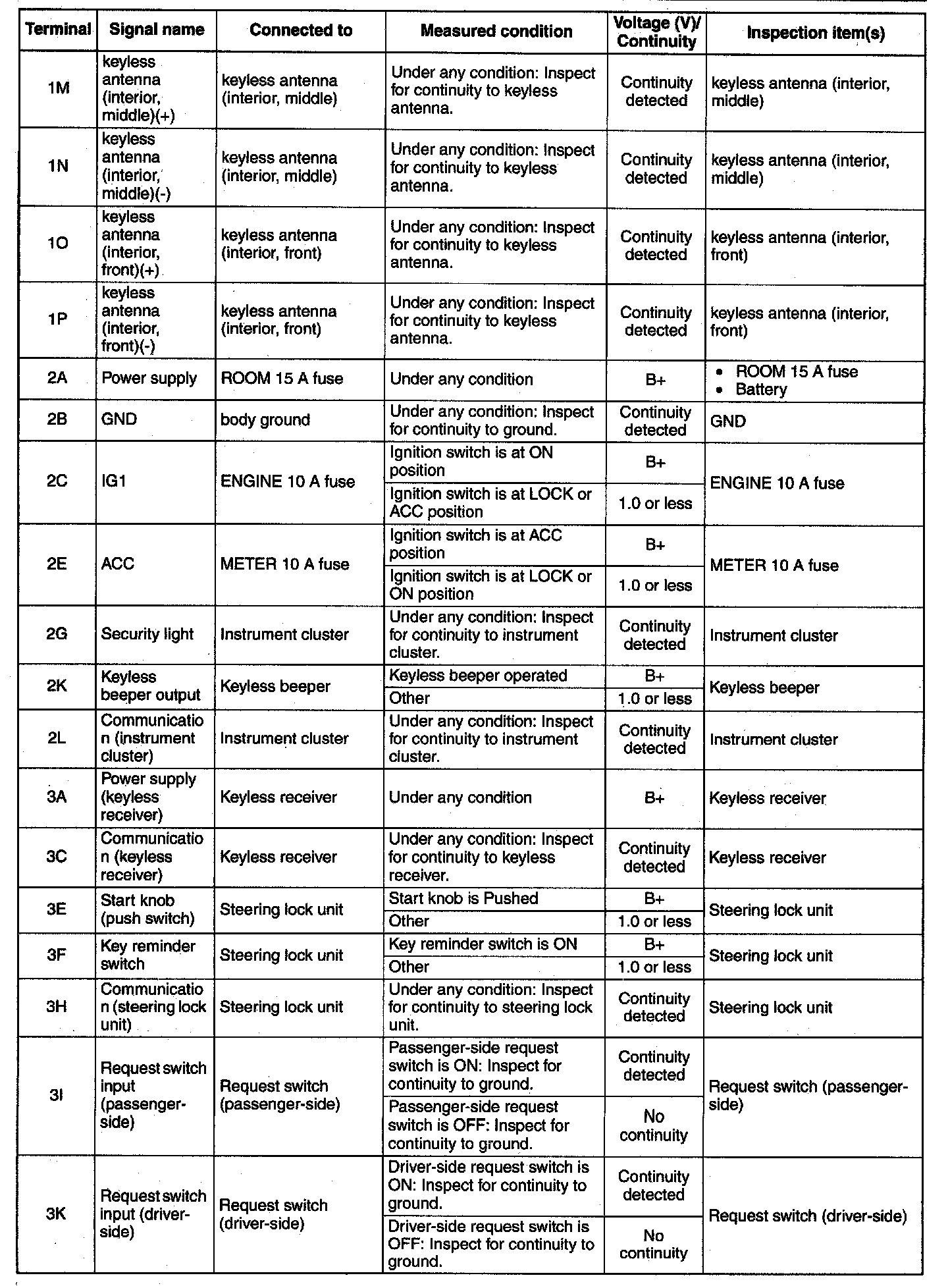

Terminal 1M-3K:

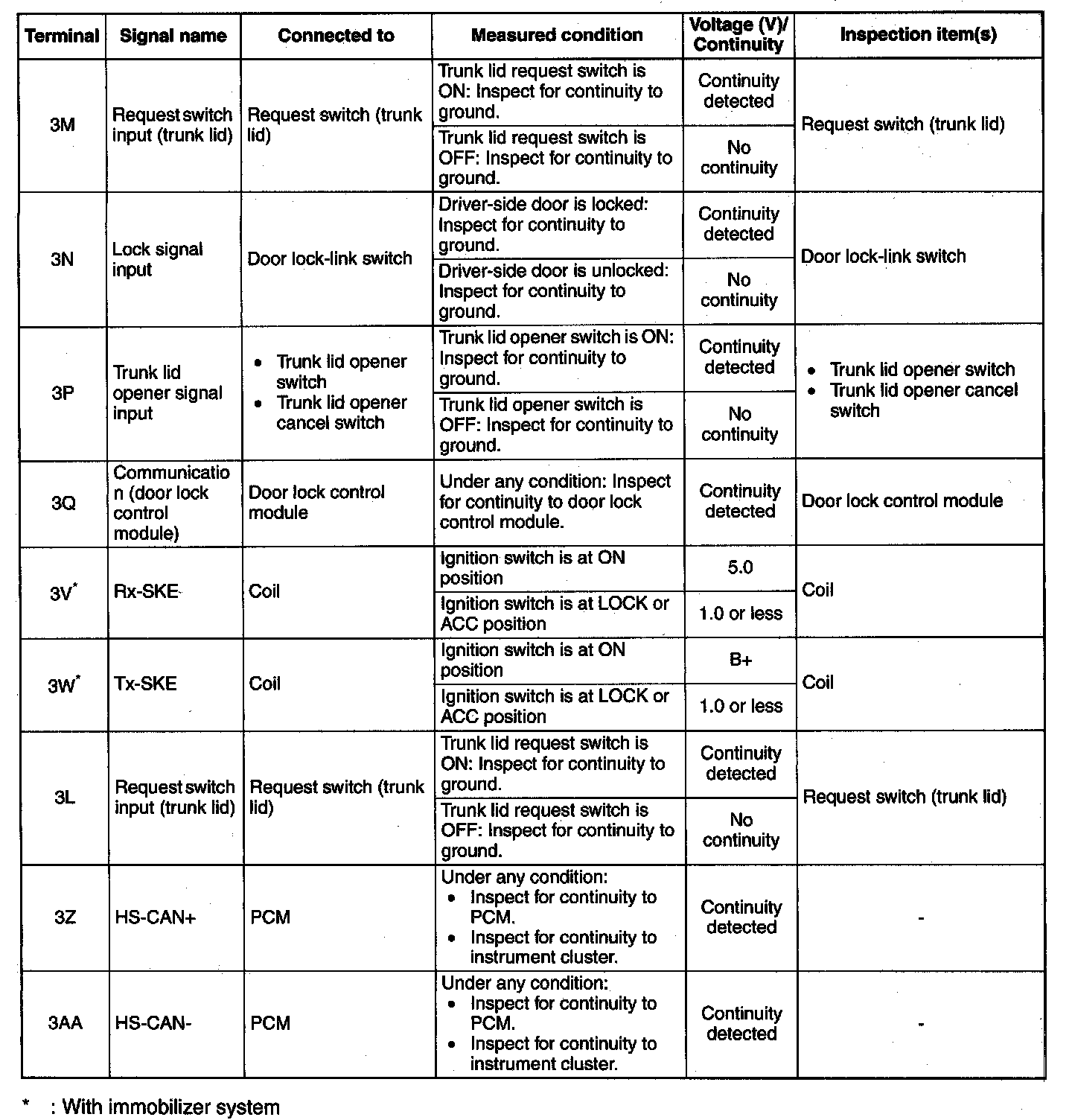

Terminal 3M-3AA:

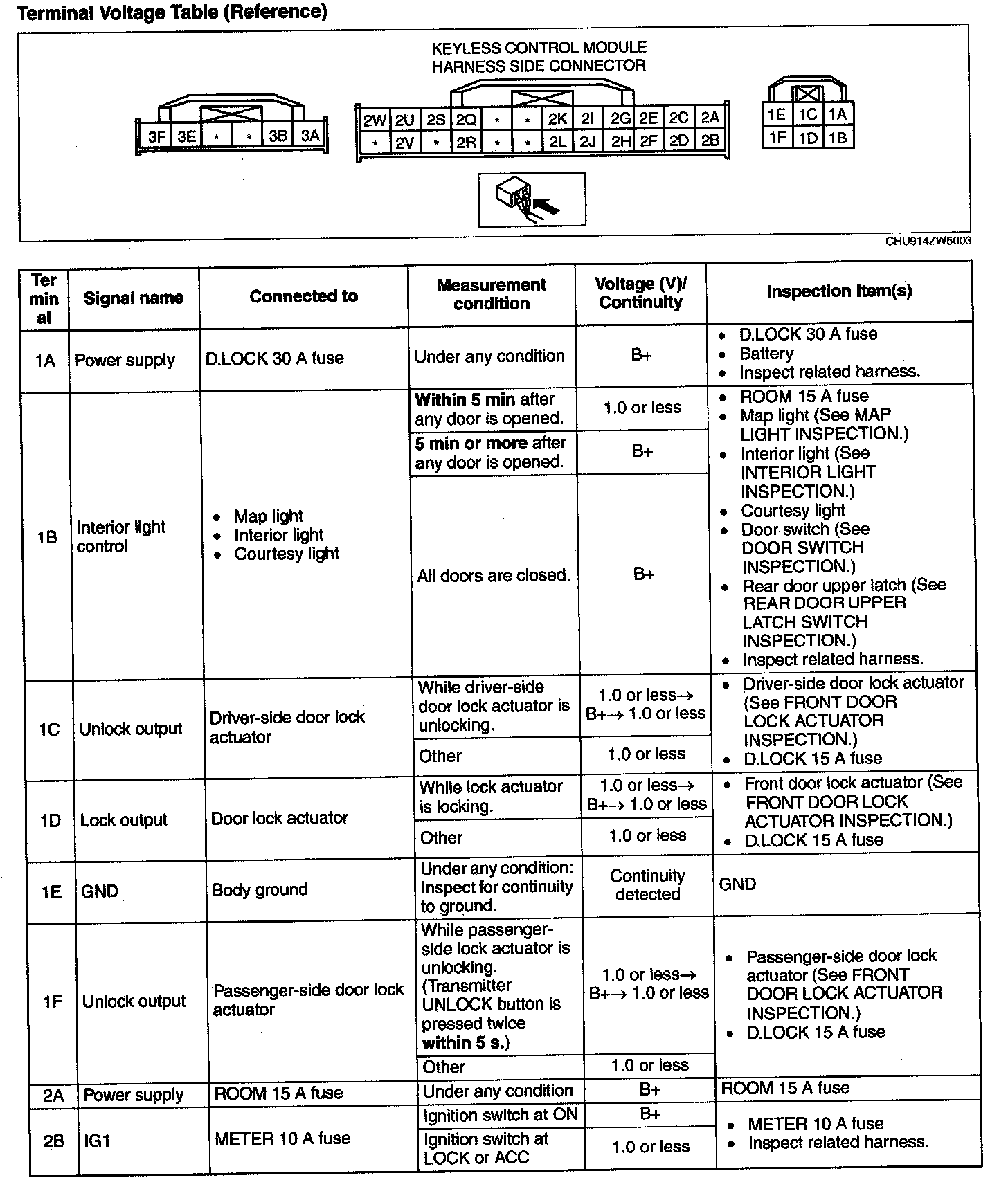

Terminal 1A-2B:

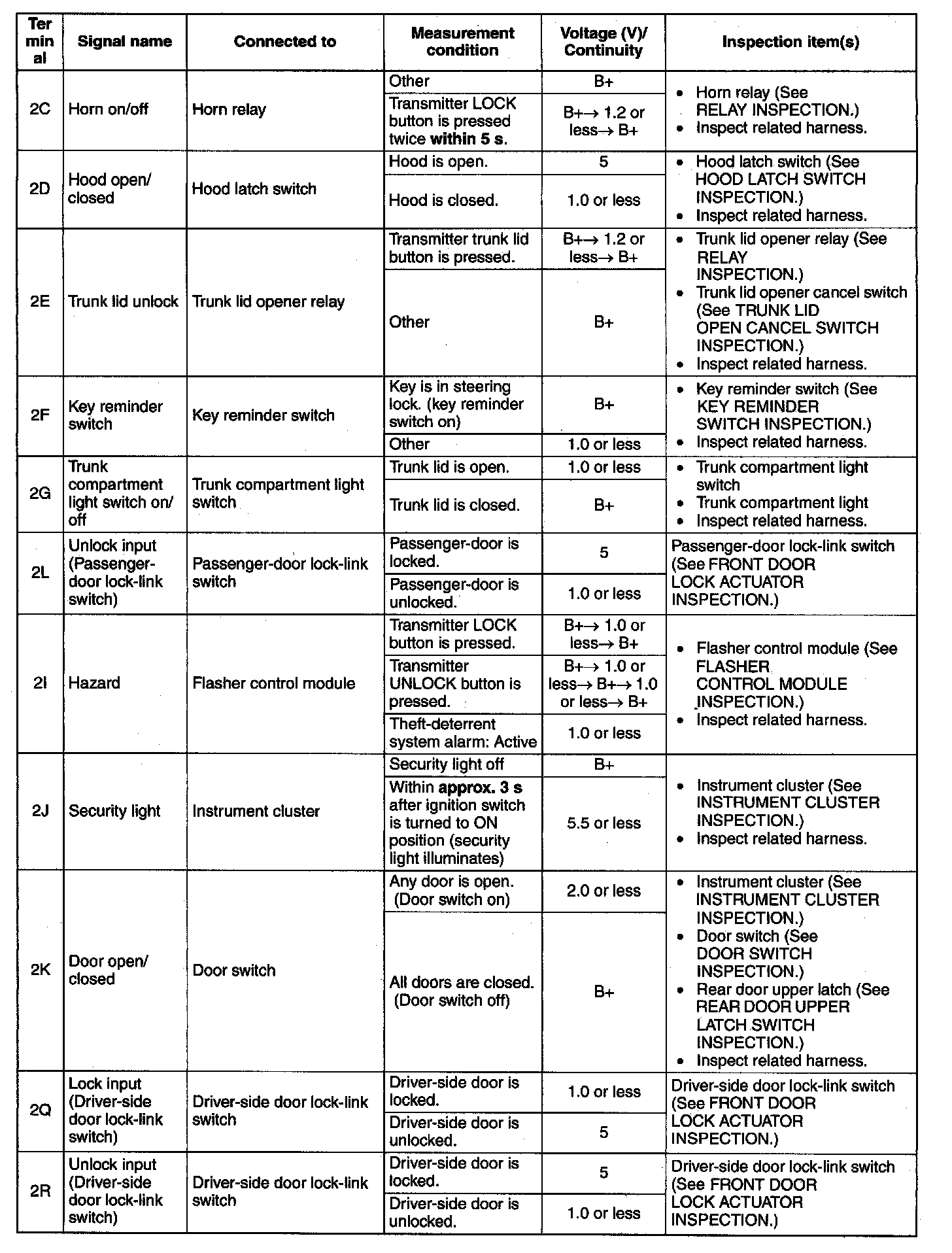

Terminal 2C-2R:

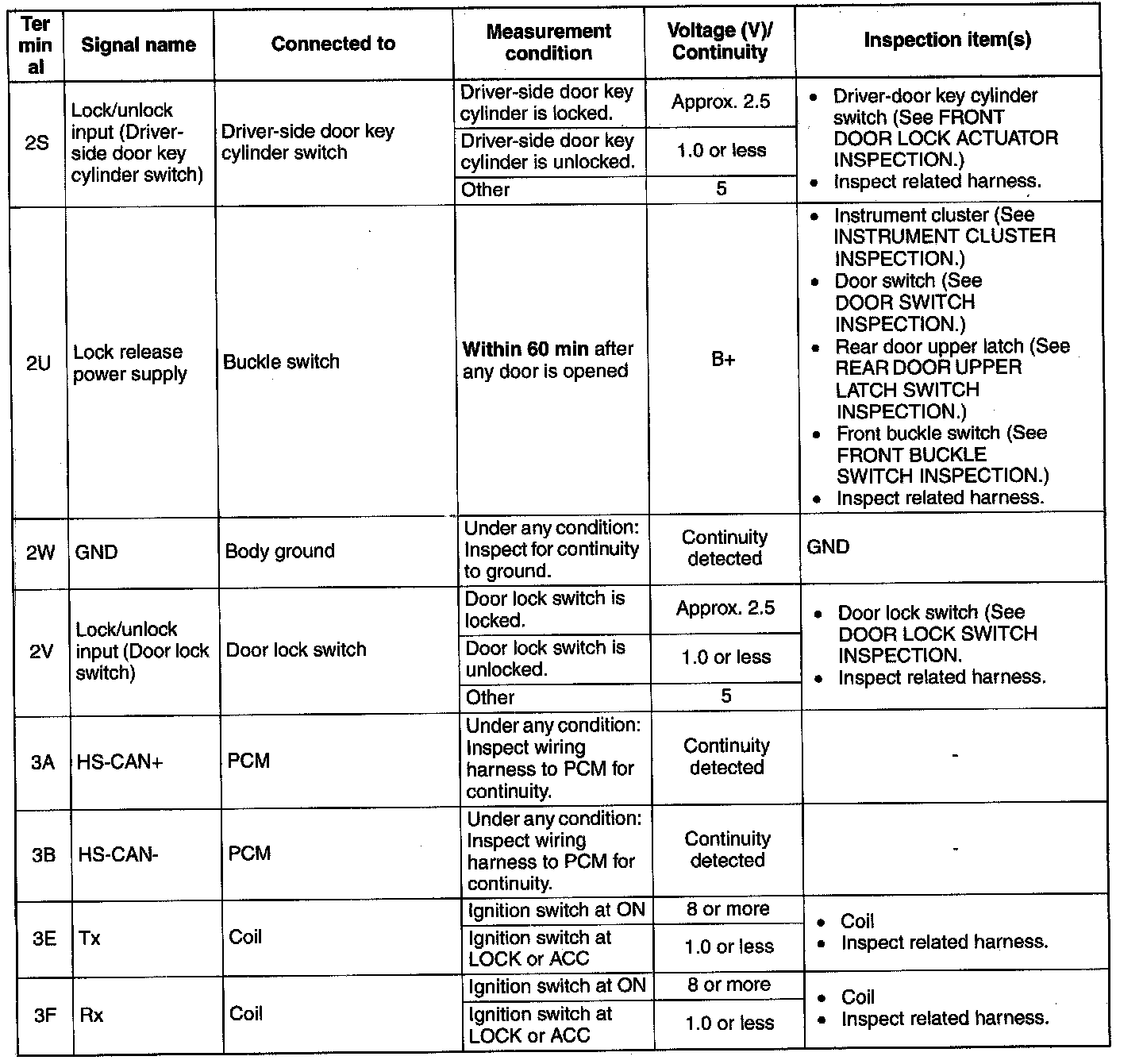

Terminal 2S-3F:
