Keyless Beeper Removal/installation[With Advanced Keyless System]

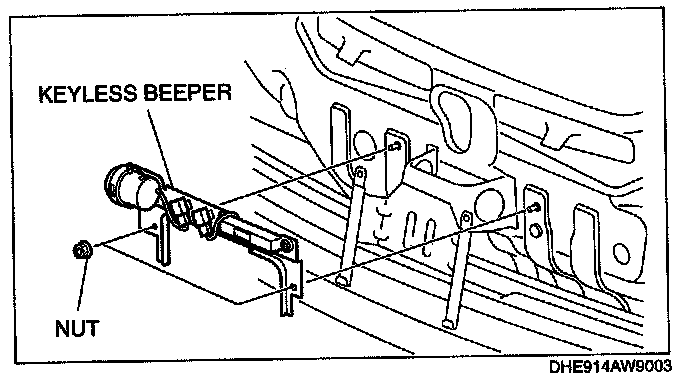

KEYLESS BEEPER REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS SYSTEM]

1. Disconnect the negative battery cable.
2. Remove the rear bumper.
3. Remove the nuts.




4. Disconnect the connector, then remove the keyless antenna.
5. Install in the reverse order of removal.
