Home >> Mazda >> 2007 >> Mazdaspeed6 L4-2.3L Turbo >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Testing and Inspection

Control Module HVAC: Testing and Inspection

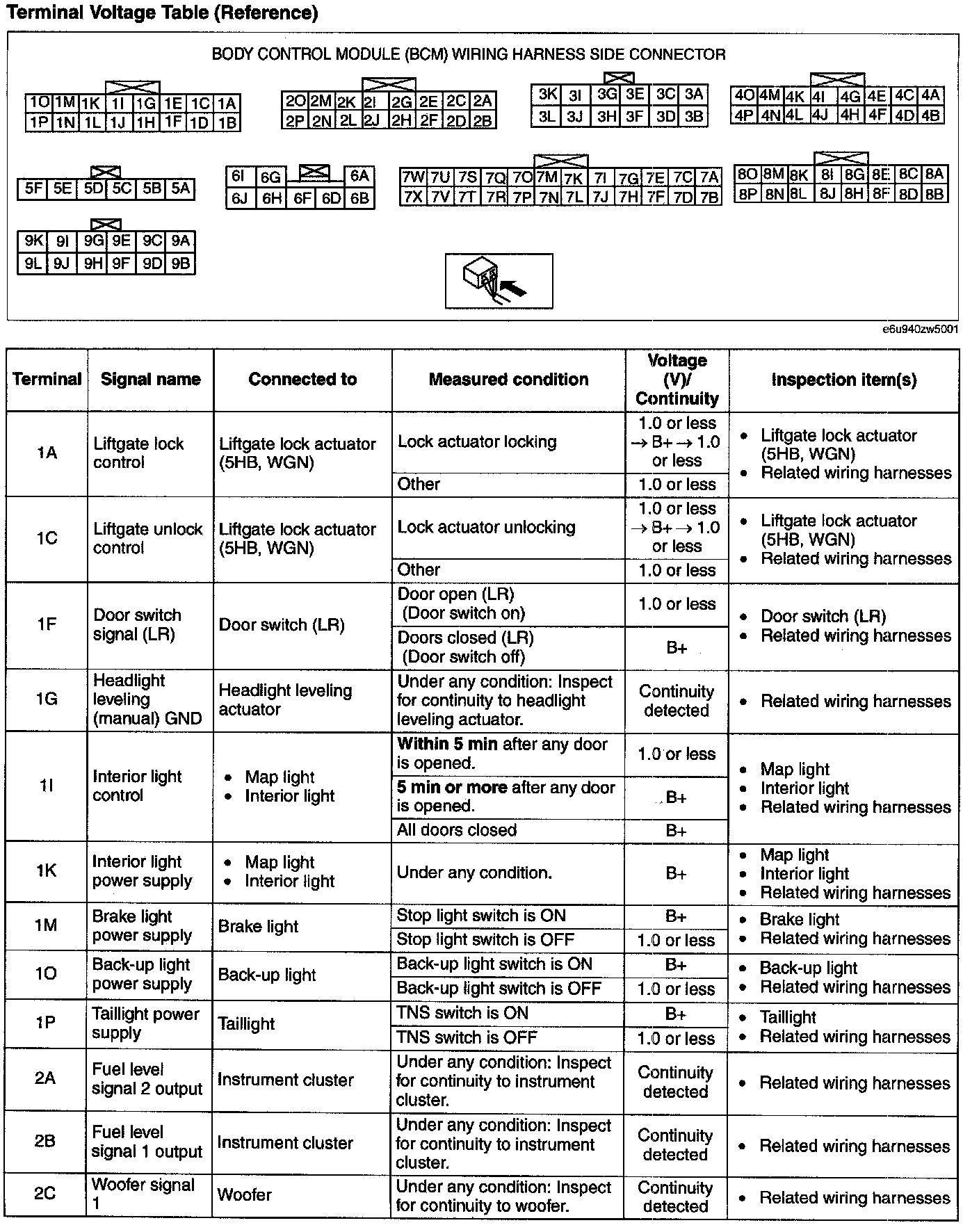

1A-2C:



2D-3E:

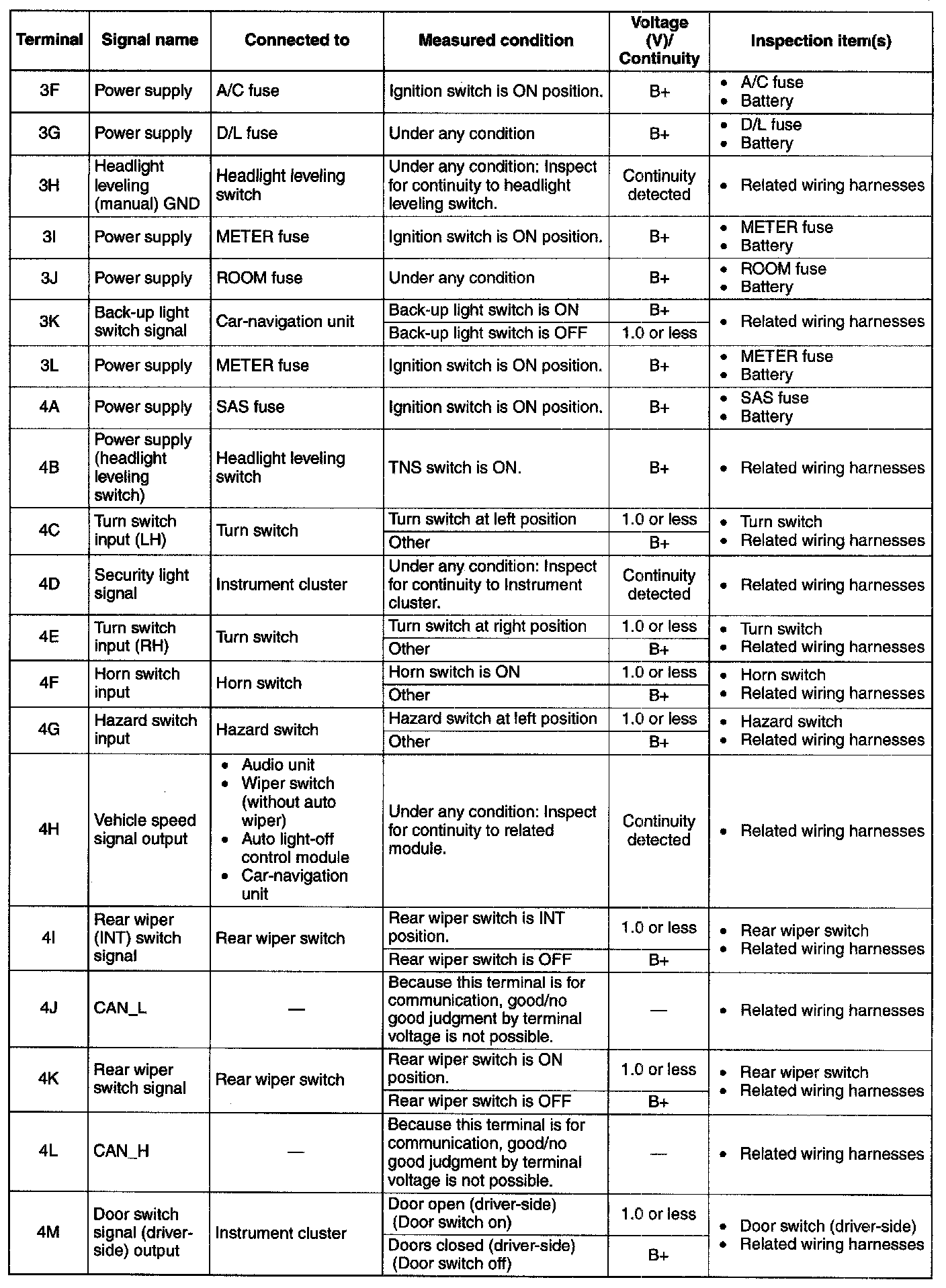

3F-4M:

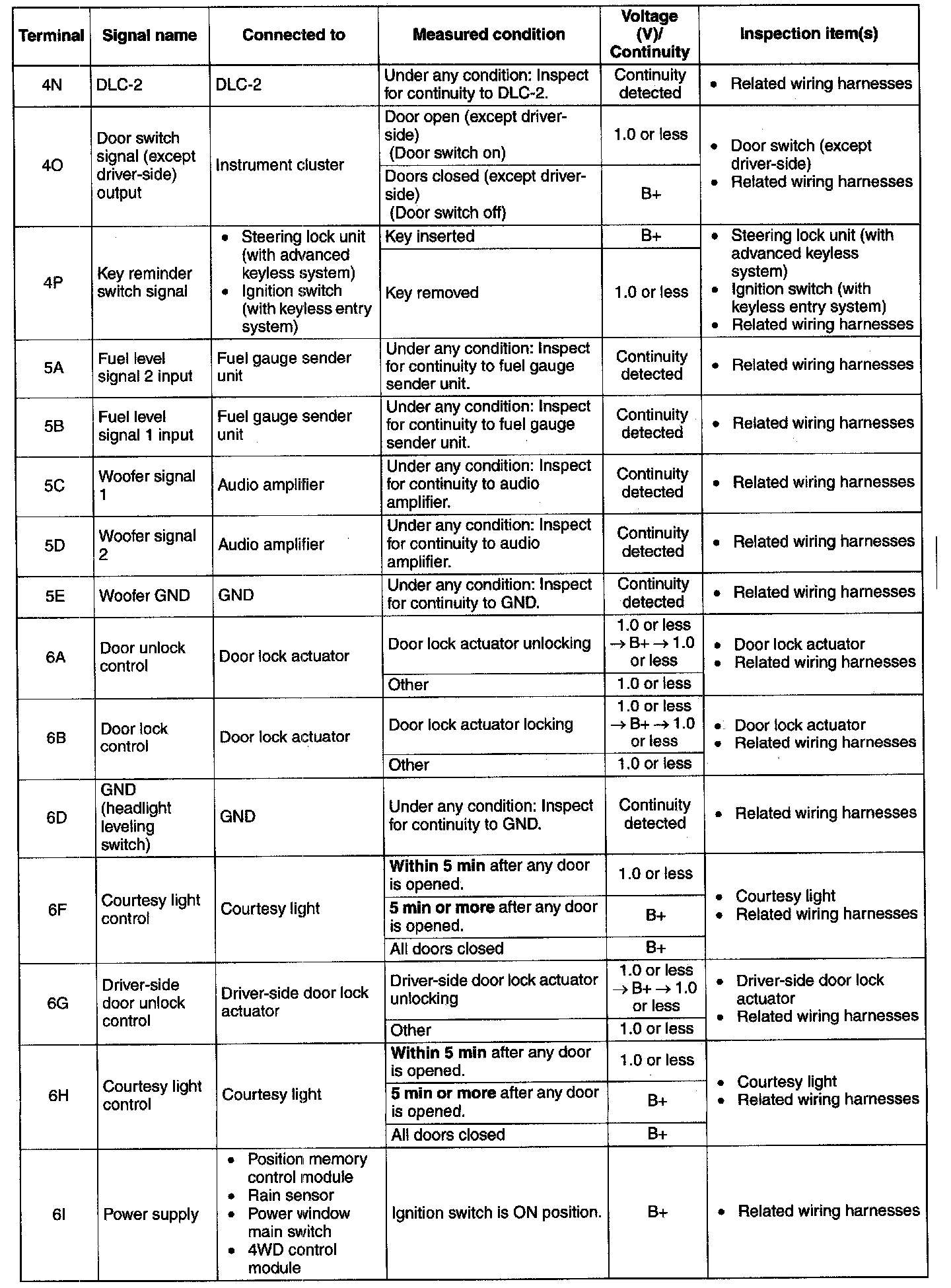

4N-6I:

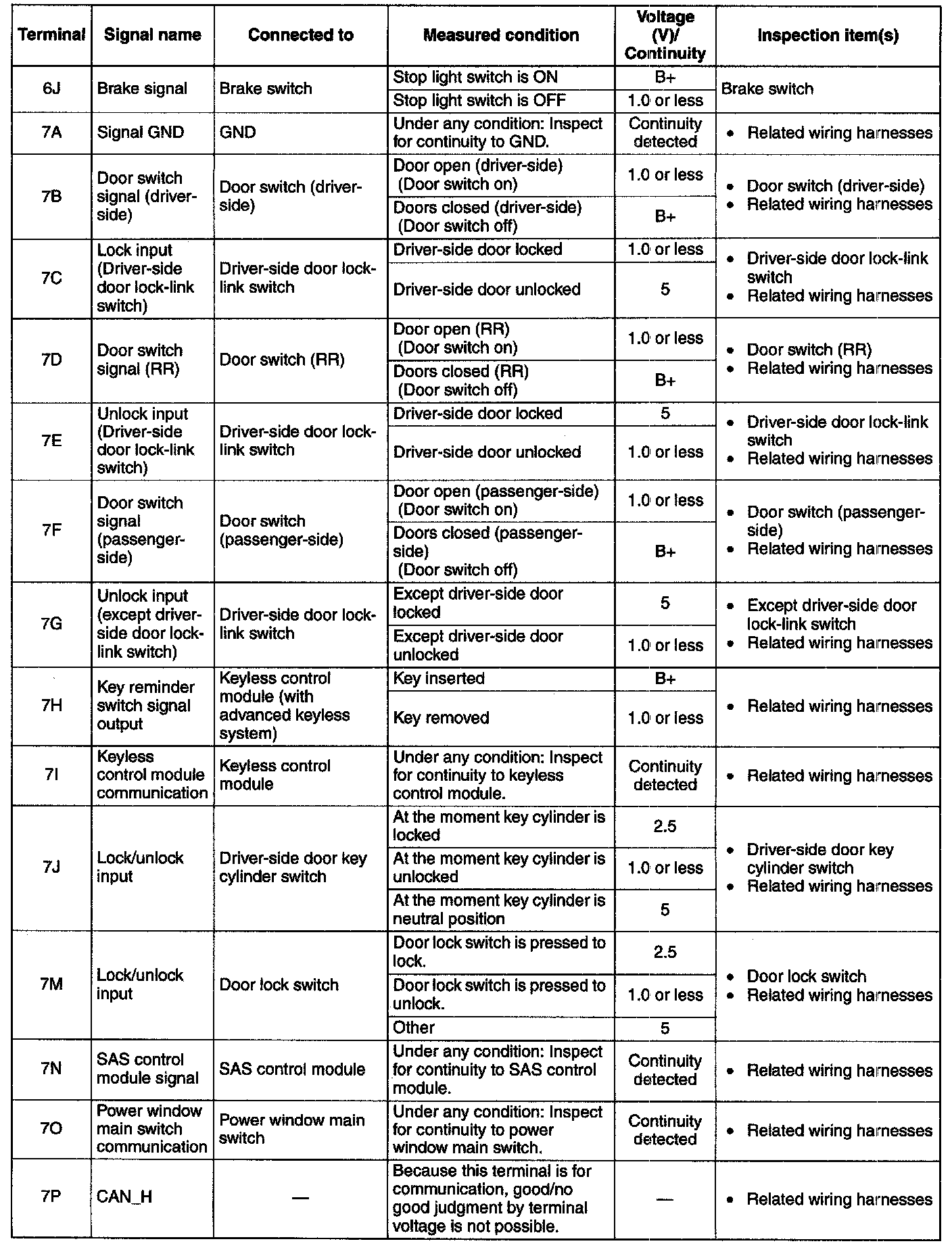

6J-7P:

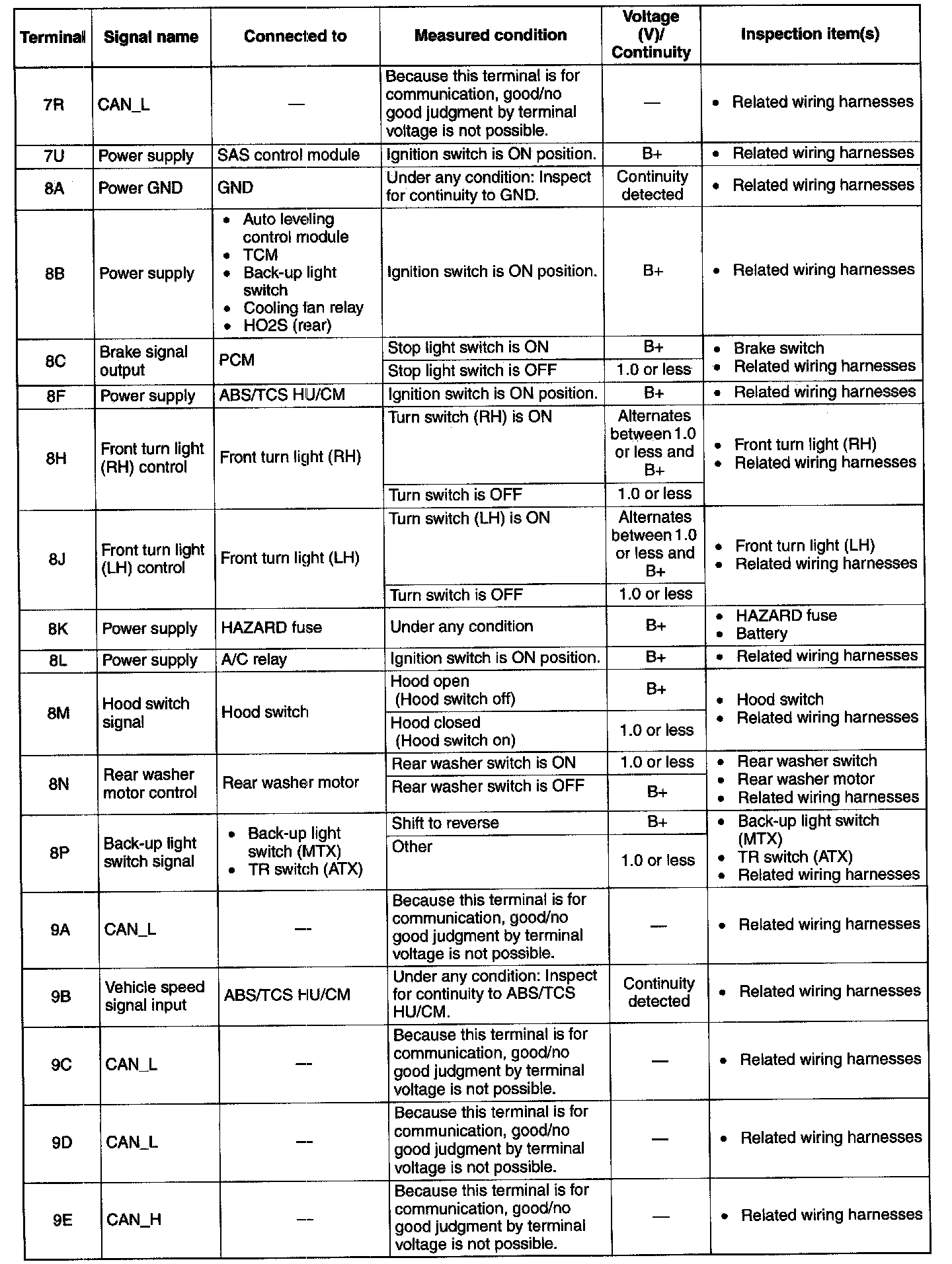

7R-9E:

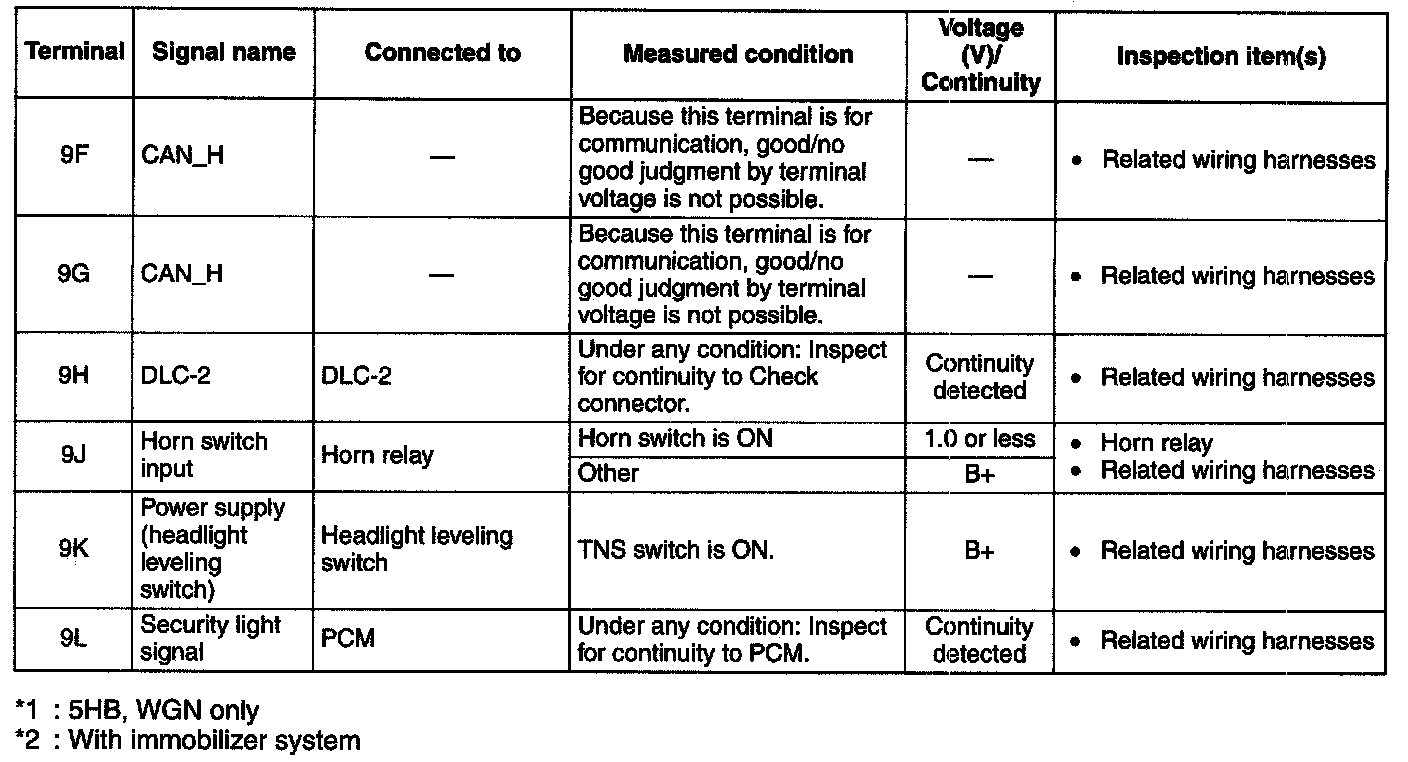

9F-9L:
