Home >> Mazda >> 2007 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations

Throttle Position Sensor: Locations

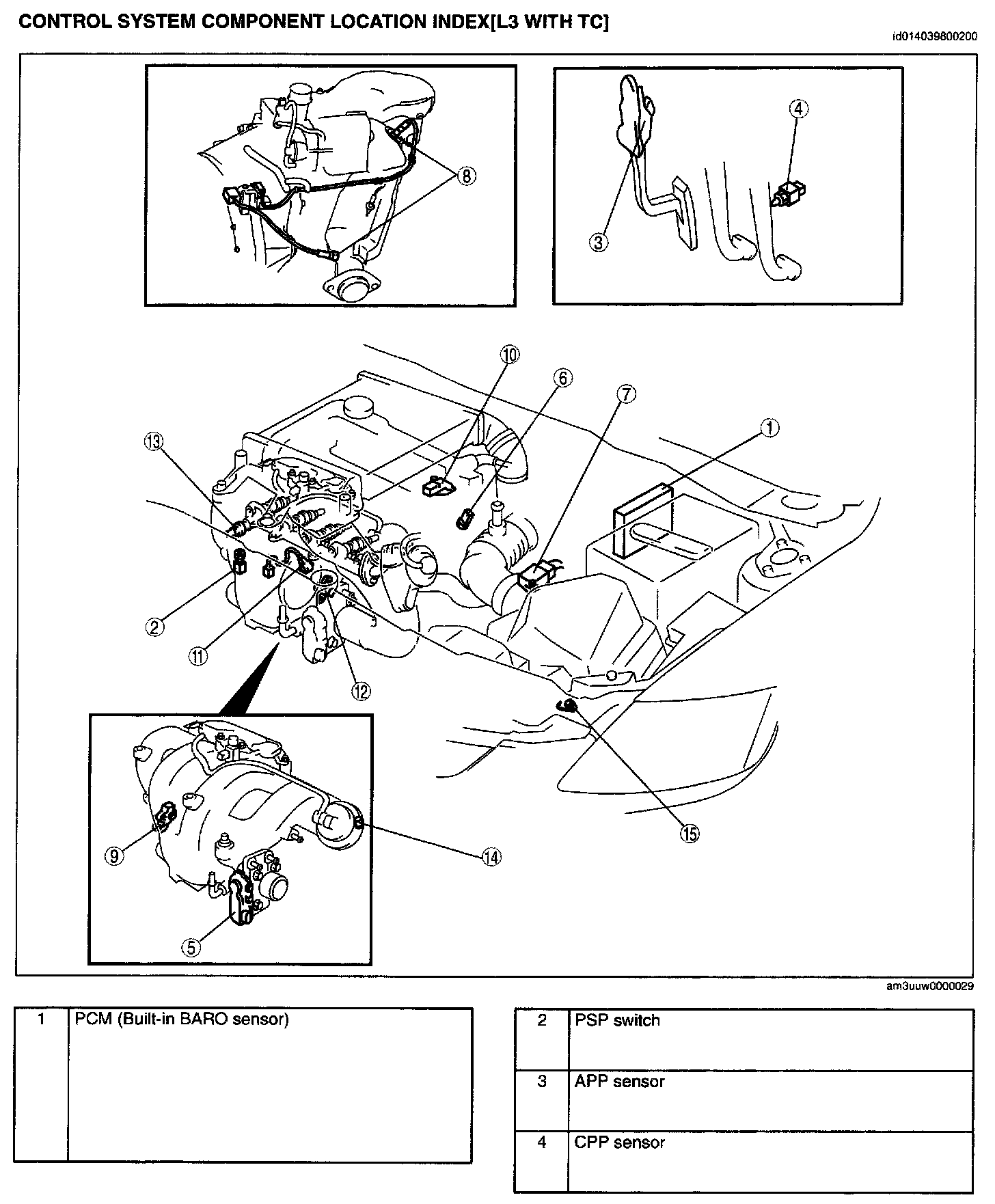

Control System Component Location Index[L3 With TC] Part 1:

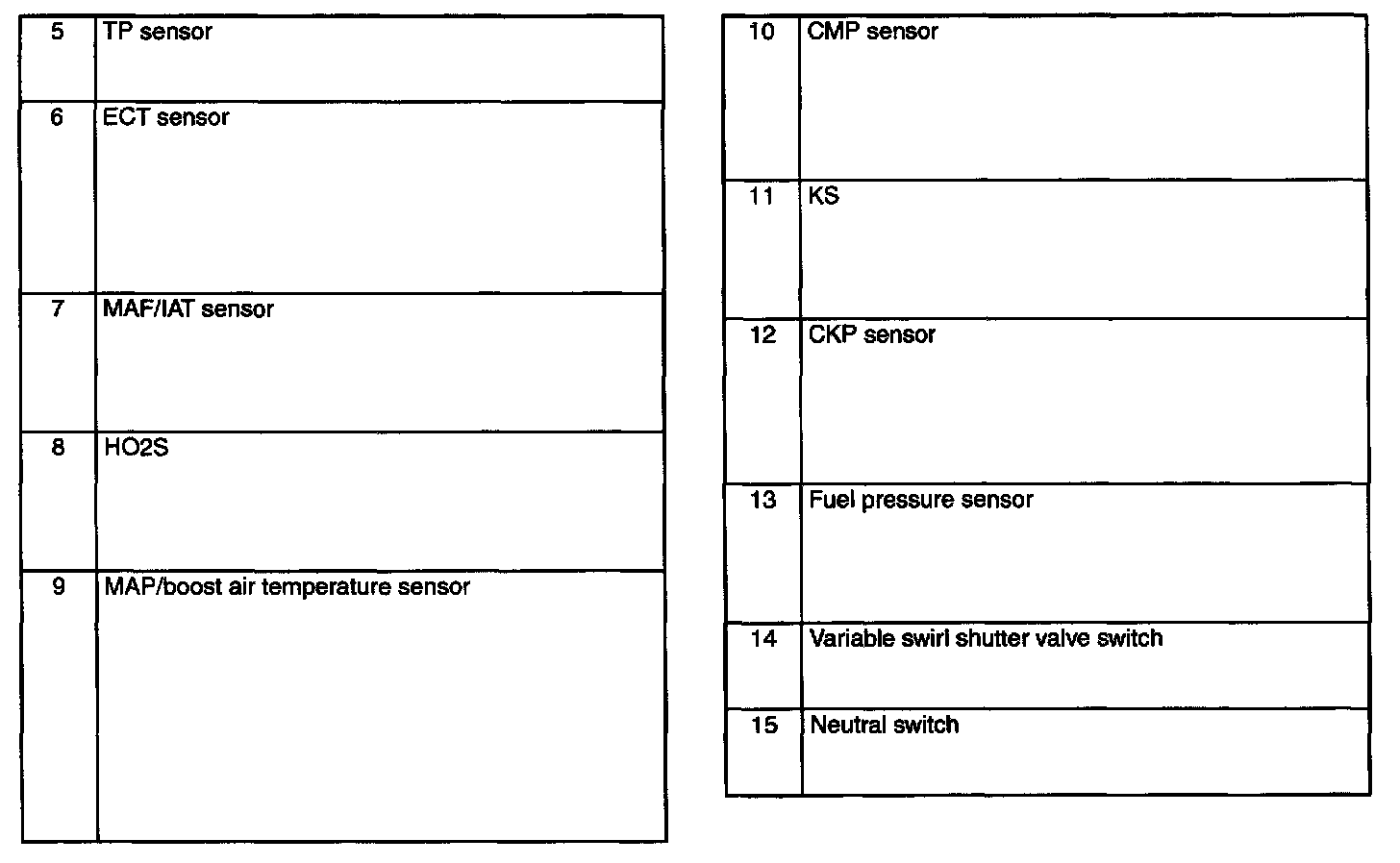

Control System Component Location Index[L3 With TC] Part 2:
