Knock Sensor: Service and Repair

KNOCK SENSOR (KS) REMOVAL/INSTALLATION[LF]

1. Remove the battery cover.
2. Remove the negative battery cable.

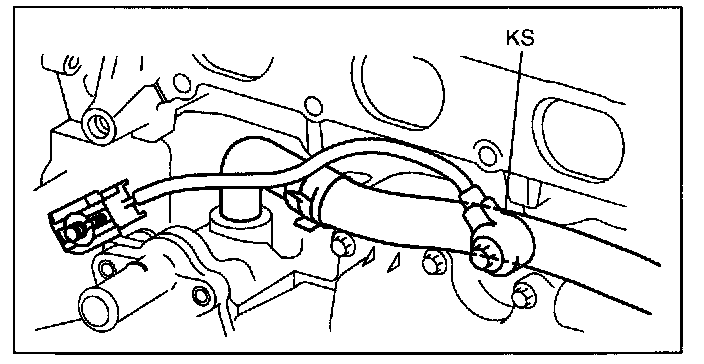

3. Remove the dynamic chamber.
4. Disconnect the KS connector.




5. Remove the KS installation bolt, then remove the KS.
6. Install in the reverse order of removal.

KS tightening torque
16-24 N.m {1.7-2.4 kgf.m, 12-17 ft.lbf}
