Front Wheel Alignment (Specifications)

FRONT WHEEL ALIGNMENT

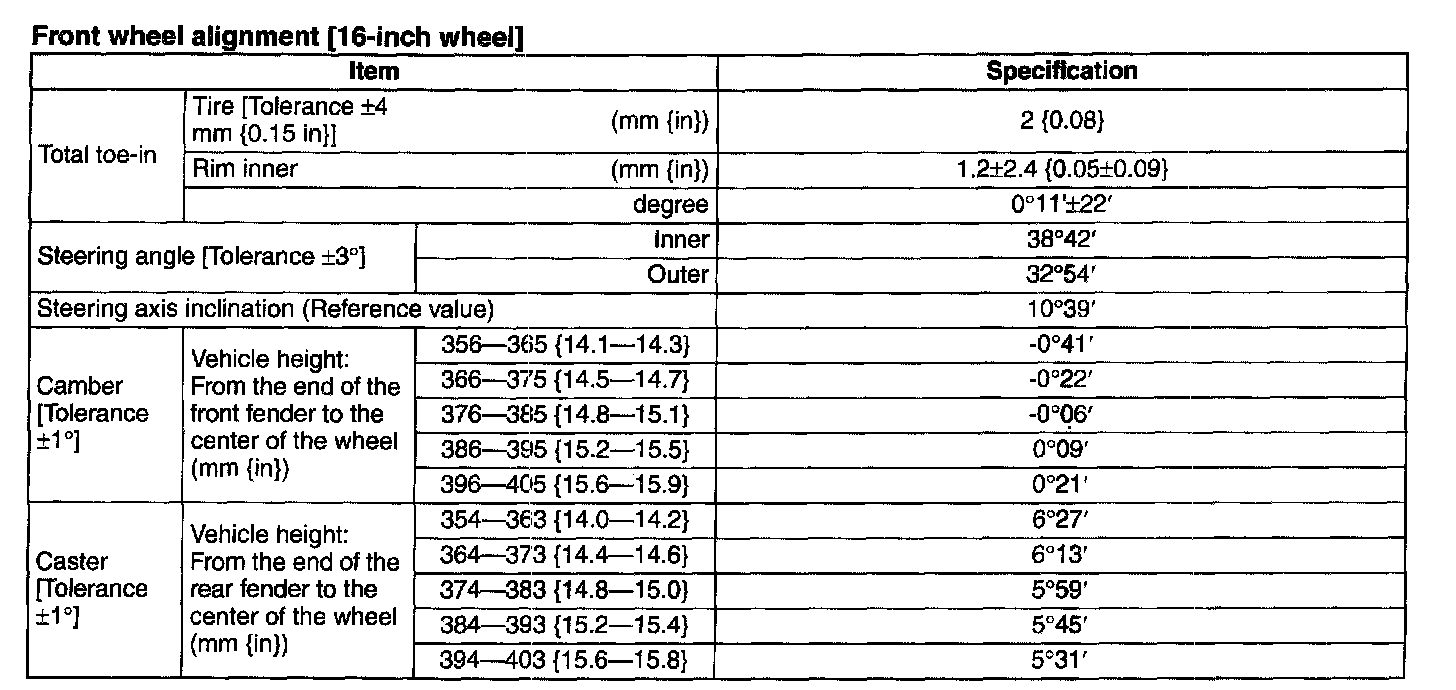

Front wheel alignment [16-inch wheel]:

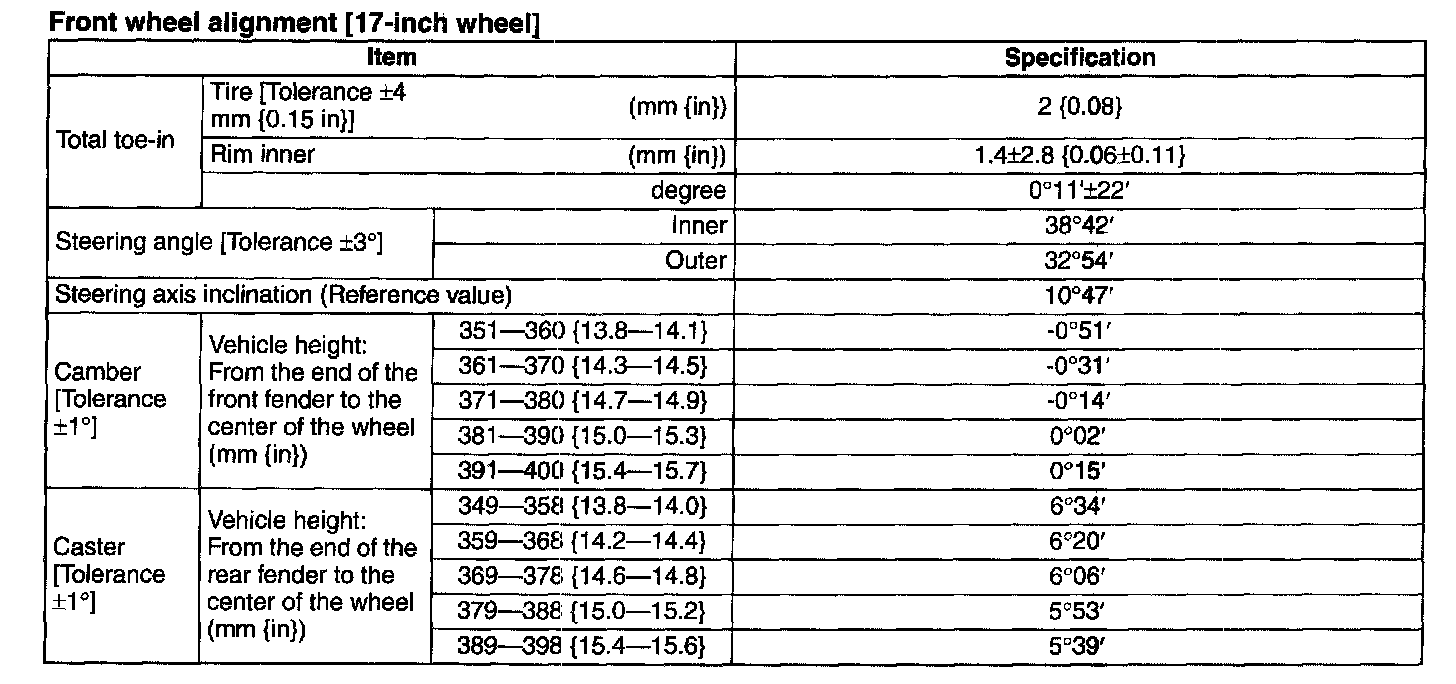

Front wheel alignment [17-inch wheel]:

Note:
^ Unloaded vehicle: Fuel tank is full. Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
^ Difference between the left and right dimension for camber and caster is within 1°.
