Keyless Receiver Inspection[Advanced Keyless System]

KEYLESS RECEIVER INSPECTION[ADVANCED KEYLESS SYSTEM]

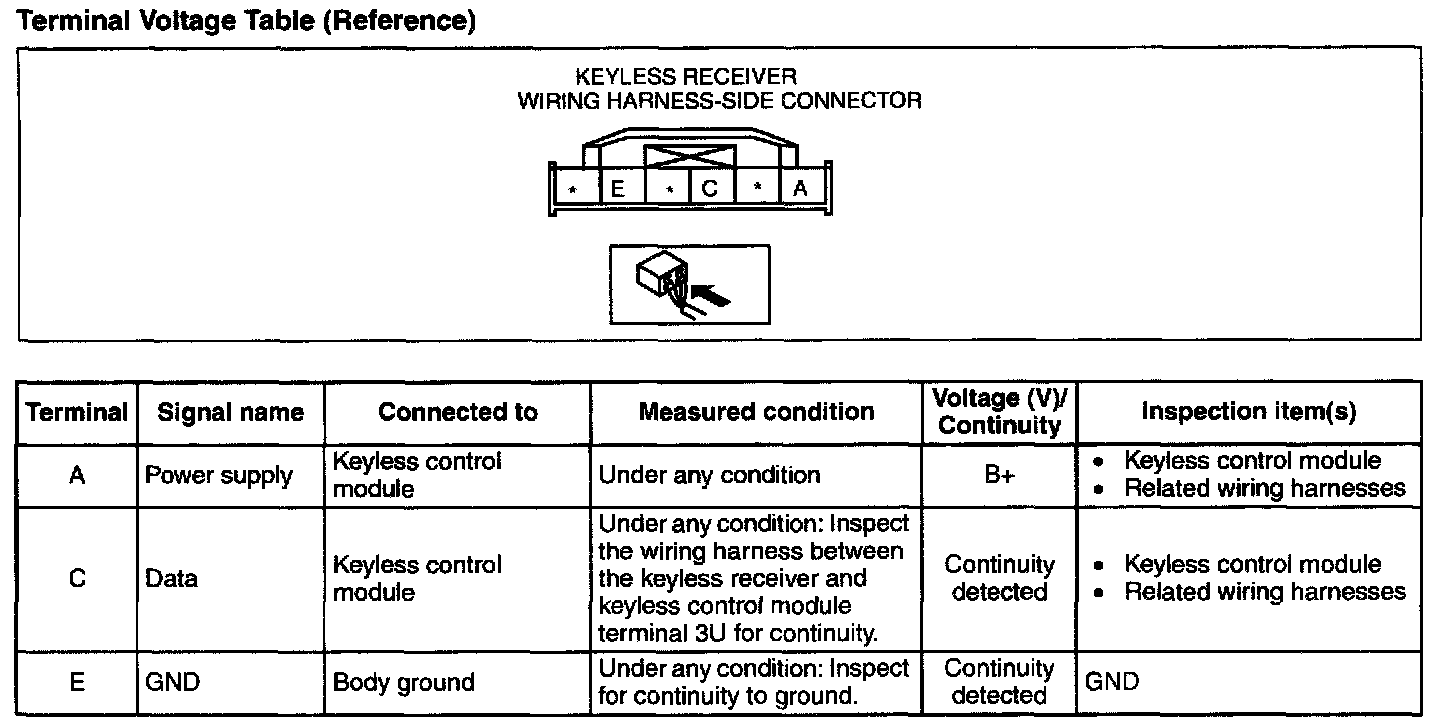

1. Measure the voltage or inspect for continuity according to the Terminal Voltage Table (Reference).
- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)" and related wiring harnesses.
