Keyless Control Module Inspection[Keyless Entry System]

KEYLESS CONTROL MODULE INSPECTION[KEYLESS ENTRY SYSTEM]

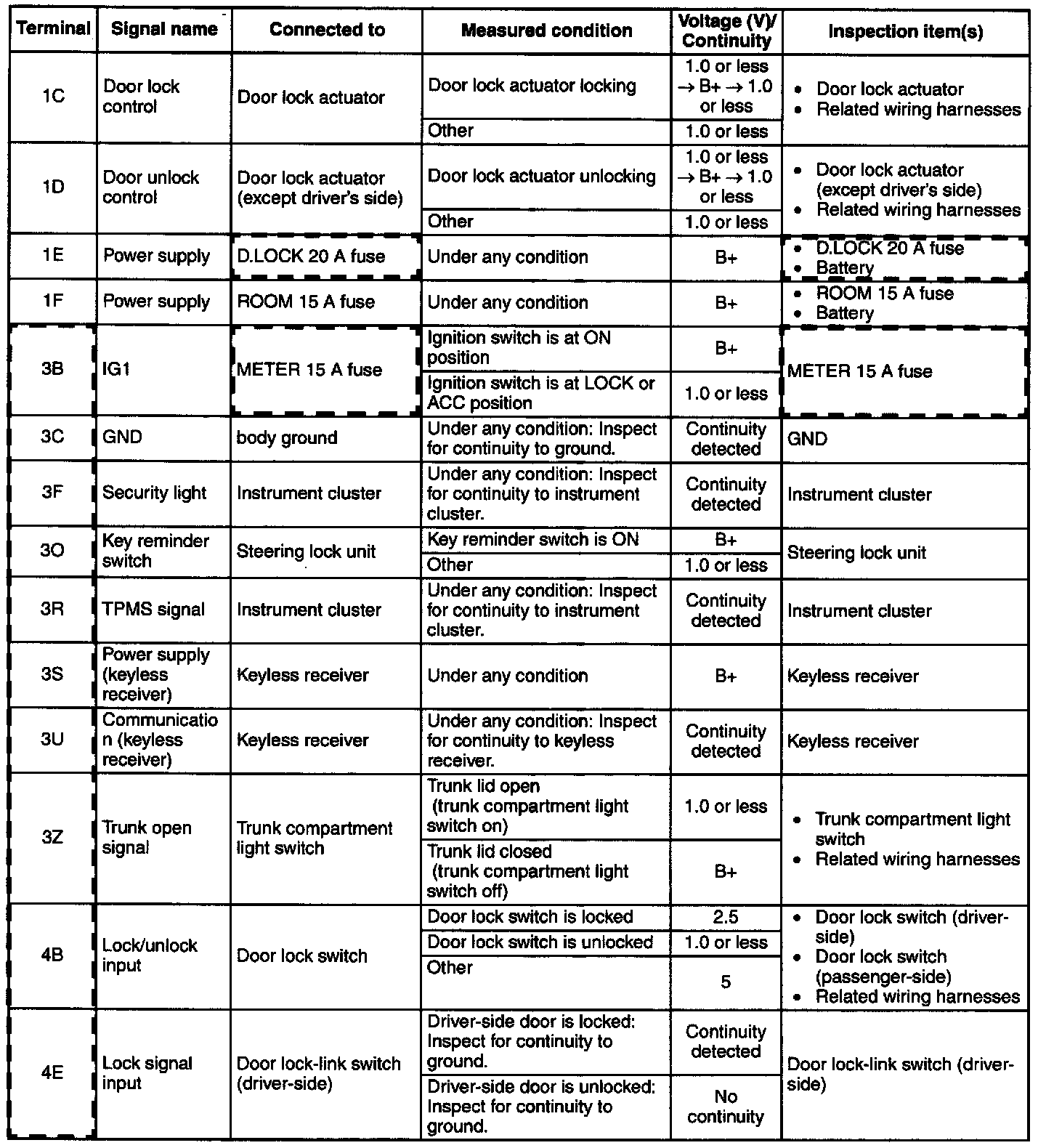

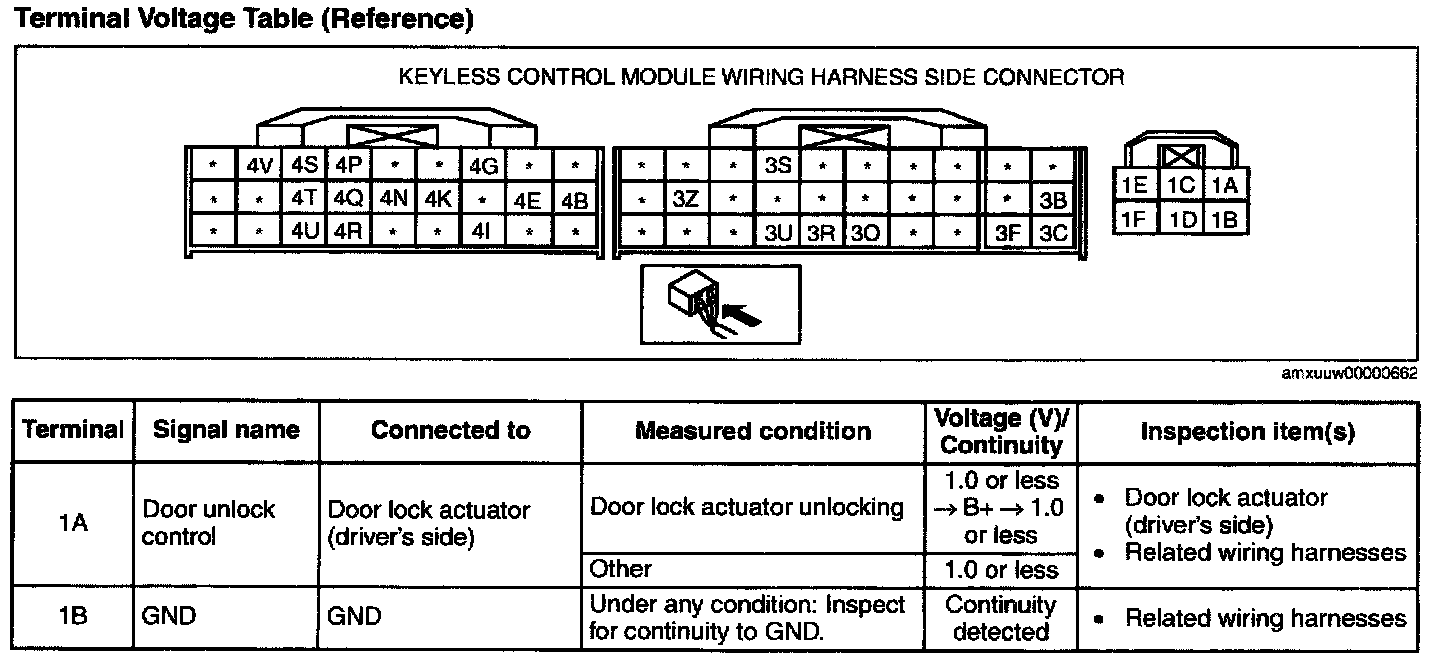

Terminal Voltage Table (Reference) Part 1:

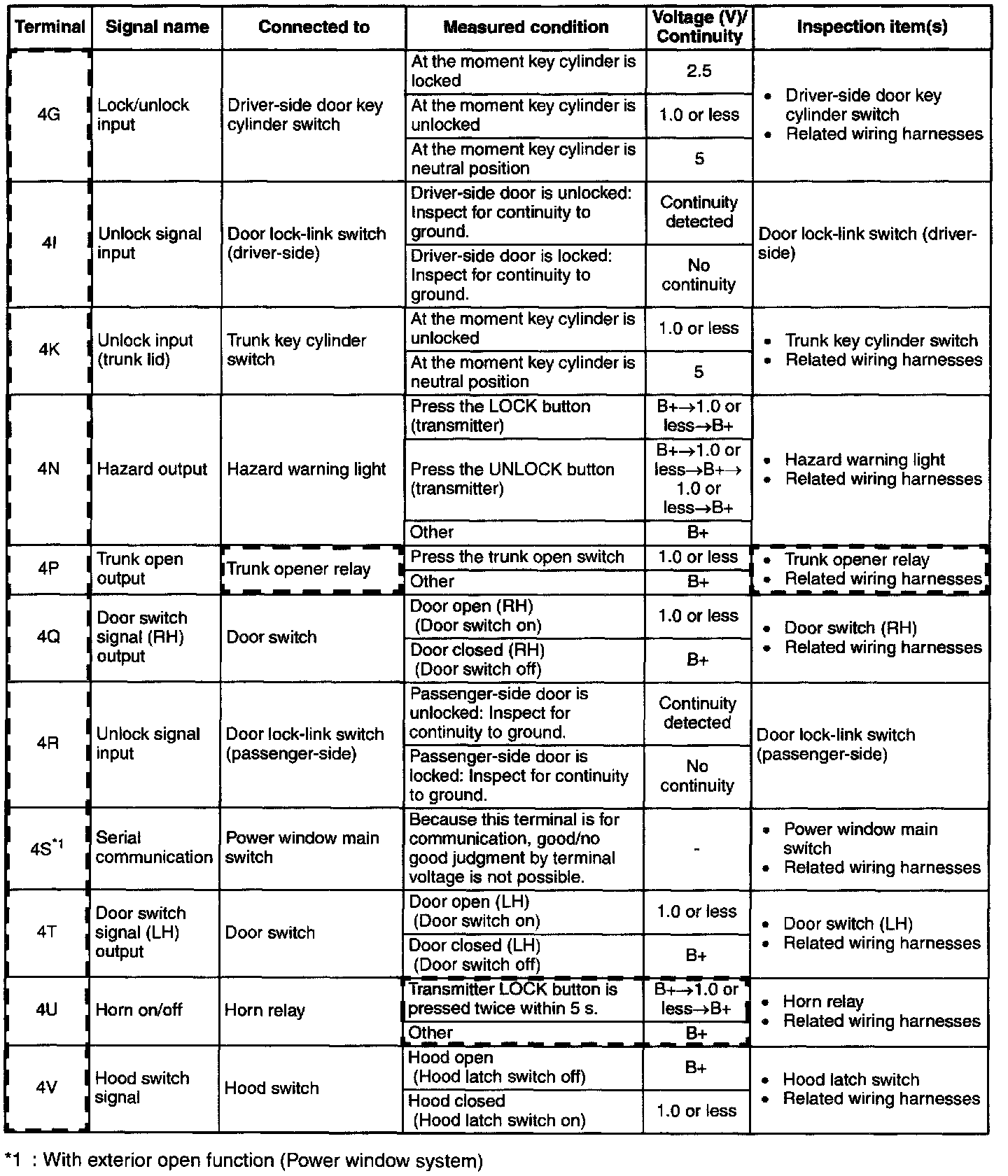

Terminal Voltage Table (Reference) Part 2:

Terminal Voltage Table (Reference) Part 3:

1. Measure the voltage or inspect for continuity according to the Terminal Voltage Table (Reference).
- It the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under Inspection item(s)" and related wiring harnesses.
