Keyless Control Module Inspection[Advanced Keyless System]

KEYLESS CONTROL MODULE INSPECTION[ADVANCED KEYLESS SYSTEM]

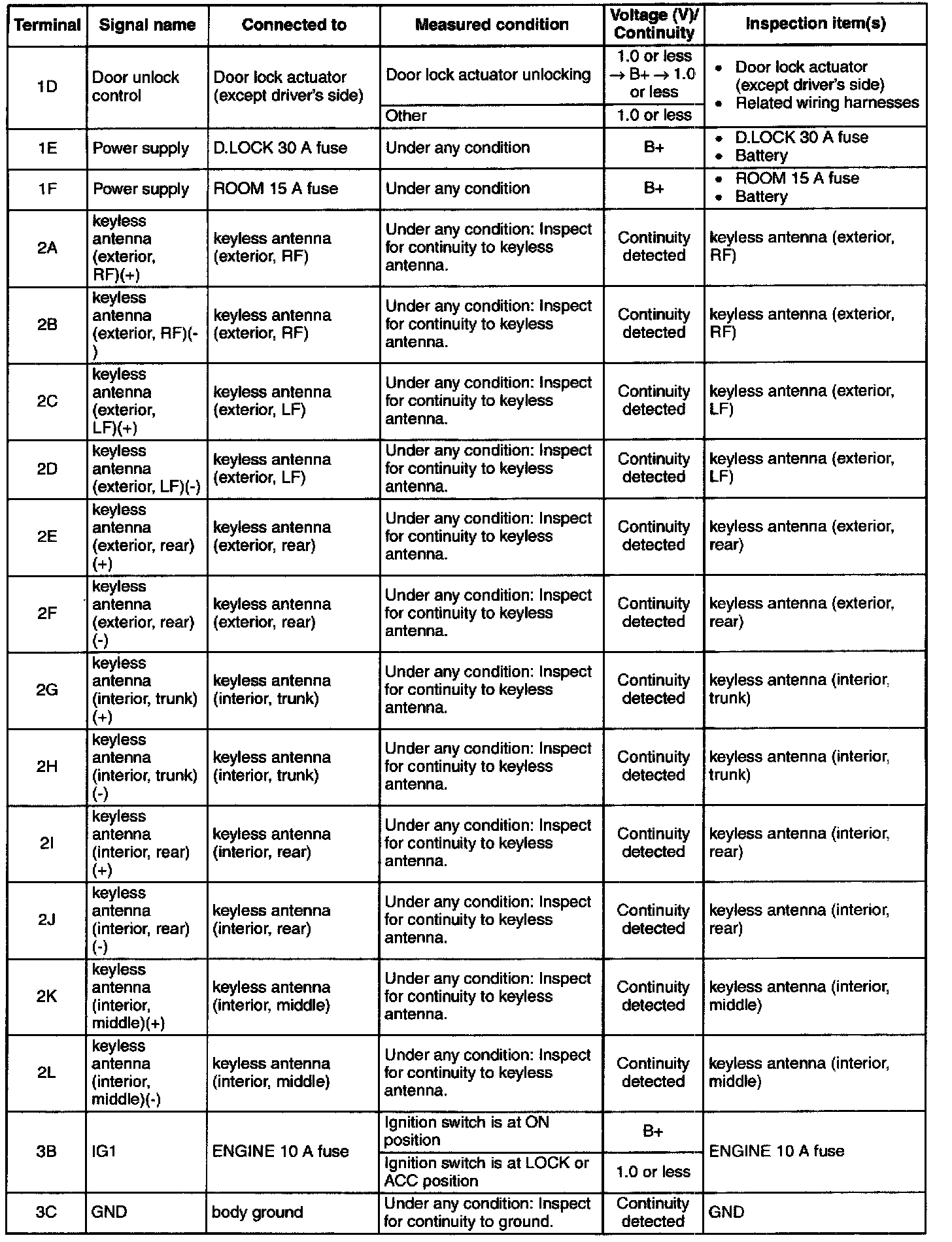

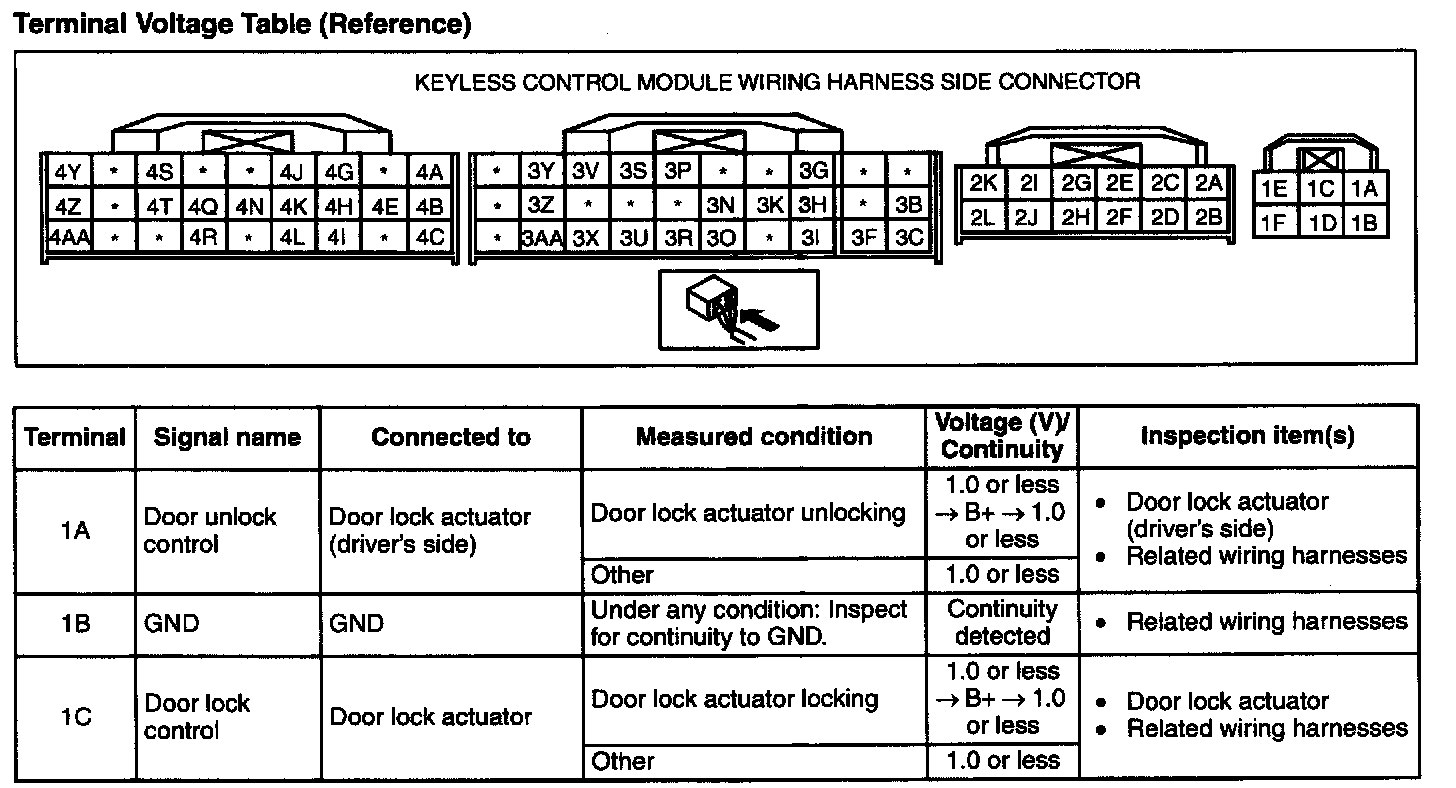

Terminal Voltag Table (Reference) Part 1:

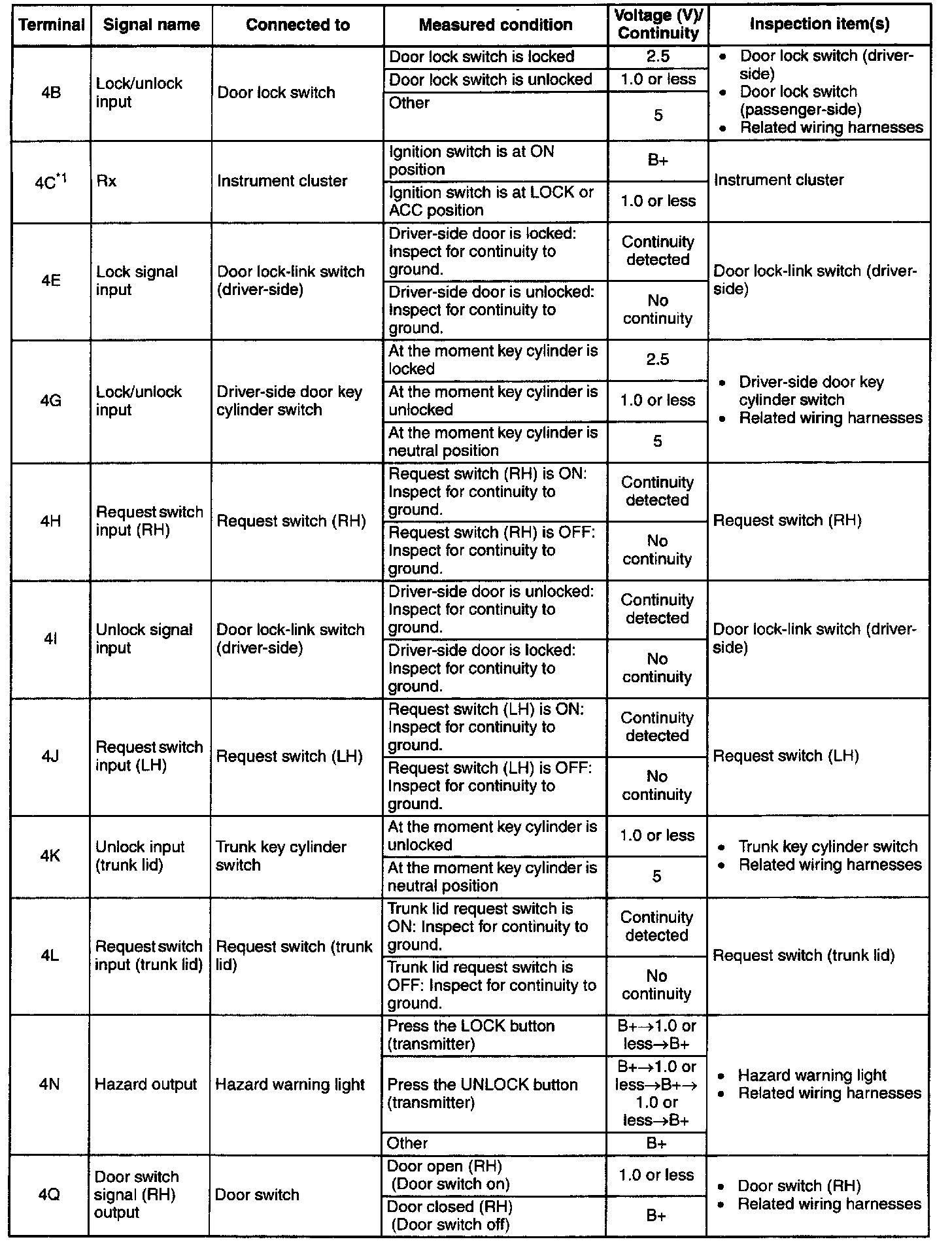

Terminal Voltage Table (Reference) Part 2:

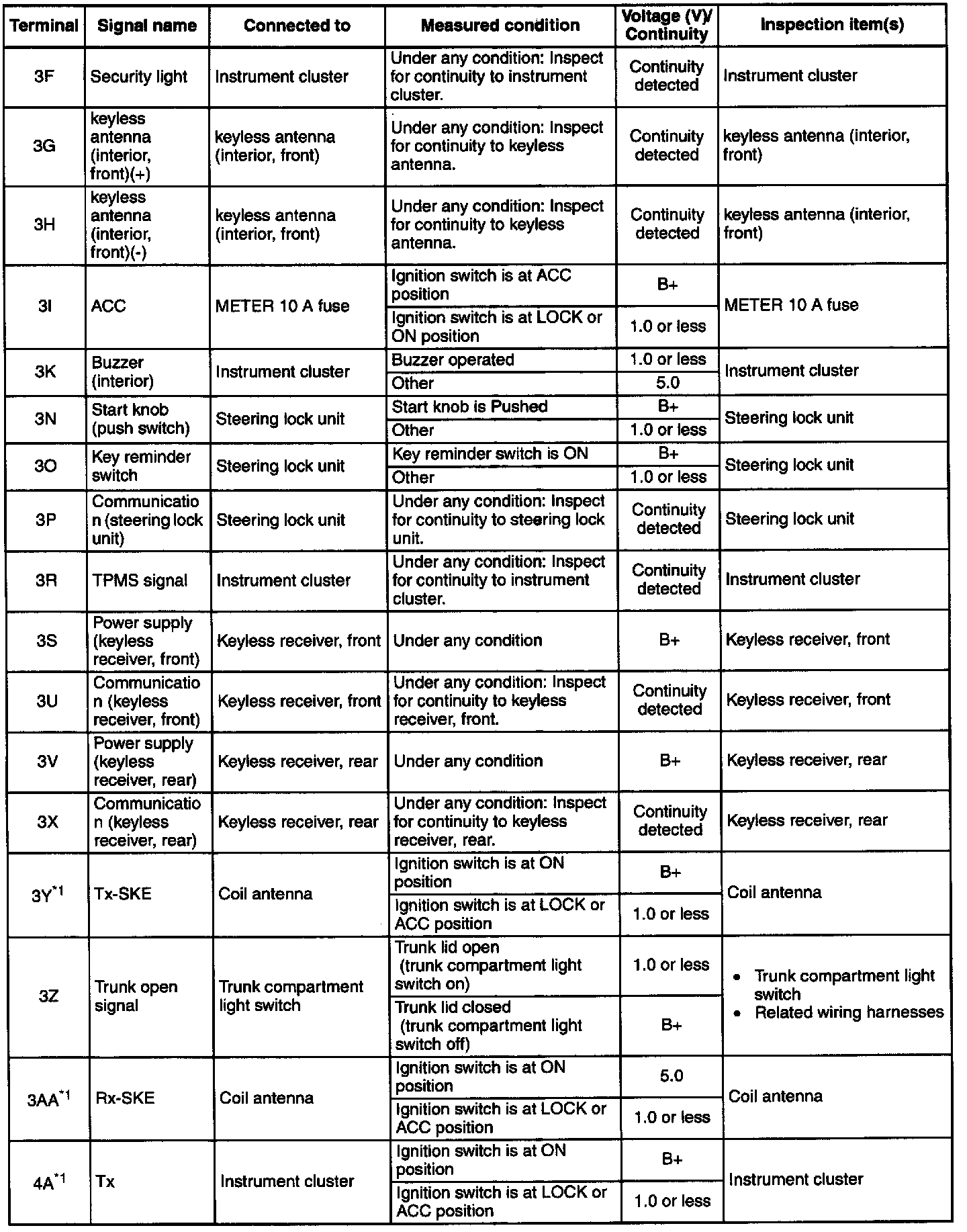

Terminal Voltage Table (Reference) Part 3:

Terminal Voltage Table (Reference) Part 4:

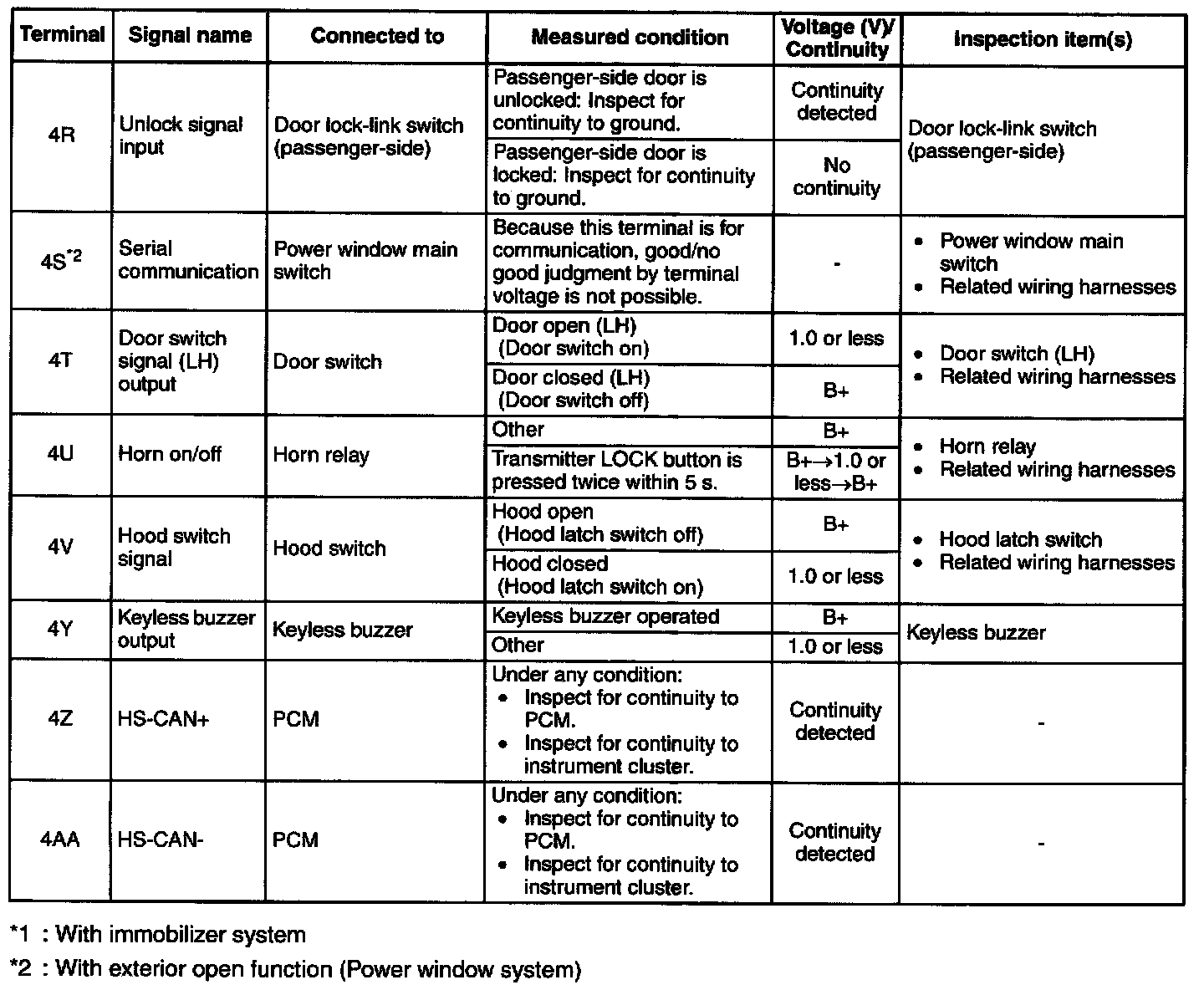

Terminal Voltage Table (Reference) Part 5:

1. Measure the voltage or inspect for continuity according to the Terminal Voltage Table (Reference).
- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)" and related wiring harnesses.
