Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly

Differential Assembly

DRIVELINE/AXLE TECHNICAL DATA

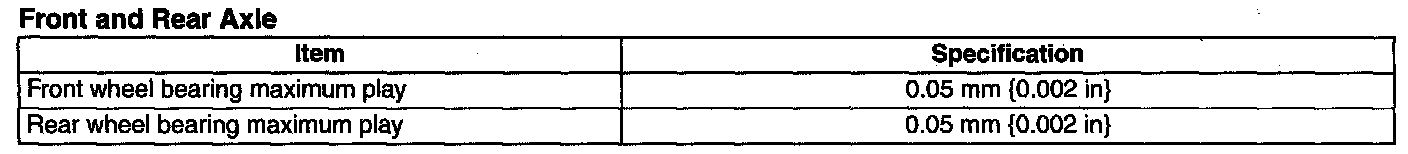

Front And Rear Axle:

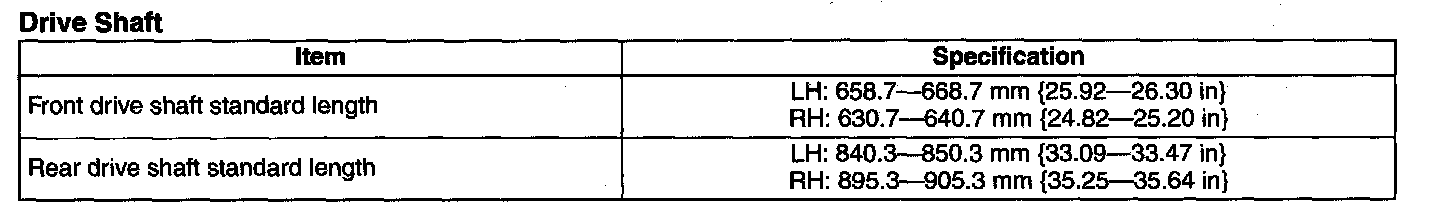

Drive Shaft:




Differential:

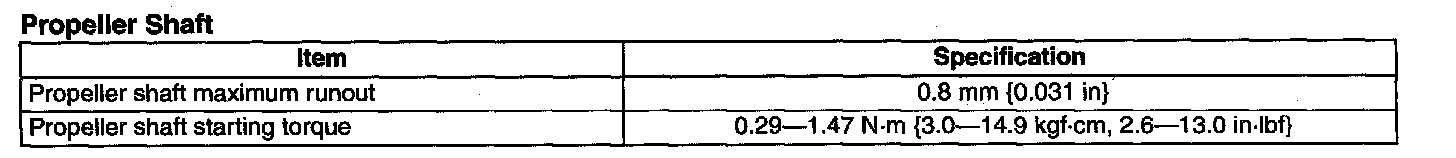

Propeller Shaft:
