Front

FRONT CLIMATE CONTROL UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the following parts.
1. Decoration panel
2. Front console box mat
3. Indicator panel
4. Front console box
5. Center Panel

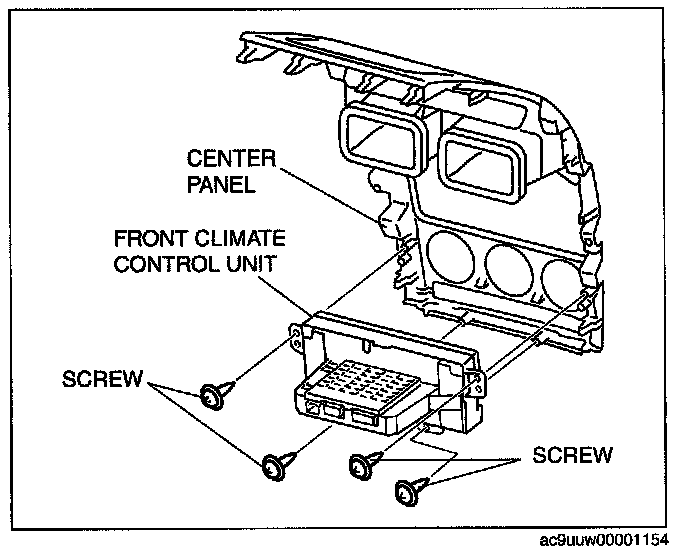

3. Remove the screws.
4. Remove the front climate control unit.
5. Install in the reverse order of removal.
